Expert Windshield Replacement for the Land Rover LR3 (Discovery 3) 2005-2009
The Land Rover LR3, globally recognized as the Discovery 3, built between 2005 and 2009, is an iconic overlanding powerhouse and a pinnacle of rugged luxury. Its massive, steeply raked "command driving" windshield offers unparalleled panoramic views of both sprawling cityscapes and unforgiving off-road trails. However, this upright, boxy architectural design also acts as a giant sail, making the LR3’s front glass highly susceptible to absorbing direct impacts from highway rock chips, gravel, and flying debris. When that inevitable spiderweb crack breaches your line of sight, you need more than just a quick fix—you need a Master Technician who understands the heavy-duty engineering of a Land Rover.
Replacing the windshield on a 2005-2009 Land Rover LR3 is a complex, highly technical procedure. These vehicles frequently feature integrated rain sensors, automatic light sensors, and thick, specialized heated glass elements designed to melt away Canadian winter ice. Handling this intricate technology requires extreme precision, superior materials, and an intimate understanding of British automotive engineering.
Premium Local SEO Mobile Service Across the Greater Toronto Area (GTA)
Driving with a compromised windshield is a major safety hazard, especially given the unpredictable weather and dense traffic conditions in Ontario. That is why we bring our specialized automotive glass repair shop directly to your driveway. We provide comprehensive, fully equipped mobile auto glass services across the Greater Toronto Area (GTA), with dedicated, rapid-response routes specifically highlighting Vaughan, Richmond Hill, and Markham.
Whether you have suffered a severe stone impact while commuting down Highway 400 in Vaughan, discovered a spreading stress crack in a Richmond Hill parking lot, or need a full glass overhaul at your home in Markham, our mobile units arrive fully stocked. We carry the exact OEM-equivalent heated and sensor-equipped windshields required for your specific LR3 trim level, ensuring you never have to compromise your schedule to achieve factory-grade safety.
Master Technician Breakdown: The A-to-Z Windshield Replacement Process
At AlexWindshield, we do not cut corners. As a Senior SEO Specialist and Master Technician, I ensure that every single installation strictly adheres to Federal Motor Vehicle Safety Standards (FMVSS). The windshield of your LR3 provides up to 30% of the vehicle’s structural integrity during a rollover accident and acts as the backstop for passenger-side airbag deployment. Here is our rigorous, step-by-step technical process for replacing the Land Rover LR3 windshield.
Step 1: Pre-Inspection and Protecting the Interior
Before any tools touch your vehicle, a comprehensive pre-inspection is conducted to test the existing rain sensors, wiper mechanics, and heated glass electrical connectors. Once documented, we begin our strict interior and exterior protection protocols:
- Dashboard and Defroster Protection: We lay down thick, protective drop cloths across the entire dashboard to prevent any glass shards, debris, or chemical drips from entering the defroster vents.
- Steering Wheel and Seat Covers: High-grade protective covers are placed over the premium leather steering wheel and the driver and passenger seats.
- Exterior Taping: We apply protective automotive tape to the vehicle's paint around the A-pillars and roofline to guarantee zero scratches during the removal process.
Step 2: Careful Removal of Exterior Trims and the Wiper Cowl
The LR3 features notoriously robust but aging plastic trims. We carefully unbolt the heavy-duty wiper arms and extract the plastic wiper cowl at the base of the windshield. We then use specialized nylon pry tools to safely disengage the clips holding the thick A-pillar moldings. Disconnecting the wiring harnesses for the heated windshield elements (usually located at the lower corners) is done with immense care to preserve the vehicle’s factory wiring.
Step 3: Extracting the Damaged Windshield
To break the factory polyurethane seal, we utilize an advanced wire-out or fiber-line cutting system. Unlike outdated cold knives that can easily slip and gouge a vehicle's pinch weld, the fiber-line system wraps around the perimeter of the glass, cleanly slicing through the hardened urethane adhesive from the inside out. Once the seal is completely severed, two technicians use heavy-duty vacuum suction cups to lift the heavy, damaged glass away from the Land Rover’s frame safely.
Step 4: Pinch Weld Cleaning and Surface Preparation
This is arguably the most critical step for ensuring a leak-proof seal. The "pinch weld" is the metal frame where the glass sits. We perform a precision "full cut," trimming the old urethane adhesive down to a perfectly flat 1-2 millimeter base. This provides the optimal substrate for the new adhesive to bond with.
- Vacuuming: We thoroughly vacuum the entire pinch weld and cowl area to remove all dirt, pine needles, and dust.
- Surface Cleaning: We wipe the area with an alcohol-based, lint-free cleaner to remove any remaining oils or greases.
- Anti-Corrosion Treatment: If any bare metal is exposed during the trimming process, we meticulously apply a specialized anti-corrosion primer. Rust on the pinch weld is the leading cause of future windshield leaks, and our process guarantees the metal remains pristine and protected.
Step 5: Primer Application and Urethane Adhesive Extrusion
We prepare the inner frit band (the black painted edge) of the brand new LR3 windshield by applying a specialized glass prep and black glass primer. This primer promotes maximum chemical adhesion and protects the urethane from UV light degradation. Next, using a high-powered electric caulking gun equipped with a precise V-notch nozzle, we extrude a continuous, uniform triangular bead of high-quality, fast-curing automotive urethane adhesive around the perimeter of the glass. This premium adhesive ensures a safe drive-away time in as little as 30 to 60 minutes.

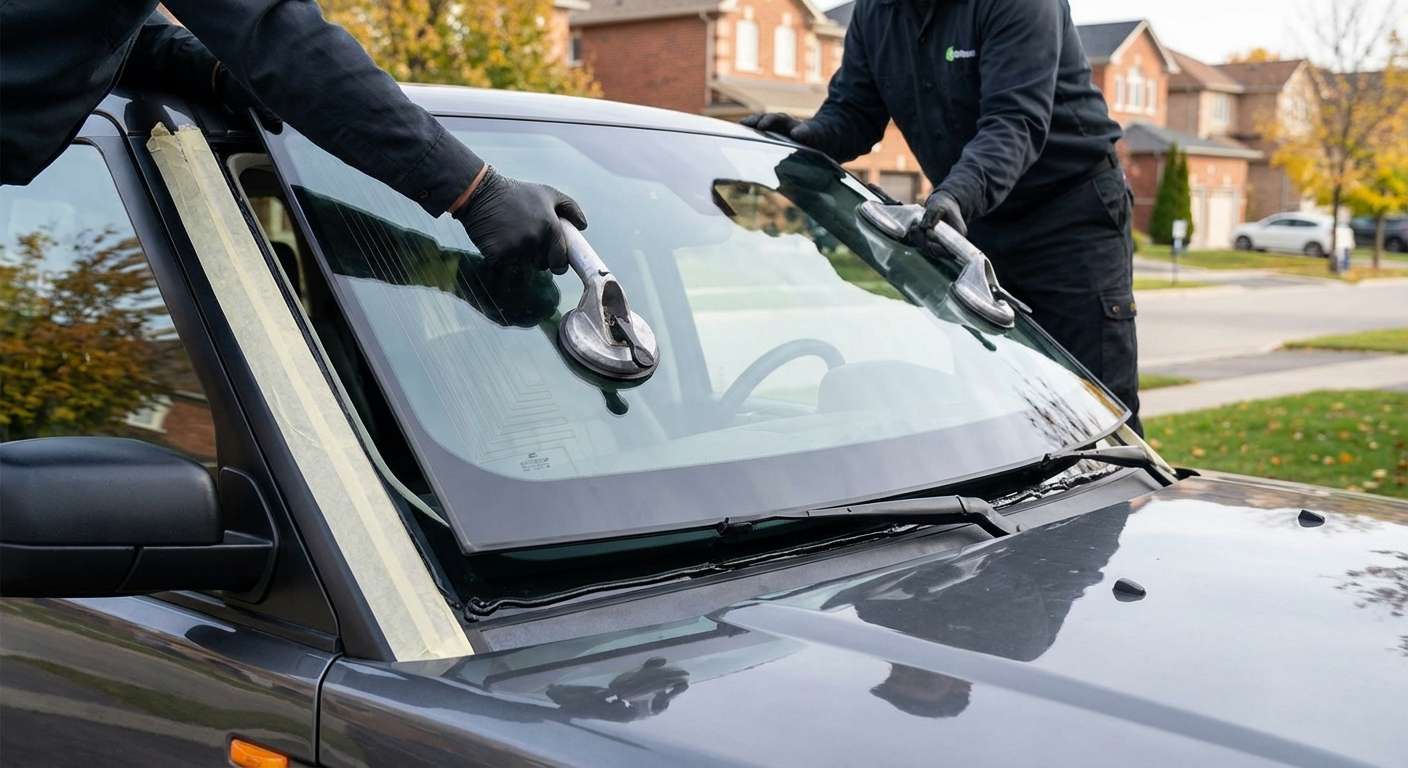

Step 6: Precision Installation of the New Glass
Handling the oversized, heavy windshield of an LR3 requires exact timing and synchronization. Using suction lifting tools, we carefully lower the new glass into the fresh urethane bead. We apply gentle, even pressure to ensure the glass beds perfectly into the adhesive, creating a watertight, factory-grade seal. We immediately reconnect the heated windshield wiring harnesses and secure the rain sensor brackets.
Step 7: Reassembly and Clean-Up
With the new glass perfectly set, we meticulously reassemble the vehicle. The A-pillar moldings are snapped back into their retainers, the wiper cowl is reinstalled, and the wiper arms are bolted down and perfectly aligned to their factory resting positions. Finally, we remove all protective interior covers, clean the new windshield with a streak-free automotive glass cleaner, and vacuum the floorboards to ensure the cabin is returned to you in immaculate condition.
Mandatory ADAS Camera Calibration Process
When replacing a windshield on any vehicle equipped with modern safety technology, we must emphasize the mandatory ADAS (Advanced Driver Assistance Systems) camera calibration process. While the 2005-2009 LR3 relies heavily on integrated rain/light sensors, any forward-facing optics or upgraded driver assistance systems tied to the windshield glass require absolute precision alignment.
If the windshield features mounting brackets for forward-facing safety cameras or optical sensors, replacing the glass subtly shifts the camera's original resting angle by a fraction of a millimeter. Without professional calibration, systems that control automatic emergency braking, lane departure warnings, and adaptive lighting can fail or miscalculate distances, putting you and your passengers in severe danger.
At AlexWindshield, our master technicians utilize state-of-the-art diagnostic computers and specialized laser-guided target boards to perform precision ADAS calibration. We communicate directly with your Land Rover's onboard computer to reset and realign the optical sensors, ensuring that every safety system and rain-sensing wiper functions flawlessly before we hand you back the keys. Your safety is our absolute priority, and calibration is never an optional add-on—it is a mandatory step in our windshield replacement protocol.
Understanding the Land Rover Heated Windshield
A signature feature of the Land Rover LR3 in colder climates like the GTA is the heated front windshield. If you look closely at your glass, you will see hundreds of microscopic zig-zagging tungsten wires embedded between the layers of the safety laminate. When you trigger your defroster on a freezing morning in Markham or Vaughan, an electrical current runs through these wires, rapidly melting thick ice and snow.
When you hire AlexWindshield, we guarantee the use of OEM-equivalent glass that fully supports this complex heating grid. We test the electrical current before and after the installation to ensure that your new windshield integrates seamlessly with your LR3's climate control system, leaving you fully prepared to tackle harsh Canadian winters.
Choose AlexWindshield: The Auto Glass Experts in the GTA
Your Land Rover LR3 (Discovery 3) is a masterclass in automotive engineering, and it deserves to be serviced by technicians who share a passion for uncompromising quality. Do not trust your safety and your vehicle’s structural integrity to just anyone. AlexWindshield is recognized as the trusted expert for mobile auto glass services throughout the Greater Toronto Area (GTA).
Whether you are located in the bustling neighborhoods of Vaughan, the quiet suburban streets of Richmond Hill, or the commercial hubs of Markham, our specialized mobile auto glass clinics come directly to you. We stand behind our exceptional craftsmanship, premium urethanes, and top-tier glass with an industry-leading Lifetime Warranty against leaks, wind noise, and manufacturer defects.
Restore the safety, clarity, and rugged luxury of your 2005-2009 Land Rover LR3 today. Contact AlexWindshield to schedule your mobile windshield replacement and experience the ultimate standard in auto glass repair.
