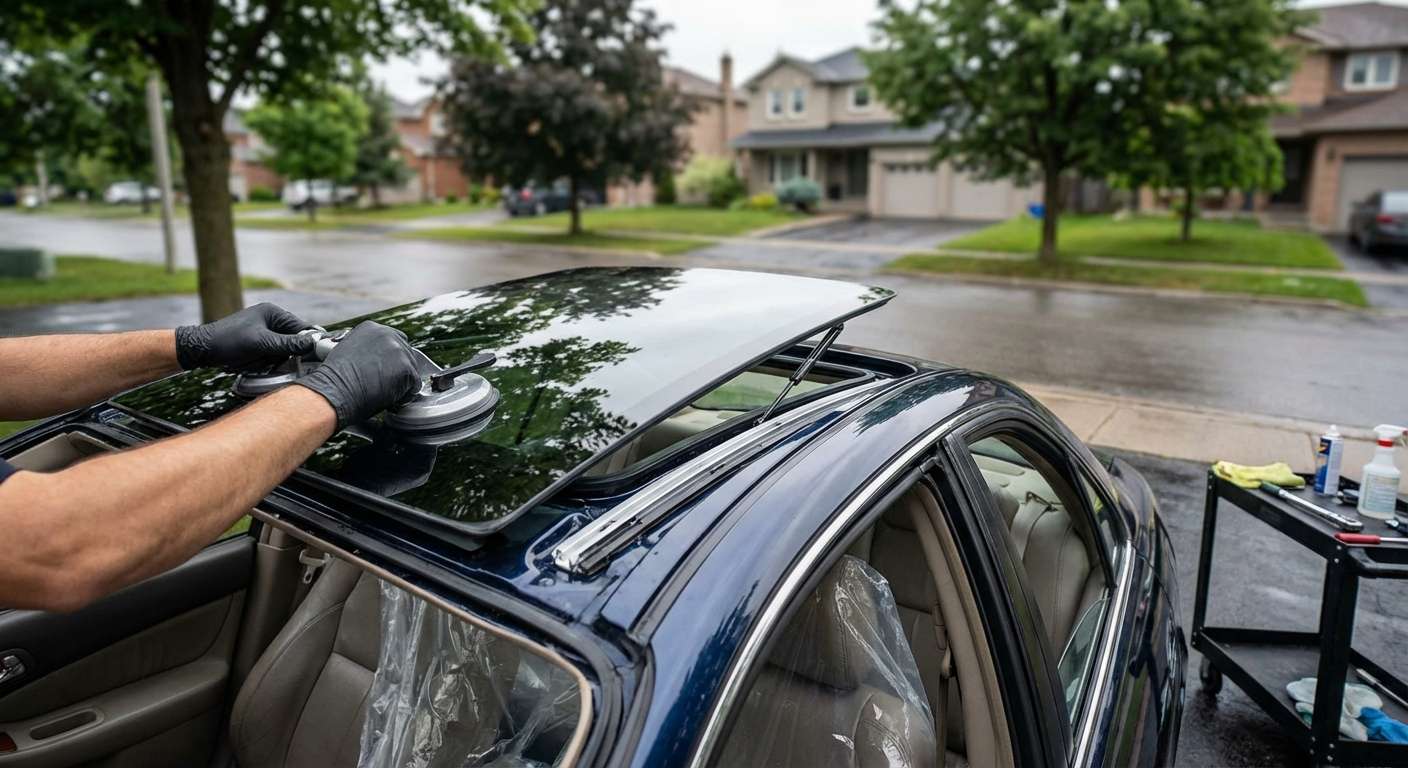

Restoring the Crown of Your Legend: Sunroof Replacement for Acura TL (1999-2003)
The Second Generation Acura TL (1999–2003) stands as a definitive era for Japanese luxury sedans, combining VTEC performance with a timeless aesthetic. However, even these resilient machines are not immune to the ravages of time and the unpredictability of the road. There is nothing quite as disheartening for a TL owner as looking up to see a cracked, shattered, or leaking sunroof. Unlike a simple door ding, a compromised sunroof threatens the very integrity of your vehicle's interior, exposing your leather seats and electronics to the elements. At AlexWindshield, we understand that your Acura TL is more than just a car; it is a meticulously engineered driving experience that deserves precise, expert care.
Whether your sunroof has shattered due to impact or the seal has failed due to age, replacing the glass on a 1999-2003 Acura TL requires a specialized touch. This is not a standard windshield replacement; it is a complex mechanical integration that demands a Master Technician's expertise. We provide comprehensive mobile auto glass services across the Greater Toronto Area (GTA), ensuring that whether you are in Vaughan, Richmond Hill, or Markham, your vehicle receives factory-grade restoration right in your driveway.
Why Sunroof Replacement is Critical for the Acura TL
The sunroof on the UA5 chassis (Acura TL 99-03) is a tempered glass unit designed to shatter into thousands of small, granular chunks upon impact to prevent severe injury. While this is a safety feature, it creates an immediate crisis for the vehicle owner. Delaying replacement or attempting a DIY fix with plastic wrap is not a viable solution.
Driving with a compromised sunroof poses severe risks:
- Water Infiltration: The Acura TL’s electronics, particularly the navigation and audio systems found in the 2000-2003 models, are highly susceptible to water damage. A broken sunroof allows rain to permeate the headliner, leading to mold and electrical shorts.
- Aerodynamic Drag and Noise: A shattered or misaligned sunroof ruins the acoustic insulation of the cabin, creating unbearable wind noise at highway speeds.
- Theft Risk: A broken sunroof is an open invitation to thieves, bypassing the security of door locks.
Mobile Service Coverage: We Come to You
We recognize that driving a vehicle with a shattered sunroof is dangerous and often impossible if the weather is poor. AlexWindshield offers a fully equipped mobile service fleet. We bring the shop to you.
Our service areas include specific focus on:
- Vaughan: From Kleinburg to Woodbridge, our technicians can perform complex sunroof replacements on-site.
- Richmond Hill: We service all neighborhoods, ensuring your Acura TL is sealed and secure without you needing to visit a garage.
- Markham: Whether you are near Unionville or Cornell, our mobile units are ready to deploy.
- Greater Toronto Area: We cover the extensive GTA region with prompt, reliable scheduling.
The AlexWindshield Technical Process: Step-by-Step Replacement
Replacing the sunroof on an Acura TL (1999-2003) is a meticulous process involving interior trim removal, mechanical alignment, and rigorous cleaning. As Master Technicians, we follow a strict protocol to ensure the new glass functions as smoothly as the day the car rolled off the assembly line.
Step 1: Site Preparation and Interior Protection
Before we touch the glass, we protect the car. Sunroof replacement is messy work. We begin by applying protective coverings to the front seats, dashboard, and center console. This prevents any debris or tools from scratching your leather or trim. We also mask the roof area surrounding the sunroof opening to protect the paint from accidental abrasion during the removal process.
Step 2: Debris Management and Safety Cleanup
If the sunroof has shattered, the interior will be covered in tempered glass shards. This is the most critical cleanup stage.
- We utilize industrial-grade vacuums to remove glass from the seats, carpets, and floor mats.
- Crucially, we vacuum the headliner. Glass shards often get trapped between the roof metal and the fabric headliner; if left behind, they will rattle indefinitely.
- We carefully inspect and vacuum the sunroof track mechanism. Even a single shard of glass left in the track can destroy the motor or cause the new glass to bind and shatter again.
Step 3: Disassembly of Interior Components
To access the mounting hardware for the 1999-2003 Acura TL sunroof, we must manipulate the interior trim.
- We carefully remove the "accordion" side covers that hide the mechanism when the roof is tilted.
- In some instances, we may need to partially lower the overhead console or sun visors to gain better access to the frame bolts without creasing the headliner.
- We disconnect the negative battery terminal if we need to work near the map light wiring to prevent short circuits.
Step 4: Removal of the Damaged Assembly
The glass panel on the Acura TL is bolted to the sliding mechanism.
- We locate the four primary Torx or Hex bolts (two on each side) that secure the glass frame to the track.
- Using specialized tools, we remove these fasteners, ensuring we do not strip the aging threads typical of a vehicle from this era.
- The damaged glass frame is carefully lifted out of the roof opening.
- We perform a secondary cleaning of the metal flange and the rubber weather seal area to remove any old adhesive residue or dirt buildup that could prevent a watertight seal.
Step 5: Mechanism Maintenance
Before installing the new glass, we perform a complimentary service on the sunroof mechanism. We clean the guide rails and apply a high-quality, non-corrosive lithium grease or silicone lubricant. This ensures the new glass glides effortlessly and reduces strain on the aging sunroof motor.
Step 6: Installation of the New Glass
We use only OEM-quality glass that matches the tint and curvature of the original Acura specifications.
- The new glass panel is positioned into the roof opening.
- We hand-thread the mounting bolts to ensure proper thread engagement.
- Alignment is key: Before tightening, we adjust the glass height. The front of the glass must be set slightly lower than the roofline (about 1mm), and the rear slightly higher (about 1mm). This specific aerodynamic alignment reduces wind noise and prevents water from being forced under the seal at high speeds.
- Once aligned, we torque the bolts to manufacturer specifications.
Step 7: Water Management Check
The Acura TL relies on four drain tubes located at the corners of the sunroof assembly to channel water away.
- We test these drains by pouring water into the tray and ensuring it exits under the vehicle.
- If a drain is clogged (common in older vehicles), we use compressed air or a flexible snake tool to clear the blockage. This prevents water from backing up and leaking into the cabin after the new glass is installed.
Step 8: Final Reassembly and Calibration
We reinstall the side accordion covers and any interior trim that was removed. We then reconnect the battery and perform a full cycle test—opening, closing, and tilting the sunroof to ensure the motor limit switches recognize the new glass position. Finally, we perform one last vacuum of the interior to ensure no glass shards remain.
The Importance of Professional Installation
Attempting to replace an Acura TL sunroof yourself or using an inexperienced shop can lead to disastrous results. The 1999-2003 models are now "modern classics," meaning parts must be handled with care to avoid breaking brittle plastic clips or stripping rusted bolts.
Improper installation often results in:
- Leaking Seals: If the glass is not centered perfectly, the rubber gasket will not seal against the roof, leading to wet floorboards.
- Motor Failure: If the glass is not shimmed correctly, it creates drag on the motor, leading to premature failure of the drive cables.
- Wind Noise: Even a millimeter of misalignment can create a whistling sound that ruins the luxury driving experience.
Why Choose AlexWindshield?
At AlexWindshield, we don't just replace glass; we restore safety and comfort. Our technicians are trained specifically on the nuances of older luxury vehicles like the Acura TL. We use high-quality materials, from the glass itself to the lubricants used on the tracks.
Our Commitment to You:
- Lifetime Warranty: We stand behind our workmanship. Our installation comes with a lifetime warranty against leaks and wind noise for as long as you own the vehicle.
- Same-Day Service: In many cases, we can get you back on the road the very same day.
- Direct Insurance Billing: We handle the paperwork with your insurance company, making the process stress-free.
Don't let a broken sunroof compromise your Acura TL. Trust the experts who know your car inside and out. For reliable, mobile sunroof replacement in Vaughan, Richmond Hill, Markham, and the entire GTA, contact AlexWindshield today.
Call us now to schedule your appointment and experience the AlexWindshield difference.
