Rear Quarter Window Construction on the Discovery 5
The rear quarter window on the Discovery 5 (built on the aluminum L462 platform) is a fixed pane that fills the space between the rear door and the trailing edge of the cargo bay. Because it is completely static, it does not use a window regulator, internal division bar, or drop-down mechanics. Instead, the glass is bonded directly to the structural aperture with a continuous bead of high-modulus urethane concealed behind a baked black ceramic frit perimeter that stops ultraviolet light from degrading the bond line.
Depending on the factory option package, the panel is produced either with a light green solar tint or deep privacy glass. Land Rover uses dealer reference numbers like LR083200 (superseded by LR099662) for the left rear side and LR177838 for complete window assemblies. The glass perimeter includes built-in factory alignment locators to ensure the pane aligns flush with the vehicle's body profile. Once the glass is removed, these alignment pins cannot be reused, meaning replacement glass with fresh locators must be fitted to match factory panel gaps.
Differentiating Pillar Water Leaks from Quarter Glass Failure
While Discovery 5 owners often deal with front windshield bonding failures that leak water onto the dash and interior footwells, the rear quarter window rarely suffers from adhesive separation. When water collects behind the cargo side trim or under the third-row seats, the quarter window seal is almost always blamed in error.
In most cases, water inside the rear pillars originates from the panoramic sunroof's rear water runoff lines. The drain hoses route down past the C-pillar and D-pillar near the quarter panel mounting flange; if the tube slips off its lower connector or clogs with road silt, water spills down the interior sheet metal and pools on the cargo deck right beneath the glass. True quarter glass failure is usually limited to physical impacts, stress cracks, or shattered glass rather than adhesive degradation.
| Component / Trim Item | Part Reference | Function Around Quarter Window |
|---|---|---|
| Quarter Window (Left) | LR099662 | Fixed privacy/solar glass bonded to rear body pillar |
| Upper Drip Molding Clip | LR114293 | Anchors exterior upper water runner above the glass |
| Interior Pillar Clips | LR028939 | Fastens D-pillar and cargo trim surrounding the pinchweld |
Interior Trim Disassembly and Hardware Details
Replacing this window requires access to the interior pinchweld flange, which means the third-row cabin area must be carefully taken apart. The interior D-pillar molding, the upper seatbelt anchors, the C-pillar trim, and the lower rear cargo quarter panels all overlap the flange area. These interior components are anchored by plastic retainers (part number LR028939) that are prone to snapping during removal due to the tight retention force Land Rover specifies for body panels.

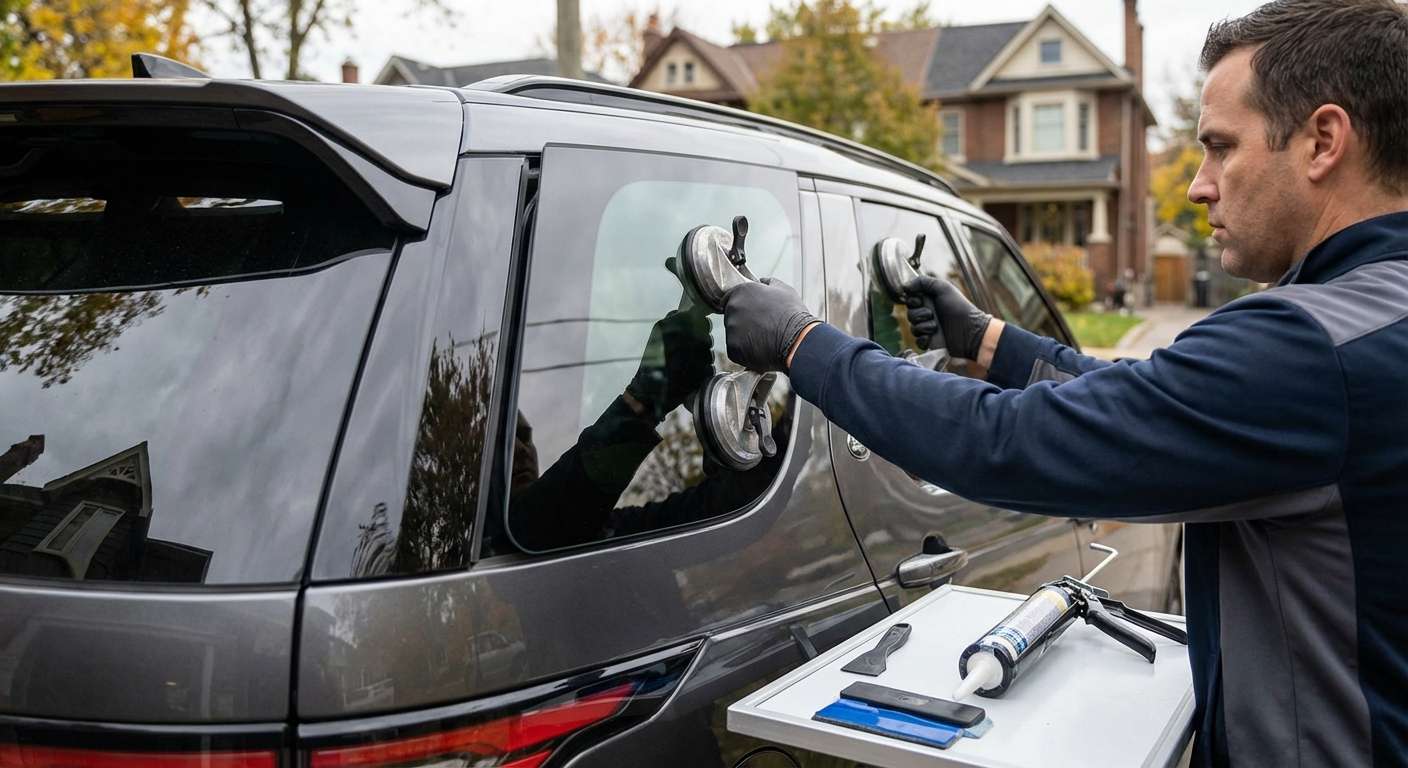

I operate entirely as a mobile service, driving directly to your home or office across Toronto and the GTA to replace the damaged glass on site without you having to drop the truck off. On the vehicle's exterior, the upper edge of the quarter window sits tight against a drip molding runner anchored with clip LR114293. This molding must be disengaged cleanly to avoid bending the aluminum track or scratching the clear coat above the glass recess.
