The Ultimate Sunroof Replacement Guide for Your Land Rover Defender L663 (2020-2027)
When you pilot a Land Rover Defender 90, 110, or 130 (2020-2027 L663 generation), you are commanding a masterclass in modern off-road engineering blended with unparalleled luxury. A defining feature of this iconic vehicle's cabin is its expansive panoramic sunroof, which floods the interior with natural light and connects you to the great outdoors. However, whether from an errant rock on a remote trail, a falling branch, or extreme thermal stress, a shattered or cracked Defender sunroof instantly compromises your driving experience, interior security, and climate control. Because the L663 architecture integrates complex electronic tracks and bonded structural glass, replacing this panoramic unit requires the precision of a Master Technician.
At AlexWindshield, we specialize in luxury and utility vehicle glass restoration. We understand that your Defender is more than just an SUV; it is an investment in capability and comfort. A compromised sunroof not only threatens the pristine interior of your Defender but also risks severe water ingress and electrical damage if not addressed immediately. This guide provides a comprehensive, transparent look into our specialized replacement process for the Land Rover Defender L663 panoramic sunroof.
Understanding the Defender 90/110/130 Panoramic Roof System
The Land Rover Defender (2020-2027) features a highly sophisticated panoramic sunroof assembly. Depending on whether you drive the two-door 90, the standard four-door 110, or the extended-wheelbase 130, the roof structure varies slightly, but the core sunroof components remain consistent. The system is comprised of an active sliding front glass panel, a fixed rear glass panel, intricate drainage channels, motorized sunshades, and a bonded structural cassette.
Replacing this glass is not a simple bolt-on affair. The stationary sections of the panoramic roof, as well as the main cassette frame, are bonded directly to the vehicle's body to provide structural rigidity. Therefore, the replacement involves complex cut-outs, precise urethane adhesive application, and exact OEM-spec alignments to ensure the vehicle retains its structural integrity, acoustic insulation, and weatherproof seal.
Step-by-Step Sunroof Replacement Process for the Defender L663
As a Master Technician at AlexWindshield, I adhere to a strict, rigorous protocol to ensure your Land Rover is restored to factory standards. Here is our detailed, A-to-Z process for replacing your panoramic sunroof.
Step 1: Pre-Installation Inspection and Interior Protection
The Land Rover Defender boasts a premium interior that must be rigorously protected during the replacement process. Before any tools are utilized, our technicians conduct a thorough inspection of the damage and the surrounding roof structure.
- Paint Protection: We apply automotive-grade protective tape along the roofline, A-pillars, and C-pillars to prevent any accidental scratches to your vehicle's paintwork.
- Interior Shielding: We drape heavy-duty, protective drop cloths over the leather or robust woven textile seats, the center console, and the dashboard.
- Headliner Assessment: We inspect the suede or woven headliner for any damage or staining from potential water leaks prior to our arrival.
Step 2: Meticulous Vacuuming of Broken Glass Shards
Because panoramic sunroofs are typically made from tempered glass, a break usually results in thousands of tiny, sharp cubes raining down into the cabin. Just as we would handle a shattered back or door glass, managing this debris is a critical step.
- Track Extraction: We use specialized micro-attachments to vacuum all broken glass shards out of the delicate sunroof sliding tracks. Even a single shard left behind can destroy the sunroof motor gears or gouge the track upon operation.
- Interior Detailing: We thoroughly vacuum the vehicle's interior, ensuring no glass is left on the seats, floor mats, or hidden within the crevices of the center console.
- Trim and Panel Removal: If necessary, we carefully drop the overhead console and slightly lower the interior roof trim panels to vacuum out any glass shards that have bounced on top of the headliner, preventing future rattling noises.
Step 3: Hardware Detachment and Old Glass Removal
Once the interior is secure and the debris is cleared, we proceed with the technical removal of the compromised sunroof assembly.
- Component Disassembly: We remove the accordion side trims, wind deflectors, and any retaining screws securing the sliding mechanisms.
- Wire Harness Disconnection: We safely disconnect the electrical connections for the sunroof motor and rain sensors to prevent any electrical shorts.
- Cutting the Bonded Glass: For the bonded sections of the panoramic roof, we utilize specialized cold-knife tools and wire-cutting systems to cleanly slice through the factory urethane, lifting the broken or cracked glass away from the roof frame without stressing the aluminum body of the Defender.
Step 4: Track Cleaning, Drain Inspection, and Surface Preparation
Preparation is the foundation of a watertight seal. The old adhesive must be managed, and the mounting channels must be pristine.
- Pinchweld Trimming: We carefully pare down the old urethane adhesive on the roof's pinchweld to a thin, even layer (about 1-2mm), which serves as an ideal base for the new adhesive to bond to.
- Drain Clearing: The L663 Defender is known to face issues if its sunroof drains clog. We flush and blow compressed air through the front and rear drain tubes to ensure water will flow freely out of the vehicle, rather than pooling and leaking into the cabin.
- Surface Decontamination: We clean the mounting surfaces with an alcohol-based, lint-free preparation solvent to remove any dirt, old grease, or microscopic debris.
Step 5: Primer Application and Urethane Adhesive Extrusion
To guarantee the structural integrity and leak-proof nature of your new panoramic sunroof, we utilize elite chemical bonding agents.
- Primer Application: We apply a premium glass primer to the black ceramic band (frit) of the new sunroof glass, as well as to any exposed bare metal on the vehicle's roof frame. This primer acts as a chemical bridge, promoting a flawless bond and preventing long-term rust formation.
- Adhesive Extrusion: Using an automated caulking gun for perfect consistency, we lay a triangular bead of high-quality, fast-curing urethane adhesive around the perimeter of the sunroof cassette or stationary glass mounting points. This specific adhesive is engineered to meet OEM structural crash-test standards.
Step 6: Precision Installation of the New Sunroof Glass
Handling the massive, heavy glass panels of a Defender 110 or 130 requires absolute precision.

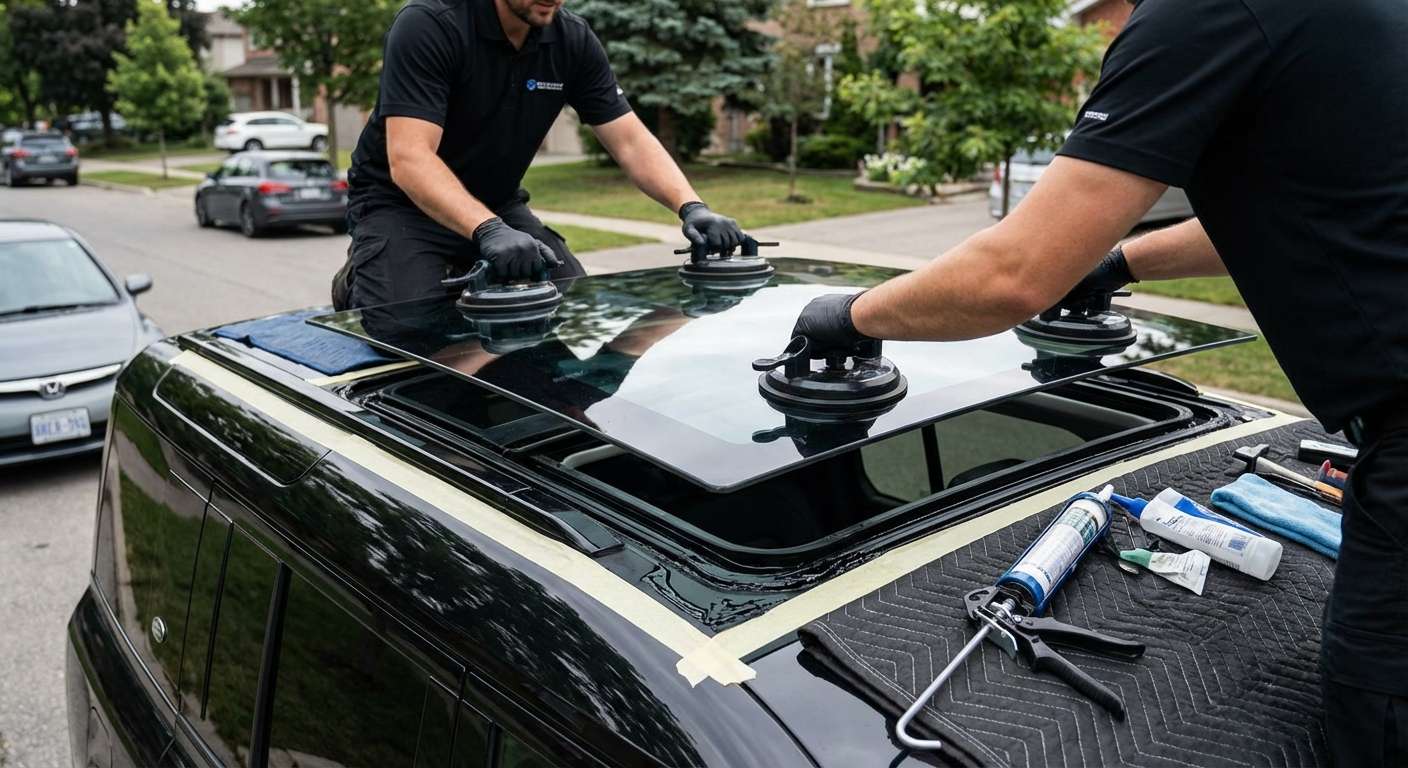

- Glass Placement: Using heavy-duty suction cup handles, two technicians carefully lower the new, OEM-equivalent or genuine Land Rover panoramic glass perfectly into place.
- Flush Alignment: We meticulously measure the gaps to ensure the glass sits perfectly flush with the vehicle's roofline. This is vital to prevent wind noise when driving at highway speeds.
- Hardware Reassembly: We bolt the new sliding glass panel into the calibrated track carriages and reattach the accordion trims and weather stripping.
Step 7: Motor Calibration and Final Quality Testing
Modern vehicles require a software handshake when mechanical components are replaced.
- Sunroof Initialization: We reset and initialize the sunroof motor module. This ensures the anti-pinch safety features function correctly and that the glass stops precisely at its fully closed and fully vented positions.
- Water Leak Testing: We conduct an intensive water test, flooding the roof with water to ensure the high-quality adhesive has created a perfect seal and that the drain tubes are successfully routing water to the ground.
- Final Wipe Down: The new glass is cleaned with a streak-free, ammonia-free glass cleaner, leaving your Defender looking immaculate.
Premier Mobile Auto Glass Services Across the Greater Toronto Area (GTA)
At AlexWindshield, we know that your time is incredibly valuable. Driving an L663 Land Rover Defender means you have places to be, and dealing with a broken sunroof shouldn't force you to sit in a waiting room all day. That is why we offer our top-tier, fully equipped mobile auto glass service directly to your location across the Greater Toronto Area (GTA).
Whether you need a full sunroof replacement while parked in your driveway in Vaughan, require emergency glass clean-up and sealing at your corporate office in Richmond Hill, or want our technicians to visit your home in Markham, we bring the auto glass shop to you. Our mobile service units are climate-controlled and carry the exact tools, primers, and OEM-spec adhesives needed to perform a factory-quality installation no matter where you are in the GTA.
Why AlexWindshield is Your Trusted Defender Glass Expert
Replacing the panoramic roof on a high-end vehicle like the Land Rover Defender 90, 110, or 130 is an intricate technical procedure that leaves no room for error. Trusting this job to inexperienced technicians can lead to persistent wind noise, catastrophic interior water damage, or electrical faults. As a Master Technician, I personally ensure that every step—from the initial taping of your vehicle's paint to the final motor calibration—is executed flawlessly.
When you choose AlexWindshield, you are choosing peace of mind. We stand behind our craftsmanship, our high-quality adhesive materials, and our rigorous safety standards. That is why every sunroof replacement we perform comes backed by our comprehensive Lifetime Warranty against leaks, whistling, and manufacturer defects. For the most reliable, precise, and convenient mobile auto glass service in Vaughan, Richmond Hill, Markham, and the greater GTA, trust the experts at AlexWindshield to get your Land Rover Defender back on the road and ready for your next adventure.
