The J100 Fortress: Restoring Your Lexus LX 470 with Precision Vent Glass Replacement
The 1998-2007 Lexus LX 470—built on the legendary J100 Land Cruiser platform—is celebrated globally as an unbreakable overlanding titan wrapped in an ultra-luxurious cabin. Renowned for its buttery-smooth V8 engine, active height control, and near-silent interior acoustics, this luxury SUV is designed to isolate you from the harshest environments. However, when the vent glass on your LX 470 is shattered by a break-in, trail debris, or an unfortunate accident, that meticulously engineered tranquility is instantly compromised. As a Master Technician at AlexWindshield, I understand that replacing the glass on this premium vehicle requires far more than a simple patch job; it demands exacting precision, specialized tools, and an intricate knowledge of Lexus assembly standards.
Vent glass—often located in the rear doors or the rear quarter panel of your SUV—plays a surprisingly vital role in your vehicle's structural integrity, climate control, and security. Because this glass is tempered, a specialized replacement process is mandatory. We don't just replace the glass; we completely restore your vehicle's security and acoustic perfection.
Why Specialized Vent Glass Replacement is Crucial for Your LX 470
Unlike the laminated safety glass used in front windshields, the vent glass on the 1998-2007 Lexus LX 470 is typically made from tempered glass. When impacted, tempered glass is designed to shatter into thousands of small, blunt cube-like pieces. While this prevents dangerous, sharp shards from causing severe lacerations, it creates an absolute mess within the intricate mechanical cavities of your doors and interior cabin.
Choosing an expert technician for your vent glass replacement ensures:
- Absolute Security: A perfectly sealed vent glass deters thieves who frequently target these smaller windows to access interior door locks.
- Acoustic Integrity: The LX 470 is famous for its quiet ride. Improper installation leads to highly annoying wind whistling and water leaks at highway speeds.
- Mechanical Protection: Failing to properly extract glass shards from the door cavity can severely damage your window regulator cables, audio speakers, and door lock actuators.
- Corrosion Prevention: Correct surface preparation and priming prevent rust from forming on the vehicle's pinch weld, preserving the lifespan of your classic SUV.
The AlexWindshield Master Technician Step-by-Step Replacement Process
At AlexWindshield, we adhere to stringent, factory-level procedures. Below is our comprehensive, A-to-Z technical process for replacing the vent glass on your 1998-2007 Lexus LX 470.
Step 1: Initial Assessment and Meticulous Interior Protection
Before any tools touch your vehicle, we conduct a thorough damage assessment. The LX 470 features premium leather upholstery, genuine wood veneer trims, and thick carpets that must be heavily protected. We lay down heavy-duty, scratch-resistant moving blankets over the seats, center console, and floorboards. We also apply protective automotive tape around the painted exterior window frame to ensure that our tools do not scratch the clear coat during the extraction process.
Step 2: Thorough Glass Shard Removal and Vacuuming
Because vent glass is tempered, the removal of broken glass shards is arguably the most critical and time-consuming step. Thousands of glass cubes often fall down into the door shell and scatter across the interior. We utilize high-powered, industrial shop vacuums equipped with specialized, long-reach micro-crevice nozzles. We meticulously vacuum the vehicle's seats, floor mats, and the entire interior cabin. We then focus our vacuuming efforts deep inside the door cavity, ensuring not a single piece of glass remains to rattle or jam your window mechanisms.
Step 3: Door Panel and Hardware Removal
To access the mounting points and the lower track of the vent glass, the removal of the door panels is absolutely mandatory. Using non-marring nylon pry tools, our technicians carefully detach the LX 470’s wood trim pieces, window switch bezels, and the hidden 10mm retaining bolts. We gently unclip the heavy interior door card, taking extreme care not to break the brittle, decades-old plastic retaining clips. We then disconnect the electrical harnesses for the power locks, windows, and courtesy lights. Finally, we carefully peel back the factory vapor barrier, which gives us unrestricted access to the inner door shell and the vent glass mounting hardware.
Step 4: Frame Preparation, Cleaning, and Priming
With the panel removed and the cavity vacuumed, we turn our attention to the glass frame. First, we remove the dividing bar and weather stripping that holds the vent glass in place. If the specific vent glass model on your LX 470 is urethane-bonded (such as a fixed rear quarter vent), we use precision cold knives and scraper blades to trim the old adhesive down to a thin, 1-2mm base layer.
The bare metal and the pinch weld are then thoroughly cleaned using an industrial-grade, alcohol-based solvent to remove dirt, oils, and moisture. Once completely sanitized, we apply a high-quality, scientifically formulated blackout primer to any exposed metal and the edge of the new vent glass. This primer promotes maximum adhesion and protects the urethane from breaking down due to harsh ultraviolet (UV) exposure.

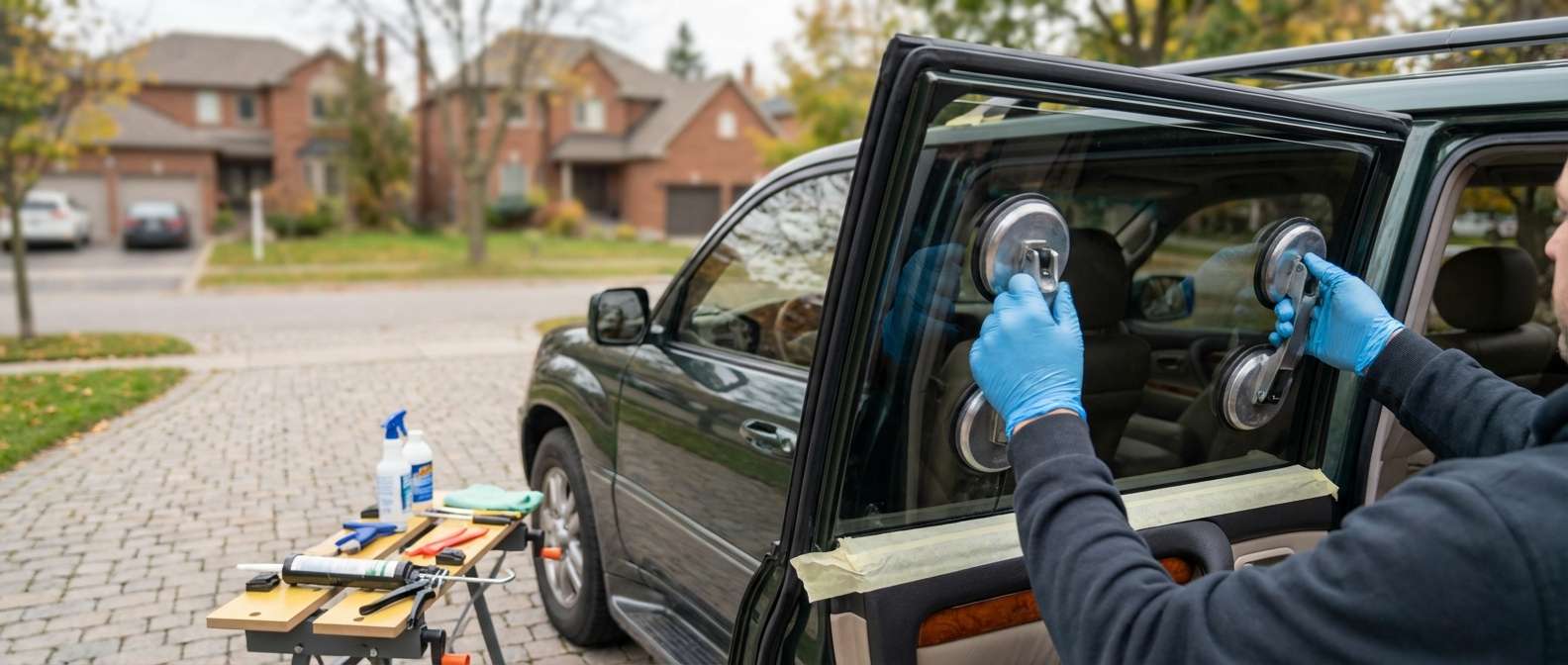

Step 5: High-Quality Adhesive Application and Glass Installation
Once the primer has flashed (dried), we prepare the high-quality adhesive. We exclusively use premium, OEM-grade, fast-curing polyurethane adhesive. Using an electric caulking gun, we extrude a perfect, uniform V-notch bead of urethane along the mounting frame. The new, OEM-quality vent glass is then carefully maneuvered into the frame. We apply precise, even pressure to ensure the glass seats deeply into the adhesive, creating an impenetrable, watertight, and airtight seal. Retention tape is temporarily applied to hold the glass perfectly flush while the urethane undergoes its initial cure.
Step 6: Reassembly and Final Quality Inspection
While the adhesive cures, we begin the reassembly process. We carefully reseal the moisture vapor barrier to prevent water from damaging the interior door card. The door panel is re-hung, all electrical connections are re-established, and the 10mm bolts and wood trim pieces are snapped back into their precise factory locations. We test the power windows and door locks to ensure no glass debris is interfering with the mechanics. Finally, the new vent glass is polished using a streak-free, ammonia-free automotive glass cleaner, leaving your Lexus LX 470 looking as pristine as the day it rolled off the assembly line.
Premium Local Mobile Auto Glass Service Across the GTA
We know that a shattered window compromises the security of your vehicle, making it unsafe to leave parked outdoors or drive in harsh weather. That is why AlexWindshield brings our state-of-the-art auto glass shop directly to your driveway, office, or parking garage. Our premium mobile service covers the entire Greater Toronto Area (GTA).
Whether you need an emergency vent glass replacement at your home in Vaughan, while you are at work in the bustling business sectors of Richmond Hill, or if you are stranded at a shopping plaza in Markham, our fully equipped mobile fleet is ready to deploy. We carry all the necessary power supplies, industrial vacuums, and premium adhesives onboard to perform a flawless, factory-standard replacement no matter where your Lexus LX 470 is parked in the GTA.
Choose AlexWindshield for Your Lexus LX 470
When you drive a classic luxury powerhouse like the 1998-2007 Lexus LX 470, you cannot afford to compromise on replacement parts or technician expertise. At AlexWindshield, we pride ourselves on delivering uncompromising quality, rapid response times, and an unparalleled attention to detail.
We stand behind every single installation with our comprehensive Lifetime Warranty, guaranteeing that your new vent glass will be free from wind noise, water leaks, and manufacturer defects for as long as you own your vehicle. If you are looking for the most trusted, highly skilled mobile auto glass experts in the GTA, look no further. Contact AlexWindshield today to schedule your specialized vent glass replacement, and let us restore the security, silence, and luxury of your Lexus LX 470.
