Acoustic Laminated Side Glass Breakage on the Rear Door
When someone targets the fixed rear door vent glass on this sedan, they usually expect it to pop into pebble-sized tempered shards like older vehicles. Instead, the rear quarter unit remains held together in a fractured spiderweb because Lexus built it with acoustic laminated glass. The factory pane integrates a green UV-reducing solar-control vinyl sheet between two layers of glass under the Lamisafe branding. Thieves often smash the corner thinking it will drop cleanly so they can reach the latch, but the acoustic interlayer keeps the panel hanging in place while fine glass dust sifts down into the door cavity. While the vehicle avoids a completely open cabin, the entire assembly still needs to be extracted and replaced, and the interior door card must come off to clean out the track.

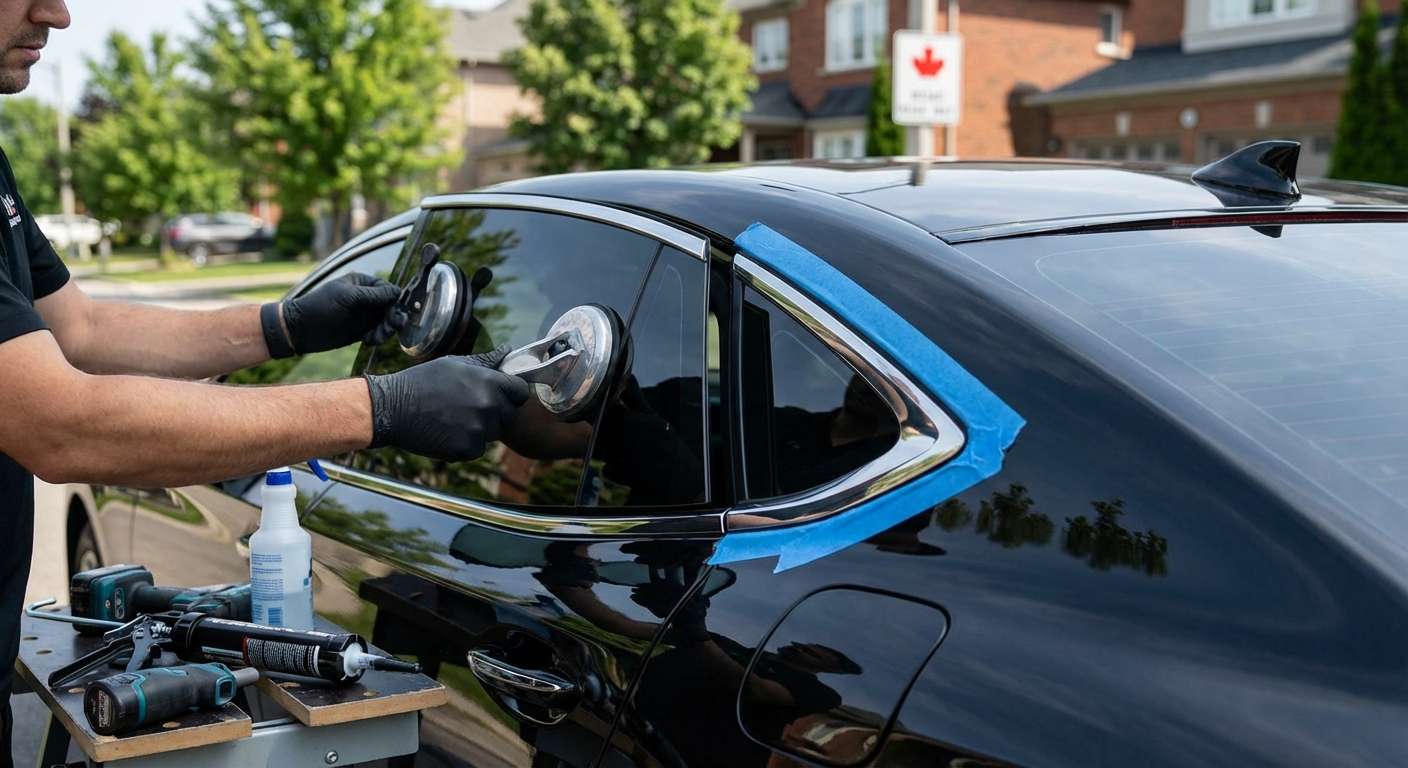

Replacing this rear quarter window requires navigating the hardware tucked beneath the door shell on the XF50 platform. Unlike cars with a bonded body quarter panel, this fixed triangular glass is anchored inside the door frame itself, directly beside the roll-down main door glass. The two are divided by a vertical division bar and a tight rubber run channel assembly. Depending on whether your car has the standard exterior brightwork or the gloss black surrounds found on the F Sport package, the outer mouldings sit extremely tight against the glass edge. When sourcing the replacement, I supply only aftermarket glass from manufacturers such as Pilkington, PGW, XYG, and FYG, matching the required acoustic laminate dampening and solar green tint to keep your cabin sound levels and climate control balanced.
Interior Sunshades and the Division Bar Assembly
The interior architecture behind the rear quarter glass changes depending on how the sedan left the factory. Base configurations carry a standard interior garnish trim along the rear pillar of the door frame. However, models fitted with the Luxury Package or Executive Package incorporate a dedicated motorized power sunshade designed specifically to deploy over that small quarter window aperture. The factory driver-side quarter glass carries dealer part number 68012-50070 when configured for that shade system. If your car has this option, the motorized drive unit and its housing must be carefully separated from the interior door structure before anyone can access the lower division bar fasteners.
Accessing the division bar requires unbolting its bottom anchors inside the door skin so the channel can shift forward. This movement creates the clearance needed to seat the replacement glass into the dedicated rubber run channel seal without tearing the rubber or binding the main window guide. Lexus specifies several one-time use mounting clips and retainers across the door frame trim that must be replaced fresh once disturbed. Because there are no defroster lines, radio antennas, or electronic brackets directly integrated into this quarter panel, the entire fitment comes down to achieving a flush mechanical alignment within the division bar so wind noise does not penetrate the passenger compartment at highway speeds.
