The Lexus GX 460, produced between 2010 and 2023 on the legendary J150 platform, represents the absolute pinnacle of rugged, body-on-frame luxury. As a Master Technician at AlexWindshield, I know firsthand that the rear quarter glass on this specific SUV is far more than just a simple window. It is a heavily contoured, precisely encapsulated pane of structural glass that plays a critical role in the vehicle's cabin acoustics, third-row passenger visibility, and sophisticated aesthetic. When an impact shatters this tempered pane, generic replacement methods simply will not suffice. You require specialized, master-level auto glass expertise to restore your luxury SUV to its exact factory specifications.
Why the Lexus GX 460 Quarter Glass Requires Expert Handling
Unlike standard roll-up door windows, the quarter glass on the 2010-2023 Lexus GX 460 is fixed directly to the vehicle's frame using heavy-duty automotive polyurethane. Furthermore, this specific piece of auto glass features factory-molded encapsulation—a rubber and plastic trim bonded directly to the edge of the glass—which must align perfectly with the surrounding body lines of the vehicle.
Because this window is constructed from tempered glass, a severe impact or break-in attempt does not merely crack the glass; it completely shatters the entire pane into thousands of tiny, granular shards. These glass fragments immediately fall into the rear cargo area, deep inside the interior trim panels, and down into the structural cavities of the vehicle. Replacing this glass is a highly technical procedure that involves meticulous interior disassembly, precise chemical bonding, and exhaustive cleanup.
Unmatched Mobile Auto Glass Service Across the Greater Toronto Area (GTA)
Driving a Lexus GX 460 with a shattered quarter glass exposes your pristine interior to harsh weather, severe road noise, and immediate security threats. At AlexWindshield, we understand that your time is valuable. That is why we bring our master-level technician expertise directly to you. We offer comprehensive mobile auto glass services across the entire Greater Toronto Area (GTA). Whether you are navigating the busy commercial districts of Vaughan, commuting from your home in Richmond Hill, or running family errands in Markham, our fully equipped mobile service vans arrive at your location ready to perform a flawless, factory-grade installation.
Detailed Step-by-Step Quarter Glass Replacement Process for the GX 460
Step 1: Comprehensive Damage Assessment and Interior Protection
The replacement process begins with a rigorous inspection of the Lexus GX 460's rear quarter panel. I examine the surrounding paint, the metal pinch weld, and the interior C-pillar and D-pillar trim for any collateral damage caused by the impact. Before any tools are utilized, heavy-duty protective drop cloths and specialized seat covers are deployed across the third-row seating and rear cargo area. Protecting the premium leather and luxury interior of your Lexus GX 460 is my absolute first priority.
Step 2: Thorough Glass Debris Vacuuming and Interior Trim Removal
Because the quarter glass is tempered, a break results in thousands of dangerous glass shards spreading throughout the cabin. Using non-marring, specialized auto trim removal tools, I carefully unclip and detach the interior cargo panels and pillar trims. This exposes the inner cavity of the quarter panel. Armed with a high-powered industrial shop vacuum, I meticulously extract every single shard of broken glass from the seats, the carpet, the cargo tracks, and the deep recesses of the vehicle's body. Failing to remove these shards will result in maddening rattling noises while driving; therefore, this deep-cleaning phase is completely non-negotiable at AlexWindshield.
Step 3: Precise Removal of the Compromised Quarter Glass
With the interior safely disassembled and vacuumed, I address the remaining glass and the original polyurethane adhesive holding the frame. To protect the impeccable exterior paint of your Lexus, protective tape is applied around the window perimeter. I then utilize advanced cut-out tools—such as a braided wire cutting system or a specialized cold knife—to slice through the dense, factory-applied urethane bead from the outside in. This separates the old encapsulated molding and remaining glass fragments from the vehicle's steel frame without bending the structural pinch weld.
Step 4: Pinch Weld Preparation and Contaminant Cleaning
Once the old quarter glass assembly is completely removed, the vehicle's pinch weld must be expertly prepared. I use a sharp precision scraper to expertly trim down the old polyurethane bed, leaving exactly 1 to 2 millimeters of the original adhesive. This remaining layer provides the ideal base for the new chemical bond. Following the trimming process, the entire frame track is thoroughly cleaned with a specialized, alcohol-based auto glass cleaner to remove all dirt, grease, moisture, and micro-contaminants.
Step 5: Advanced Primer Application
Chemical preparation is the secret to a perfect, leak-proof auto glass replacement. Any microscopic scratches on the metal pinch weld—which occasionally happen during the factory manufacturing process or the cut-out phase—are meticulously treated with an anti-corrosion pinch weld primer. This step completely prevents future rust from forming on the body of your Lexus GX 460. Subsequently, a specialized glass-prep primer is applied to the encapsulation and bonding surface of the brand-new quarter glass, ensuring maximum adhesion strength.
Step 6: Application of Premium OEM-Grade Adhesive
With both the pinch weld and the new glass primed and ready, I load a high-viscosity, fast-curing automotive polyurethane adhesive into a specialized power caulking gun. Using a precise, master-level technique, I extrude a continuous V-bead of urethane directly onto the pinch weld. The exact height and width of this urethane bead are calculated to match the heavy factory specifications of the 2010-2023 Lexus GX 460, ensuring superior structural integrity and ultimate sound deadening.

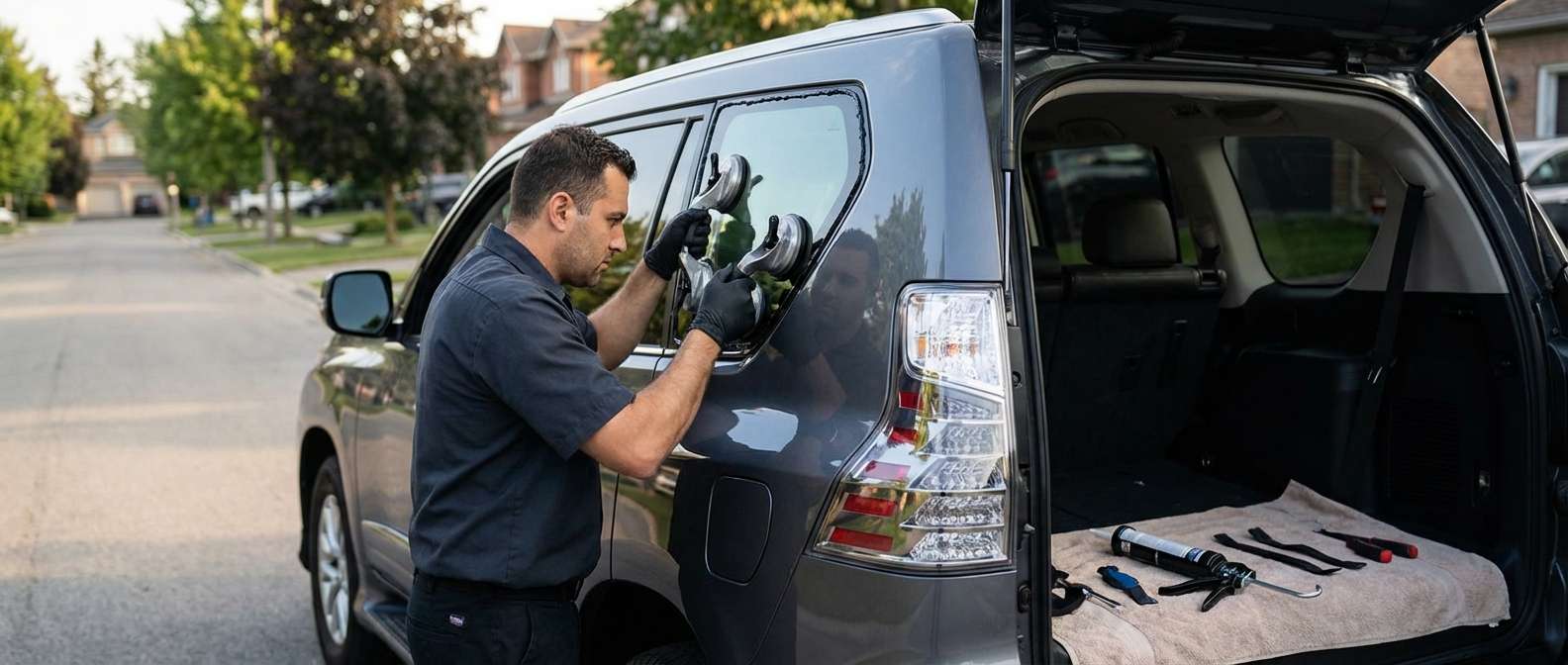

Step 7: Precision Installation of the New Quarter Glass
Auto glass installation requires absolute precision. I carefully lift the newly primed, OEM-quality quarter glass and align the encapsulated molding perfectly with the contours of the Lexus body lines. Using specialized suction cups, the glass is pressed firmly into the fresh polyurethane bead. Gentle, consistent pressure is applied around the entire perimeter to ensure the urethane spreads evenly, creating a permanent, watertight, and airtight seal. Retention tape is temporarily applied to secure the glass in its perfect flush position while the adhesive begins its rapid curing process.
Step 8: Reassembly of Trim and Final Quality Inspection
While the advanced polyurethane adhesive is setting, I begin the meticulous reassembly of your vehicle's interior. The inner cargo panels, C-pillar, and D-pillar trim pieces are snapped perfectly back into place, ensuring all factory clips are securely engaged. A secondary, final vacuuming is performed across the entire rear cargo area to guarantee that absolutely no microscopic glass dust remains. Finally, I clean the newly installed quarter glass with premium glass cleaner, inspecting the exact flushness of the outer encapsulation and verifying the flawless quality of the installation.
Why Immediate Replacement is Crucial for Your GX 460
Ignoring a broken quarter glass on a luxury SUV like the Lexus GX 460 can lead to severe secondary issues. As a senior auto glass specialist, I strongly advise immediate replacement for the following critical reasons:
- Interior Water Damage: Even a minor rainstorm in Richmond Hill or Markham can force gallons of water into your cargo area, permanently destroying premium leather, shorting out rear electronic modules, and causing deep mold within the carpets.
- Vehicle Security: A shattered rear quarter glass is an open invitation for thieves. It provides direct, unobstructed access to the interior locks and cargo space of your valuable vehicle.
- Structural Integrity: Modern auto glass is a load-bearing component. Properly bonded quarter glass actually contributes to the overall structural rigidity of the GX 460's rear cabin area during a roll-over incident.
- Cabin Acoustics: The Lexus GX is renowned for its whisper-quiet interior. A compromised seal or temporary patch will result in unbearable wind howling and road noise at highway speeds.
Trust AlexWindshield for Your Lexus GX 460 Glass Needs
When you demand absolute perfection for your 2010-2023 Lexus GX 460, generic auto repair shops simply cannot compete with specialized expertise. AlexWindshield is proudly recognized as the trusted expert for mobile auto glass services across the Greater Toronto Area (GTA), highly active in communities like Vaughan, Richmond Hill, and Markham. Our master technicians utilize only OEM-equivalent auto glass, industry-leading crash-tested urethane, and meticulous preparation techniques.
Best of all, we stand firmly behind our craftsmanship. Every single quarter glass replacement we perform comes backed by our comprehensive Lifetime Warranty, covering any leaks, wind noises, or manufacturer defects for as long as you own the vehicle. Do not let a shattered window compromise the luxury, safety, and security of your Lexus. Contact AlexWindshield today to experience unmatched mobile convenience, master-level technical execution, and total peace of mind.
