Restoring the Floating Roofline: Expert Quarter Glass Replacement for the Land Rover Range Rover Sport 2006-2013 (L320)
The Land Rover Range Rover Sport 2006-2013, designated by its chassis code L320, revolutionized the luxury SUV market by seamlessly blending legendary British off-road pedigree with aggressive, track-inspired styling. One of its most iconic design features is the "floating roofline," heavily heavily reliant on the flush, sleek integration of the rear quarter glass. When this specialized auto glass is shattered—whether due to a severe side impact, flying road debris on Highway 400, or an unfortunate vehicle break-in attempt—it instantly compromises both the striking aesthetics and the structural security of your luxury vehicle. Because the L320 quarter glass is a stationary, encapsulated unit glued directly to the vehicle's body, replacing it requires the precision, high-end materials, and technical mastery that only a seasoned auto glass technician can provide.
Why Choose AlexWindshield for Your Range Rover Sport Auto Glass Needs?
At AlexWindshield, we understand that your Range Rover Sport is more than just a means of transportation; it is a premium investment. A shattered quarter window leaves your luxurious interior exposed to the harsh Canadian weather and potential theft. Unlike standard roll-down door windows, the quarter glass on the L320 model is bonded to the frame using industrial-grade urethane. This means the quarter glass replacement process is highly technical, demanding specialized cut-out tools and precise chemical bonding agents.
Unrivaled Mobile Auto Glass Service Across the Greater Toronto Area (GTA)
Driving a luxury SUV with a blown-out window is not just uncomfortable; it is exceptionally unsafe. That is why AlexWindshield brings our state-of-the-art auto glass shop directly to your driveway or workplace. We proudly offer comprehensive mobile auto glass services throughout the Greater Toronto Area (GTA), with specialized rapid response teams serving Vaughan, Richmond Hill, and Markham. Whether you are parked at a corporate office in Markham or at your home in Vaughan, our Master Technicians arrive fully equipped to execute a flawless, factory-standard replacement on site.
The AlexWindshield Master Technician Process: Step-by-Step L320 Quarter Glass Replacement
Replacing the encapsulated rear quarter window on a 2006-2013 Range Rover Sport requires a rigorous, multi-step procedure to ensure absolute waterproof sealing, wind noise elimination, and structural integrity. Here is our meticulous A-to-Z process:
Step 1: Comprehensive Vehicle Inspection and Interior Protection
Before any tools touch your vehicle, our Master Technician conducts a thorough walk-around inspection. The quarter glass area is surrounded by highly sensitive automotive paint and premium interior trim. We begin by protecting the exterior by applying thick, low-tack automotive masking tape around the C-pillar, D-pillar, and rear quarter panel. Inside, we drape heavy-duty protective blankets over your luxurious leather seating, cargo area, and center console to ensure no chemical spills or sharp tools damage the L320 interior.
Step 2: Meticulous Broken Glass Remediation and Panel Removal
Unlike laminated windshields that crack but stay intact, the quarter glass is made of tempered glass designed to shatter into thousands of granular pieces upon impact. Our technician's immediate priority is safety and cleanliness.
- We carefully remove the interior C and D pillar trim panels to access the hidden inner body cavity.
- Using an industrial, high-suction HEPA vacuum, we extract every single shard of broken glass from the cargo floor, the seats, and deep within the interior quarter panel recesses.
- We ensure that no hidden glass fragments are left behind, which could cause dangerous rattling or damage to interior wiring harnesses later on.
Step 3: Precision Removal of the Old Urethane Bead
Once the interior is cleared of broken shards, we must remove the remnants of the broken glass and the original factory adhesive. Using a specialized cold knife and an oscillating power extractor, our technician carefully cuts through the hardened polyurethane adhesive holding the original glass frame. This step requires absolute precision to avoid scratching the high-strength steel pinch weld, which could lead to severe rust issues down the line.
Step 4: Pinch Weld Preparation and Chemical Cleaning
After the broken unit is fully extracted, we are left with a thick bead of old urethane on the vehicle's frame. We use precision scrapers to trim the old adhesive down to a thin, uniform layer of 1 to 2 millimeters. This "bed" serves as an excellent bonding base for the new adhesive. The entire perimeter is then thoroughly scrubbed using a specialized, alcohol-based auto glass cleaner to remove any dirt, moisture, and invisible grease. A completely sterile pinch weld is mandatory for the new glue to bond correctly.
Step 5: Advanced Primer Application
Rust prevention is a top priority for premium vehicles like the Range Rover Sport. If the pinch weld suffered any minor scratches during the cut-out phase, our technician applies a specialized bare-metal automotive glass primer to seal the exposed steel. Next, we apply a chemical adhesion promoter (glass primer) to the encapsulation border of the brand-new quarter glass. This primer acts as a chemical bridge, ensuring the urethane adhesive fuses flawlessly with the new glass molding.
Step 6: High-Quality Urethane Adhesive Application
This is the most critical structural step. At AlexWindshield, we strictly utilize premium, high-modulus, non-conductive (HMNC) urethane adhesive that meets or exceeds OEM safety standards. Using an electric caulking gun, the technician extrudes a consistent, triangular V-bead of urethane directly onto the prepared pinch weld. The V-bead ensures that when the glass is compressed, the adhesive spreads evenly, creating a perfect, impenetrable watertight and airtight seal.

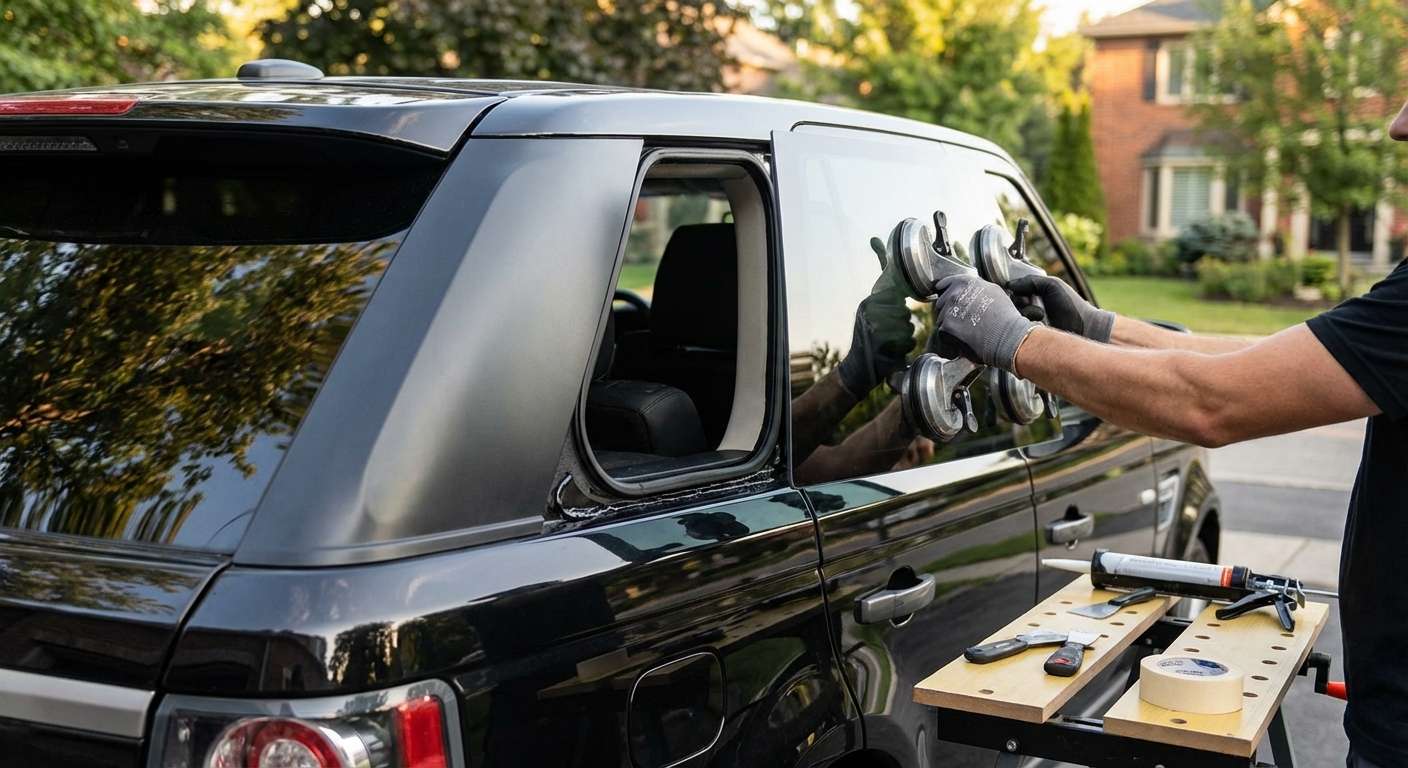

Step 7: Setting the New Encapsulated Quarter Glass
Because the 2006-2013 L320 quarter glass features a complex, pre-attached aesthetic molding (encapsulation), alignment must be exact on the very first try. Using heavy-duty suction cup grips, the technician carefully lifts and aligns the glass with the body lines of the Range Rover. The glass is gently pressed into the wet urethane bead, ensuring the exterior rubber moldings sit perfectly flush against the vehicle's body, maintaining that signature floating roofline aesthetic.
Step 8: Interior Reassembly and Final Quality Assurance
While the heavy-duty adhesive begins its chemical curing process, we focus on reassembly and final cleanup:
- We meticulously reinstall the interior C and D pillar trims, ensuring all factory retaining clips are securely snapped into place without any gaps.
- A secondary, fine-detail vacuuming is performed throughout the cargo area and rear seats to guarantee a completely pristine interior.
- The new exterior quarter glass is cleaned with premium glass polish to a streak-free shine.
- Finally, the technician calculates the Safe Drive Away Time (SDAT) based on the ambient temperature and humidity in the GTA, advising you on exactly when your Range Rover Sport is structurally secure to be driven.
OEM Quality and Premium Aftermarket Glass Options
When executing a quarter glass replacement on a luxury SUV, the quality of the replacement part is just as important as the installation technique. At AlexWindshield, we source our auto glass from industry-leading manufacturers. The encapsulation on our replacement quarter glasses perfectly matches the factory texture and color of the original L320 exterior trim. Whether you request original equipment manufacturer (OEM) glass or premium OEE (Original Equipment Equivalent) aftermarket glass, we guarantee a flawless fit that perfectly aligns with your vehicle’s factory specifications, maintaining your cabin's acoustic insulation and weatherproofing.
Trust the Experts for Mobile Auto Glass in Vaughan, Richmond Hill, and Markham
Dealing with a shattered window is stressful enough without the hassle of navigating traffic to wait in a repair shop. Our dedicated fleet of mobile service units covers the entire Greater Toronto Area (GTA). If you reside in Vaughan, work in the bustling tech hubs of Markham, or are shopping in Richmond Hill, our mobile auto glass experts bring unparalleled dealership-level service directly to your location. We arrive with all the specialized tools, protective gear, and premium adhesives necessary to complete the job perfectly on-site, saving you valuable time and eliminating the risks of driving a compromised vehicle.
Experience the AlexWindshield Difference: Your Lifetime Warranty Guarantee
When you choose AlexWindshield for your Land Rover Range Rover Sport 2006-2013 (L320) quarter glass replacement, you are choosing uncompromising quality, absolute convenience, and peace of mind. We stand confidently behind our Master Technicians' craftsmanship, which is why every single auto glass replacement we perform is backed by our comprehensive Lifetime Warranty. This industry-leading guarantee covers you against any air leaks, water leaks, and manufacturer defects for as long as you own your vehicle.
Do not let a broken window ruin the luxury and security of your Range Rover Sport. Contact AlexWindshield today—the ultimate trusted authority for mobile auto glass replacement in the GTA—and let our experts restore your vehicle to factory perfection safely, swiftly, and flawlessly.
