Smashed Side Glass and Common Cable Failures on Rio Doors
Most side window replacements on the Rio happen after a break-in, but this car also sees an unusual number of drop-glass failures caused purely by internal mechanical wear. Inside these doors, a cable-and-drum regulator manages the glass travel. Over time, road dirt packs into the felt-lined perimeter run channels, creating drag that strains the mechanism until a plastic pulley snaps or the metal cable frays and de-spools. When that happens, the window suddenly drops into the door cavity, leaving owners to wonder if the glass shattered or simply slipped out of view.
If the window did shatter, it breaks cleanly into thousands of blunt fragments typical of single-pane curved tempered safety glass. Kia equipped these doors with a standard green solar-control tint, but omitted acoustic interlayers, embedded antenna lines, and heating elements from the side panels. Because of this simple configuration, matching the tint shade and glass curvature with aftermarket panels is straightforward, provided the glass matches the exact body style of the car.
Sedan vs. Hatchback Differences and Part Identification
The front doors are completely identical across both the four-door sedan and the five-door Rio5 hatchback. Both use a fixed triangular front pillar vent glass (OEM reference 86170-1W000 for left, 86180-1W000 for right) sitting ahead of the movable pane. The front drop glass relies on industry NAGS part numbers FD25326 for the driver side and FD25325 for the passenger side, which correlate to bare factory glass numbers 82411-1W000 and 82421-1W000.
The rear doors are where the body styles diverge. While the front windows interchange freely, the rear door drop glass differs substantially in its rear edge angle and overall shape due to the contrasting rooflines of the sedan and Rio5:
- Rio 4-Door Sedan Rear Drop Glass: NAGS FD25330 (Left Rear), FD25329 (Right Rear).
- Rio5 5-Door Hatchback Rear Drop Glass: NAGS FD25328 (Left Rear), FD25327 (Right Rear).

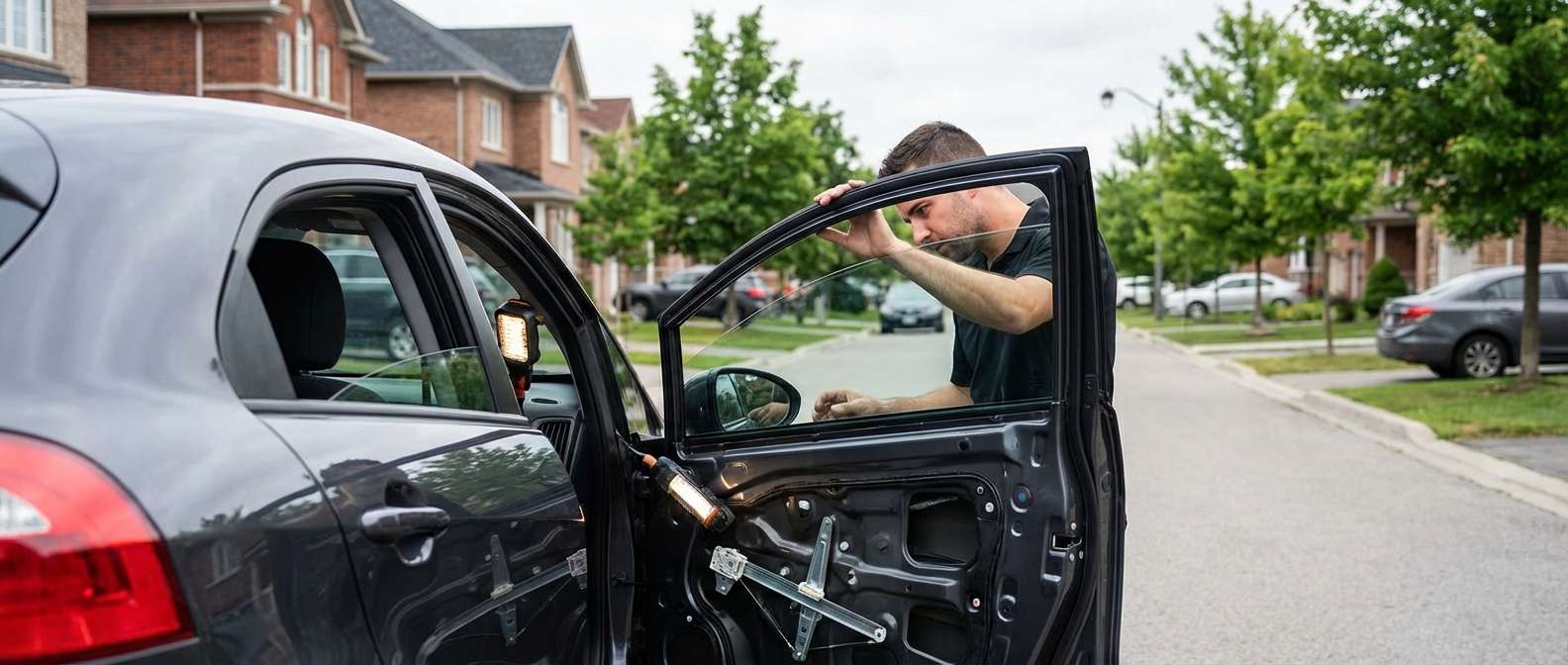

Both body variants feature a vertical division bar that separates the roll-down panel from the stationary rear quarter glass. When replacing broken glass at your home or workplace across Toronto and the GTA, I bring the complete mobile setup directly to your parking spot to vacuum the debris out of the lower door frame and fit the correct replacement panel on site.
Addressing Regulator Attachment and Frame Channel Drag
The door structure utilizes a full perimeter steel window frame rather than a frameless setup. The drop glass is secured directly into the regulator carrier bracket using clamping bolts that are reached through circular service ports hidden behind the interior door panel. Accessing them requires lifting the trim skin after removing the concealed Phillips screws in the door pull cup and behind the interior release latch.
Whenever a pane breaks or jumps track, the rubber run channel requires immediate inspection. Grit buildup inside the rubber causes the window to bind on its way up, which either forces the motor to stall on higher-trim power setups or strips the gear teeth on base trims fitted with manual hand-crank regulators. Cleaning the channel paths and clearing shattered pellets from the lower beltline moulding seals prevents the replacement glass from binding or scratching on its first cycle.
Do I have to replace the fixed triangular front vent window if my roll-down glass breaks?
No. The triangular glass mounted at the front corner of the front door sits in its own dedicated pillar housing and does not interact mechanically with the primary drop glass. Unless an impact specifically struck that forward corner, only the roll-down panel (FD25326 or FD25325) needs to be replaced.
Can I swap rear door glass between a Rio sedan and a Rio5 hatchback?
No. While the front door glass is entirely interchangeable between the sedan and hatchback, the rear door frames feature different rear pillar slopes. The sedan takes FD25330/FD25329, whereas the Rio5 hatchback takes FD25328/FD25327; they will not seal or align in the opposite body style's division bar.
Why did my window fall inside the door if the glass is not broken?
The cable inside the window regulator likely snapped, or the plastic pulley wheel cracked under tension. When the cable detaches, the glass carrier loses all vertical support and falls straight to the bottom of the door shell. The door panel must be removed to inspect whether the glass is intact and to replace the damaged regulator assembly.
