Kia Niro 2017-2022 Quarter Glass Replacement: Precision Service by AlexWindshield
The Kia Niro, introduced to the market between 2017 and 2022, revolutionized the compact crossover segment by proving that exceptional hybrid and electric efficiency does not require sacrificing sleek, aerodynamic design. A crucial element of this sophisticated design is the vehicle's quarter glass. Located just behind the rear doors, the quarter glass on the Kia Niro is not merely a cosmetic feature; it plays a vital role in expanding the driver's field of vision, eliminating dangerous blind spots, and maintaining the vehicle's aerodynamic envelope for optimal fuel and battery efficiency. Because this specific glass panel is structurally bonded to the frame, it requires master-level precision when it suffers damage. When you need a highly technical, flawless replacement, AlexWindshield is your premier destination for uncompromising automotive glass restoration.
The Unique Vulnerabilities of Your Kia Niro's Quarter Glass
Unlike the laminated safety glass used in front windshields, the quarter glass on the 2017-2022 Kia Niro is typically manufactured from tempered glass. While exceptionally strong against blunt force, a concentrated impact from road debris, an attempted break-in, or severe weather will cause tempered glass to instantly shatter into thousands of granular pieces. This design prevents large, lethal shards from injuring passengers, but it leaves the interior of your Niro exposed to the elements, creates an immediate security risk, and litters your cabin with tiny, hazardous glass fragments. Addressing this requires far more than simply gluing a new piece of glass to the car; it requires a meticulous, multi-stage remediation and installation process.
Premier Mobile Auto Glass Replacement Across the Greater Toronto Area (GTA)
A shattered quarter glass leaves your vehicle undrivable and unsecure. Driving with an open void in your vehicle's body compromises cabin pressure, allows exhaust fumes to enter the passenger area, and puts your interior at risk of severe water damage. Recognizing the urgency of this situation, AlexWindshield operates a fleet of fully equipped mobile service units dedicated to bringing our master technicians directly to your location.
We are proud to provide comprehensive, rapid-response mobile auto glass services throughout the Greater Toronto Area (GTA). Whether you have suffered a break-in while parked at a shopping center in Vaughan, discovered a shattered panel in your driveway in Richmond Hill, or need immediate assistance at your workplace in Markham, our technicians arrive on-site with the exact OEM-quality replacement glass for your 2017-2022 Kia Niro. We bring the complete auto glass shop experience to your doorstep, saving you the hassle and danger of driving a compromised vehicle across town.
Step-by-Step Technical Replacement Process for the Kia Niro Quarter Glass
At AlexWindshield, we adhere to strict manufacturer protocols and advanced safety standards to ensure your new quarter glass is installed with factory-level precision. Our Master Technicians execute a detailed, A-to-Z procedure to guarantee the structural integrity and aesthetic perfection of your Kia Niro.
Step 1: Extensive Interior Protection and Vehicle Preparation
Before any physical work begins, our technicians focus on protecting your vehicle. We apply specialized protective covers over the exterior paint surrounding the quarter panel area to prevent any accidental scratches. Inside the cabin, we drape heavy-duty protective drop cloths over the rear seats, seatbelts, and floor mats. The Kia Niro features high-quality interior materials, and our first priority is ensuring that no part of your vehicle's interior is damaged or soiled during the extraction and installation process.
Step 2: Meticulous Vacuuming of Broken Glass Shards
Because quarter glass is tempered, a break results in thousands of tiny glass cubes penetrating deep into the vehicle's interior. We perform an exhaustive glass remediation process. Using high-powered, industrial-grade vacuums equipped with specialized micro-crevice tools, we extract all broken glass shards from the vehicle’s interior. We thoroughly vacuum the rear seats, the cargo area, the floorboards, and the interior weather stripping. We also inspect the gaps between the seat cushions and the rear side panels, ensuring that no hidden glass fragments remain to pose a hazard to your passengers or pets.
Step 3: Interior Trim and Exterior Molding Removal
To access the bonding surface (the pinch weld) of the quarter glass, we must carefully remove the interior C-pillar trim panels of the Kia Niro. Using specialized non-marring nylon pry tools, we detach the interior plastic paneling without breaking the delicate retaining clips. If the shattered quarter glass has any attached exterior encapsulation or rubber molding, it is also carefully unclipped and removed to expose the bare urethane track beneath.
Step 4: Cutting Out the Old Glass and Urethane Bead
Even when the glass is entirely shattered, the original polyurethane adhesive bead remains firmly attached to the vehicle's steel pinch weld, often holding on to sharp, jagged remnants of the outer glass edge. Our master technicians use advanced cold-knife technology and precision wire-cutting systems to cleanly slice through the factory urethane. This allows us to remove the remaining glass perimeter and the old adhesive bead without scratching the underlying metal—a critical step to prevent future rust and corrosion.
Step 5: Surface Cleaning and Pinch Weld Preparation
Once the old glass and adhesive are removed, we perform a vital surface cleaning process. The pinch weld is trimmed down to a thin, uniform baseline of original urethane (approximately 1-2 millimeters thick), which provides an optimal bonding surface for the new adhesive. The entire track is then aggressively cleaned with specialized, alcohol-based glass and surface cleaners to remove any dirt, grease, moisture, or microscopic debris that could compromise the chemical bond.
Step 6: Specialized Primer Application
To guarantee a permanent, waterproof seal, the preparation of both the vehicle frame and the new glass is critical. We apply a high-grade, fast-drying automotive glass primer to any areas of the pinch weld where bare metal may have been exposed, effectively preventing rust. We also apply a specific glass primer to the ceramic frit band (the black painted edge) of the new quarter glass. This primer acts as a chemical bridge, ensuring maximum adhesion between the glass surface and the urethane.
Step 7: Application of High-Quality Urethane Adhesive
With the surfaces properly primed and cured, we apply a continuous, V-shaped bead of high-quality, advanced-cure urethane adhesive to the pinch weld. We utilize industry-leading adhesives that boast exceptionally fast Safe Drive Away Times (SDAT) and high tensile strength. This urethane is electronically heated and applied using a motorized caulking gun to ensure the bead is perfectly uniform in height and thickness, which is essential to prevent wind noise and water leaks in your Kia Niro's cabin.

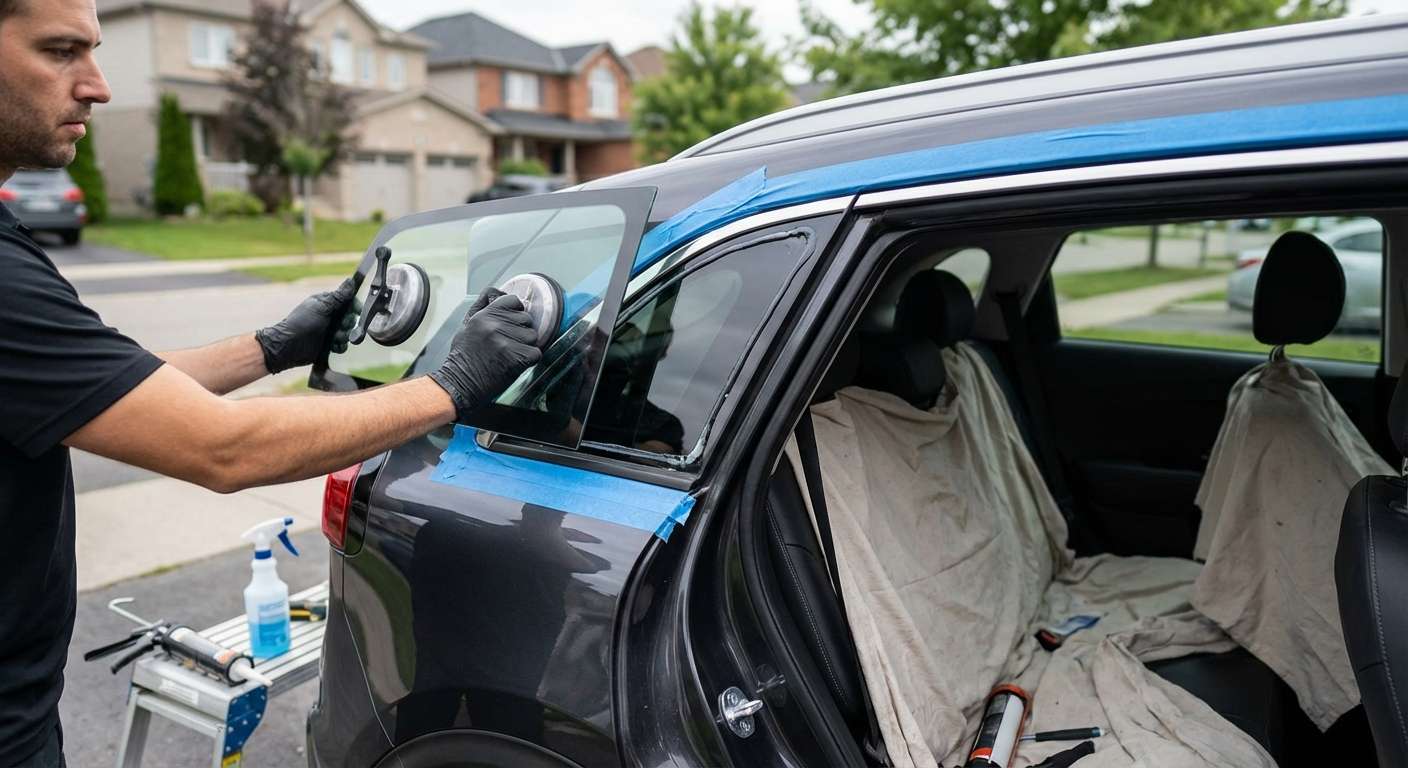

Step 8: Precision Installation of the New Quarter Glass
Handling the new, OEM-quality quarter glass requires a steady hand and precise alignment. Using heavy-duty suction cup grips, our technicians carefully lift the newly primed glass and align it perfectly with the contours of the Kia Niro's body lines. The glass is gently pressed into the fresh urethane bead. We verify that the gaps between the glass, the body panel, and the rear door are factory-accurate. Once set, we secure the glass temporarily with specialized retention tape to hold it firmly in place while the urethane begins its initial chemical cure.
Step 9: Reassembly and Final Quality Inspection
While the adhesive cures, our technicians re-install the interior C-pillar trim panels, ensuring every clip snaps back into its proper location. We reattach any exterior weather stripping or aerodynamic moldings. Finally, we conduct a rigorous post-installation inspection. We clean the newly installed quarter glass to a streak-free shine and perform a final walk-through with you to ensure our work meets our absolute highest standards of quality.
The Importance of OEM-Quality Glass for Your Kia Niro
When replacing the quarter glass on a sophisticated vehicle like the 2017-2022 Kia Niro, the quality of the replacement materials cannot be compromised. At AlexWindshield, we source exclusively OEM (Original Equipment Manufacturer) or premium OEE (Original Equipment Equivalent) auto glass. This guarantees that your new quarter glass matches the exact curvature, tint shade, and structural specifications of the glass installed at the Kia factory. Utilizing premium glass ensures that your vehicle's cabin remains insulated against road noise and extreme temperatures, preserving the quiet, comfortable ride that hybrid and EV drivers expect.
Trust AlexWindshield for Unmatched Auto Glass Expertise
Your vehicle is a significant investment, and its structural integrity is vital to your safety on the road. Do not trust your Kia Niro to amateur technicians or substandard repair shops. AlexWindshield has built a stellar reputation as the trusted expert for highly technical, flawless mobile auto glass services throughout the GTA.
- Master Technicians: Our installers are rigorously trained and certified in the latest automotive adhesive technologies and glass replacement methodologies.
- Unparalleled Convenience: Whether you reside in Vaughan, work in Markham, or need emergency service in Richmond Hill, our mobile fleet comes directly to you at no extra cost.
- Impeccable Cleanup: We guarantee that every shard of broken glass is removed from your interior, restoring your cabin to pristine condition.
- Premium Materials: We use only industry-leading urethanes, primers, and exact-fit replacement glass.
We stand firmly behind the precision and durability of our craftsmanship. That is why every quarter glass replacement performed by our technicians is backed by our comprehensive Lifetime Warranty. This warranty covers any issues related to water leaks, wind noise, or manufacturer defects for as long as you own your vehicle. When you require a rapid, professional, and permanently reliable quarter glass replacement for your 2017-2022 Kia Niro, contact the master technicians at AlexWindshield. Experience the peace of mind that comes with superior automotive glass care today.
