The Kia EV6: A Rolling Supercomputer That Demands Precision Auto Glass Care
The Kia EV6 (2022-2027) is not just an electric crossover; it is a masterclass in aerodynamic design and a rolling supercomputer built on Kia’s advanced Electric-Global Modular Platform (E-GMP). From its striking digital "Tiger Face" to its whisper-quiet cabin, every element of the EV6 is engineered for the future. Central to this futuristic driving experience is the windshield. Far beyond a simple piece of glass, the EV6 windshield acts as a sophisticated projection screen for the Augmented Reality Head-Up Display (AR HUD), a sensory hub for rain and light detection, and the critical lens for the vehicle's Advanced Driver Assistance Systems (ADAS). When a rock strikes and cracks this highly engineered component, a standard, run-of-the-mill glass swap simply will not suffice. You need the masterful touch of a specialized auto glass technician.
Because electric vehicles lack the masking noise of an internal combustion engine, the acoustic properties of your EV6's windshield are vital to maintaining the serene cabin environment you expect. Furthermore, the structural integrity of this glass plays a massive role in the overall rigidity of the vehicle. At AlexWindshield, we combine dealership-level technical expertise with unparalleled convenience to deliver flawless windshield replacement services specifically tailored to the unique complexities of the 2022-2027 Kia EV6.
Understanding the High-Tech Features of Your Kia EV6 Windshield
Before diving into the replacement process, it is crucial to understand what makes the windshield of your Kia EV6 so unique. As a Master Technician, I always educate our clients on the intricate technologies embedded within their auto glass. Depending on your specific trim—whether it is the Wind, GT-Line, or the high-performance GT—your windshield may feature:
- Acoustic Interlayer Technology: Specialized sound-dampening vinyl layers sandwiched between the glass sheets to block wind and road noise, ensuring the EV cabin remains perfectly silent.
- Augmented Reality Head-Up Display (AR HUD): Requires a highly specific, wedge-shaped polarized PVB layer to prevent "ghosting" or double-vision of the projected digital dashboard and navigation overlays.
- Forward-Facing ADAS Camera: The critical sensor mounted behind the rearview mirror that powers Highway Driving Assist 2 (HDA 2), Forward Collision-Avoidance Assist, and Lane Keeping Assist.
- Solar Control Glass: Advanced UV and infrared reflective coatings that reduce cabin heat, directly improving your EV's battery efficiency by reducing the strain on the climate control system.
- Rain and Condensation Sensors: Automated systems bonded directly to the glass to instantly manage wiper speed and automated climate defogging.
The Master Technician's Step-by-Step Windshield Replacement Process
At AlexWindshield, we do not cut corners. We follow a strict, manufacturer-approved, step-by-step protocol to ensure your Kia EV6 is restored to its exact factory specifications. Here is our comprehensive, A-to-Z windshield replacement process.
Step 1: Vehicle Pre-Inspection and Interior Protection
Our process begins with a meticulous pre-inspection. We test the wipers, interior electronics, and ADAS systems to establish a baseline of functionality. Because the interior of the EV6 features premium eco-friendly materials and dual curved digital displays, absolute protection is our first priority. We drape heavy-duty, scratch-resistant protective covers over the seats, steering wheel, and the entire dashboard to shield them from debris and adhesive.
Step 2: Careful Removal of Cowl, Wipers, and Exterior Trims
To access the bottom edge of the glass, we carefully unbolt the wiper arms and remove the plastic cowl panel at the base of the windshield. The EV6 features sleek, aerodynamic side moldings that clip into the A-pillars; we use specialized non-marring nylon pry tools to detach these trims without snapping the fragile retaining clips or scratching your vehicle's paint.
Step 3: Disconnecting ADAS Camera and Interior Sensors
Moving to the interior, we delicately unclip the rearview mirror housing. We unplug the wiring harnesses for the Forward-Facing ADAS camera, the rain sensor, and the auto-dimming mirror. The camera module is carefully detached from its mounting bracket and stored safely to prevent any electrostatic discharge or physical damage to the sensitive lens.
Step 4: Precision Cutting and Removal of the Damaged Glass
Removing the cracked windshield requires immense precision to protect the vehicle's pinch weld (the metal frame the glass sits on). We utilize advanced, mechanized wire-cutting systems rather than traditional cold knives. By threading a high-tensile cutting wire through the original urethane adhesive, we slice cleanly around the perimeter of the windshield from the inside out. This eliminates the risk of scratching the aluminum and steel body panels of your EV6. Once the seal is broken, two technicians use heavy-duty suction cups to safely lift the old glass away.
Step 5: Pinch Weld Cleaning and Surface Preparation
The foundation of a safe windshield installation lies in the preparation of the pinch weld. We carefully trim down the old factory urethane, leaving a thin, even layer of about 1 to 2 millimeters. This acts as an ideal bonding base for the new adhesive. We then thoroughly clean the channel, vacuuming away any hidden dirt, leaves, or microscopic glass shards. Finally, we wipe the area down with a specialized, alcohol-based chemical cleaner to remove any grease or contaminants.
Step 6: Primer Application and Urethane Extrusion
If any bare metal was exposed during the removal process, we apply a specialized anti-corrosion primer to prevent future rust. We then apply an active glass primer to the black ceramic frit band on the perimeter of the new premium windshield. Next comes the adhesive. We exclusively use advanced, high-modulus, non-conductive polyurethane adhesive. Non-conductive urethane is an absolute requirement for modern electric vehicles like the EV6 to prevent interference with the vehicle's complex electrical circuits. We apply the urethane in a perfectly uniform, triangular bead to guarantee a factory-tight seal.

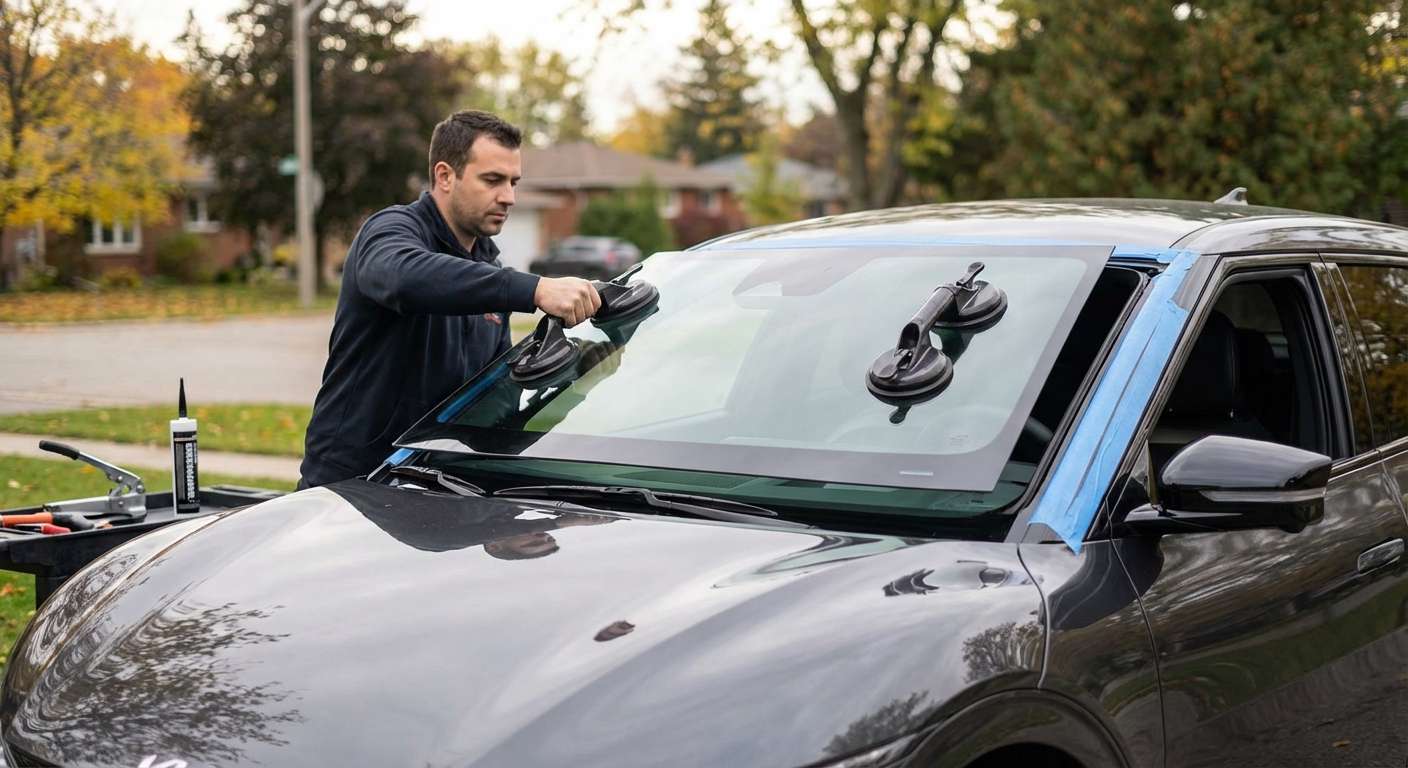

Step 7: Precision Installation of the New Windshield
Timing is critical. Before the urethane begins to cure, we use specialized suction grips to lower the new glass into the frame. We align the glass perfectly with the EV6's unique roofline and A-pillars, ensuring equal gaps on all sides. We gently press the glass into the adhesive bed, securing it in place. The cowl, wiper arms, and exterior trims are then meticulously reassembled. On the inside, we reattach the ADAS camera, plug in all sensor harnesses, and snap the mirror covers back into their factory positions.
The Critical Final Step: Mandatory ADAS Camera Calibration
For the Kia EV6, physically installing the glass is only half the job. Mandatory ADAS camera calibration is the most critical safety step in our process. When the forward-facing camera is disconnected and remounted onto a new windshield, its viewing angle is altered by microscopic fractions of a millimeter. Without proper calibration, the vehicle's computer will miscalculate distances, rendering features like Highway Driving Assist, Lane Centering, and Emergency Braking highly inaccurate—and potentially dangerous.
At AlexWindshield, our Master Technicians utilize state-of-the-art diagnostic computers and precise optical target boards to perform an exact OEM-level calibration. We connect our diagnostic tools to your EV6’s OBD-II port, initiate the camera's internal learning mode, and align the physical targets to exact factory measurements. We verify that the camera perfectly maps the road ahead, ensuring that your high-tech safety systems will protect you and your family exactly as Kia engineers intended.
Premium Mobile Auto Glass Service Across the GTA
We understand that dealing with a cracked windshield disrupts your busy schedule. That is why AlexWindshield brings the auto glass shop directly to you. We are proud to offer premium mobile auto glass replacement services across the entire Greater Toronto Area (GTA).
Whether you are charging your EV6 at home in Vaughan, parked at your corporate office in Markham, or running errands in Richmond Hill, our fully equipped mobile service vans arrive at your location. We carry all the specialized tools, climate-controlled urethanes, and advanced calibration equipment needed to complete the entire job—including the mandatory ADAS recalibration—right in your driveway. You do not need to waste your day waiting in a dirty garage; we deliver white-glove service wherever you are in the GTA.
Trust AlexWindshield – Your Lifetime Warranty Auto Glass Experts
Your Kia EV6 represents the pinnacle of modern automotive engineering, and it deserves auto glass care that matches that standard. By choosing AlexWindshield, you are choosing unmatched technical proficiency, premium quality materials, and unwavering dedication to vehicle safety.
We stand firmly behind our craftsmanship. Every windshield replacement we perform comes backed by our comprehensive Lifetime Warranty. This guarantees that your new glass will be free from air leaks, annoying wind whistles, water leaks, and manufacturer defects for as long as you own your vehicle. If you want the job done flawlessly the first time by leading Master Technicians, look no further. Contact AlexWindshield today to schedule your Kia EV6 windshield replacement and experience the highest tier of mobile auto glass service in the GTA.
