Vent Glass Replacement for BMW 5 Series 2004-2010 (E60) by Alexwindshield

The BMW E60 5 Series: Preserving the Legacy of German Engineering

The BMW 5 Series (E60), produced between 2004 and 2010, represents a pivotal era in automotive design. Known for its aggressive styling, introduced under the direction of Chris Bangle, and the widespread introduction of the iDrive system, this vehicle remains a favorite among driving enthusiasts in the Greater Toronto Area (GTA). However, the unique design elements, such as the iconic "Hofmeister kink" at the rear pillar, make the rear vent glass (often called quarter glass) a specific point of vulnerability and aesthetic importance. When this glass is damaged—whether due to an unfortunate break-in attempt or road debris—it disrupts the vehicle's aerodynamic profile, security, and cabin quietness.

At AlexWindshield, we understand that an E60 is not just a car; it is a precision machine that requires a master technician's touch. Replacing a vent glass on a BMW is significantly more complex than on a standard domestic vehicle. It involves navigating side airbags, complex door cards, and rigid division bars. If you are located in Vaughan, Richmond Hill, or Markham, our mobile specialists provide a level of service that restores your BMW to factory specifications, ensuring the safety and luxury you expect from the Bavarian marque.

Why Vent Glass Replacement is Critical for Your BMW E60

The vent glass is the small, triangular piece of static glass located in the rear door, separated from the main roll-down window by a vertical pillar known as the division bar. While it does not move, it plays a structural role in the door frame and is essential for weatherproofing.

Unfortunately, the vent glass is a common target for thieves who mistakenly believe that breaking the smallest window will allow them to reach inside and unlock the door without triggering the alarm. On a BMW 5 Series 2004-2010, the double-lock feature often prevents the door from opening even from the inside when locked, leaving the owner with a shattered window and a secure, but damaged, vehicle. Driving with a broken vent glass exposes your luxury interior to rain, snow, and noise, while also compromising the vehicle's security.

Detailed Technical Process: BMW E60 Vent Glass Replacement

At AlexWindshield, we do not cut corners. Replacing the vent glass on a BMW E60 requires a surgical approach involving the disassembly of the rear door. Below is our comprehensive, step-by-step protocol for returning your vehicle to pristine condition.

Phase 1: Preparation and Site Safety

Before touching the vehicle with tools, we prepare the work environment. Whether we are in your driveway in Markham or your office parking lot in Vaughan, safety comes first.

• Exterior Protection: We apply high-grade protective tape and fender covers around the rear door frame and quarter panel to prevent accidental scratches to the paint during the glass removal process.
• Interior Shielding: The E60 often features premium Dakota leather or Merino leather interiors. We place heavy-duty covers over the rear seats and floor mats to catch falling glass shards and debris.
• Damage Assessment: We inspect the window regulator, the main door glass, and the rubber run channel to ensure the impact didn't damage surrounding components.

Phase 2: Interior Disassembly and Door Panel Removal

Unlike a windshield replacement, vent glass replacement requires access to the internal mechanics of the door. This is a delicate process on a 2004-2010 BMW due to the age of the plastic clips and the presence of side-impact airbags.

• Trim Removal: Using non-marring nylon pry tools, we carefully remove the interior wood or aluminum trim strip on the door card to reveal the hidden Torx screws.
• Fastener Removal: We locate and remove all hidden screws securing the door panel, including those behind the SRS Airbag badge (if applicable) and inside the door handle cup.
• Panel Separation: We gently pop the door card loose from the metal door frame. BMW E60 door clips are known for being brittle; we exercise extreme caution here. We disconnect the Bowden cable (door latch cable), the speaker wiring, and the window switch harness.
• Vapor Barrier Treatment: We carefully peel back the foam vapor barrier (sound insulation) to access the door shell. It is vital to preserve the butyl adhesive so it can be resealed later to prevent water leaks.

Phase 3: Deep Cleaning and Shard Extraction

This is the step that separates AlexWindshield from budget auto glass shops. When tempered glass breaks, it explodes into thousands of cubes. Leaving glass inside the door is not an option, as it will rattle permanently and can jam the window regulator or door lock actuator.

• Vacuuming the Interior: We thoroughly vacuum the rear seats, carpet, and any crevices where glass may have flown.
• Door Shell Cleaning: Using a flexible vacuum attachment, we reach deep into the bottom of the metal door shell to extract all accumulated glass.
• Compressed Air Purge: We use compressed air to dislodge glass shards stuck in the window run channels and the door latch mechanism.
• Regulator Inspection: We verify that no glass is stuck in the grease of the window regulator tracks.

Phase 4: Removal of the Division Bar and Old Glass

The vent glass on the E60 is held in place by the division bar (the vertical post separating the vent from the roll-down window) and the rubber weatherstrip.

• Loosening the Run Channel: We pull the rubber run channel out of the top and sides of the window frame to expose the mounting points.
• Division Bar Manipulation: We remove the securing bolts at the top and bottom of the division bar. On the E60, this often requires lowering the main window to a specific height to access the mounting hardware.
• Extraction: We slide the division bar slightly forward or remove it entirely, depending on the specific trim level tightness. This creates the necessary clearance to remove the remnants of the old vent glass and its rubber gasket.

Phase 5: Priming and New Glass Installation

With the frame clean and accessible, we prepare the new glass. We use only OEM-equivalent glass that matches the tint and thickness of your original BMW manufacturing specifications.

• Sealant Preparation: If the new vent glass comes encapsulated (with the molding attached), we inspect it for defects. If it requires a urethane bond, we clean the pinch weld with a specialized activator to remove contaminants and grease.
• Primer Application: We apply a high-quality primer to the metal body (if exposed) to prevent rust and ensure a molecular bond with the adhesive. This is crucial for structural integrity.
• Adhesive Application: Using a high-viscosity, fast-curing urethane adhesive, we apply a consistent bead to the glass or the frame, ensuring there are no gaps that could cause wind noise or water leaks.

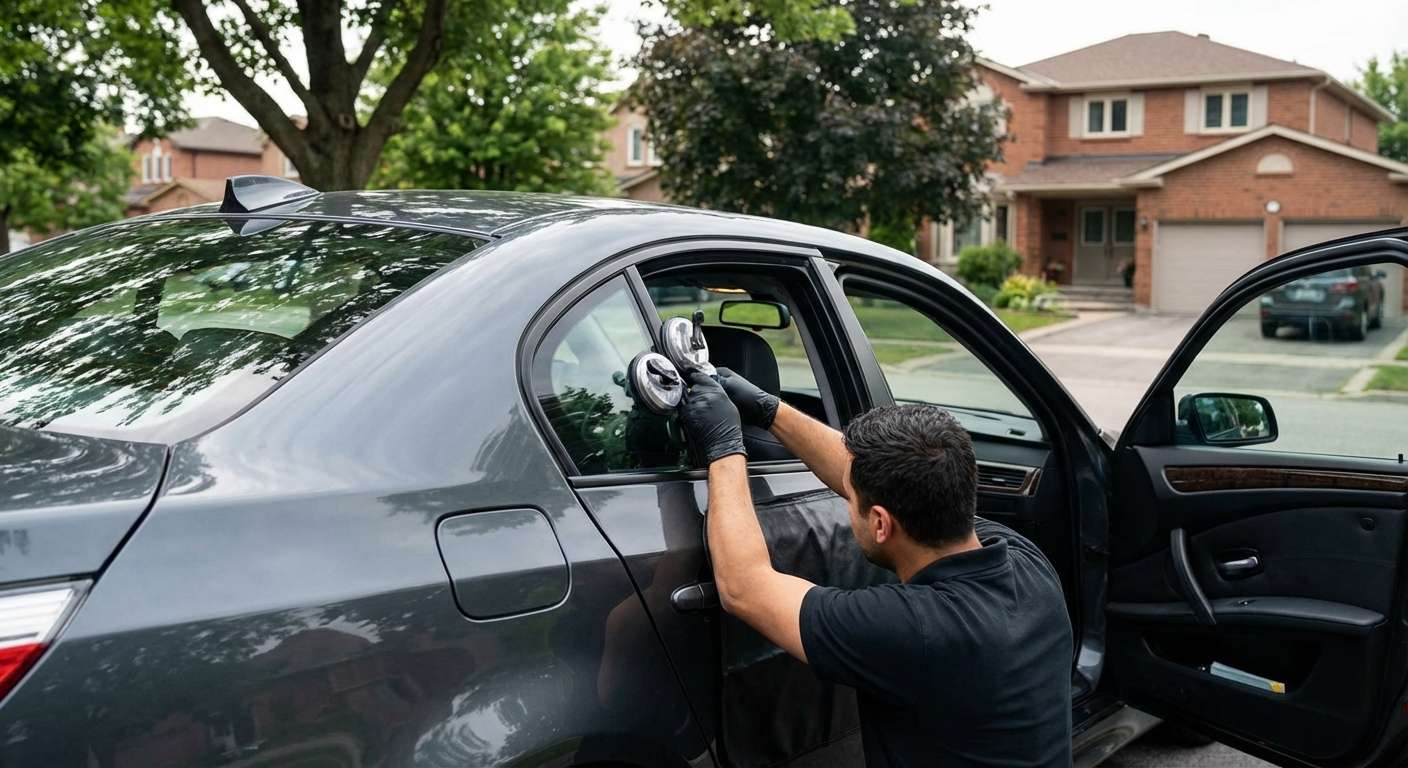

• Setting the Glass: We carefully slide the new vent glass into the rear quarter channel. Once seated, we slide the division bar back into position, sandwiching the glass firmly between the B-pillar side and the C-pillar side of the door frame.
• Torqueing Hardware: We tighten the division bar bolts to the manufacturer's specified torque settings. Incorrect torque can cause the main window to bind or the vent glass to rattle.

Phase 6: Reassembly and Functional Testing

The job is not done until the car is put back together perfectly. We reverse the disassembly process with meticulous attention to detail.

• Run Channel Reseating: We lubricate the rubber run channels with silicone spray and press them back into the frame, ensuring the main window glides smoothly without resistance.
• Vapor Barrier Reseal: We reattach the foam vapor barrier, heating the butyl adhesive if necessary to ensure a waterproof seal. This prevents water from entering the cabin and damaging the carpet or electronics.
• Panel Installation: We reconnect the door handle cable, speakers, and window switches. The door panel is snapped back onto the clips, and all screws are tightened.
• Final Polish: We clean the new glass inside and out with ammonia-free cleaner to remove any fingerprints or handling marks.

The AlexWindshield Advantage in the GTA

Finding a service provider who understands the intricacies of a BMW 5 Series (E60) can be challenging. General auto repair shops may not have the specific glass tools, and dealerships often charge exorbitant rates with long wait times. AlexWindshield bridges this gap by offering dealership-quality workmanship with the convenience of mobile service.

Mobile Service Areas

We are proud to serve the entire Greater Toronto Area. Our mobile units are fully equipped workshops on wheels. We frequently service:

• Vaughan: From Woodbridge to Maple, we can meet you at your home or workplace.
• Richmond Hill: Whether you are near Yonge Street or the astronomical observatory, we come to you.
• Markham: Serving Unionville and the tech hubs, we ensure your BMW is repaired while you work.

Why OEM Quality Matters for BMW

For a vehicle like the 2004-2010 BMW 5 Series, glass is not just about visibility; it is about comfort and acoustics. The E60 was designed to be a quiet, high-speed autobahn cruiser. Using substandard aftermarket glass can lead to:

• Increased Wind Noise: Poor fitment creates gaps that whistle at highway speeds.
• Optical Distortion: Low-quality glass can have waves or ripples that distract the driver.
• Solar Heat Gain: OEM-quality glass contains UV inhibitors and thermal properties that protect your leather interior and keep the cabin cool.

At AlexWindshield, we prioritize glass that meets or exceeds the original equipment manufacturer (OEM) standards, ensuring your BMW retains its value and comfort.

Lifetime Warranty and Customer Promise

We stand firmly behind our craftsmanship. When you choose AlexWindshield for your BMW vent glass replacement, you are backed by our Lifetime Warranty. This covers any leakage, molding issues, or workmanship defects for as long as you own the vehicle. We believe that a job done right the first time is the only way to do business.

Don't let a broken vent glass compromise the security and beauty of your BMW E60. Trust the Master Technicians who know your vehicle inside and out.

Contact AlexWindshield today to schedule your mobile service in Vaughan, Richmond Hill, Markham, or anywhere in the GTA. Experience the difference of true automotive glass expertise.
