Restoring the Crown of a Classic: Sunroof Replacement for BMW 3 Series 1999-2005 (E46)
The BMW E46 (1999–2005) is widely regarded as one of the best 3 Series generations ever produced. It offers a perfect balance of analog driving dynamics and modern comfort. However, nothing shatters the joy of driving this modern classic quite like a broken sunroof. Whether caused by unexpected road debris, a falling tree branch, or the stress of temperature fluctuations in the Canadian climate, a damaged sunroof compromises the vehicle's structural integrity, aesthetic appeal, and weatherproofing. At AlexWindshield, we treat your E46 with the reverence it deserves, providing specialized glass replacement services that restore your vehicle to factory specifications.
Why Expert Attention is Critical for the E46 Sunroof
Replacing the glass on a BMW E46 is not a standard "pop-in, pop-out" procedure. The E46 utilizes a complex cassette and rail mechanism that is notorious for being delicate due to the age of the plastic components. An improper installation can lead to misaligned glass, terrible wind noise at highway speeds, water leaks that stain your headliner, or even permanent damage to the sunroof motor gears.
Residents of the Greater Toronto Area (GTA), including Vaughan, Richmond Hill, and Markham, trust AlexWindshield because we combine Master Technician expertise with specific knowledge of German engineering. We understand the nuances of the "Zero Position" alignment required for BMW sunroofs to function correctly without whistling or leaking.
Comprehensive Safety and Preparation Protocols
Before we touch a single screw, our priority is the protection of your BMW's interior. The E46 features high-quality leather and soft-touch materials that must be shielded from glass shards and debris.
- Interior Shielding: We drape high-grade protective covers over the front seats, dashboard, and center console (including the delicate wood or aluminum trim common in E46 models).
- Exterior Protection: The roof paint surrounding the sunroof opening is taped off with non-residue automotive masking tape to prevent accidental scratches during the extraction of broken glass.
- Debris Containment: If the glass has shattered, we stabilize the remaining fragments before removal to prevent them from falling into the difficult-to-reach areas of the sunroof cassette.

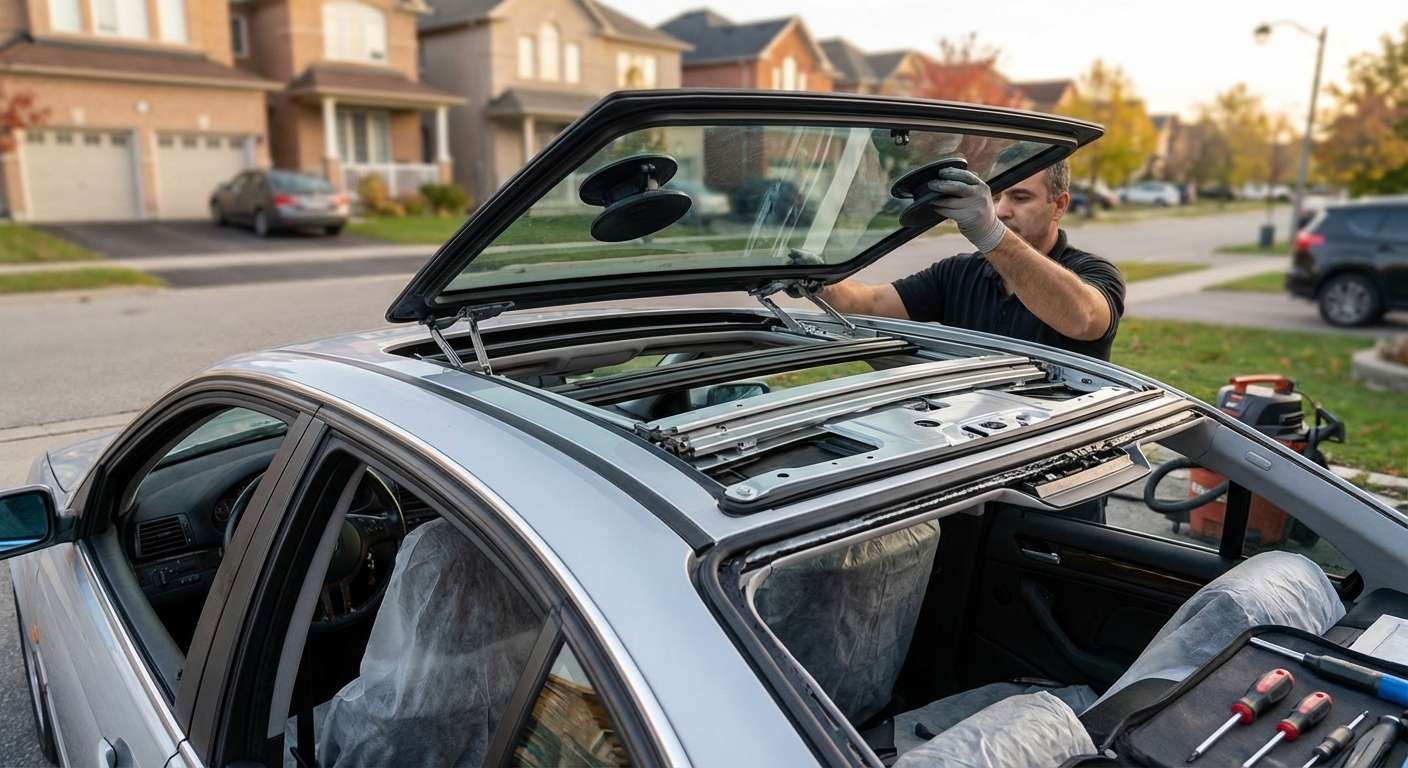

Step-by-Step E46 Sunroof Replacement Process
As Master Technicians, we follow a rigorous, factory-approved protocol. Here is the detailed A to Z process of how we handle your BMW 3 Series sunroof replacement:
Step 1: Thorough Debris Removal and Vacuuming
Unlike a windshield crack, a broken sunroof usually consists of tempered glass, which shatters into thousands of tiny, dull-edged cubes. These shards are the enemy of your sunroof mechanism.
- We utilize industrial-grade HEPA vacuums to extract glass from the seats, carpets, and floor mats.
- Crucially, we vacuum the sunroof "cassette" tracks. Even a single shard left in the rail mechanism can grind gears, snap cables, or cause the sunroof to jam permanently.
- We inspect the headliner gap to ensure no glass has slid backward between the roof skin and the interior fabric.
Step 2: Disassembly of the Mechanism Access Points
To access the mounting hardware on an E46, we must manipulate the interior "accordion" blinds (bellows) that hide the mechanism.
- We carefully unclip the rubber accordion guards from the side rails.
- This exposes the Torx screws (typically T25) that secure the glass panel to the lifter mechanism.
- We inspect the lifting arms for cracks or age-related fatigue—a common issue on BMWs from 1999–2005.
Step 3: Old Glass and Hardware Removal
We carefully unscrew the mounting bolts. If the old glass is intact but cracked, it is lifted out vertically. If the glass was completely shattered, we remove the metal frame remnants and the weather seal gasket attached to the panel mounting points.
Step 4: Surface Preparation and Cleaning
A leak-free seal relies on a clean surface. We perform a detailed cleaning of the aperture:
- The metal roof flange is cleaned with a specialized solvent to remove old road grime, moss, and dirt buildup that accumulates under the seal.
- We clear the four water drain tubes located at the corners of the sunroof cassette. We test these drains with water to ensure they are not clogged; a clogged drain is the #1 cause of wet floorboards in an E46.
- For the mounting points, we apply a corrosion-inhibiting primer if any bare metal was exposed during the shattering of the previous glass.
Step 5: Preparing the New Glass and Seal
We use only OEM-equivalent glass that matches the tint, curvature, and thickness of the original BMW factory part.
- We inspect the pre-installed weatherstrip on the new glass panel. Ideally, the rubber seal should be soft and pliable.
- We apply a specialized rubber conditioner or a thin bead of non-hardening sealant to the weatherstrip interface to ensure a watertight bond when compressed against the roof opening.
Step 6: Installation and "Zero Position" Calibration
This is the most technical part of the installation. Simply bolting the glass in is not enough; it must be calibrated for aerodynamics.
- We position the new glass panel onto the lifter arms and insert the Torx screws, leaving them slightly loose.
- The Height Adjustment: We adjust the glass so that the front edge is 1mm lower than the roofline, and the rear edge is 1mm higher than the roofline.
- This specific staggered alignment is mandatory for BMWs to prevent high-speed wind noise (whistling) and to ensure water flows correctly into the drainage channels rather than being forced under the seal.
- Once aligned, the screws are torqued to factory specifications.
Step 7: Final Functionality Test
We reconnect the battery (if disconnected) and perform a full cycle test. We open the roof to the "vent" (tilt) position and the fully "open" (slide) position to ensure the anti-trap function works and that the motor is not straining. Finally, we perform a high-pressure water test to certify the seal.
Mobile Service Across the GTA
We understand that driving a BMW with a shattered sunroof is dangerous and exposes your interior to the elements. That is why AlexWindshield brings the repair shop to you. Our fully equipped mobile units operate throughout the Greater Toronto Area.
Whether you are parked at your office in Markham, your home in Richmond Hill, or a shopping center in Vaughan, our technicians arrive ready to perform this complex repair on-site. We carry all necessary power inverters, vacuums, and lighting to work in driveways or parking lots.
Why Trust AlexWindshield for your BMW E46?
1. Specialized BMW Knowledge
General auto glass shops often treat a sunroof like a door glass—they vacuum it out and bolt a new one in. We understand the E46 electrical system and the mechanical nuances of the sliding rail cassette. We check the drains, we grease the rails with lithium grease, and we ensure the "comfort close" feature still operates.
2. High-Quality Materials
We do not use cheap, wavy aftermarket glass that distorts your view or fails to seal properly. We use glass that meets or exceeds European safety standards, ensuring that in the event of a rollover, the structural rigidity of the roof is maintained.
3. The Lifetime Warranty
We stand firmly behind our craftsmanship. Every sunroof replacement comes with a Lifetime Warranty covering water leaks, air leaks, and workmanship errors for as long as you own the vehicle. If you hear wind noise or see a drop of water, we fix it—no questions asked.
Service Areas and Availability
Our fleet is constantly moving through the core of the GTA. We provide same-day or next-day service specifically in:
- Vaughan: From Woodbridge to Maple.
- Richmond Hill: Covering Oak Ridges to Hwy 7.
- Markham: Including Unionville and Cornell.
- Toronto & GTA: Comprehensive coverage for all boroughs.
Conclusion
Your BMW 3 Series (E46) is a machine built for driving pleasure. Don't let a broken sunroof compromise that experience or damage your interior with water leaks. Choose the experts who understand the engineering behind the glass.
Contact AlexWindshield today to schedule your mobile sunroof replacement. Trust the Master Technicians who treat your car like their own. Drive safe, drive dry, and enjoy the sky again with AlexWindshield.
