The W204 Legacy: Restoring Your Mercedes-Benz C-Class with Expert Vent Glass Replacement
The 2008-2014 Mercedes-Benz C-Class, globally recognized by its celebrated W204 chassis code, stands as a modern benchmark in the compact luxury sedan market. Renowned for its vault-like cabin acoustics, rigid structural integrity, and timeless aesthetic, the W204 was engineered to deliver a serene driving experience. Unfortunately, that premium tranquility is instantly obliterated when your vent glass is shattered. Due to their discrete size and location, these small triangular windows—typically situated on the rear doors of the W204 sedan—are the primary targets for opportunistic thieves attempting to bypass interior lock mechanisms. When this happens, you are left with a compromised cabin, severe weather exposure, and a devastating mess of shattered tempered glass.
As a Master Technician and senior auto glass specialist, I have witnessed countless W204 models brought in with hastily patched, shattered vent windows. Mercedes-Benz engineering demands absolute precision; a sub-par installation can result in relentless wind noise, water ingress, and aesthetic degradation that ruins the luxury feel of your vehicle. You need an immaculate, structurally sound repair that respects the intricate design of German engineering.
Comprehensive Mobile Auto Glass Coverage Across the Greater Toronto Area (GTA)
When you are dealing with the aftermath of a break-in or accidental damage, driving your luxury vehicle to a repair shop with an open window and glass shards scattered across your leather seats is the last thing you want to do. At AlexWindshield, we bring elite, dealership-level auto glass repair directly to your location. Our state-of-the-art mobile service units are fully equipped to handle complex Mercedes-Benz installations wherever you are parked.
We proudly serve the entire Greater Toronto Area (GTA), ensuring that premium mobile auto glass service is never out of reach. Whether you are at your office in the bustling corporate sectors of Vaughan, relaxing at your residential home in Richmond Hill, or stranded in a commercial plaza in Markham, our highly trained technicians will arrive on-site, fully prepared to restore your C-Class to its pristine, original condition.

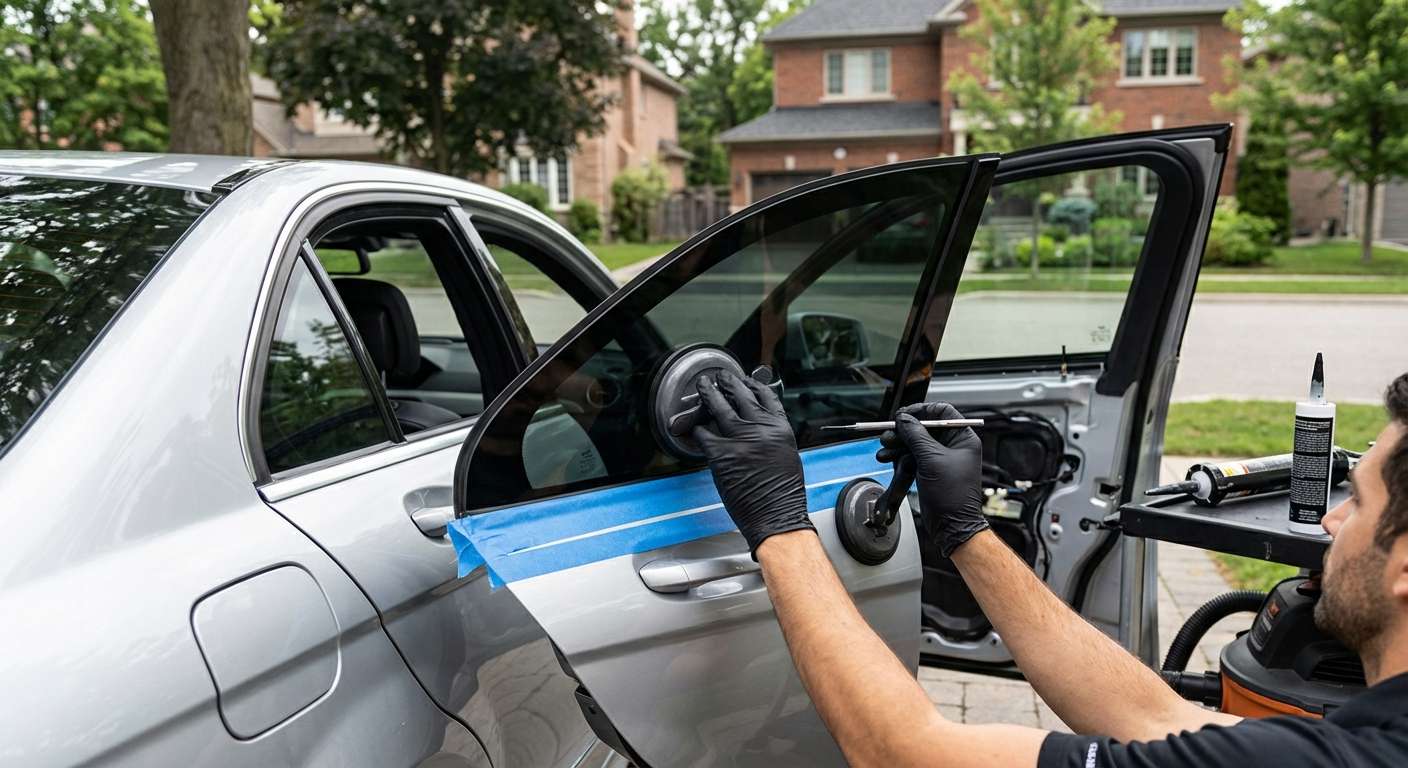

Master Technician's Guide: The W204 Vent Glass Replacement Process
Replacing the vent glass on a Mercedes-Benz W204 is not a simple "pop-and-drop" procedure. It requires an intricate disassembly of the door architecture to ensure perfect fitment and safety. Below is the detailed, step-by-step technical process utilized by our certified experts at AlexWindshield.
Step 1: Pre-Installation Inspection and Interior Protection
Before any tools touch your vehicle, we conduct a comprehensive inspection of the door frame, window trim, and surrounding paintwork to ensure no secondary damage occurred during the glass breakage. Because luxury is in the details, we meticulously protect your vehicle's interior. We drape high-quality, heavy-duty drop cloths over the premium MB-Tex or leather seating, apply protective tape to the exterior door paint, and shield the center console. This guarantees that your 2008-2014 C-Class remains completely protected from debris and adhesive throughout the entire procedure.
Step 2: Interior Trim and Door Panel Removal
Unlike standard windshields, replacing door-mounted vent glass strictly mandates the complete removal of the interior door panels. The W204 features a highly sophisticated door assembly. Using specialized, non-marring nylon pry tools, we carefully unclip the decorative wood or aluminum trim pieces to expose the hidden T30 Torx mounting screws. Once the heavy-duty fasteners are extracted, we delicately unseat the door card from its retaining clips, taking extreme care not to snap the delicate plastic brackets. We then precisely disconnect the fiber-optic ambient lighting (if equipped), the window switch wiring harnesses, and the mechanical door latch cable, allowing us full, unobstructed access to the inner door shell.
Step 3: Meticulous Vacuuming of Tempered Glass Shards
Vent glass is manufactured from automotive tempered glass, which is designed to explode into thousands of granular, blunt-edged pieces upon impact. These pieces infiltrate every crevice of your interior and plunge deep into the bottom of the door cavity. A crucial step in our AlexWindshield protocol is the exhaustive vacuuming of all broken glass shards. If left inside the door shell, these glass fragments will cause an infuriating rattling sound every time you close the door or drive over a bump, and they can potentially clog the internal water drainage holes, leading to severe rust or electronic module failure. We peel back the moisture vapor barrier and use industrial-grade, micro-attachment vacuums to extract every single shard from the door cavity, window tracks, seat rails, and floor mats.
Step 4: Extraction of the Division Bar and Old Frame
The vent glass on the W204 is separated from the main roll-down window by a vital component known as the division bar (or run channel guide). To extract the remnants of the broken vent glass, we must lower the main window glass and carefully unbolt this division bar from the door chassis. Once the division bar is loosened and tilted out of the way, we can slide out the old vent glass frame and the damaged weather stripping. We meticulously remove the original factory urethane or butyl sealant from the pinch weld, ensuring the mounting channel is perfectly clear of debris.
Step 5: Rigorous Surface Cleaning and Primer Application
An auto glass installation is only as strong as its foundation. We utilize specialized, alcohol-based automotive glass cleaners to prep the bare metal pinch weld and the ceramic frit (the black painted band) of the new, OEM-quality vent glass. Once the surfaces are chemically clean and entirely devoid of oils, dust, or moisture, we apply a high-performance auto glass primer. This black primer serves a dual purpose: it acts as a molecular bonding agent to ensure the adhesive adheres flawlessly to the glass and metal, and it provides vital UV protection to prevent the sun from degrading the urethane over time. We allow the primer to flash (cure) for the exact time recommended by the manufacturer.
Step 6: High-Quality Adhesive Application and Glass Installation
With the surfaces prepped, we load our power caulking guns with premium, fast-curing polyurethane adhesive. We apply a continuous, uniform V-bead of this high-quality urethane directly into the channel. The new vent glass is then precisely guided into the door frame. Because the W204 C-Class is known for its aerodynamic silence, the glass must be seated perfectly flush with the exterior B-pillar and C-pillar trim to eliminate any potential for wind whistling or water leaks. We apply calculated, even pressure to set the glass into the urethane, ensuring an impenetrable seal.
Step 7: Reassembly and Post-Installation Quality Check
Once the vent glass is permanently set, we begin the meticulous reassembly process. The division bar is re-inserted, perfectly aligned with the main window glass, and bolted securely back into the chassis to exact factory torque specifications. We reseal the vapor barrier to prevent moisture from entering the cabin. Next, the interior door panel is carefully reconnected, ensuring all electronic harnesses and latch cables are fully functional before snapping the panel back onto the door frame. Finally, we clean all the exterior and interior glass surfaces until they are optically flawless, and test the operation of the main roll-down window to verify that it glides smoothly within the newly aligned run channels.
Why W204 Owners Demand the Best in Auto Glass Replacement
Driving a Mercedes-Benz C-Class means you value exceptional engineering, refined aesthetics, and superior safety. When it comes to auto glass replacement, cutting corners is never an option. Substandard glass or sloppy installation techniques can lead to:
- Intrusive Wind Noise: Poorly aligned vent glass or low-grade adhesive can create microscopic gaps, completely ruining the quiet cabin experience you expect from a luxury German sedan.
- Water Leaks and Interior Damage: The GTA experiences severe weather fluctuations. A compromised seal will allow rain and snow to bypass the glass, leading to ruined leather, electrical shorts, and mold within the door panel.
- Structural Weakness: Auto glass is a critical component of your vehicle's structural integrity. We exclusively utilize premium urethanes that meet or exceed rigorous original equipment manufacturer (OEM) safety standards.
Contact AlexWindshield Today: The GTA's Premier Mobile Auto Glass Experts
Your 2008-2014 Mercedes-Benz C-Class deserves nothing less than master-level craftsmanship and uncompromising attention to detail. Do not let a shattered vent glass disrupt your peace of mind, compromise your security, or diminish the value of your luxury sedan. Trust the dedicated professionals who understand the intricate nuances of high-end European vehicles.
At AlexWindshield, we are proud to be the most trusted name in premium mobile auto glass replacement across the Greater Toronto Area (GTA). Whether you require meticulous service in Vaughan, prompt emergency replacement in Richmond Hill, or professional glass installation in Markham, we deliver unparalleled convenience by bringing the repair shop directly to your doorstep. Best of all, every single installation we perform is backed by our comprehensive, industry-leading Lifetime Warranty against leaks, wind noise, and manufacturer defects. Contact AlexWindshield today to schedule your mobile appointment and restore your Mercedes-Benz to absolute perfection.
