The Iconic Floating Roof: 2016-2022 Lexus RX Quarter Glass Dynamics
The fourth-generation Lexus RX 350 and its advanced hybrid counterpart, the Lexus RX 450h (2016-2022), entirely redefined the aesthetics of the modern luxury SUV. The defining feature of this specific AL20 generation is its striking "floating roof" design. This brilliant visual illusion is achieved through the seamless integration of the blacked-out C-pillars and the highly specialized rear quarter glass. When this specific piece of glass suffers an impact and shatters, it does not merely expose your vehicle to the elements and potential theft; it completely shatters the flawless, flowing design language of your Lexus.
Because the quarter glass on the 2016-2022 Lexus RX is encapsulated with specialized factory moldings to create that signature floating roof effect, replacing it requires far more than generic auto glass knowledge. It demands the meticulous hand of a master technician. At AlexWindshield, we specialize in luxury vehicle auto glass, ensuring that your RX 350 or RX 450h is restored to its exact factory specifications, maintaining its structural integrity, acoustic dampening, and sophisticated visual appeal.
Comprehensive Quarter Glass Replacement Process for Lexus RX 350/450h
Replacing the quarter glass on a luxury SUV is an intricate procedure that requires precision, patience, and absolute attention to detail. As master technicians, we adhere to a strict, manufacturer-approved replacement protocol. Here is our detailed, step-by-step process for replacing the quarter glass on your 2016-2022 Lexus RX.
Step 1: Thorough Vehicle Protection and Pre-Installation Assessment
Before any physical work begins, our primary goal is to protect the pristine condition of your Lexus. We apply heavy-duty automotive masking tape around the exterior painted surfaces of the C-pillar and D-pillar to prevent any accidental scratches during the removal process. Inside the cabin, we lay down high-quality protective drop cloths over your premium NuLuxe or semi-aniline leather seats, as well as over the rear cargo floor. We also conduct a thorough inspection of the damage to ensure the impact did not deform the underlying metal pinch weld.
Step 2: Interior Trim Removal and Exhaustive Glass Shard Vacuuming
Unlike laminated front windshields, rear quarter glass is manufactured from tempered safety glass. Upon impact, it is designed to shatter into thousands of small, blunt-edged shards to prevent deep lacerations. However, in a vehicle like the Lexus RX 350/450h, these shards explode inward, scattering across the cargo bay, wedging themselves between folding seat mechanisms, and falling deep inside the interior quarter panel cavities.
To address this, our technicians carefully dismantle the interior D-pillar and cargo area trim panels. Using specialized, non-marring nylon pry tools, we unclip the luxury interior paneling without damaging the fragile retaining clips. Once the inner cavity is exposed, we use high-powered industrial vacuums with precision crevice attachments to extract every single piece of broken glass. For the Lexus RX 450h specifically, we pay extremely close attention to the rear cabin area to ensure absolutely no glass dust or debris enters the hybrid battery cooling intake vents, which could cause catastrophic overheating issues down the line.
Step 3: Precision Removal of the Encapsulated Quarter Glass
The factory quarter glass on the 2016-2022 RX is bonded to the vehicle's frame using a dense polyurethane adhesive. To remove the remaining glass frame and molding, we utilize an advanced fiber-line cutting system. Unlike traditional metal cold knives that run the risk of scratching the interior frame or exterior clear coat, the fiber-line acts as a highly durable saw that slices perfectly through the old urethane bead from the inside out. We carefully extract the damaged encapsulated glass unit, completely freeing the aperture.
Step 4: Pinch Weld Preparation and Surface Cleaning
The exposed metal frame of your Lexus, known as the pinch weld, must be immaculately prepared to receive the new glass. We use specialized scraper blades to trim down the existing factory polyurethane bead to a uniform thickness of 1 to 2 millimeters. This acts as a perfect base for the new adhesive to bond to. Following the trimming, the entire perimeter is cleaned with an alcohol-based, lint-free chemical prep solvent. This removes all microscopic dirt, road grime, glass dust, and natural oils, ensuring a medically clean surface for chemical bonding.
Step 5: Advanced Primer Application for Rust Prevention
If any microscopic scratches occur on the pinch weld during the trimming process—revealing bare metal—it is critical to address them immediately. We apply an advanced, fast-drying automotive glass primer directly to the pinch weld. This black primer serves two vital purposes: it completely seals the metal to prevent any future rust or corrosion from forming inside the frame of your Lexus, and it acts as a chemical promoter that vastly increases the holding strength of the urethane adhesive.
Step 6: High-Modulus Urethane Application and Glass Installation
For a luxury SUV like the Lexus RX, standard adhesives are insufficient. We utilize only premium, high-modulus, non-conductive polyurethane adhesives. This structural adhesive is loaded into a specialized power caulking gun, and our master technician lays down a perfectly uniform, continuous triangular bead around the entire perimeter of the new quarter glass unit.

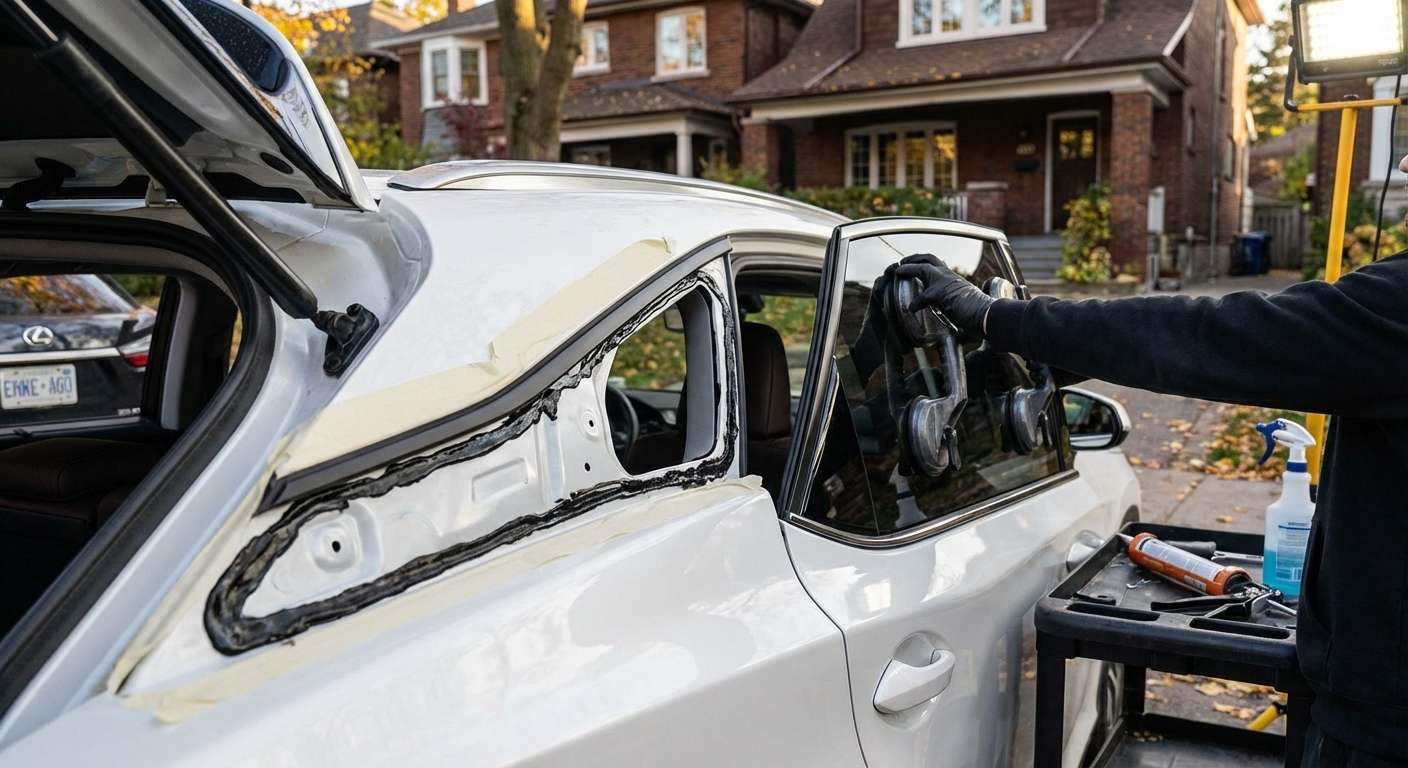

Using industrial suction cups, the new, OEM-equivalent quarter glass—complete with the exact factory-matched blackout moldings that create the floating roof effect—is carefully aligned and pressed into the frame. We apply firm, even pressure around the edges to ensure the polyurethane spreads correctly, creating an absolute watertight and airtight seal. Specialized retention tape is then applied to hold the glass firmly in perfect alignment while the chemical curing process begins.
Step 7: Reassembly, Curing Time, and Final Inspection
While the urethane is curing, our technicians meticulously reassemble the interior of your Lexus. The cargo side panels, D-pillar trims, and weather stripping are snapped back into their exact factory positions. A final interior vacuuming is performed to ensure your cabin is spotless. We then clean the newly installed quarter glass with a streak-free, ammonia-free foaming glass cleaner.
We strictly adhere to the manufacturer's Safe Drive-Away Time (SDAT). Because we use premium, fast-curing urethane, your Lexus is typically safe to drive within 30 to 60 minutes after installation. Before handing the keys back, we conduct a final multi-point inspection to guarantee flawless alignment, ensuring the aggressive, luxurious profile of your RX 350 or 450h is completely restored.
Premium Auto Glass Materials for Your Luxury SUV
At AlexWindshield, we refuse to compromise on quality. The 2016-2022 Lexus RX features a remarkably quiet cabin, engineered to block out road and wind noise. Installing inferior, cheap aftermarket glass compromises this acoustic dampening and can lead to whistling sounds at highway speeds. We source and install only Original Equipment Equivalent (OEE) or true OEM glass that matches the exact thickness, tint hue, UV-resistance, and acoustic properties of your original Lexus factory glass. Your replacement quarter glass will feature the correct molding thickness so that the dark pillar transition is seamless to the naked eye.
Mobile Service Across the Greater Toronto Area (GTA)
We understand that driving with a shattered quarter glass is not an option. It exposes your luxury interior to unpredictable weather and poses a massive security risk, making your vehicle an easy target for theft. That is exactly why AlexWindshield operates a fleet of fully equipped, state-of-the-art mobile auto glass workshops. We bring our master technician expertise directly to your driveway, underground parking garage, or corporate office across the Greater Toronto Area (GTA).
We are proud to provide rapid, priority mobile glass replacement services to Lexus owners in key GTA municipalities, including:
- Vaughan: Whether you are located near the bustling Vaughan Mills area, Woodbridge, or Maple, our mobile units arrive promptly to secure your vehicle.
- Richmond Hill: For residents from Oak Ridges down to Highway 7, we provide white-glove mobile installation directly at your home, ensuring your day remains uninterrupted.
- Markham: From Unionville to Cornell, our technicians expertly navigate Markham to deliver flawless, on-site luxury auto glass replacements.
Trust AlexWindshield: Your Master Auto Glass Technicians
When you choose AlexWindshield for your 2016-2022 Lexus RX 350 or RX 450h quarter glass replacement, you are choosing unparalleled expertise, premium materials, and absolute convenience. We do not just replace auto glass; we restore the safety, security, and luxury standard of your vehicle. Every single quarter glass installation we perform comes backed by our comprehensive Lifetime Warranty, which fully protects you against any wind noise, water leaks, or manufacturer defects for as long as you own your vehicle. Do not let a shattered window disrupt your life or compromise your luxury SUV. Contact AlexWindshield today, the premier auto glass experts of the GTA, and let us bring our world-class service directly to your door.
