Flawless Back Glass Replacement for Your 2004-2009 Lexus RX (330/350/400h)
The second-generation Lexus RX series, encompassing the Lexus RX 330, RX 350, and the hybrid RX 400h (2004-2009), pioneered the modern luxury crossover market. With its whisper-quiet cabin, premium leather interiors, and advanced hybrid technology options, this vehicle was engineered to be a mobile sanctuary. However, when your Lexus RX back glass shatters, that sanctuary is instantly compromised. Unlike laminated windshields that crack but stay intact, the tempered glass used in rear windows is designed to shatter into thousands of small, blunt pieces upon impact. This leaves your cargo area exposed to the elements, creates an unbearable level of road noise, and poses a significant security risk.
As a Master Technician and auto glass specialist, I have serviced countless XU30-generation Lexus vehicles. I understand the specific nuances of the Lexus RX liftgate, from the integrated defroster grids and privacy tint matching to the complex rear wiper assemblies. Restoring your vehicle to its factory-original condition requires much more than simply gluing a new piece of glass into place; it demands precision, patience, and a rigorous technical process.
Dedicated Mobile Auto Glass Service Across the Greater Toronto Area
Driving with a missing or shattered rear window is not just uncomfortable; it is incredibly dangerous and often illegal. That is why AlexWindshield brings the repair shop directly to your driveway. We specialize in comprehensive mobile auto glass services spanning the entire Greater Toronto Area (GTA). Whether you are parked at your home in Vaughan, working at an office in Richmond Hill, or running errands in Markham, our fully equipped mobile service units ensure that you do not have to risk driving a compromised vehicle. We deliver dealership-level quality directly to your location.
Our Master Technician’s Step-by-Step Back Glass Replacement Process
Replacing the back window on a 2004-2009 Lexus RX requires a meticulous, A-to-Z approach. Because rear windows are made of tempered glass, a breakage means managing thousands of glass shards before any installation can begin. Here is the exact, step-by-step technical process we follow at AlexWindshield to ensure a flawless, safe, and permanent installation.
Step 1: Vehicle Preparation and Interior Protection
Before we touch a single tool, our priority is protecting your vehicle. The luxurious interior of the Lexus RX 330/350/400h is highly susceptible to scratches from broken glass. We begin by carefully laying down heavy-duty protective drop cloths over the rear cargo area, the folded rear seats, and the exterior bumper. We apply specialized protective tape along the painted edges of the rear liftgate to prevent any accidental scratches to your clear coat during the extraction and installation phases.
Step 2: Deep Cleaning and Vacuuming Broken Glass Shards
When a Lexus back glass breaks, the shards do not just fall onto the cargo floor; they infiltrate every crevice of the rear liftgate. This is a critical step that many budget installers skip. We carefully remove the interior plastic trim panels and the fabric liner from the inside of the rear liftgate. Using high-powered industrial vacuums, we meticulously extract every single shard of broken glass from the cargo bay, the rear seat folds, and most importantly, from inside the tailgate cavity. If these internal shards are not removed, they will cause an irritating rattling noise every time you open the trunk or drive over a bump in the GTA. At AlexWindshield, we ensure your cabin is spotless and completely free of dangerous glass debris.
Step 3: Disassembling the Rear Liftgate Components
The 2004-2009 Lexus RX features several integrated components on the rear glass that must be carefully uninstalled. Our technicians systematically remove the rear wiper arm assembly, ensuring the wiper motor spindle is safe from damage. We then carefully disconnect the electrical harnesses for the rear defroster grids and, if equipped, the integrated radio antenna. The third brake light housing and any exterior molding strips are also detached and safely set aside for reinstallation.
Step 4: Removing the Old Urethane and Remaining Glass
Even though the center of the glass has shattered, the outer perimeter of the original glass is still glued securely to the vehicle's pinch weld. Using specialized auto glass cut-out tools, such as a cold knife or a wire-cutting system, we carefully slice through the original factory polyurethane adhesive. We trim the old urethane down to a thin, flat base layer of about 1-2 millimeters. This process must be done with absolute precision to avoid scraping the bare metal of the pinch weld, which could lead to severe rust issues beneath the new glass down the line.
Step 5: Pinch Weld Preparation and Primer Application
The foundation of a safe auto glass installation is surface preparation. We thoroughly clean the pinch weld and the surrounding liftgate frame using a specialized, alcohol-based glass cleaner to remove any dirt, moisture, or chemical residues. If there are any minor, unavoidable scratches on the metal from previous repairs or the breakage itself, we apply a high-quality, anti-corrosive auto glass primer. This bare-metal primer prevents rust formation and promotes an aggressive chemical bond between the vehicle's body and the new adhesive.
Step 6: Applying High-Quality Automotive Adhesive
Once the primer has fully flashed off (dried), we prepare the new, OEM-equivalent tempered back glass. The glass is cleaned, and a specialized glass primer is applied to the frit band (the black painted edge of the glass). Next, we apply a continuous bead of premium, high-quality urethane adhesive. We utilize a precise "V-bead" extrusion method, driven by a professional power caulking gun. This specific V-shape ensures that when the glass is pressed into place, the adhesive collapses evenly, creating a watertight, structurally sound seal with absolutely no gaps or weak points.

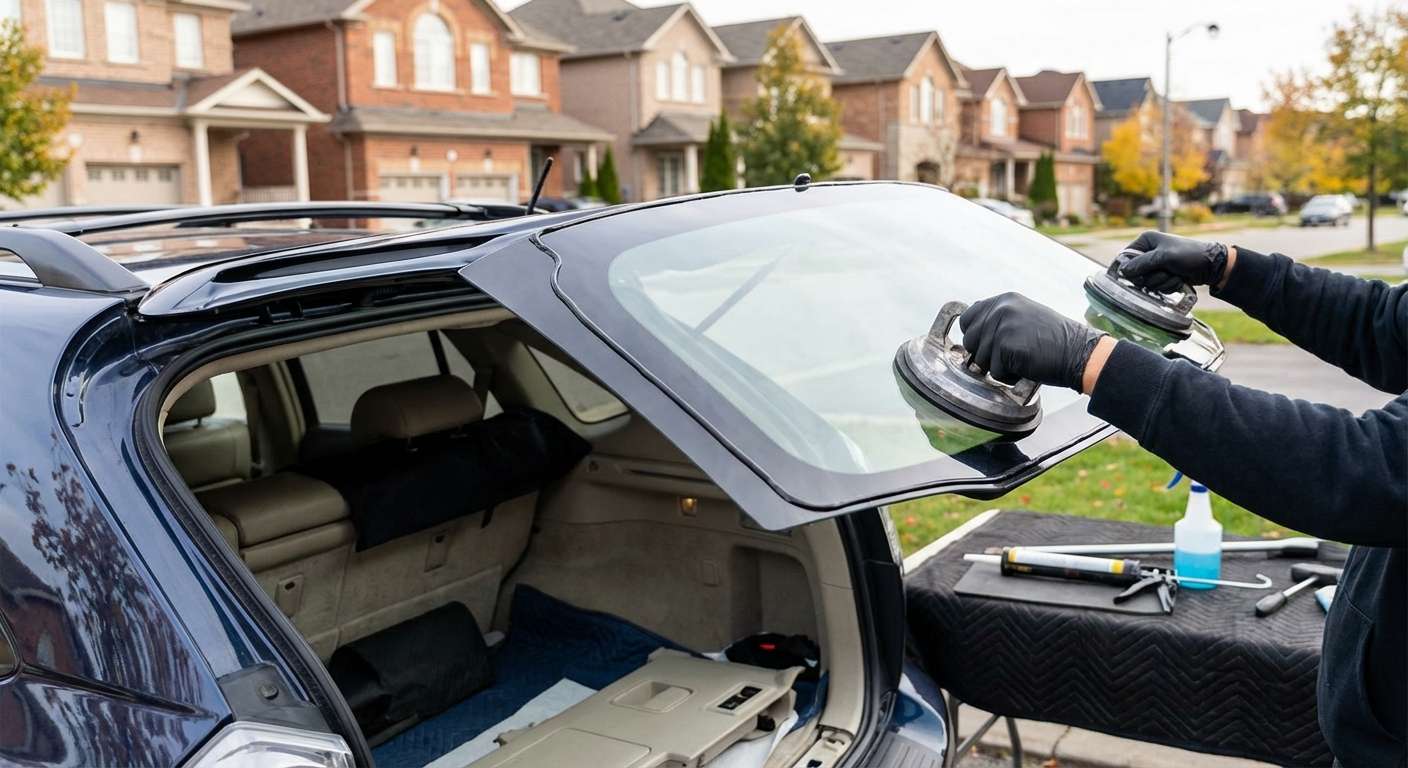

Step 7: Precision Installation of the New Back Glass
Handling the heavy, curved back glass of a Lexus RX 350 or RX 400h requires a steady hand and precise alignment. Using heavy-duty suction cups, our technicians carefully lift the new glass and set it onto the fresh urethane bead. We apply firm, even pressure to ensure the glass seats perfectly against the pinch weld. We meticulously check the alignment, ensuring the gaps between the glass, the roofline, and the side pillars are factory-perfect. Temporary retention tape is applied to hold the glass firmly in place while the high-quality adhesive begins its initial curing process.
Step 8: Reconnecting Components and Final Testing
While the urethane cures, we begin the reassembly process. We carefully reinstall the interior liftgate trim panels that were removed during the glass vacuuming stage. We reconnect the defroster wiring harnesses and test the circuit with a multimeter to guarantee your rear defogger will work perfectly during harsh Canadian winters. The rear wiper arm is reattached, aligned to its proper resting position, and torque-tested. Finally, we clean the new glass inside and out, leaving your Lexus RX looking as pristine as the day it rolled off the assembly line.
Why Choose AlexWindshield for Your Lexus Auto Glass Needs?
Your 2004-2009 Lexus RX was built to exacting standards, and your replacement auto glass should be no different. Improper installation of rear glass can lead to dangerous exhaust leaks entering the cabin, severe water damage to your interior electronics, and structural weakness. You need a trusted expert who understands the specific engineering of luxury vehicles.
At AlexWindshield, we are proud to be the premier choice for mobile auto glass services in the GTA. We save you time, eliminate the stress of driving a damaged vehicle, and bring our master-level expertise directly to your door in Vaughan, Richmond Hill, and Markham. We use only top-tier glass materials, advanced fast-curing urethanes, and rigorous safety protocols.
Because we stand completely behind the quality of our craftsmanship and the materials we use, every single installation comes with our comprehensive Lifetime Warranty. This warranty protects you against any leaks, whistling noises, or manufacturer defects for as long as you own your vehicle. When you need a flawless, stress-free back glass replacement for your Lexus RX, trust the dedicated experts at AlexWindshield to get you back on the road safely and securely.
