Restoring the Serenity of Your Luxury Crossover: Lexus NX Vent Glass Replacement
The 2022-2027 Lexus NX lineup—encompassing the naturally aspirated Lexus NX 250, the dynamic turbocharged Lexus NX 350, and the highly advanced plug-in hybrid Lexus NX 450h+—represents the absolute pinnacle of modern compact luxury. Renowned for its whisper-quiet cabin, meticulous Japanese Takumi craftsmanship, and advanced acoustic dampening, the NX provides a true sanctuary on the road. However, when your Lexus suffers a shattered vent glass, that serene driving experience is instantly compromised. Often targeted by thieves due to its discreet location, a broken vent glass not only exposes your premium NuLuxe or genuine leather interior to the unpredictable elements of the Greater Toronto Area (GTA), but it also creates a severe security vulnerability that demands immediate, professional attention.
Replacing the vent glass on a second-generation Lexus NX is far from a standard plug-and-play operation. The 2022-2027 models introduced highly complex interior door architectures, including the innovative Digital Latch (E-Latch) electronic door handles, sophisticated ambient lighting wiring, and precision-engineered acoustic weatherstripping. Mishandling these components can lead to electrical faults, wind noise, and water leaks. As a Master Technician at AlexWindshield, I utilize factory-grade protocols to ensure your luxury vehicle is restored to its exact original specifications.
The Technical Complexity of the Lexus NX Vent Glass
The vent glass, often located on the rear doors or the quarter panel area depending on the specific trim configuration, serves a vital role in the structural rigidity of the door frame and the overall aerodynamic profile of the vehicle. In the Lexus NX series, this glass is not simply bolted in; it is an encapsulated unit that requires precise chemical bonding to the vehicle's pinch weld using premium automotive adhesives. Our methodology guarantees that the structural integrity of your Lexus is maintained, ensuring optimal safety in the event of a collision.
Master Technician's Guide: Comprehensive Step-by-Step Vent Glass Replacement Process
At AlexWindshield, we do not take shortcuts. Our replacement process follows a strict A-to-Z technical protocol, ensuring every shard of glass is removed and the new vent glass is installed with flawless precision.
Step 1: Vehicle Pre-Inspection and Cabin Protection
Before any tools touch your vehicle, we conduct a thorough pre-inspection of the damaged area. We document the extent of the damage and assess if the window regulator or door frame sustained any impacts. To safeguard your luxury interior, we cover the seats, center console, and floor mats with highly durable, non-scratch protective drop cloths. Tape is applied around the exterior door frame to protect the vehicle's pristine clear coat and paint from any accidental friction during the removal process.

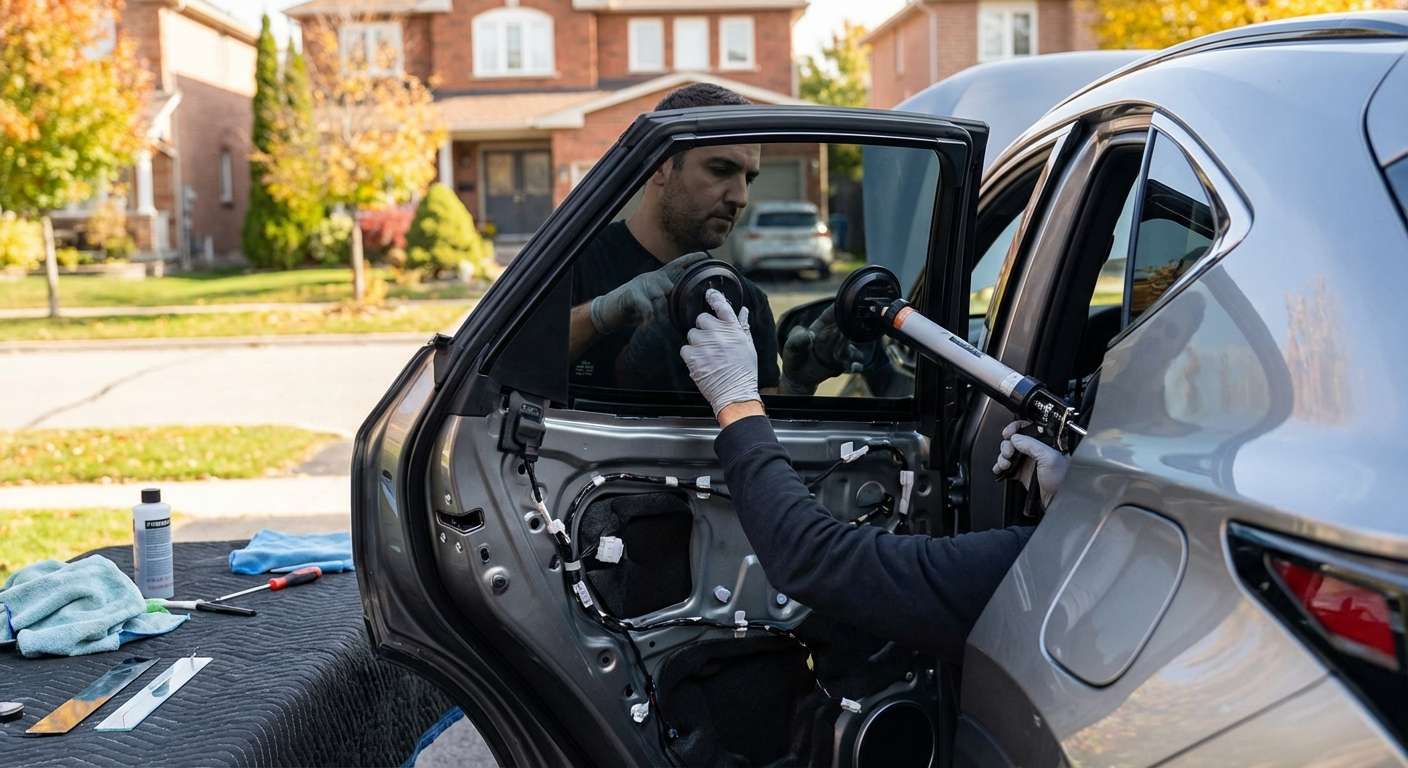

Step 2: Precision Interior Door Panel and Trim Removal
Because the vent glass is integrated deeply into the door structure, the interior door panel must be completely removed. This is a delicate procedure on the 2022-2027 Lexus NX. Using specialized, non-marring nylon pry tools, we carefully unclip the premium trim pieces without scratching the surface. We then disconnect the complex wiring harnesses, paying critical attention to the Lexus E-Latch system, the power window switch module, and the Mark Levinson premium audio speakers. Once the fasteners are removed, the door panel is carefully lifted away and stored in a safe, clean location.
Step 3: Thorough Broken Glass Vacuuming and Debris Extraction
Vent glass is made of tempered safety glass, meaning that when it breaks, it violently explodes into thousands of tiny, granular shards. These glass pieces fall deep into the inner cavity of the door shell. It is a strict requirement at AlexWindshield to perform an exhaustive extraction of this debris.
- Door Cavity Evacuation: We use a heavy-duty industrial vacuum with a flexible, micro-crevice attachment to reach the very bottom of the door shell, extracting every hidden shard.
- Regulator Track Cleaning: Broken glass trapped in the window tracks will severely scratch your main roll-up door glass if not removed. We clean and lubricate these tracks meticulously.
- Weep Hole Clearance: We ensure the water drainage weep holes at the bottom of the door are entirely free of glass dust to prevent future interior water pooling and rust.
- Cabin Vacuuming: Finally, we vacuum the rear seats, the carpets, and the intricate folds of the leather upholstery to ensure the interior is completely safe for your family.
Step 4: Removal of the Damaged Vent Glass Frame and Old Adhesive
With the interior stripped and cleaned, we address the remaining shattered glass and its encapsulated frame. Using a specialized cold knife or an auto glass cut-out wire system, we carefully slice through the original factory urethane bead that holds the vent glass module to the vehicle's metal pinch weld. We systematically remove the old rubber molding, ensuring we do not bend or warp the structural metal frame of the Lexus NX door.
Step 5: Rigorous Surface Preparation and Cleaning
A new piece of glass is only as secure as the surface it is bonded to. We use a high-carbon scraper to trim down the old urethane bead, leaving a thin, uniform base level of 1-2 millimeters for the new adhesive to bond with. The entire pinch weld area is then cleaned using an alcohol-based, lint-free preparation solvent. This removes all dirt, grease, moisture, and micro-dust particles, creating a surgically clean bonding surface.
Step 6: Primer Application for Maximum Adhesion and Rust Prevention
Any microscopic scratches on the metal pinch weld caused during the removal process must be chemically treated. We apply a premium, fast-curing automotive glass primer to the bare metal spots and the remaining urethane track. This specialized primer serves two critical functions: it acts as a permanent rust inhibitor, protecting the longevity of your Lexus door frame, and it creates an active chemical bridge that allows the new urethane adhesive to bond at a molecular level with the vehicle's frame.
Step 7: Urethane Adhesive Sealing and Precision Glass Installation
Once the primer has properly flashed off, we prepare the new, OEM-equivalent premium vent glass. We apply a continuous, V-shaped bead of high-quality, fast-curing urethane adhesive directly onto the pinch weld. Using highly calibrated suction cups, the Master Technician carefully aligns the new vent glass module, pressing it firmly into the adhesive bed. We ensure the glass sits perfectly flush with the exterior pillars, maintaining the aerodynamic profile and the acoustic seal necessary to keep the Lexus NX cabin whisper-quiet.
Step 8: Reassembly, Curing, and Final Quality Assurance Check
While the specialized urethane adhesive undergoes its curing process, we begin the meticulous reassembly of your Lexus NX. We reconnect the E-Latch wiring, the audio system, and the window controls, ensuring every electronic component functions flawlessly. The interior door panel is securely snapped back into place using fresh retaining clips where necessary. Finally, we clean the newly installed vent glass with an ammonia-free auto glass cleaner and conduct a rigorous water-leak test to guarantee an absolute, factory-tight seal.
Premium Mobile Vent Glass Service Across the Greater Toronto Area (GTA)
At AlexWindshield, we know that your time is incredibly valuable. Driving a luxury vehicle with a shattered window to a repair shop is stressful, unsafe, and exposes your cabin to further weather damage. That is why we bring our Master Technician expertise directly to your driveway, office, or parking garage.
Our fully equipped mobile service vehicles operate extensively across the Greater Toronto Area (GTA). We proudly offer rapid-response, same-day or next-day auto glass replacement specifically catering to the following regions:
- Vaughan: Whether you are near Vaughan Mills, Woodbridge, or the bustling corporate centers, our mobile units arrive promptly to secure your vehicle.
- Richmond Hill: We serve the residential and commercial hubs of Richmond Hill, ensuring your Lexus NX is safely repaired right in your own driveway without disrupting your daily routine.
- Markham: From the high-tech business parks to upscale residential neighborhoods, our technicians provide seamless, on-site luxury auto glass replacement across the entire Markham area.
Why Choose AlexWindshield for Your Lexus NX 250/350/450h?
Your 2022-2027 Lexus NX is a marvel of modern automotive engineering, and it deserves to be serviced by technicians who understand its complexities. We do not just replace glass; we restore the security, aesthetic beauty, and acoustic perfection of your luxury crossover. By using only the highest grade of automotive urethane, premium encapsulated glass, and strict factory installation procedures, we ensure a flawless result every single time.
When you choose AlexWindshield, you are choosing the premier mobile auto glass expert in the GTA. We stand behind our precision craftsmanship, which is why every vent glass replacement we perform is backed by our comprehensive Lifetime Warranty against leaks, whistling, and workmanship defects. Do not compromise on your luxury driving experience. Trust the Master Technicians at AlexWindshield to provide the ultimate in quality, convenience, and peace of mind.
