Preserving the Luxury and Safety of Your Crossover: Windshield Replacement for Lexus NX 200t/300/300h (2015-2021)
The Lexus NX series—encompassing the turbocharged 200t, the refined 300, and the ultra-efficient 300h hybrid from 2015 to 2021—revolutionized the compact luxury crossover segment. With its striking spindle grille, aggressive angular bodylines, and a whisper-quiet cabin crafted for ultimate comfort, the NX is a masterpiece of Japanese engineering. However, maintaining that luxurious silence and the flawless operation of the vehicle's advanced safety systems means your windshield is far more than just a piece of glass. It is a critical structural component and the technological lens through which your Lexus views the road. When damage occurs, a standard "slap-and-dash" repair simply will not suffice. You need the precision of a Master Technician.
At AlexWindshield, we specialize in luxury automotive glass services. We understand that a windshield replacement for a Lexus NX 200t/300/300h requires an intimate understanding of acoustic glass properties, thermal wiper de-icers, rain sensors, and highly sensitive forward-facing safety cameras. Driving with a compromised windshield not only ruins the aesthetic of your Lexus but actively endangers you and your passengers by impairing structural integrity and disabling vital crash-avoidance technologies.
Understanding the Complexity of the Lexus NX Windshield
Before diving into the replacement process, it is essential to understand what makes the windshield of the 2015-2021 Lexus NX series so advanced. Lexus engineers integrated several sophisticated technologies directly into the glass:
- Acoustic Interlayer: The NX series utilizes specially designed acoustic glass to dampen wind and road noise, ensuring the signature quiet Lexus ride. Replacing this with inferior aftermarket glass will result in a noticeably louder cabin.
- Lexus Safety System+ (ADAS): Mounted directly to the windshield behind the rearview mirror is the forward-facing camera. This camera controls the Pre-Collision System (PCS), Lane Departure Alert (LDA) with Steering Assist, and Dynamic Radar Cruise Control.
- Rain Sensors & Heating Elements: Many NX models are equipped with automatic rain-sensing wipers and a wiper de-icer grid integrated into the lower frit band of the glass, essential for harsh Canadian winters.
Our Master Technician A-to-Z Windshield Replacement Process
As a senior technician, I treat every Lexus NX as if it were my own. Our meticulously engineered replacement process ensures that your vehicle is restored to strict factory specifications. Here is our detailed, step-by-step procedure for replacing the windshield on your 2015-2021 Lexus NX.
Step 1: Vehicle Preparation and Interior Protection
Luxury vehicles require the utmost care. Before a single tool touches your car, we initiate a comprehensive protection protocol. We drape thick, scratch-resistant protective covers over the fenders, hood, and front bumper. Inside the cabin, we protect the premium NuLuxe or leather seating, the dashboard, and the steering wheel with specialized drop cloths. We then perform a pre-scan of the vehicle's onboard computer to log the current status of the ADAS systems and ensure no pre-existing fault codes are present.
Step 2: Component Removal and Cowl Disassembly
We carefully detach the windshield wiper arms using a specialized puller to avoid damaging the splines. Next, we remove the plastic cowl panel at the base of the windshield, exposing the lower edge of the glass and the wiper de-icer electrical connections. Inside the cabin, we meticulously remove the rearview mirror assembly, the forward-facing ADAS camera, the rain sensor, and the interior A-pillar trims, taking care not to disturb the side-curtain airbags located just behind the pillars.
Step 3: Extracting the Damaged Windshield
To remove the damaged glass without harming the vehicle's aluminum and steel frame, we utilize an advanced fiber-line cutting system rather than traditional metal cold knives. The high-tensile cutting line is threaded through the old polyurethane adhesive from the inside out. Using a synchronized dual-pulley system, we slowly slice through the factory seal around the entire perimeter of the windshield. This modern technique guarantees zero damage to the delicate pinch weld and the exterior paint. Once the seal is broken, two technicians use heavy-duty suction cups to lift the heavy glass up and away from the Lexus.
Step 4: Pinch Weld Preparation and Surface Cleaning
The foundation of a safe windshield installation lies in the preparation of the pinch weld (the metal frame where the glass sits). We use specialized scraping tools to trim the old polyurethane adhesive down to a thin, uniform base layer of approximately 1 to 2 millimeters. This "close-cut" method provides the optimal bonding surface for the new adhesive. We then vacuum any dust, dirt, or microscopic glass shards from the cowl area and dash board. Finally, the entire perimeter is thoroughly cleaned using an industry-specific, alcohol-based glass cleaner to remove any grease or contaminants.
Step 5: Primer Application and High-Quality Adhesive
If there are any microscopic scratches on the bare metal of the pinch weld, we apply a specialized anti-corrosion auto body primer to prevent future rust—a critical step many discount shops skip. Next, we prepare the new OEM-equivalent acoustic windshield by cleaning its frit band and applying a glass-specific primer to promote maximum adhesion. We then apply a premium, fast-curing automotive polyurethane adhesive. Using a high-powered electric caulking gun, we lay down a perfect, mathematically precise triangular bead of urethane around the entire perimeter of the pinch weld. This shape is engineered to collapse perfectly when the glass is set, creating an impenetrable, waterproof seal.

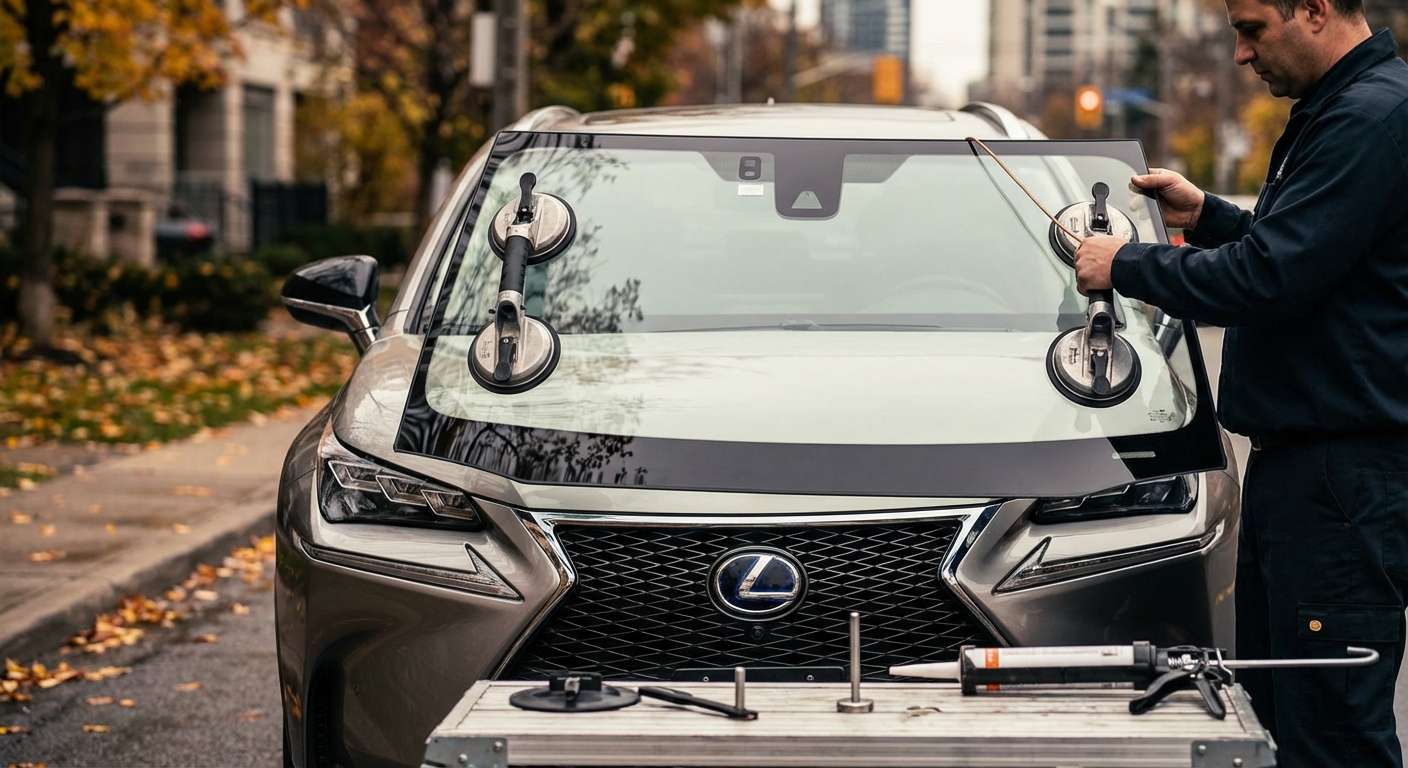

Step 6: Setting the New Lexus NX Windshield
Timing is critical due to the "flash-off" time of the urethane. Two technicians precisely align the new windshield over the Lexus NX frame. We use alignment pins and gravity stops to ensure the glass is seated exactly to factory tolerances. Once set, we gently press the perimeter to collapse the urethane bead, ensuring a flawless bond. We then reconnect the wiper de-icer heating grid, reattach the rain sensor using a new gel pad to ensure flawless automatic wiper functionality, and carefully remount the ADAS camera into its precision bracket on the new glass.
Step 7: Reassembly and Final Curing
We reinstall the exterior cowl panel, secure the wiper arms to their exact factory resting positions, and replace the interior A-pillar moldings. We then allow the vehicle to sit for the required Safe Drive Away Time (SDAT), allowing the advanced urethane to cure to a point where it can successfully withstand the force of a passenger airbag deployment in the event of a collision.
Mandatory ADAS Camera Calibration for Lexus Safety System+
For a Lexus NX 200t, 300, or 300h, setting the glass is only half the job. ADAS camera calibration is strictly mandatory following a windshield replacement. The forward-facing camera mounted on the windshield determines the distance of vehicles ahead of you and monitors lane markings. Even a millimeter of variance in the new glass or the camera bracket can throw the system off by several feet at highway speeds.
If calibration is skipped, your Pre-Collision System may fail to brake in time, or your Lane Departure Alert may falsely steer you into oncoming traffic. At AlexWindshield, we utilize state-of-the-art optical targeting systems and advanced diagnostic scan tools to perform a dynamic and static calibration of your Lexus Safety System+. We align the laser targets specifically to the NX's wheelbase and ride height, reprogramming the camera module to recognize its new position. We provide you with a comprehensive computer printout certifying that your safety systems have been successfully recalibrated to OEM standards.
Premium Mobile Auto Glass Services Across the Greater Toronto Area (GTA)
We understand that Lexus owners lead busy lives. Driving a vehicle with a damaged windshield across the city to a repair shop is inconvenient and unsafe. That is why AlexWindshield brings the highest standard of auto glass repair directly to your driveway or workplace.
Our fully equipped mobile service vans operate comprehensively across the Greater Toronto Area (GTA). Whether you need a windshield replacement at your home in Vaughan, while you are working in the tech hubs of Markham, or while shopping in Richmond Hill, our Master Technicians come to you. We bring the climate-controlled adhesives, the advanced fiber-line cutting tools, and the highly specialized ADAS calibration equipment right to your location. You receive dealership-level quality and safety without ever having to hand over your keys for a whole day.
Why Choose AlexWindshield for Your Lexus NX?
Your Lexus NX is a marvel of modern automotive engineering, and it deserves to be serviced by technicians who respect its complexity. Choosing a discount glass shop often results in elevated wind noise, leaking seals, rusting frames, and failing safety sensors.
By choosing AlexWindshield, you are opting for uncompromising quality. We use only OEM-equivalent acoustic glass, premium fast-cure urethanes, and strictly adhere to the manufacturer’s replacement protocols. More importantly, we stand entirely behind our craftsmanship. Every windshield replacement we perform comes backed by our comprehensive Lifetime Warranty, covering any leaks, manufacturer defects, or workmanship errors for as long as you own your vehicle.
Do not compromise on the safety, quietness, and luxury of your Lexus NX 200t, 300, or 300h. Trust the top-rated mobile auto glass experts in the GTA. Contact AlexWindshield today to schedule your precise, fully calibrated windshield replacement and drive with absolute peace of mind.
