Door Glass Configurations Across Discovery Sport Trims
When swapping side window glass on the Land Rover Discovery Sport, matching the tint level between factory body sections is critical. Front driver and passenger doors use standard solar green tint glass, carrying dealer references such as LR080137, LR058832, and the updated superseding number LR184752 for the left side, alongside LR080134 for the right side. On base trims like the Pure and SE, rear doors often left the factory with that matching light green glass. Upper trims, including the HSE, HSE Luxury, and R-Dynamic packages, routinely feature dark factory privacy glass on the rear doors, corresponding to dealer numbers like LR058834 for the rear right position. Every side glass panel relies on factory-bonded bottom mounting brackets engineered specifically to lock into the vehicle's dual-track regulator carriage.
Full-Framed Door Architecture and Internal Clearance

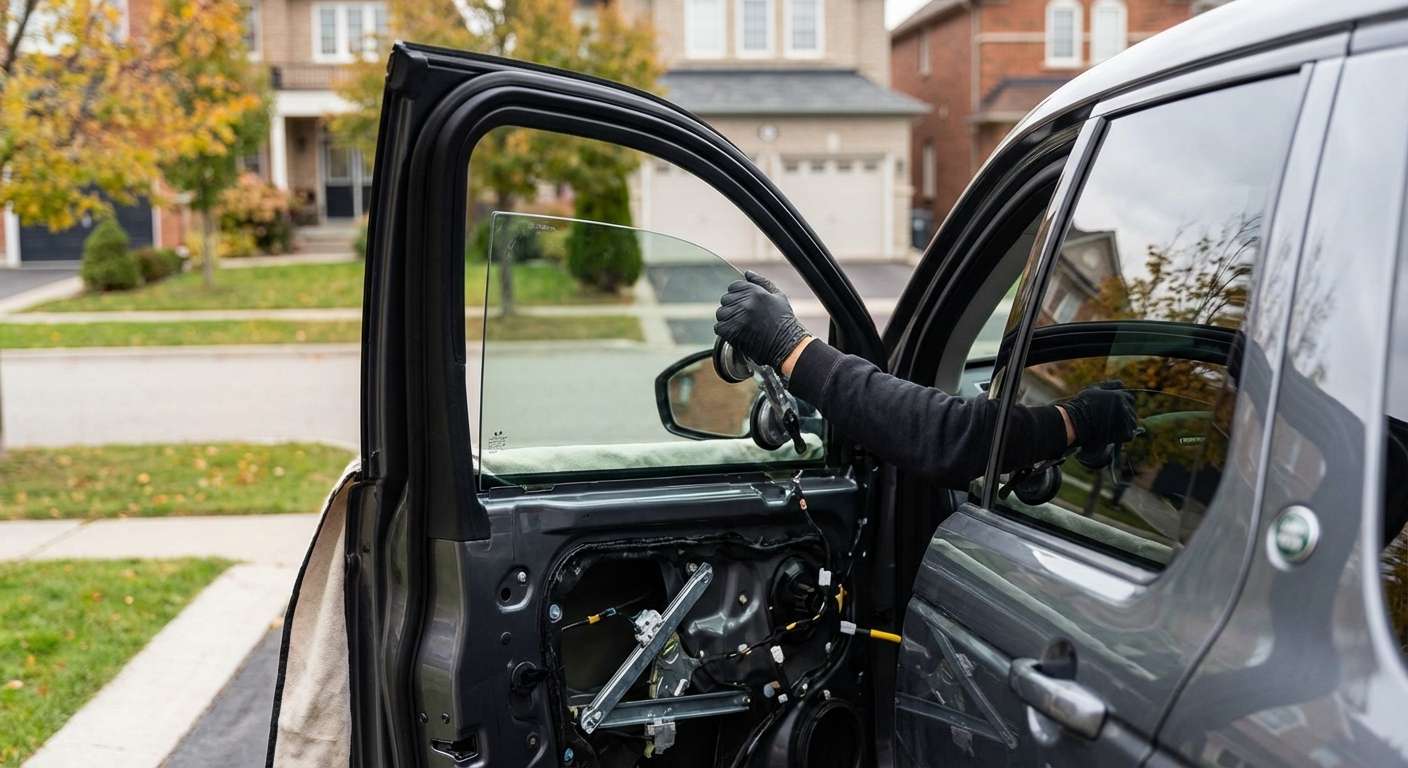

Unlike frameless luxury coupes or certain grand tourers, this Land Rover utilizes rigid full-framed steel door shells with an upright rubber glass run channel running along the entire upper frame. On rear doors, a rigid vertical division bar separates the roll-down main door glass from the stationary rear vent pane. Navigating a replacement panel into position requires stripping the interior door card, unplugging the audio speaker harnesses, and carefully detaching the water deflector vapor barrier without tearing the perimeter adhesive bead.
Because shattered side glass drops directly into the hollow base of the door shell, I pull the sub-frame assemblies and vacuum out the lower well completely before installing fresh glass. Broken fragments that escape notice will jam the cable-and-pulley tracks or chew through the plastic carrier clips that secure the glass to the lifting mechanism. When you reach out to book a replacement, I can usually be on-site at your vehicle within roughly an hour to get the fractured door cleared and sealed up. Ensuring the felt-lined exterior beltline weatherstrips and internal wipe seals are entirely clear of road grit prevents the deep vertical scratching that these vertical tracks frequently suffer from.
Why did the window drop suddenly into the door cavity?
The Discovery Sport uses a cable-and-pulley regulator system featuring molded plastic guide clips. Over time, plastic fatigue or binding along the window run channels causes these clips to snap, or the steel lifting cable frays and loses tension. Once the clip gives way, the glass unseats from the carriage and falls directly into the bottom cavity of the door.
How do I restore the auto-up function after replacing the glass?
If the battery was disconnected during repair or voltage dropped, the door control module loses its upper pinch-sensor boundary. Pull the window switch upward until the glass closes completely and continue holding the switch up for two full seconds. Release, then push the switch down until the glass bottoms out, holding it down for another two seconds. This simple cycle resets the one-touch auto-travel memory.
Do Discovery Sport door windows house rain or crash sensors?
No, the side door glass on this vehicle contains zero embedded electronics. The forward-facing ADAS cameras, solar sensors, and rain/light units are mounted against the front windshield, while radio antennas and defroster grids occupy the rear tailgate glass and fixed rear quarter panes. The movable side panels only feature the mechanical bottom mounting clips bonded to the glass edge.
