Reviving a Classic: Expert Quarter Glass Replacement for the 2005-2010 Kia Sportage
The second-generation Kia Sportage (2005-2010) redefined the compact crossover segment, combining rugged durability with a surprisingly spacious and ergonomic interior. However, as these reliable vehicles age, their expansive rear quarter glass remains highly vulnerable to side-impact road debris, unexpected vandalism, and extreme temperature fluctuations. Unlike the front windshield, the quarter glass on the 2005-2010 Sportage is uniquely positioned over the rear cargo area, playing a vital role in blind-spot visibility, structural cabin integrity, and vehicle security. When this specific piece of auto glass shatters, it leaves the interior of your cherished SUV exposed to the elements and potential theft.
At AlexWindshield, we understand the exact engineering blueprints of the JE/KM generation Kia Sportage. Replacing a bonded, encapsulated quarter glass on a vehicle of this vintage requires far more than a simple patch job. It demands a master technician’s precision, high-grade adhesives, and a meticulous eye for preserving the aging interior trim. Below, we outline our comprehensive, professional-grade quarter glass replacement protocol designed to restore your Kia Sportage to factory-level safety and aesthetics.
The Technical Complexity of the 2005-2010 Kia Sportage Quarter Glass
Before diving into the replacement procedure, it is essential to understand what makes the quarter glass on the 2005-2010 Kia Sportage unique. This glass panel is not bolted in; it is urethane-bonded directly to the vehicle's pinch weld. Furthermore, it often comes as an encapsulated unit, meaning the rubber molding is factory-fused to the edge of the glass. Because it is manufactured from tempered safety glass, an impact will cause it to explode into thousands of blunt, pebble-like shards rather than cracking. This characteristic necessitates an incredibly thorough interior cleanup process to ensure passenger safety and prevent rattling noises inside the vehicle's body panels.
A to Z Master Technician Process: Quarter Glass Replacement
At AlexWindshield, our senior technicians follow a strict, multi-point replacement methodology that meets and exceeds rigid industry safety standards. Here is the step-by-step technical breakdown of how we handle a shattered quarter glass on your 2005-2010 Kia Sportage.
Step 1: Vehicle Assessment and Interior Protection
The first step in our professional mobile auto glass service is a thorough pre-installation inspection. We examine the damage to ensure there is no structural warping to the vehicle's frame around the window opening. Because shattered tempered glass spreads easily, we meticulously protect the interior of your Sportage. We lay down heavy-duty protective drop cloths over the rear seats, the cargo floor, and the exterior paintwork surrounding the window. Tape is applied to adjacent painted panels to prevent any accidental scratches during the extraction process.
Step 2: Interior Trim Panel Removal and Deep Vacuuming
Because the quarter glass is located above the rear wheel well, a significant amount of shattered glass inevitably falls behind the interior plastic trim and into the inner body cavity. Our technicians carefully remove the C-pillar and D-pillar interior trim panels. Given that the plastic clips on a 2005-2010 vehicle can be brittle, we use specialized non-marring trim removal tools to prevent cracking. Once the panels are safely detached, we execute a deep, industrial vacuuming of the entire interior. We extract every single shard of broken glass from the cargo area, the rear seats, and most importantly, deep within the vehicle's metal body cavities to ensure no lingering glass rattles while you drive.
Step 3: Extraction of the Damaged Glass and Old Urethane
With the interior stripped and cleaned, we turn our attention to the exterior. If the glass is fully shattered, we clear the remaining shards attached to the frame. If the glass is cracked but intact, we use a specialized cold knife or an advanced wire-cutting system to slice through the original urethane adhesive bonding the glass to the frame. Once the glass or encapsulation is removed, we perform a "close cut" of the old adhesive. We carefully trim the existing urethane bead down to a thin, uniform layer of approximately 1-2 millimeters. This remaining base serves as the perfect bonding substrate for the fresh adhesive.
Step 4: Pinch Weld Preparation and Anti-Rust Primer Application
The structural integrity of a new auto glass installation relies entirely on the preparation of the pinch weld (the metal frame where the glass sits). We thoroughly clean the perimeter using a specialized, alcohol-based auto glass cleaner to remove dirt, grease, and environmental contaminants. For older vehicles like the 2005-2010 Kia Sportage, preventing rust is paramount. If our technicians expose any bare metal during the old adhesive removal, we apply a high-grade anti-rust urethane primer. This black primer is also applied to the frit band (the black painted edge) of the new OEM-quality quarter glass, promoting maximum chemical adhesion and protecting the urethane from UV degradation.
Step 5: Applying High-Quality Auto Glass Urethane Adhesive
Once the primer has properly flashed (dried), it is time to apply the adhesive. At AlexWindshield, we use only premium, rapid-curing, high-modulus polyurethane adhesives. Our master technicians utilize an electric caulking gun to extrude a perfectly uniform V-bead of urethane directly onto the pinch weld. The V-shaped profile is critical; it ensures that when the glass is pressed into place, the adhesive collapses evenly, creating a watertight, airtight, and structurally sound bond without any gaps or air pockets.

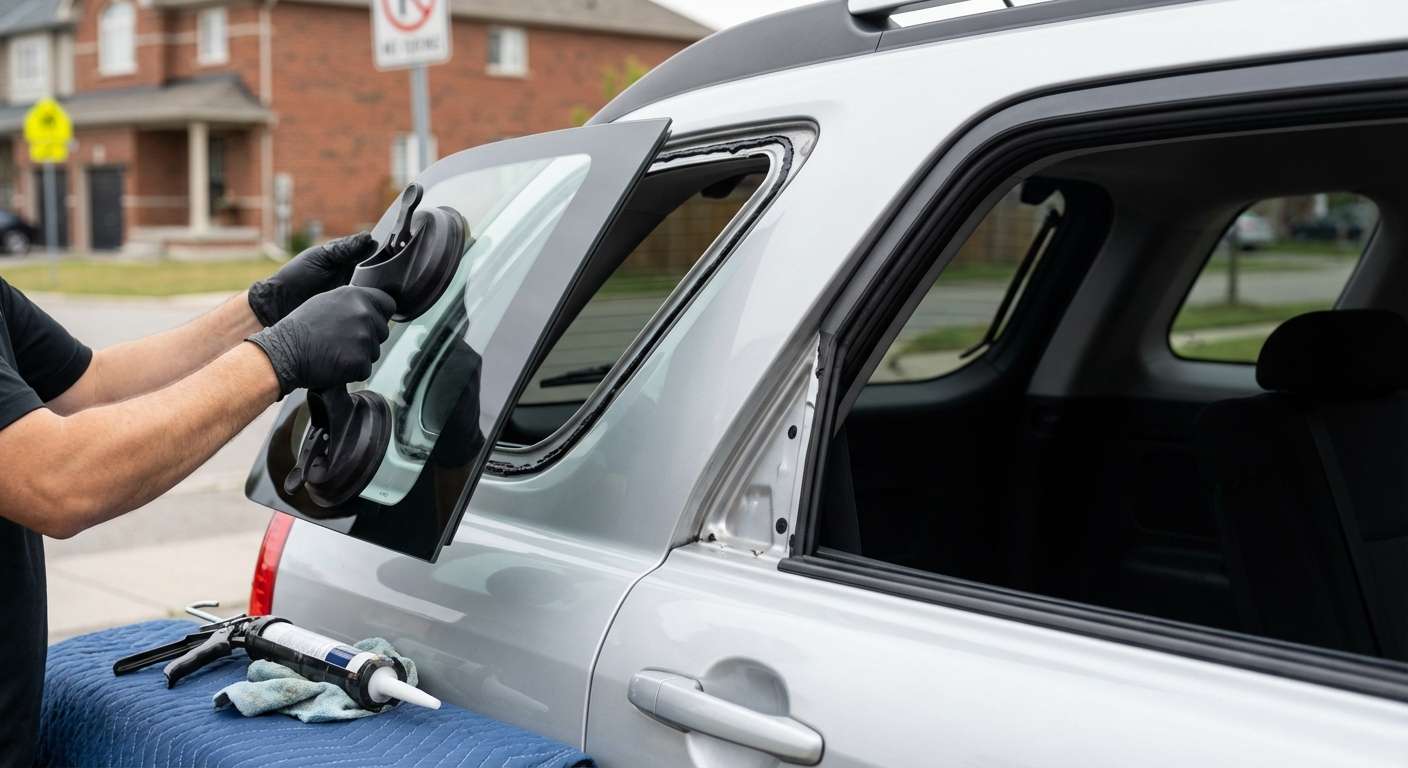

Step 6: Precision Installation of the New Quarter Glass
Handling auto glass requires a steady hand and precise alignment. We carefully lift the new, encapsulated Kia Sportage quarter glass and align it with the vehicle's frame. Using specialized suction cups, we gently set the glass into the fresh urethane bead. Firm, even pressure is applied around the entire perimeter to ensure the encapsulation molding sits perfectly flush with the exterior body panels, recreating the factory-original aerodynamic profile and aesthetic.
Step 7: Reassembly, Final Inspection, and Curing Time
After the glass is securely set, we begin the reassembly process. The interior D-pillar and C-pillar trim panels are carefully snapped back into place over the interior pinch weld. We perform a final, meticulous wipe-down of the new glass using streak-free cleaners. Finally, we brief the vehicle owner on the Safe Drive-Away Time (SDAT). Depending on weather conditions and humidity, the premium urethane we use generally requires just 30 to 60 minutes to cure to a point where the vehicle can be safely driven and meet federal crash-safety standards.
