Shattered Expectations: The 2006-2014 Honda Ridgeline Quarter Glass Dilemma
The 2006 to 2014 Honda Ridgeline broke the mold for mid-size pickup trucks, introducing an innovative unibody construction, a highly functional dual-action tailgate, and distinctive sail panels that gave it an unmistakable silhouette. However, when the Honda Ridgeline quarter glass sustains severe damage from road debris, extreme weather, or an attempted break-in, it instantly shatters the peace and security of your cabin. Because automotive quarter glass is engineered from tempered safety glass, it is designed to disintegrate into thousands of small, pebble-like shards upon impact rather than breaking into dangerous jagged shards. While this minimizes severe laceration risks, it creates a massive cleanup challenge and leaves your vehicle's interior completely exposed to the elements.
Unlike standard sedans, the structural quirks and robust door frames of the 1st generation Ridgeline require a highly specialized and meticulous approach to auto glass replacement. The rear door quarter glass (often referred to as the vent glass) is deeply integrated into the window channel and division bar assembly. As a Master Technician at AlexWindshield, I have executed countless successful glass replacements on this specific truck. Restoring your Ridgeline requires far more than just popping in a new piece of glass; it demands absolute precision, comprehensive shard extraction, and industrial-grade adhesives. Below is our definitive, step-by-step masterclass on how we execute a flawless quarter glass replacement for your 2006-2014 Honda Ridgeline.
Comprehensive Step-by-Step Quarter Glass Replacement Process
Step 1: Interior Protection and Comprehensive Broken Glass Extraction
The very first step in our specialized replacement process is securing and protecting the vehicle's interior. Tempered glass explosions spare no corner of the cabin; shards will find their way into the seat perforations, floor mats, seat rails, and deep inside the rear door cavity. At AlexWindshield, we begin by laying down heavy-duty protective drop cloths over the Ridgeline's rear seats and center console to prevent any secondary damage to the upholstery.
Once the interior is protected, we deploy high-powered industrial shop vacuums to extract every visible piece of glass from the cabin. We meticulously vacuum the floorboards, the seat crevices, and the window track. This is not just about aesthetics; leaving hidden shards in the vehicle can lead to future rattles, damage to the window regulator mechanisms, or unexpected injuries to your passengers. We ensure your Ridgeline is safer and cleaner than when we arrived.
Step 2: Interior Door Panel and Division Bar Removal
To access the mounting points of the Honda Ridgeline quarter glass, we must carefully disassemble the interior rear door panel. The 2006-2014 Ridgeline utilizes a combination of hidden Phillips screws, 10-mm bolts behind the door handle trim, and heavy-duty plastic retaining clips. Using specialized non-marring trim removal tools, we detach the door panel without scratching the plastics or damaging the clips. After disconnecting the power window switch wiring harness and the door latch cables, we safely set the panel aside.
Next, we carefully peel back the vehicle's vapor barrier (moisture deflector) to access the inner door cavity. We perform a secondary, deep-cavity vacuuming to remove all the glass pebbles that have fallen to the bottom of the door shell. To free the damaged quarter glass housing, we then unbolt and lower the main roll-up window glass, which allows us to loosen and extract the metal division bar that separates the roll-up window track from the stationary quarter glass.
Step 3: Extracting the Damaged Glass Frame and Old Sealant
With the division bar removed, the remnants of the old quarter glass and its encapsulated rubber or metal molding can be extracted. For models where the quarter glass is bonded directly to the pinch weld with urethane, we utilize specialized cold knives and powered cut-out tools to slice through the factory adhesive. We must exercise extreme caution during this extraction phase to avoid scratching the painted pinch weld of your Honda Ridgeline, as exposed bare metal is a primary catalyst for future rust and corrosion.
Once the frame is removed, we meticulously trim down the old, existing polyurethane bead. Industry best practices dictate that we leave a thin, flat base layer (roughly 1 to 2 millimeters) of the original urethane intact. This existing bed provides the absolute best bonding surface for the fresh adhesive, ensuring a watertight and structurally sound installation for your new auto glass.
Step 4: Surface Preparation and Advanced Primer Application
Preparation is the secret to a replacement that outlasts the life of the vehicle. We begin by thoroughly cleaning the entire pinch weld and window channel with an ammonia-free, alcohol-based auto glass cleaner to remove dirt, grease, and any residual dust from the tempered glass explosion. Any microscopic contaminants left on the bonding surface can compromise the chemical reaction of the urethane.
After the surface is chemically cleaned and dried, we apply a premium automotive glass primer. We carefully brush the primer onto any microscopic scratches on the pinch weld to seal the bare metal and prevent rust. Additionally, we apply a specialized glass primer (or glass prep wipe) to the bonding edge of the new, premium-quality replacement quarter glass. This primer acts as a chemical bridge, ensuring the polyurethane adhesive aggressively bites into both the vehicle's frame and the new glass molding.

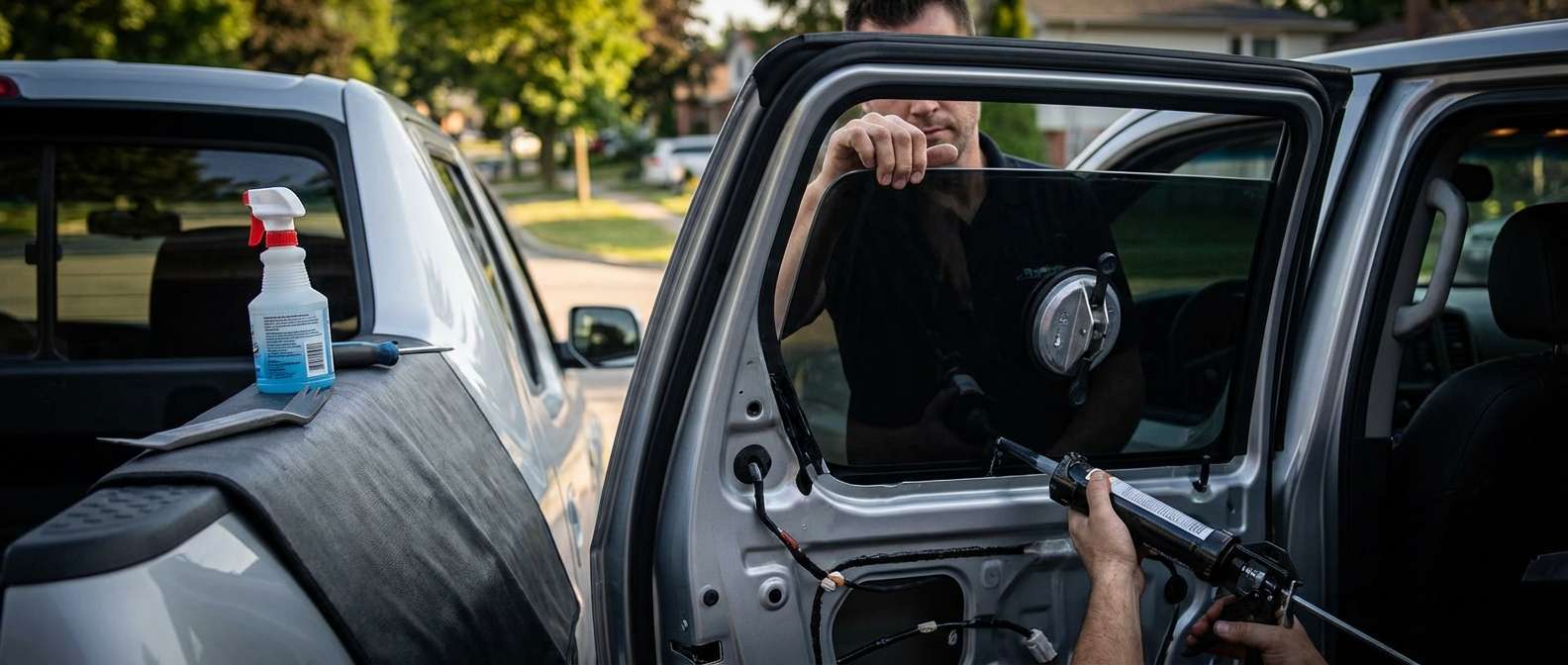

Step 5: High-Quality Adhesive Application and Precision Glass Installation
With the surface primed and flashed off (dried), it is time for the most critical structural step. Using a professional-grade caulking gun, we apply a continuous, uniform V-bead of fast-curing, high-modulus automotive polyurethane adhesive directly onto the prepared pinch weld. At AlexWindshield, we strictly use OEM-quality urethanes that meet or exceed federal motor vehicle safety standards, ensuring your Ridgeline maintains its original structural rigidity.
Before the urethane begins to skin over, our Master Technicians carefully guide the new Honda Ridgeline quarter glass into the window opening. We apply firm, even pressure around the perimeter of the glass, locking it into the fresh urethane and ensuring perfectly flush alignment with the vehicle's exterior body lines. We secure the glass in place with specialized retention tape to prevent any shifting or sagging while the adhesive cures.
Step 6: Reassembly, Window Alignment, and Final Quality Inspection
While the urethane is curing, we begin the meticulous reassembly process. We reinstall the metal division bar, ensuring the felt run channel is perfectly aligned so the main roll-up window can operate smoothly without binding. We then reconnect the main window glass to the window regulator track.
Once the mechanical components are secured, we reseal the vapor barrier and carefully reinstall the interior door panel, reconnecting the wiring harnesses and latch cables. We replace all screws and snap the trim covers back into place. Finally, we conduct a comprehensive quality control check. We test the power window operation, perform a final detailed vacuuming of the entire interior, and clean all the door glass to a streak-free, showroom shine.
Expert Mobile Quarter Glass Replacement Across the Greater Toronto Area (GTA)
Driving a rugged truck like the Honda Ridgeline in the Greater Toronto Area (GTA) means navigating everything from bustling city streets to debris-heavy construction zones on Highway 400 and the 407. When disaster strikes and your quarter glass is shattered, driving with a plastic bag taped over your window is not an option in our unpredictable Canadian climate. That is why AlexWindshield brings the repair shop directly to your driveway, workplace, or fleet lot.
We are proud to offer unparalleled, rapid-response mobile auto glass services across the most demanding regions of the GTA. Our fully equipped mobile service vans are climate-controlled and stocked with top-tier materials to perform flawless installations in:
- Vaughan: Whether you are parked near Vaughan Mills or working in the industrial sectors, our technicians navigate the heavy traffic to secure your vehicle on-site.
- Richmond Hill: From residential driveways to busy commercial plazas, we deliver pristine glass replacements without disrupting your daily schedule.
- Markham: Serving the thriving tech hubs and suburban neighborhoods of Markham with precision glass clean-up and rapid urethane curing times so you can safely get back on the road faster.
We understand that a broken window is an emergency. Our mobile fleet ensures that you do not have to risk driving an unsecured vehicle filled with loose glass across the GTA. We bring our Master Technician expertise directly to you, saving you time, stress, and towing fees.
Secure Your Ride with AlexWindshield's Lifetime Warranty
When you trust AlexWindshield with your 2006-2014 Honda Ridgeline, you are investing in premium craftsmanship, meticulous attention to detail, and absolute peace of mind. We refuse to cut corners. From the exhaustive removal of microscopic glass shards to the application of industry-leading polyurethane adhesives, every step of our process is designed to restore your truck to its original factory safety specifications.
We stand firmly behind the quality of our labor and the durability of our materials. That is why every quarter glass replacement performed by our technicians comes backed by an industry-leading Lifetime Warranty. This comprehensive guarantee covers you against any wind noise, water leaks, or manufacturer defects for as long as you own your Ridgeline. If you have suffered a shattered window in the GTA, do not settle for subpar repairs. Contact AlexWindshield today—the trusted experts in mobile auto glass—and let us seamlessly restore the comfort, security, and integrity of your vehicle.
