Acoustic Lamination on the Stationary Rear Door Glass
The rear vent glass on this sedan is built with dual-pane acoustic glass sandwiching a polyvinyl butyral (PVB) interlayer, a setup applied across both the standard 3.5T and the 48V electric supercharged 3.5T E-Supercharger models. Because it is positioned inside the door frame rather than the C-pillar quarter panel, it handles direct vibration transferred through the rear passenger door frame every time the door shuts. While it looks like a simple quarter pane from the curb, installing standard non-laminated tempered glass here immediately degrades Genesis's active interior sound-deadening design, allowing high-frequency road rumble and tire slap to penetrate directly beside the rear passenger headrest.
This stationary triangular window sits aft of the main roll-down door glass, divided by an integrated vertical metal division bar. Because this glass does not integrate radio antenna grids, de-icing elements, or forward-facing optical sensors, the critical focus remains on acoustic barrier restoration and trim alignment. Exterior surround mouldings vary across editions, featuring deep gloss black on Black Edition packages and bright satin chrome on standard luxury packages, both framing the stationary rubber weatherstrip channel.
North American RS4 Door Shell Architecture

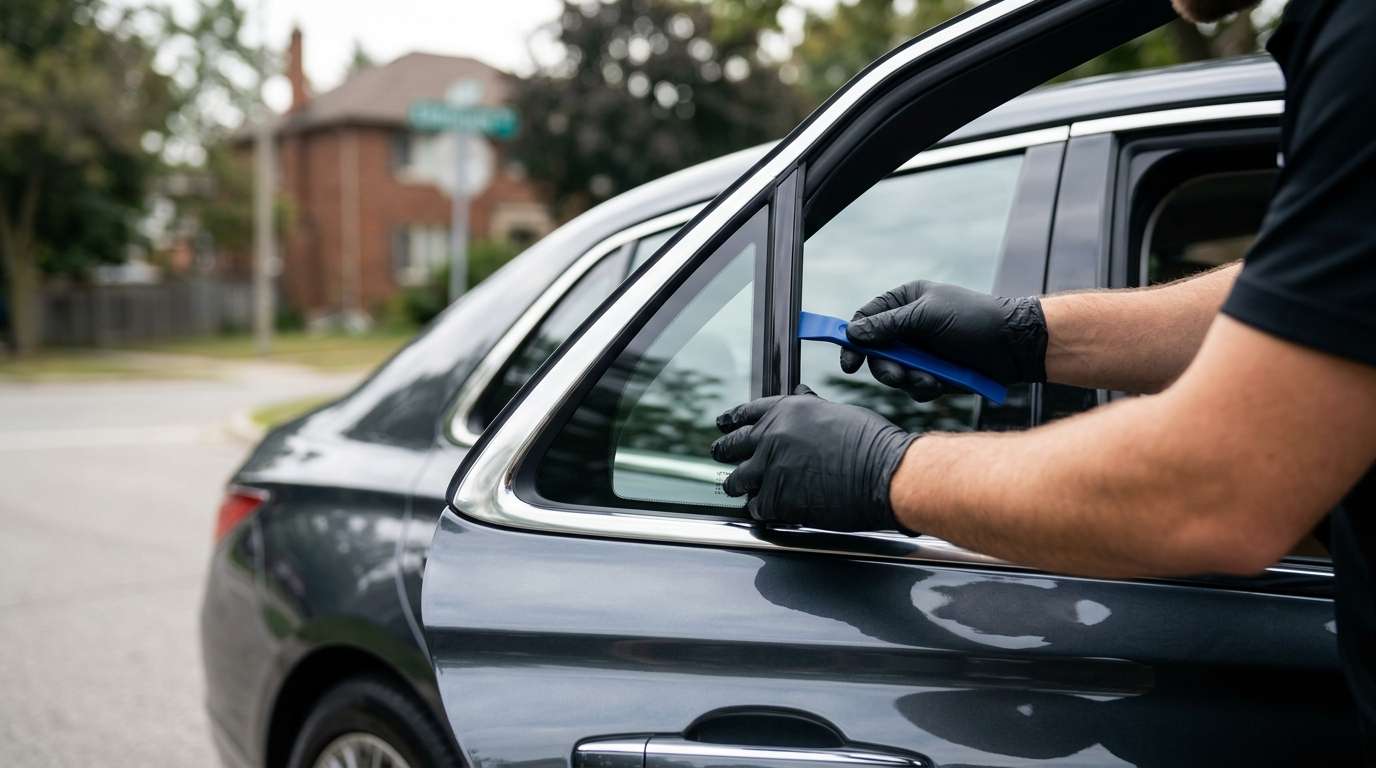

In select overseas markets, long-wheelbase executive editions of the RS4 platform locate the rear quarter glass back inside the vehicle's unibody C-pillar. On standard-wheelbase North American models, Genesis houses this stationary vent pane directly inside the stamped rear passenger door shell. I travel directly to your home or office anywhere across Toronto and the GTA to replace this damaged rear vent glass on-site.
Because the pane is inside the operational door, replacing it requires meticulous handling of adjacent hardware. The vertical metal division bar anchors the rear edge of the moving drop glass run-channel, while the inner door casing incorporates the built-in power rear-side window sunshade mechanisms. The sunshade guides extend adjacent to the division bar, requiring precise alignment so the fabric shade glides freely without snagging on the interior perimeter weatherstripping when deployed.
Hardware and Design Overview
| Component / Feature | RS4 Specification |
|---|---|
| Glass Structure | Dual-pane laminated with acoustic PVB interlayer |
| Body Location | Rear side door sash (not C-pillar mounted) |
| Trim Packages | 3.5T, 3.5T E-Supercharger, Black Edition |
| Separation Hardware | Vertical metal division bar running to window regulator track |
| Interior Clearances | Integrated motorized side sunshade tracks on inner door card |
| Integrated Electronics | None (no antennas, heating elements, or ADAS sensors) |
Does this vent glass house any embedded antennas or defroster lines?
No. The stationary rear door vent glass on this vehicle contains no embedded wire grids, radio reception elements, or heating circuits. All heating grids are reserved for the rear backglass, while antenna modules are packaged elsewhere in the roof and body shell.
Will replacing the rear vent glass affect the power rear sunshades?
The glass itself does not connect mechanically to the sunshade, but the motorized side shades run within guides situated directly along the interior frame by the division bar. As long as the replacement glass is seated accurately in its rubber run channel without shifting the division bar, the sunshade will retract and deploy normally.
Is this glass different from the C-pillar window on extended models?
Yes. The standard North American RS4 sedan places this glass entirely within the door perimeter. Extended-wheelbase variants sold in other regions feature an elongated fixed pane set directly into the vehicle's structural C-pillar sheet metal rather than the swinging door assembly.
