Reviving an Icon: Precision Sunroof Replacement for the 2004-2008 Ford F-150
The 11th-generation Ford F-150, spanning the legendary 2004 to 2008 model years, revolutionized the modern pickup truck by blending unrelenting rugged utility with unprecedented luxury features. For many truck enthusiasts, the factory-installed power sunroof was the ultimate crowning touch, offering open-air freedom whether navigating job sites or cruising down the highway. However, after nearly two decades of enduring harsh winters, baking summer sun, and the punishing vibrations of heavy-duty hauling, the factory sunroof glass and its surrounding structural seals are highly susceptible to sudden failure, stress fractures, and catastrophic shattering.
When the overhead glass in your classic truck shatters or suffers a massive seal failure, it is not merely a cosmetic issue; it is a structural and elemental emergency. A compromised sunroof exposes your truck's plush interior, sensitive electronics, and expensive leather or cloth seats to severe water damage, mold, and flying debris. As a Master Technician at AlexWindshield, I have engineered a specialized, foolproof protocol for 2004-2008 Ford F-150 sunroof replacement. We combine cutting-edge modern auto glass technology with meticulous craftsmanship to restore your truck's roof to better-than-factory conditions.
Why F-150 Sunroofs Fail and the Dangers of Delaying Replacement
The sunroof on the 2004-2008 F-150 is crafted from tempered safety glass. While designed to break into small, blunt cubes rather than jagged shards, a shattered sunroof is a chaotic mess. The most common causes for replacement include heavy falling debris (such as tree branches or hail), chassis torsion twisting the roof frame over uneven terrain, or the complete degradation of the original urethane and rubber weather seals, which creates stress points on the glass panel itself.
Ignoring a damaged or heavily leaking sunroof can lead to severe consequences for your F-150. Water intrusion quickly saturates the headliner, running down the A-pillars and directly into the Smart Junction Box (SJB) located in the passenger footwell, causing thousands of dollars in electrical damage. Immediate professional replacement is mandatory to protect your vehicle's structural integrity and interior cabin.
Master Technician's Step-by-Step F-150 Sunroof Replacement Process
At AlexWindshield, we do not take shortcuts. Replacing the overhead glass in an older F-150 requires specialized knowledge of the truck's overhead console, headliner architecture, and track assembly. Here is our rigorous, A-to-Z technical replacement process.
Step 1: Comprehensive Interior Protection and Shard Extraction
Because sunroofs are manufactured from tempered glass, a break means thousands of glass granules rain down into the cabin. Before any mechanical work begins, we implement heavy interior protection.
- Protective Draping: We blanket the entire interior—including the dashboard, center console, leather/cloth seating, and floorboards—with heavy-duty, puncture-proof drop cloths and specialized automotive masking tape.
- Deep Cabin Vacuuming: We use high-powered, industrial HEPA vacuums to meticulously extract every piece of broken glass. We detail-vacuum the seats, the floor mats, and deep inside the crevices of the center console.
- Track and Headliner Evacuation: Broken glass inevitably falls into the sunroof's sliding tracks and rests on top of the interior headliner. We carefully lower the headliner and vacuum the mechanical tracks to ensure no leftover shards jam the new glass mechanism.
Step 2: Headliner Drop and Hardware Disassembly
To access the main encapsulation frame of the sunroof, the interior roof trim must be addressed.
- Trim Removal: We safely remove the A-pillar handles, sun visors, overhead console, and dome light housings using non-marring trim removal tools to prevent scratching the classic F-150 interior.
- Dropping the Headliner: The headliner is carefully lowered to expose the sunroof cassette and the main structural brackets.
- Removing the Old Assembly: We disconnect the power sunroof motor harness. Using Torx bits, we unbolt the retaining brackets holding the shattered glass frame in place and carefully lift the old, damaged encapsulation out through the roof of the truck.
Step 3: Track Cleaning and Surface Preparation
The foundation of a permanent, leak-proof sunroof replacement is perfectly prepped surfaces. The 2004-2008 F-150 relies on a tight seal between the glass encapsulation and the roof skin.
- Track Degreasing: The mechanical tracks are stripped of old, hardened grease and glass dust, then re-lubricated with a premium, temperature-resistant lithium track grease.
- Pinchweld Cleaning: We strip away the remnants of the old weatherstripping and factory adhesive from the roof's mounting flange. The bare metal is cleaned with a specialized, alcohol-based auto glass solvent to remove all dirt, sap, and wax.
Step 4: Primer Application and Moisture Sealing
To ensure the new sunroof glass panel is permanently bonded to its metal mounting frame and remains completely weather-tight against harsh Canadian winters, chemical preparation is essential.
- Applying Frit Primer: We apply a high-grade, blackout glass primer to the ceramic frit band of the new glass panel. This primer acts as a chemical bridge, ensuring maximum adhesion.
- Metal Priming: Any exposed metal on the F-150's roof flange or the sunroof cassette frame is treated with an anti-corrosion pinchweld primer. This step is vital to prevent future roof rust, a common issue in older pickup trucks.
Step 5: Glass Installation Using High-Quality Adhesive
With the surfaces chemically prepped, we move to the precision installation of the new sunroof glass.
- Urethane Application: We extrude a thick, uniform V-bead of industry-leading, fast-curing automotive urethane adhesive around the perimeter of the sunroof mounting cassette. This high-quality adhesive boasts an incredibly high tensile strength, necessary to withstand the chassis flex of an F-150.

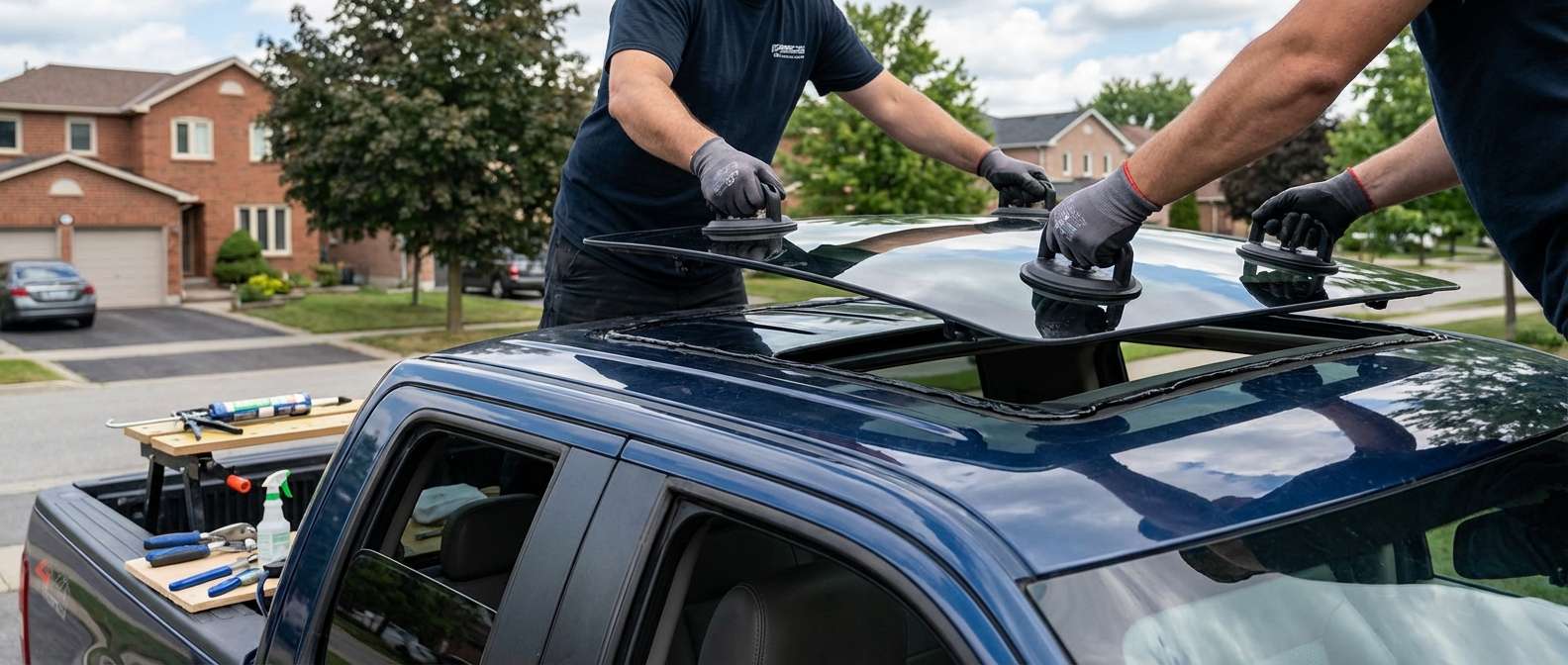

- Precision Seating: Using suction-cup glass lifters, two technicians carefully lower the new, OEM-quality sunroof glass perfectly into the roof opening.
- Torquing and Alignment: We gently press the glass into the high-quality adhesive to create an impenetrable waterproof seal. The internal retaining torx screws are then fastened to factory torque specifications, ensuring the glass sits perfectly flush with the exterior roofline to eliminate wind noise.
Step 6: Water Leak Testing and Final Reassembly
Before handing the keys back, we must guarantee the integrity of the new installation.
- Curing Time: We allow the high-quality adhesive to flash-cure, securing the glass permanently to the frame.
- Simulated Rain Test: We subject the roof to a high-pressure water test, flooding the new seals to verify that the internal water drainage tubes are functioning and that the new urethane bond is 100% waterproof.
- Interior Restoration: The headliner is re-secured, the overhead console and sun visors are reinstalled, and a final, exhaustive vacuuming is performed to guarantee no microscopic glass shards were left behind.
Premium Mobile Auto Glass Services Across the Greater Toronto Area
Driving a full-size Ford F-150 with a broken sunroof to a repair shop is inconvenient and exposes your cabin to the unpredictable Ontario weather. That is why AlexWindshield brings our state-of-the-art repair facility directly to your driveway or workplace. We are proud to be the premier mobile auto glass specialists serving the entire Greater Toronto Area (GTA).
Whether you are on a busy construction site in Vaughan, parked at a suburban office in Richmond Hill, or at home in Markham, our fully equipped mobile service vans arrive on your schedule. We carry all the necessary power supplies, commercial HEPA vacuums, premium adhesives, and OEM-quality glass required to execute a flawless Ford F-150 sunroof replacement right where you are. Our local technicians understand the specific environmental demands of the GTA, ensuring we use temperature-appropriate urethane adhesives that cure perfectly, even in chilly Canadian weather.
Trust AlexWindshield for Your F-150 Auto Glass Needs
Your 2004-2008 Ford F-150 is a testament to automotive durability, and it deserves replacement parts and service that match its legacy. When you choose AlexWindshield, you are not just getting a piece of glass swapped out; you are investing in Master Technician-level expertise. From meticulously vacuuming every shattered shard of glass from your interior to applying premium anti-corrosion primer and high-quality urethane adhesives, our attention to detail is unmatched.
We stand firmly behind our craftsmanship. Every single sunroof, back glass, door glass, and windshield replacement we perform in the GTA comes backed by our comprehensive Lifetime Warranty against leaks, wind noise, and manufacturer defects. Protect your truck's interior, restore your driving comfort, and experience the ultimate in mobile auto glass convenience. Contact AlexWindshield today—the Greater Toronto Area's most trusted experts for seamless, durable, and professional mobile auto glass solutions.
