Expert Quarter Glass Replacement for the Cadillac STS (2005-2011)
The 2005-2011 Cadillac STS is a defining masterpiece of American luxury, celebrated for its crisp, angular "Art and Science" design language and refined aerodynamic profile. A critical, yet often overlooked, element of this striking exterior is the rear quarter glass. Nestled seamlessly into the C-pillar just behind the rear passenger doors, this specialized auto glass completes the vehicle's signature silhouette while providing crucial structural integrity and cabin insulation. When your STS suffers quarter glass damage—whether from a break-in, a collision, or severe weather debris—it does more than ruin the luxury aesthetic. It immediately exposes your premium leather interior to harsh weather elements, creates deafening wind noise at highway speeds, and presents a severe security vulnerability. At AlexWindshield, we possess the specialized expertise and exacting engineering standards required to restore your Cadillac STS to its original, factory-flawless condition.
Understanding the Unique Cadillac STS Quarter Glass Assembly
Unlike standard roll-down door windows, the quarter glass on the 2005-2011 Cadillac STS is a fixed pane that utilizes a highly specific encapsulated molding system. This means the glass is permanently bonded to a rubberized or plastic outer trim at the factory. Replacing it requires a precise, OEM-equivalent (Original Equipment Manufacturer) part so that the sleek lines seamlessly match your rear doors and back windshield. Because this component is stationary and directly bonded to the vehicle's body, achieving an airtight and watertight seal requires a master technician. Improper installation can lead to rust development in the pinch weld, hidden water leaks that ruin the STS's electronics, and distracting whistling noises. Trusting a dedicated auto glass specialist is non-negotiable for luxury vehicles of this caliber.
Premium Mobile Auto Glass Service Across the Greater Toronto Area
Dealing with shattered auto glass is incredibly stressful, but getting it fixed shouldn't be. As the premier mobile auto glass specialists serving the Greater Toronto Area (GTA), AlexWindshield brings our state-of-the-art workshop directly to your location. We understand that driving a Cadillac STS with a blown-out quarter window is unsafe and uncomfortable. That is why our fully equipped mobile fleets are dispatched daily to provide on-site, precise replacements.
Whether your vehicle is parked at a corporate plaza in Markham, sitting in your residential driveway in a quiet neighborhood in Richmond Hill, or located at a shopping center in Vaughan, our technicians will arrive promptly with the exact glass and specialized tools required for your STS. We proudly deliver this elite, mobile convenience across the GTA, ensuring you never have to waste your day waiting in a repair shop waiting room.
Our Master Technician’s Step-by-Step Quarter Glass Replacement Process
At AlexWindshield, we do not believe in shortcuts. Quarter glass replacement, particularly on a luxury vehicle like the Cadillac STS, is a meticulous procedure that blends automotive mechanics with precision glazing. Below is our comprehensive, A-to-Z process for flawlessly replacing your quarter glass.
Step 1: Vehicle Assessment and Interior Protection
Before any tools are utilized, our Master Technician conducts a thorough inspection of the damage. We check the vehicle's C-pillar and surrounding paintwork for any secondary impact damage or scratching. Next, we prioritize the protection of your luxury vehicle. We apply heavy-duty automotive protective tape to the exterior paint surrounding the window opening. Inside the cabin, we drape premium protective covers over the Cadillac’s leather seating, door panels, and carpeting to shield them from debris and adhesive during the repair process.
Step 2: Interior Trim Removal and Intensive Glass Vacuuming
The quarter glass on the Cadillac STS is made from tempered glass. When impacted, tempered glass is designed to shatter into thousands of small, blunt pebble-like pieces to prevent severe lacerations. While safe, this means shattered glass infiltrates every crevice of your interior. Our technician carefully unclips and removes the interior C-pillar trim panels using specialized, non-marring pry tools to access the hidden mounting points of the glass. Once the panels are removed, we deploy high-powered, industrial HEPA vacuums. Vacuuming all broken glass shards from the vehicle's interior is a mandatory, exhaustive step. We clean the rear seats, floor mats, safety belt retractors, and the hidden cavities behind the interior panels to ensure absolutely no glass is left behind to rattle or cause injury.
Step 3: Extraction of the Damaged Glass and Old Adhesive
With the interior stripped of debris and the mounting points exposed, we begin the extraction. Using a specialized cold knife or an advanced wire-cutting system, our technician carefully slices through the original factory urethane (the heavy-duty adhesive holding the glass frame in place). We methodically work around the perimeter of the quarter glass to break the bond without scratching the underlying metal. Once the adhesive is cut, the remnants of the old encapsulated quarter glass assembly are safely detached and removed from the vehicle.
Step 4: Pinch Weld Preparation and Surface Cleaning
The structural integrity of the new glass heavily depends on the condition of the vehicle's frame, known as the pinch weld. We use specialized scraper blades to pare down the old urethane bead, leaving a thin, uniform layer of approximately 1 to 2 millimeters. This "trimming" process creates the ideal base for the new adhesive to bond with. Following this, the entire pinch weld area is meticulously cleaned using high-grade, alcohol-based glass and surface cleaners to remove dust, dirt, moisture, and any microscopic contaminants that could compromise the adhesive's grip.
Step 5: Primer Application and Advanced Urethane Dispensing
If any bare metal was exposed on the pinch weld during the removal process, it is immediately treated with an advanced automotive primer. This crucial step prevents future rust formation, which is a common issue with poor-quality installations. Next, we apply a specialized glass primer to the bonding edge of the new Cadillac STS quarter glass. Once the primers have flashed (dried), our technician utilizes a battery-powered caulking gun to lay down a thick, continuous, V-shaped bead of premium, high-viscosity urethane adhesive directly onto the pinch weld. We strictly use rapid-curing, OEM-approved urethane to ensure maximum safety and structural support.

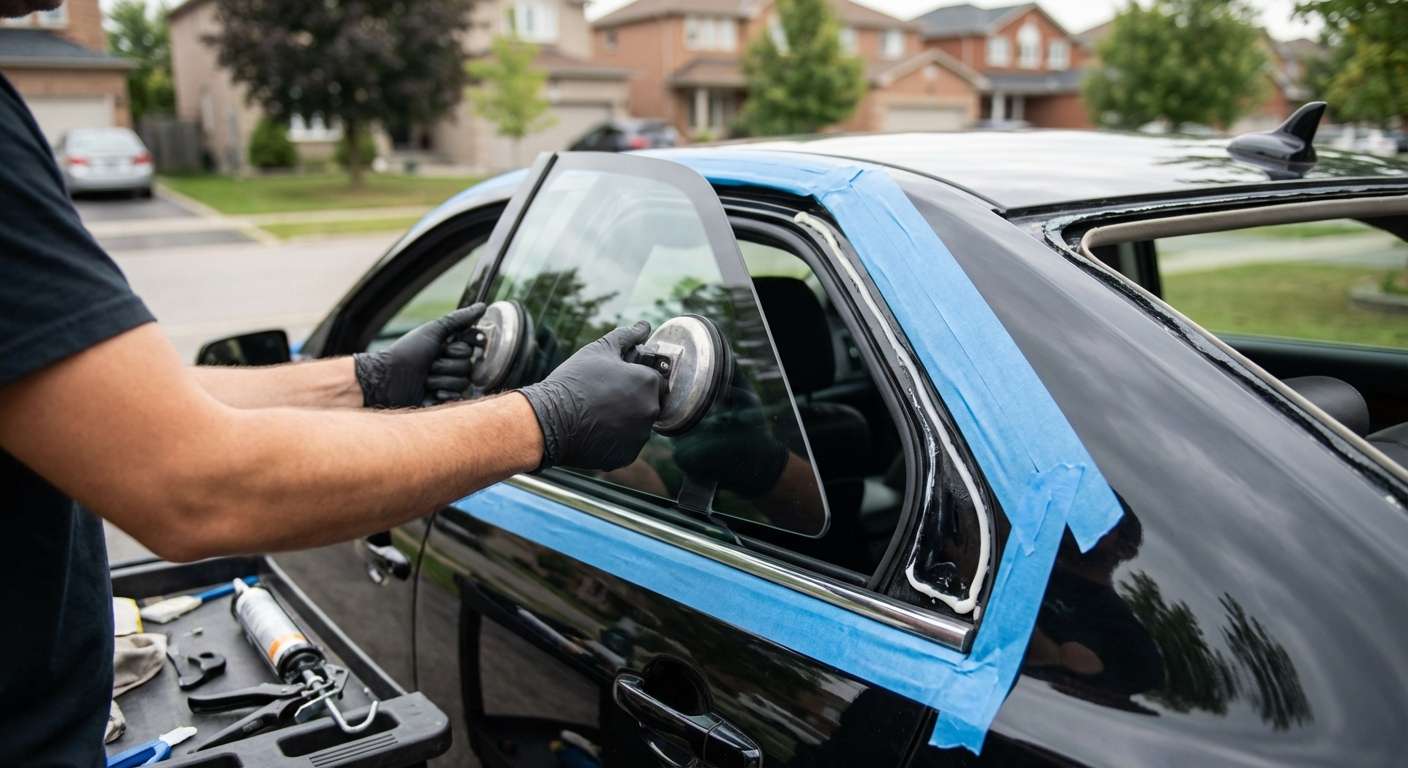

Step 6: Precision Installation of the New Quarter Glass
Handling the new quarter glass requires absolute precision. Because the 2005-2011 Cadillac STS utilizes encapsulated glass, the alignment must be mathematically perfect to ensure the external rubber moldings sit flush against the vehicle's bodywork. Utilizing suction grips, the technician carefully sets the new glass into the fresh urethane bed. Firm, even pressure is applied around the perimeter to compress the urethane, creating an impenetrable, watertight, and airtight seal. Specialized retention tape is then applied across the glass and bodywork to hold the pane perfectly in place while the adhesive begins its chemical curing process.
Step 7: Reassembly, Final Inspection, and Curing Time
With the new quarter glass firmly set, we reverse the disassembly process. The interior C-pillar trim panels and weather stripping are carefully clipped back into place, ensuring a seamless luxury finish. The technician conducts a final, meticulous wipe-down of the new glass using premium, streak-free glass cleaner. We then perform a secondary interior vacuum to ensure absolute perfection. Finally, we advise the customer on the Safe Drive-Away Time (SDAT). Thanks to the elite-grade urethane we use, your Cadillac STS is typically safe to drive within 30 to 60 minutes after the installation is complete.
Why Choose AlexWindshield for Your Cadillac STS in the GTA?
Your Cadillac STS is an investment in automotive excellence, and it deserves to be serviced by technicians who respect its engineering. Here is why drivers across the region trust AlexWindshield:
- Unmatched Mobile Convenience: We eliminate the hassle of auto glass repair by coming directly to your home or workplace in Vaughan, Richmond Hill, Markham, and throughout the broader GTA.
- Master Technicians: Our installers are extensively trained, certified, and possess deep experience with early 2000s and 2010s luxury domestic vehicles. We understand the specific nuances of the STS body style.
- OEM-Quality Materials: We source only the highest quality encapsulated quarter glass and utilize crash-tested, industry-leading urethane adhesives to guarantee factory-level safety and acoustics.
- Impeccable Cleanup: We treat your vehicle as if it were our own. Our rigorous glass cleanup protocol ensures your luxurious cabin is restored to a pristine, hazard-free state.
Our Ironclad Lifetime Warranty Guarantee
At AlexWindshield, our workmanship speaks for itself, but we back it up in writing for your ultimate peace of mind. Every quarter glass replacement we perform comes with an industry-leading Lifetime Warranty. This comprehensive guarantee covers any issues related to workmanship, including wind noise, water leaks, and molding defects, for as long as you own your Cadillac STS. You can drive with total confidence knowing that our GTA-based team stands firmly behind the quality, durability, and safety of our auto glass installations.
Book Your Cadillac STS Auto Glass Replacement Today
Do not let a shattered or damaged quarter glass compromise the safety, security, and refined aesthetics of your 2005-2011 Cadillac STS. Experience the highest standard of automotive care with AlexWindshield. As the most trusted mobile auto glass experts in the Greater Toronto Area (GTA), we are ready to dispatch a Master Technician to your location in Markham, Richmond Hill, or Vaughan today. Contact AlexWindshield now to schedule your seamless, professional, and fully warrantied quarter glass replacement.
