Restoring the Silhouette: Premium Door Glass Replacement for BMW Z4 (E85) 2003-2008
The BMW Z4 (E85), produced between 2003 and 2008, is more than just a roadster; it is a design icon defined by Chris Bangle’s controversial yet aging-proof "flame surfacing." The sharp creases, the long hood, and the compact rear deck rely heavily on the integrity of the vehicle's profile. When the side door glass is shattered, it does more than just expose the cabin to the elements; it disrupts the structural rigidity of the convertible top sealing system and ruins the aesthetic flow of this modern classic. Unlike standard sedans with framed windows, the Z4 utilizes a frameless window system. This engineering choice adds elegance but significantly complicates the replacement process, requiring a level of precision that only a Master Technician can provide.
At AlexWindshield, we understand that your E85 Z4 is a precision machine. A broken side window presents immediate risks: water damage to the sensitive center console electronics, theft vulnerability, and damage to the convertible top mechanism if shards enter the retraction gears. Our approach to BMW Z4 door glass replacement combines factory-specification protocols with the convenience of mobile service, ensuring your ultimate driving machine is restored to showroom condition without you ever leaving your driveway.
The AlexWindshield Mobile Advantage: Serving the Greater Toronto Area
We recognize that driving a convertible with a broken window is not just uncomfortable—it is unsafe. The wind noise, the lack of security, and the risk of glass falling into the cabin make a trip to a repair shop a hassle. That is why AlexWindshield brings the repair facility to you. We specialize in high-end European vehicles and provide mobile auto glass services across the entire Greater Toronto Area (GTA).
Whether your Z4 is parked in a driveway in Vaughan, at an office complex in Richmond Hill, or a residential garage in Markham, our mobile units are fully equipped to handle complex frameless glass installations on-site. We treat every location as a professional bay, utilizing portable power, lighting, and debris containment systems to perform the job flawlessly in your specific environment.
Detailed Technical Process: E85 Door Glass Replacement Protocol
Replacing the door glass on a BMW Z4 (2003-2008) is mechanically distinct from standard domestic vehicles. The interaction between the window regulator, the door latch, and the convertible roof seal requires a meticulous, step-by-step approach. Below is the detailed Standard Operating Procedure (SOP) strictly followed by AlexWindshield technicians.
Phase 1: Site Preparation and Interior Protection
Before any tools touch the vehicle, we prioritize protection. Broken tempered glass has likely scattered throughout the cabin.
- Exterior Protection: We apply protective tape and heavy-duty padded mats to the door exterior and the rear quarter panel to prevent scratches from tools or glass shards during the extraction process.
- Interior Shielding: The Z4’s leather seats and center console are covered with industrial-grade covers. We specifically protect the gear shift area and the expensive brushed aluminum or wood trim.
- Power Management: We verify the window switch functionality before disconnection. For safety, especially when working near side-impact airbags located in the door panels of the E85, we may disconnect the negative battery terminal to prevent accidental deployment or short circuits.
Phase 2: Surgical Disassembly of the Door Panel
Accessing the glass requires removing the interior door card (trim panel). On a BMW of this vintage, the plastic clips and mounting points can be brittle. We use specialized non-marring pry tools to ensure no damage occurs.
- Fastener Removal: We locate and remove the hidden Torx screws. On the Z4 E85, these are typically concealed behind the "Airbag" badge, behind the interior door handle release, and under the armrest grab handle.
- Panel Separation: Using a wedge tool, we carefully pop the perimeter clips. We lift the panel strictly vertically to clear the lock pin and the window seal.
- Cable & Wiring Disconnection: We disconnect the Bowden cable (door handle release) and the wiring harnesses for the speakers, mirror controls, and window switch. The panel is then stored safely aside.
Phase 3: Vapor Barrier Removal and Debris Extraction
This is a critical step often skipped by budget shops. Behind the door panel lies a foam vapor barrier (sound insulation) sealed with butyl rubber.
- Barrier Preservation: We carefully heat the butyl adhesive to peel back the vapor barrier without tearing it. This barrier is essential for preventing water from leaking into the Z4’s footwell.
- Debris Vacuuming: When door glass shatters, it falls into the bottom of the door shell (the cavity). We use a high-powered industrial vacuum with a flexible crevice tool to extract every single shard of glass.
- Detailed Cleaning: We inspect the window regulator rails and the door drain holes. If glass remains here, it will cause rattling while driving or clog the drains, leading to rust. We ensure the cavity is 100% clear.
Phase 4: Regulator Inspection and Glass Preparation
The BMW E85 utilizes a cable-driven window regulator. Before installing new glass, we must verify the health of this mechanism.
- Regulator Check: We inspect the cables for fraying and the plastic pulleys for cracks—common issues on the Z4. If the regulator is damaged, we will advise on replacement immediately to save you labor costs later.
- New Glass Priming: While door glass is mechanically bolted, we clean the bottom edge of the new OEM-standard glass and lubricate the guide jaws with silicone grease to ensure smooth operation within the rubber run channels.
Phase 5: Installation and The "Frameless" Adjustment
This is the most technically demanding phase. Frameless windows must seal perfectly against the roof weatherstripping without a B-pillar guide.

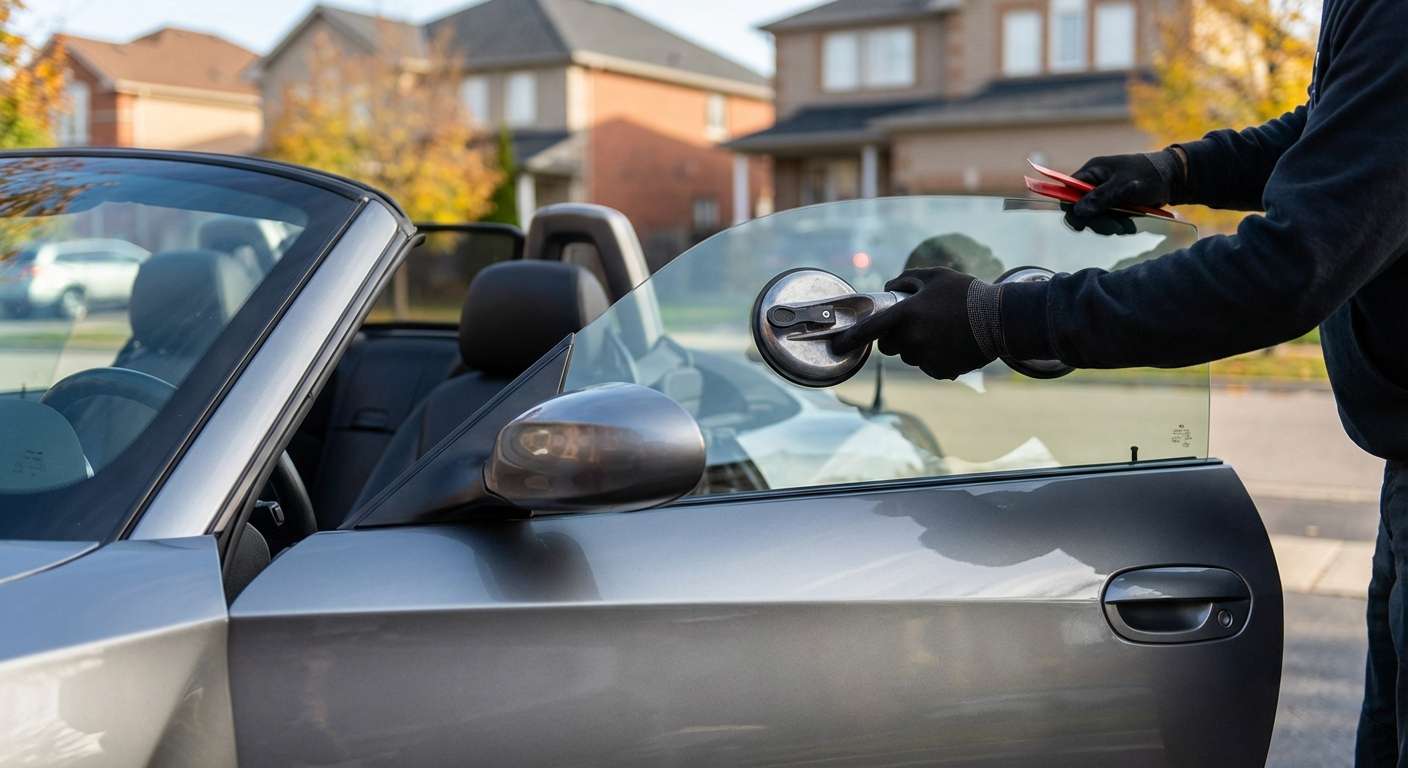

- Insertion: We carefully maneuver the new glass into the door cavity, usually at a specific angle (nose down) to clear the mirror triangle and rear guide rail.
- Mounting: The glass is seated into the regulator clamping jaws. We hand-tighten the mounting bolts (E-Torx or Hex) but do not torque them down yet.
- The "Tip-In" Adjustment: We reconnect the window switch temporarily. We cycle the window up to check alignment. On a Z4, we must adjust the Pre-tension (Tip-In), which dictates how hard the glass presses against the roof seal. Incorrect adjustment causes wind noise or water leaks.
- The Height Stop Adjustment: We adjust the vertical travel limiters. The glass must stop exactly at the point where it tucks under the convertible top's rain channel, but not so high that it prevents the door from closing.
- Torque Specification: Once aligned to factory tolerances, we torque the clamp bolts to specification to ensure the glass never slips.
Phase 6: Reassembly and Vapor Barrier Resealing
- Vapor Barrier Reseal: We re-heat the existing butyl or apply new high-quality butyl adhesive to the vapor barrier. A perfect seal is mandatory; otherwise, water running down the window will bypass the drain holes and enter the vehicle cabin.
- Panel Reinstallation: We reconnect all speakers, airbags, and door cables. The panel is snapped back into place, ensuring all perimeter clips engage with a solid "click."
- Final Polish: We clean the new glass with alcohol-based cleaners to remove any suction cup marks or fingerprints.
Why BMW Owners Choose AlexWindshield
The BMW Z4 requires a technician who understands the nuances of German engineering. A generic glass shop might treat your roadster like a sedan, leading to wind whistles at highway speeds or water leaks during the next rainstorm. At AlexWindshield, we combine passion with precision.
- Lifetime Warranty: We stand behind our workmanship. Our installation comes with a lifetime warranty against water leaks, air noise, and loose glass for as long as you own the vehicle.
- OEM & OEE Quality: We use only Original Equipment Manufacturer (OEM) or Original Equipment Equivalent (OEE) glass. This ensures the tint, thickness, and curvature match your BMW’s original specifications perfectly.
- Same-Day Service: We know you want to get back on the road. In most cases, we can source the specific glass for your 2003-2008 Z4 and install it within 24 hours.
Ready to Restore Your Z4? Contact AlexWindshield Today
Don't let a broken window compromise the joy of your BMW Z4. Trust the experts who serve Vaughan, Richmond Hill, Markham, and the entire GTA with pride and precision. We handle the insurance paperwork, we come to you, and we guarantee our work.
Call AlexWindshield now to schedule your mobile service and experience the difference of a Master Technician installation.
