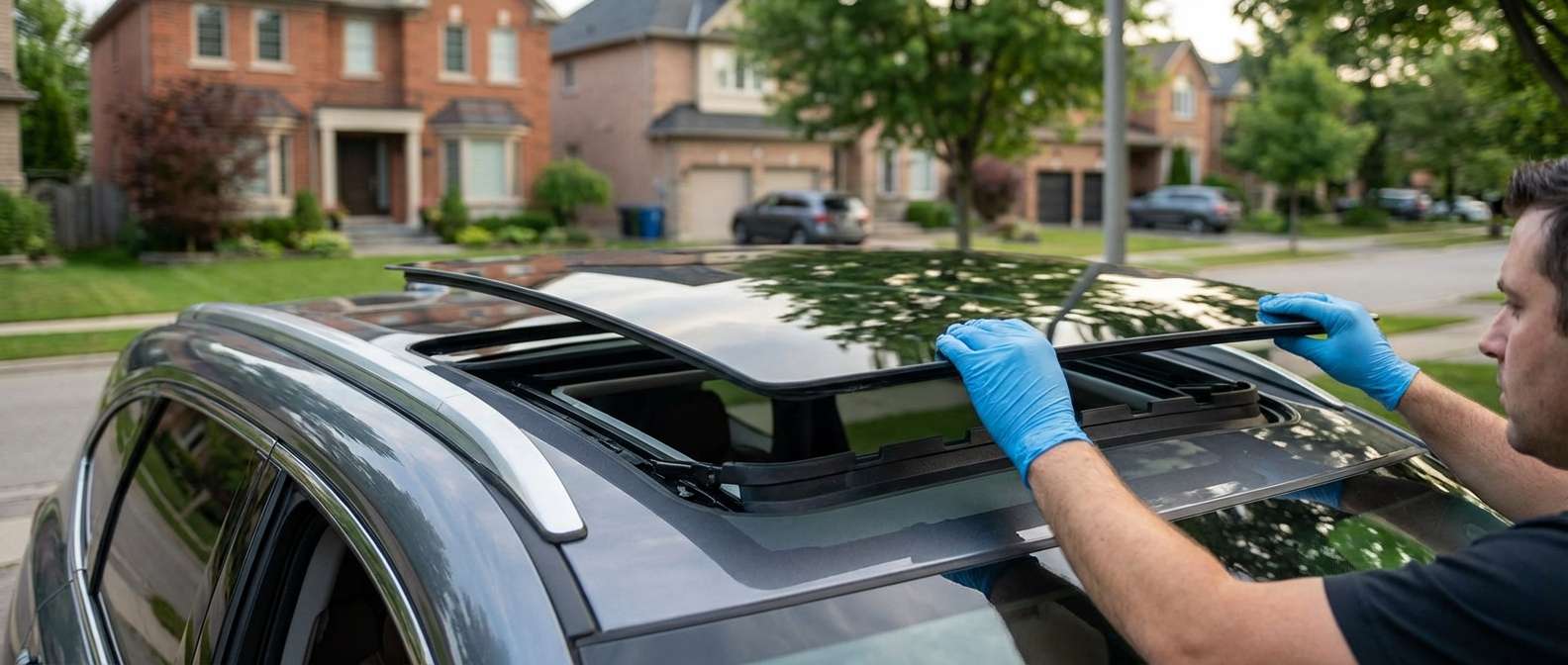

Sunroof Replacement for Acura MDX 2021-2027 by Alexwindshield

Sunroof Replacement for Acura MDX 2021-2027: Restoring the Sky View in Your Luxury SUV

Driving a 2021-2027 Acura MDX is an experience defined by precision engineering, acoustic silence, and the open-air freedom provided by its expansive panoramic moonroof. However, when that tempered glass shatters due to road debris, unexpected impact, or thermal stress, the sanctuary of your luxury SUV is instantly compromised. A broken sunroof isn't just an inconvenience; it is a breach of your vehicle's weatherproofing and structural integrity. At AlexWindshield, we understand that replacing the glass on a 4th-generation Acura MDX requires more than just generic glass knowledge—it demands master-level craftsmanship to ensure the complex motorized tracks, drainage systems, and interior liners remain in pristine condition.

Understanding the Acura MDX (2021-2027) Roof System

The 4th-generation Acura MDX represents a leap forward in automotive design. The roof glass system is an integral part of the vehicle's aesthetic and functionality. Unlike older models, the 2021-2027 Acura MDX utilizes a sophisticated panoramic system that spans almost the entire roofline. This setup typically consists of a movable front panel and a fixed rear panel.

When damage occurs, it is usually the tempered safety glass of the movable panel that succumbs to impact. Because this glass is designed to shatter into thousands of dull cubes (to protect occupants from sharp shards), the cleanup and replacement process is significantly more involved than a standard windshield replacement. AlexWindshield specializes in these high-complexity replacements, ensuring that your Acura's premium interior materials—from the Milano leather seats to the authentic open-pore wood trim—are completely protected throughout the service.

Why Professional Installation is Critical

Attempting a DIY repair or trusting a generalist mechanic with your Acura MDX sunroof is a recipe for disaster. The tolerances on the 2021-2027 models are incredibly tight. Improper installation can lead to:

• Water Leaks: Misalignment or clogged drain tubes can cause water to pool in the headliner, destroying the electronics and upholstery.
• Wind Noise: Even a millimeter of variance in the glass height can create a whistling noise that ruins the MDX’s famous quiet cabin.
• Mechanism Failure: Failing to clean out every shard of broken glass from the tracks will eventually grind the motor gears to a halt.

Residents across the Greater Toronto Area (GTA), including Vaughan, Richmond Hill, and Markham, rely on AlexWindshield because we adhere to factory specifications for every replacement.

A-Z Technical Process: The AlexWindshield Standard

As a Master Technician, I follow a rigorous, step-by-step protocol for every Acura MDX sunroof replacement. We do not skip steps. Here is exactly how we restore your vehicle to factory condition:

Phase 1: Site Preparation and Interior Protection

Before any tools touch the vehicle, we secure the perimeter. Since sunroof glass often rains down into the cabin, our first priority is damage control.

• We apply heavy-duty protective covers to the hood, fenders, and roof rails to prevent scratches during the work.
• Inside the cabin, we install interior seat covers, steering wheel covers, and floor mats.
• Critical to the MDX, we cover the center console and the infotainment touchpad to prevent glass dust from entering delicate electronic crevices.

Phase 2: Comprehensive Shard Removal and Debris Management

This is the most time-consuming and critical part of the process. If the glass has shattered, millions of fragments are now hidden in your vehicle.

• High-Power Vacuuming: We use industrial-grade vacuums to remove glass from the seats, carpets, and dashboard.
• Track Cleaning: We meticulously vacuum the sunroof tracks. Any remaining glass here will destroy the slide mechanism. We use compressed air to dislodge hidden fragments from the grease in the rails.
• Drainage Inspection: The Acura MDX has drainage tubes located at the corners of the sunroof assembly. We inspect these to ensure no glass shards have fallen inside, which would cause blockages and future flooding.

Phase 3: Disassembly and Access

To access the mounting points of the sunroof glass on the 2021-2027 MDX, we must carefully navigate the interior trim.

• We partially lower or remove the accordion blinders (concertina covers) that hide the mechanism from the interior view.
• If necessary for specific damage scenarios, we may partially drop the overhead console or headliner to access difficult-to-reach debris, though for standard glass replacement, this is often done from the top down.
• We identify the four to six Torx screws that secure the glass panel to the mechanical lifting arms.

Phase 4: Removal of Old Glass and Hardware

With the mechanism exposed, we proceed to remove the damaged unit.

• We carefully unscrew the mounting hardware, keeping it organized for reassembly.
• The metal frame of the old glass is lifted out. If the glass is still partially intact, we use suction cups to lift it safely.
• We perform a secondary cleaning of the mounting arms. The old lubricant is often contaminated with glass dust. We degrease the arms and apply fresh, silicone-based lithium grease to ensure smooth operation.

Phase 5: Preparing the New Glass

We use only OEM-equivalent or OEE (Original Equipment Equivalent) glass that matches the tint, thickness, and curvature of the original Acura part.

• The new glass panel is inspected for optical clarity and flaws.
• We inspect the attached weatherstrip seal. On the MDX, the seal is integrated into the glass panel assembly. We treat the rubber with a conditioner to ensure it creates a watertight seal against the roof aperture.

Phase 6: Installation and Alignment

This is where precision is paramount. The glass cannot simply be screwed in; it must be calibrated physically.

• The new glass panel is lowered onto the lifting arms.
• We loosely install the mounting screws (using thread-locking compound where specified by Acura).
• Height Calibration: The glass must sit flush or slightly lower than the roofline at the front, and flush or slightly higher at the rear to minimize wind noise. We use a depth gauge to measure this to the millimeter.
• Once aligned, the screws are torqued to the specific Newton-meter requirements of the manufacturer.

Phase 7: Motor Initialization and Synchronization

Modern vehicles like the 2021-2027 MDX rely on sensors to know when the sunroof is "closed" or "open." Changing the glass can confuse the motor's logic.

• We perform a sunroof initialization procedure. This involves a specific sequence of button presses that forces the motor to relearn its travel limits and anti-pinch safety settings.
• We cycle the roof through "Tilt," "Slide Open," and "Close" modes multiple times to verify smooth operation without binding or grinding noises.

Phase 8: Final Cleanup and Water Test

We do not consider the job finished until we verify integrity.

• A final vacuum is performed to catch any debris dislodged during installation.
• We conduct a high-pressure water test around the seals to guarantee there are no leaks.
• The interior trim and blinders are snapped back into place.

Serving the Greater Toronto Area (GTA)

Whether you are parked in a driveway in Richmond Hill, at your office in Markham, or shopping in Vaughan, our mobile service units are equipped to handle this complex repair on-site. We understand that driving a vehicle with a shattered roof is dangerous and impractical. That is why AlexWindshield brings the repair shop to you.

Our mobile technicians carry all necessary equipment, including generators, vacuums, and lighting, to perform a dealership-quality replacement at your home or workplace anywhere in the GTA.

Why Choose AlexWindshield for Your Acura MDX?

Your Acura MDX is a significant investment, and the sunroof is one of its most complex components. Trusting AlexWindshield means choosing expertise, precision, and peace of mind.

• Specialized Expertise: We are intimately familiar with the 2021-2027 Acura MDX platform.
• Lifetime Warranty: We stand behind our workmanship. Our installation comes with a lifetime warranty against water leaks and wind noise for as long as you own the vehicle.
• Same-Day Service: In many cases, we can get you back on the road the very same day.
• Insurance Approved: We work directly with all major insurance providers in Ontario to streamline your claim.

Ready to Restore Your View?

Don't let a broken sunroof compromise the luxury and safety of your Acura MDX. Contact the experts who treat your vehicle with the respect it deserves.

Call AlexWindshield today to schedule your mobile sunroof replacement in the GTA. Experience the difference that a Master Technician makes.
