Identifying Your Windshield Configuration from the Rearview Mirror
Determining which replacement glass your car requires comes down to examining how the rearview mirror attaches to the windshield. If you drive a base or mid-tier trim like the Value Edition, 2.5, S, or SE, your car uses a manual flip-tab day/night mirror mounted directly to a standard bracket on the glass. This version corresponds to NAGS part number FW02525, which mirrors the factory profile of dealer glass 1K5-845-011-BB and comes with standard green solar tinting and a matching upper shade band.
Higher-tier models such as the SEL, GLI, or TDI equipped with luxury packages feature an auto-dimming rearview mirror paired with an optical rain and ambient light sensor. When looking from outside through the top-center glass, you will see a round lens surrounded by a dark bracket rather than a simple metal mounting button. This configuration calls for NAGS part number FW02526. The rain-sensing variant requires an intact silicone optical pad—found in the VW repair kit 1K0-998-559—between the sensor face and the replacement glass. Reusing an old, dry, or torn gel disc traps microscopic air pockets against the new glass surface, which tricks the optical sensor into falsely triggering the wiper motor when no rain is present.
Lower Cowl Channel Seating and Preventing Cabin Flooding
The bottom edge of this windshield features a specialized rigid retention channel that locks the two-piece plastic rain tray cowl tightly against the glass. These Mk5 A5 platform cars, built as the Typ 1K body, do not use an exposed outer rubber windshield gasket. Instead, the top and A-pillars use flush reveal moldings, while the lower glass relies entirely on this plastic cowl clip-in system. As these cars age, the plastic cowl panels turn brittle from engine heat and direct sunlight, frequently seizing tight inside the glass channel.

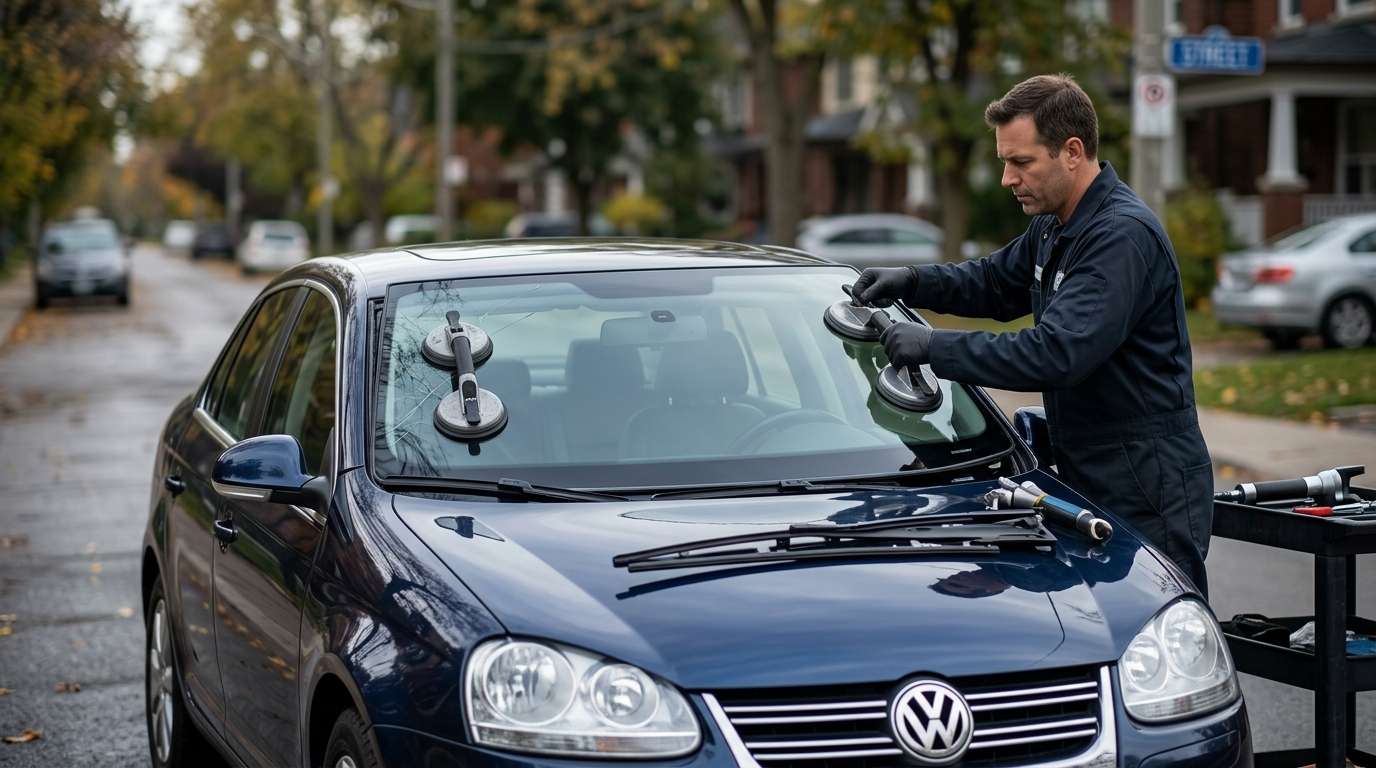

Whenever you call to book a replacement, I aim to be at your vehicle in about an hour, bringing the specialized tools needed to disengage these delicate plastic cowl tabs without shattering them. Snapping or bending the cowl out of shape prevents the lip from seating fully into the lower windshield retention groove. When that joint fails to seal water-tight, rainwater draining off the glass runs behind the plastic tray and drains straight down through the fresh air intake housing, ultimately soaking the passenger-side cabin carpet.
Perimeter Gaps and Absence of Glass-Mounted Antennas
Unlike many modern sedans, this glass does not carry embedded heating elements for the wiper park area, nor does it contain internal radio antenna traces. The AM/FM reception system relies either on elements baked into the rear window glass or the roof-mounted whip antenna. Consequently, there are no electrical defroster plugs or antenna leads running behind your A-pillar trim panels to disconnect before swapping out the windshield.
Because the clearance between the side glass edges and the painted A-pillars is unusually narrow on this body style, the glass rests nearly flush with the steel bodywork. Proper installation of FW02525 or FW02526 hinges entirely on matching the correct bracket style for your rain sensor setup while protecting the plastic rain tray channel below.
