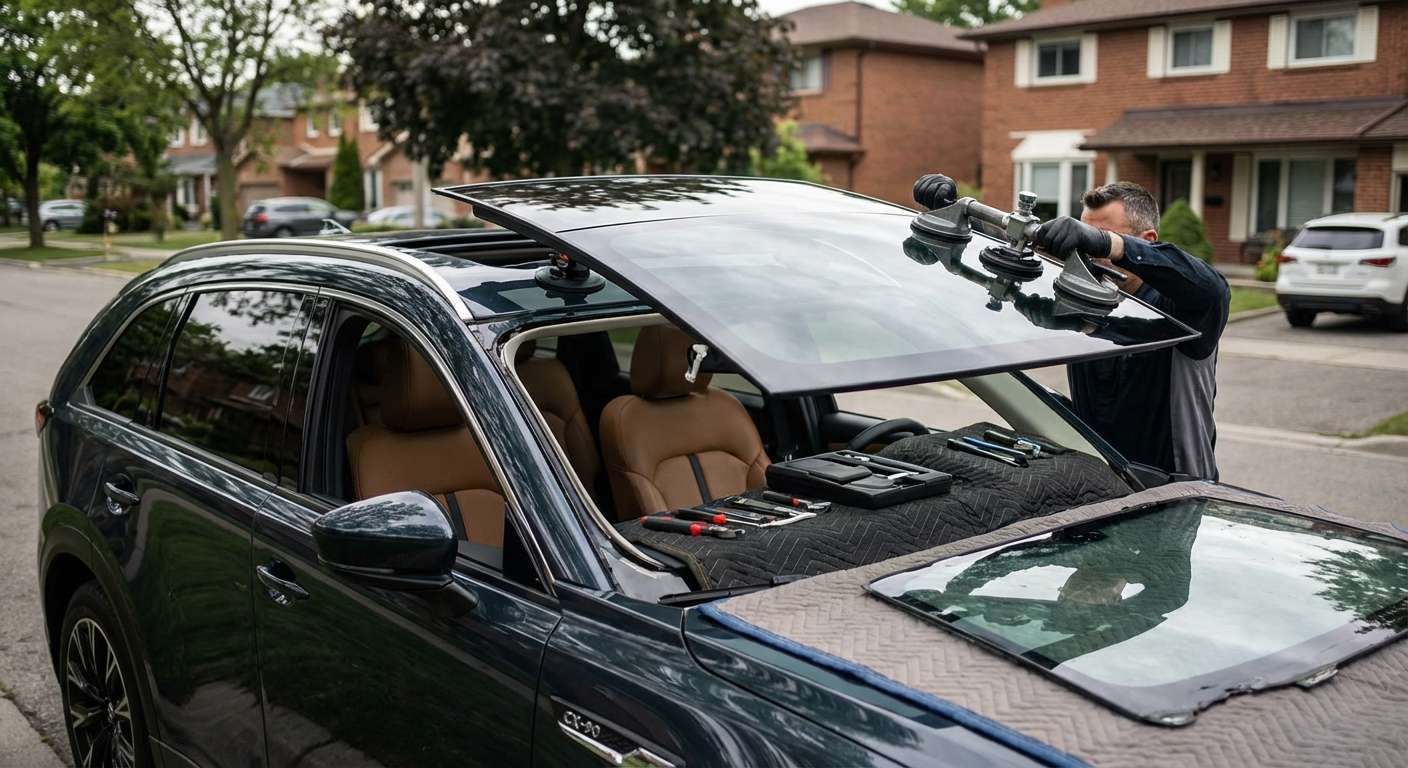

Restoring Mazda's Flagship Luxury: Premium Sunroof Replacement for the Mazda CX-90 (2024-2027)
The Mazda CX-90 (2024-2027) represents a masterclass in modern Japanese luxury, boasting an expansive panoramic sunroof that floods its elegant, three-row cabin with natural light and fresh air. This architectural glass feature is central to the vehicle's premium driving experience. However, when this massive glass panel sustains damage—whether from a rogue rock on the highway, sudden thermal stress, or severe hail—it instantly compromises the structural integrity, climate control, and acoustic dampening of Mazda’s flagship SUV. Addressing a compromised panoramic roof isn't just about aesthetics; it is a critical safety and structural requirement.
As a Master Technician at AlexWindshield, I have specialized in the exact engineering tolerances required to service high-end, late-model vehicles like the CX-90. A sunroof replacement on a vehicle of this caliber is a complex procedure that demands absolute precision, specialized tools, and an uncompromising commitment to quality. We proudly deliver this elite level of service directly to your driveway across the Greater Toronto Area (GTA), with dedicated mobile response teams frequently operating in Vaughan, Richmond Hill, and Markham.
Recognizing the Need for a Full Sunroof Replacement
Unlike a minor windshield chip that can sometimes be filled, damaged tempered or laminated sunroof glass almost always requires a complete replacement. You should contact AlexWindshield immediately if you observe any of the following issues on your Mazda CX-90:
- Shattered or Spider-webbed Glass: Tempered sunroof glass is designed to break into small, dull cubes to prevent lacerations, while laminated sections will crack and sag. Both require immediate total replacement.
- Deep Chips or Edge Cracks: Cracks along the edge of the sunroof panel will rapidly expand due to chassis flex as your heavy SUV navigates corners and uneven terrain.
- Severe Water Leaks: If the glass is warped or the bonded seal has failed completely, water will bypass the drainage system and saturate your vehicle's headliner and sensitive electronic components.
The Master Technician's Process: Step-by-Step Mazda CX-90 Sunroof Replacement
Replacing the panoramic sunroof on the 2024-2027 Mazda CX-90 is a meticulous, highly technical process. At AlexWindshield, we adhere strictly to OEM guidelines to ensure your vehicle is returned to its factory-fresh condition. Here is our comprehensive A-to-Z replacement protocol.
Step 1: Vehicle Assessment and Interior Protection
Before any tools are lifted, we conduct a thorough diagnostic of the sunroof's electronic and mechanical components. We test the sunroof motor, the rails, and the sunshade mechanism to ensure the damage is isolated to the glass itself. Because replacing a sunroof occurs directly above the vehicle's luxurious interior, preparation is paramount. We drape heavy-duty protective covers over the CX-90’s premium Nappa leather seats, center console, and dashboard. To gain safe access to the mechanical track and the glass mounting points, we carefully lower or partially detach the interior headliner, ensuring no creases or smudges mar the pristine fabric.
Step 2: Safe Removal of Shattered Glass and Meticulous Vacuuming
If the sunroof has suffered a catastrophic impact and shattered, the immediate priority is safely removing the remaining structural glass and neutralizing the hazard of loose fragments. We use specialized suction cups to carefully lift away any large, intact portions of the damaged panel.
Because shattered sunroof glass rains debris directly into the cabin and the mechanical tracks, our next step is an exhaustive cleanup. We utilize heavy-duty industrial vacuums to extract every single shard of broken glass from the vehicle's interior. We meticulously vacuum the seat crevices, the floor mats, and most importantly, the intricate mechanical tracks of the sunroof assembly. Even a tiny fragment of glass left in the track can grind against the cables, causing the new sunroof to bind, jam, or strip the motor gears.
Step 3: Sunroof Track Cleaning and Drainage Inspection
With the old glass removed and the shards cleared, we turn our attention to the sunroof cassette and track system. We use compressed air and specialized brushes to clean the aluminum rails. During this phase, we also inspect and flush the four corner drainage tubes. A common issue with sunroof systems is clogged drains, which lead to interior water damage. By flushing these tubes, we ensure that when the new glass is installed, the entire water-management system functions flawlessly.
Step 4: Surface Preparation and Primer Application
The Mazda CX-90's panoramic sunroof typically consists of a movable front panel and a stationary bonded rear glass panel. If the stationary panel requires replacement, surface preparation is critical for a safe, waterproof bond. We carefully cut away the old urethane bead down to a uniform level, ensuring not to scratch the painted metal frame.
Next, we thoroughly clean the bonding surface using highly formulated, alcohol-based glass cleaners to remove any grease, dirt, or residual moisture. Once the surface is completely sterile, we apply a high-grade auto glass primer to both the metal pinch weld and the black ceramic frit band of the new glass. This primer is absolutely essential; it promotes optimal chemical adhesion for the urethane and acts as a barrier against rust formation on the vehicle's frame.
Step 5: Application of High-Quality Adhesive and Hardware Mounting
For the fixed glass sections, we apply a thick, triangular bead of premium, fast-curing automotive urethane—the same high-quality adhesive used in factory assembly. This heavy-duty adhesive provides immense structural strength, ensuring the glass becomes a rigid part of the CX-90’s roof structure while remaining flexible enough to absorb road vibrations.
For the movable front panel, adhesive is not used; instead, the glass is mounted to the motorized track assembly. We carefully align the new premium glass panel into the brackets and hand-thread the specialized Torx bolts. We apply automotive-grade thread locker to the bolts to prevent them from vibrating loose over time, and we tighten them exactly to Mazda's specified torque ratings.
Step 6: Precision Glass Installation and Alignment
When placing the bonded rear panel, two technicians coordinate to lower the heavy panoramic glass perfectly into the fresh urethane bead. Precision is non-negotiable here; the glass must sit flush with the roofline to prevent wind noise and aerodynamic drag. For the moving panel, we make micro-adjustments to the brackets to ensure the glass sits perfectly level with the roof when closed. The gap tolerances around the glass must be completely uniform to allow the thick rubber weather seals to compress properly and keep water out.
Step 7: Testing, Calibration, and Final Clean-up
Once the glass is secured, we reconnect all electronic harnesses and initiate a rigorous testing phase. We cycle the sunroof through its tilt, open, and close functions multiple times to ensure smooth, silent operation. We test the anti-pinch safety mechanism to guarantee passenger safety. Finally, we perform a high-pressure water test along the seals and the urethane bond to verify that the installation is 100% watertight.
We then re-secure the interior headliner, remove all protective interior draping, and give the new glass a streak-free polish. The vehicle is left cleaner than when we arrived, with a beautifully restored panoramic roof ready for the road.
Mobile Auto Glass Service Excellence Across the GTA
We know that driving your Mazda CX-90 with a damaged or missing sunroof is incredibly inconvenient and exposes your luxurious interior to the elements. That is why AlexWindshield brings the auto glass shop directly to you. Our fully equipped mobile service vehicles are outfitted with the advanced tools, premium adhesives, and climate-control equipment necessary to perform flawless sunroof replacements right in your driveway or office parking lot.
Our mobile fleet provides extensive coverage throughout the Greater Toronto Area (GTA). Whether you are parked near the bustling shopping districts of Vaughan, navigating the upscale suburban neighborhoods of Richmond Hill, or working out of the high-tech corporate centers in Markham, our Master Technicians will arrive promptly. We eliminate the need for you to waste a day sitting in a waiting room or paying for an expensive tow truck.
Why AlexWindshield is the Only Choice for Your Mazda CX-90
When you are dealing with a vehicle as sophisticated and valuable as the 2024-2027 Mazda CX-90, you cannot afford to cut corners with amateur installers or sub-par materials. As a premier provider of auto glass solutions, we use only OEM-equivalent or superior glass products, ensuring the exact dimensions, acoustic properties, and UV-filtering capabilities that Mazda intended.
At AlexWindshield, we stand firmly behind the precision of our labor and the quality of our materials. Every single sunroof, windshield, and auto glass replacement we perform comes backed by our comprehensive Lifetime Warranty. This warranty covers any issues related to water leaks, air whistling, or manufacturer defects in the glass for as long as you own your vehicle.
Don't let a damaged panoramic roof detract from the luxury and safety of your Mazda CX-90. Trust the Master Technicians who understand your vehicle inside and out. Contact AlexWindshield today to schedule your mobile auto glass service in Vaughan, Richmond Hill, Markham, or anywhere else across the GTA, and experience the gold standard in automotive glass restoration.
