Solving Window Rattle and Glass Breakage on the Mazda3
If you drive with your driver-side window rolled down two to four inches, you have likely heard the persistent buzz or mechanical clicking that plagues this door assembly. Owners across forums frequently document how the door window glass chatters violently inside its framed channel over coarse pavement, an annoyance that spikes as soon as Canadian cold weather stiffens the rubber run channels. When road debris or a break-in actually shatters the side window, simply bolting a replacement piece into the carrier without addressing these tight tolerances will leave you with the exact same cabin noise.
The framed door architecture on the BP platform relies on a specific mechanical clamping setup. Unlike frameless coupe doors that clamp via friction pads along the base, this door glass secures directly to the window regulator lift plate using factory mounting bolts (OEM hardware 9YA0-2A-611). When replacing cracked or shattered glass, I clear the broken fragments packed inside the lower bottom sash and inspect the vertical run-channel tracks. I often apply non-woven felt and dense EPDM lining directly into the rubber channel seams to stop that notorious high-frequency window rattle permanently before securing the replacement glass.
Sedan versus Hatchback Door Glass Differences
While the front drop glass shares identical dimensions across both the four-door sedan and five-door hatchback body styles, the rear doors are entirely different animals. The swept hatchback roofline cuts downward aggressively, requiring a distinct division bar that isolates an integrated rear quarter vent window within the door frame itself. The sedan utilizes a more traditional profile with larger drop glass and an independent pillar setup.
I usually pull up to your driveway roughly sixty minutes after you schedule a service call, bringing the exact aftermarket glass matched to your body style and factory solar tint level. Ordering the wrong rear piece is an easy mistake if you only look at the model year, which is why cross-referencing body configurations beforehand is vital.
| Glass Position | Body Style | OEM Reference | NAGS Reference |
|---|---|---|---|
| Front Left (Driver) | Sedan / Hatchback | BDMT-59-510B | FD Series |
| Rear Right (Passenger) | Sedan | BCJH-72-510A | FD24237GTN |
| Rear Left (Driver) | Sedan | BCJH-73-510A | FD Series |
| Rear Side Windows | Hatchback | Body Specific | Dedicated Vent / Drop |
Mechanical Hardware and Regulating the Replacement

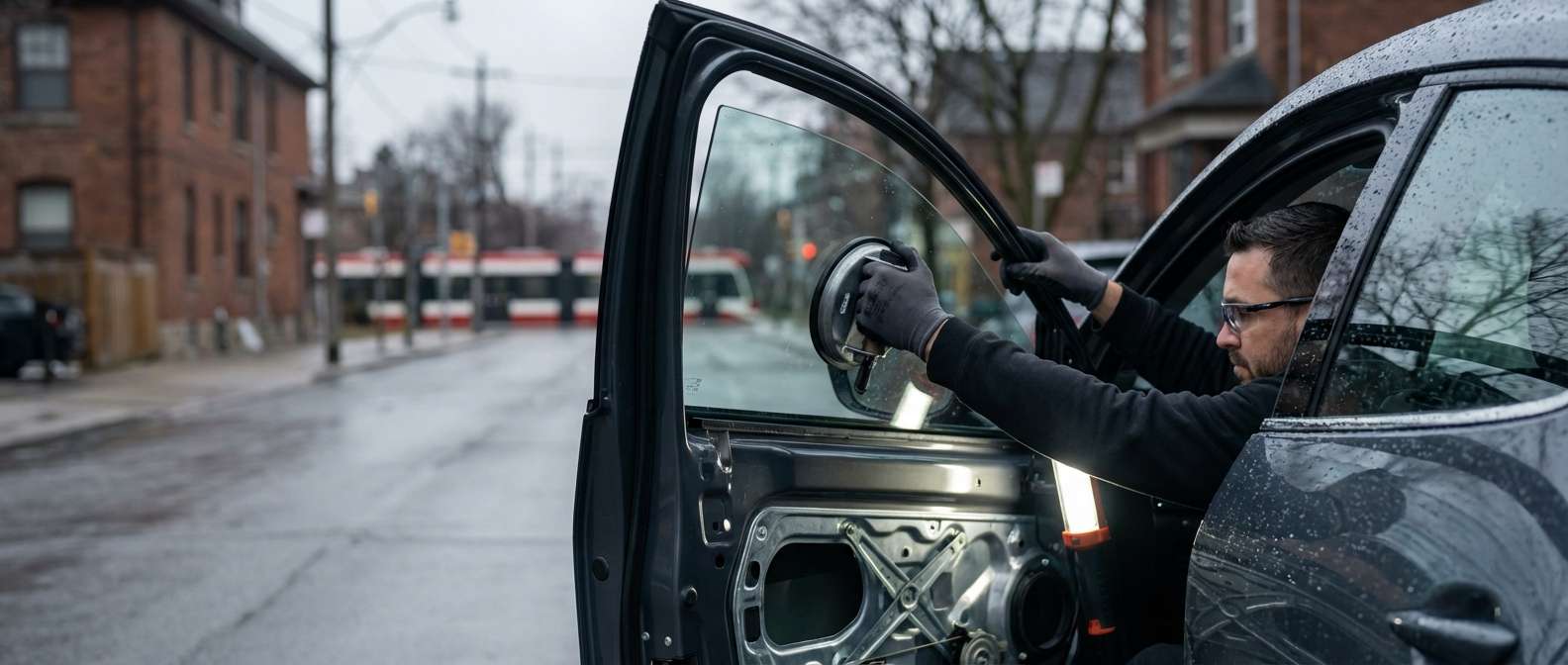

Replacing side glass on this car demands stripping the inner door card, popping plastic interior fasteners without snapping their retainers, and peeling back the protective vapor barrier plugs to access the regulator bolts. Because tempered side glass fractures into thousands of blunt pebbles, the glass run channel and the base of the inner door skin must be vacuumed spotless; stray granules caught in the bottom waist belt moulding will instantly scratch your fresh aftermarket glass the first time it rolls down.
Rear door glass on the sedan does not house radio antennas, heating grids, or wiper cutouts, meaning the panel relies solely on standard green solar tempered glass. Once the glass sits flush in the rubber track and the 9YA0-2A-611 mounting bolts are torqued into the regulator bracket, cycling the motor confirms the glass travels cleanly without catching on the front edge of the waist weatherstrip.
