The Ultimate Guide to Windshield Replacement for the 2018-2024 Lincoln Navigator
Commanding the road in a fourth-generation Lincoln Navigator (2018-2024) is an experience defined by uncompromising luxury, whisper-quiet cabin acoustics, and unparalleled safety. With its massive profile and advanced Lincoln Co-Pilot360™ technology, every inch of this full-size premium SUV is meticulously engineered. However, when a rogue stone on Highway 400 or the DVP strikes your front glass, it compromises far more than just the vehicle's aesthetics. The windshield of a modern Navigator is a structural powerhouse and a central hub for cutting-edge digital sensors. Replacing it requires absolute precision, specialized materials, and an expert touch that generic auto glass shops simply cannot provide.
As the leading Master Technicians at AlexWindshield, we specialize in high-end, luxury vehicle glass services. Whether you are commuting from Vaughan, parked at your corporate office in Richmond Hill, or dropping the kids off in Markham, we bring elite, dealership-level mobile auto glass replacement directly to you across the Greater Toronto Area (GTA). We understand the unique complexities of the Lincoln Navigator and guarantee a flawless, factory-standard installation every single time.
Why the 2018-2024 Lincoln Navigator Windshield is Highly Complex
The windshield on the 2018-2024 Lincoln Navigator is not just a curved piece of tempered glass; it is a sophisticated, multi-layered component. Before our technicians even touch the vehicle, we identify the specific features embedded in your factory glass to ensure an exact OEM-quality match. Key technical elements include:
- SoundScreen® Acoustic Glass: The Navigator is famous for its serene cabin. The windshield utilizes specialized sound-dampening acoustic vinyl sandwiched between the glass layers to block out wind and road noise. Installing a standard, non-acoustic aftermarket glass will ruin the luxury ride quality.
- Heads-Up Display (HUD): Many premium trims feature an advanced HUD that projects vehicle speed, navigation, and alerts directly onto the glass. The replacement windshield must have a highly specialized polarized layer to ensure the projection remains crisp and ghost-free.
- Rain-Sensing Wipers and Heated Wiper Parks: The glass houses sophisticated infrared moisture sensors and built-in heating elements along the lower cowl to prevent wiper blade freezing during brutal Canadian winters.
- Forward-Facing ADAS Cameras: The upper center of the windshield serves as the viewing portal for the Advanced Driver Assistance Systems (ADAS), powering features like Pre-Collision Assist and Lane-Keeping Alert.
Serving the Greater Toronto Area: Premium Mobile Installation
Your time is valuable, and dealing with a cracked windshield should not disrupt your schedule. AlexWindshield provides unparalleled mobile auto glass services across the entire Greater Toronto Area (GTA). Our fully equipped mobile workshops bring climate-controlled adhesives, cutting-edge extraction tools, and advanced calibration computers directly to your driveway. From the bustling streets of Markham to the residential neighborhoods of Richmond Hill and the commercial centers of Vaughan, our Master Technicians deliver rapid, reliable, and exceptionally precise windshield replacement without you ever needing to leave your home or office.
Step-by-Step Windshield Replacement Process: From A to Z
Replacing the massive windshield of a Lincoln Navigator requires a strict, uncompromising methodology to ensure structural integrity and leak-free performance. Here is our rigorous step-by-step technical process:
Step 1: Comprehensive Pre-Inspection and Interior Protection
Before any tools are utilized, we perform a comprehensive digital scan of the vehicle's onboard computer to log any existing ADAS fault codes. Next, we prioritize the protection of your luxury interior. We drape the premium leather seats, dashboard, and center console with heavy-duty protective covers. The exterior fenders and hood are padded with specialized magnetic mats to prevent accidental belt-buckle scratches or tool drops.
Step 2: Component Removal and Exterior Preparation
The technician carefully unclips and removes the rain sensor, rearview mirror, and forward-facing camera module from the interior windshield bracket. Moving to the exterior, we expertly detach the wiper arms using specialized pullers to avoid stripping the splines. The lower plastic cowl panel, heated wiper park connectors, and rubber side-trim moldings are meticulously removed and set aside safely.
Step 3: Extracting the Damaged Windshield
To safely cut the factory polyurethane adhesive without damaging the Navigator’s expensive aluminum and steel pinch weld, we utilize an advanced fiber-line cutting system. This high-tensile wire is threaded through the old adhesive bead and pulled via a motorized pulley system mounted on the glass. This completely eliminates the risk of scratching the vehicle's paint—a common issue when inexperienced technicians use aggressive cold knives or power tools.
Step 4: Surface Cleaning and Pinch Weld Preparation
Once the massive old glass is lifted away, we are left with the vehicle's frame, known as the pinch weld. We use specialized scraper blades to pare down the old urethane to a precise 1-2 millimeter base, which provides the ideal bonding surface for the new adhesive. The entire channel is then vacuumed to remove deep-seated dirt, dust, and any microscopic glass shards. Finally, the area is washed with a high-grade chemical prep solvent.
Step 5: Primer Application
Any areas of the pinch weld where bare metal is exposed (even from factory imperfections) are coated with an anti-corrosion auto glass primer to prevent future rust. We also apply a specialized glass-activation primer to the ceramic frit band (the black border) of the new premium windshield. This chemical reaction ensures a permanent molecular bond between the glass and the adhesive.
Step 6: High-Quality Adhesive Application
We apply a continuous, perfectly uniform "V-bead" of high-grade, fast-curing automotive polyurethane adhesive around the perimeter of the pinch weld. AlexWindshield uses only premium OEM-certified urethane designed specifically to support the extreme weight of the Lincoln Navigator's acoustic glass and to meet strict federal rollover safety standards.

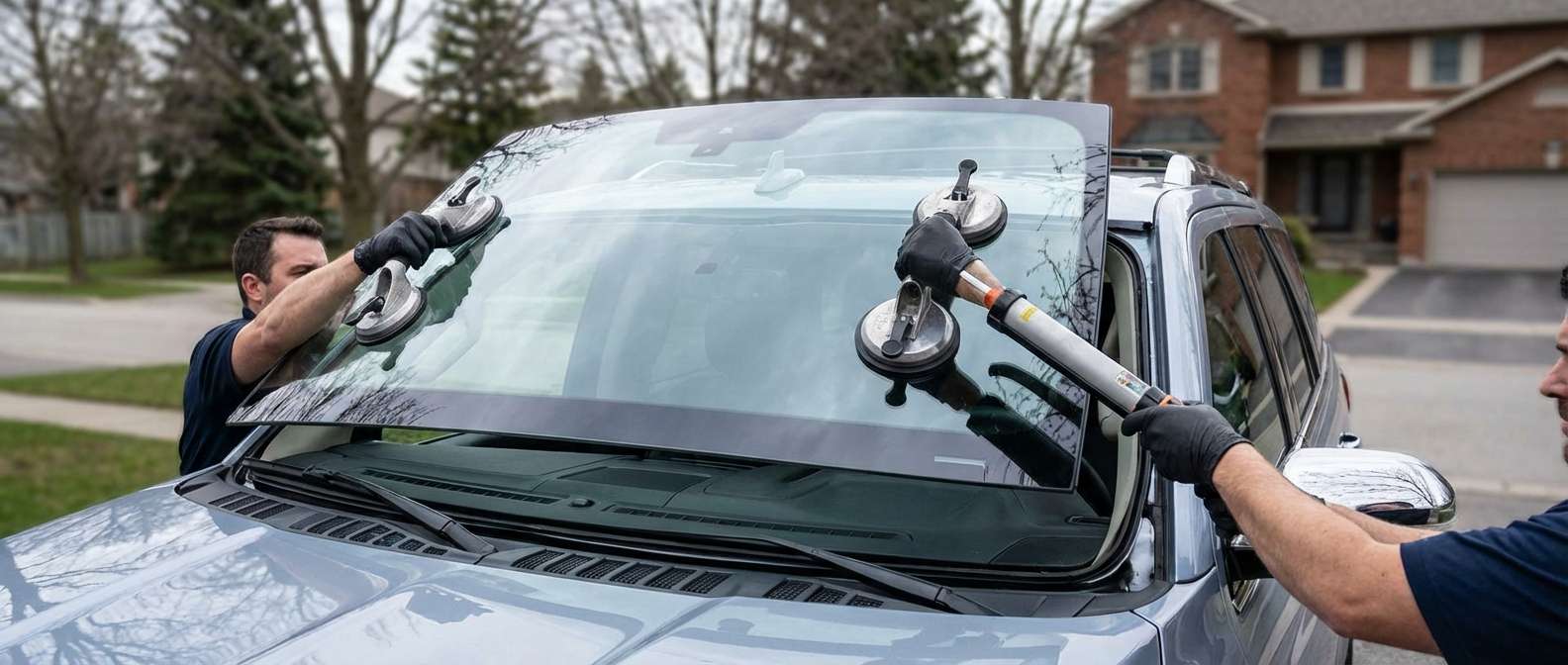

Step 7: Precision Installation of the New Glass
Due to the sheer size and weight of the Navigator's windshield, our Master Technicians utilize a two-person team or heavy-duty suction-cup lifting assist tools to expertly lower the new glass into the frame. The glass is gently pressed into the wet urethane, ensuring the exact depth and alignment. All removed trims, cowls, wipers, and interior mirrors are then reinstalled to factory specifications.
Mandatory ADAS Camera Calibration
For a 2018-2024 Lincoln Navigator, the physical installation of the glass is only half the job. Mandatory ADAS camera calibration is an absolute requirement. The windshield houses the camera system responsible for the Lincoln Co-Pilot360™ suite, including Automatic Emergency Braking, Pedestrian Detection, and Lane-Keeping System.
Even a millimeter of deviation in the angle of the new glass can throw the camera's sightline off by several feet down the highway, potentially causing the vehicle to brake for ghosts or fail to detect an actual collision threat. At AlexWindshield, we utilize state-of-the-art optical targeting systems and advanced diagnostic software to digitally realign the camera's pitch, yaw, and roll. We perform rigorous static and dynamic recalibrations, ensuring the vehicle's computer perfectly recognizes the new optical clarity of the windshield. Your safety systems will function exactly as they did the day the vehicle left the factory.
Why Trust AlexWindshield for Your Lincoln Navigator?
Your luxury SUV deserves luxury service. Choosing the right technician is the difference between a safe, quiet ride and a nightmare of wind noise, water leaks, and malfunctioning safety sensors. By choosing AlexWindshield, you are partnering with the elite tier of auto glass professionals in the GTA.
- Unmatched Expertise: Our Master Technicians undergo continuous training on the latest automotive glass technologies and complex ADAS recalibration protocols.
- Premium Materials: We use only OEM-equivalent acoustic and HUD-compatible glass, paired with top-tier fast-curing urethane that offers a rapid Safe Drive Away Time (SDAT).
- Total Convenience: We bring the entire shop to you—whether you are located in Vaughan, Richmond Hill, Markham, or anywhere else in the GTA.
- Ironclad Protection: We stand proudly behind our craftsmanship. Every single windshield replacement comes with our comprehensive Lifetime Warranty against leaks, stress cracks, and workmanship defects.
Do not compromise the safety, acoustics, or technological integrity of your Lincoln Navigator. For flawless, expert mobile windshield replacement and precision camera calibration, trust the master technicians at AlexWindshield. Contact us today to schedule your VIP mobile auto glass service and experience the pinnacle of automotive care in the Greater Toronto Area.
