Highway Wind Buffeting and Acoustic Glass Failures
Owners frequently report an intrusive rush of wind buffeting against the upper driver-side door frame once their speed crosses 45 mph. In vehicles like the Standard, Reserve, and Black Label trims, the interior is meant to be completely isolated from ambient roar, so even a slight gap in the window seal becomes immediately annoying. The cabin quietness relies heavily on factory dual-pane laminated glass rather than typical tempered glass. Because the front door glass is two sheets of glass bound by an acoustic vinyl interlayer, edge impacts or binding in the frame do not cause the window to pop into thousands of pebbles. Instead, road debris or mechanical strain causes long internal stress cracks or cloudy perimeter delamination that compromises the acoustic barrier and increases wind noise through the top run channel.
The framed doors built on the U554 platform share their mechanical skeleton with the Expedition, but the acoustic demands on this vehicle are much tighter. Ford released technical service bulletin TSB 21-2290 specifically addressing air rush and sealing problems around the front door glass run channels and the forward side mirror mouldings. When that molded rubber run channel seal, corresponding to dealer part JL1Z-7821596-E, pinches or deforms inside the door frame, the glass fails to seat firmly in the upper track. This misdirection ruins the acoustic seal and accelerates stress on the glass edges.
Window Travel and False Anti-Pinch Bounce-Back
Another issue that constantly surfaces on owner forums is erratic window regulator behavior, specifically the anti-pinch bounce-back system reversing the glass travel. Drivers try to close the window using the one-touch switch, only to watch the glass reach the top frame, hit resistance, and immediately drop down four inches. This false trigger usually stems from friction inside the vertical runs or slight misalignment where the bottom edge of the glass clamps onto the cable-style regulator. The power window motor detects the mechanical drag as an obstruction and automatically reverses to prevent injury.
When replacing cracked front driver glass, I source aftermarket replacements from trusted glass manufacturers like Pilkington, PGW, FYG, and XYG to match the clear-green solar tint and dual-pane acoustic dampening without using dealer inventory. The front left window corresponds to NAGS catalog number DD12781 LAP, which matches the fitment of OEM part JL1Z-7821411-D, while the front passenger side corresponds to DD12780 LAP or Ford number JL1Z-7821410-D. Because the laminated acoustic glass is thicker and heavier than a basic tempered pane, clearing the channel and setting the lower mounting clamps securely on the regulator carriage is critical to prevent the bounce-back motor from fighting the run channel every time it closes.
Sealing the Lower Door Cavity

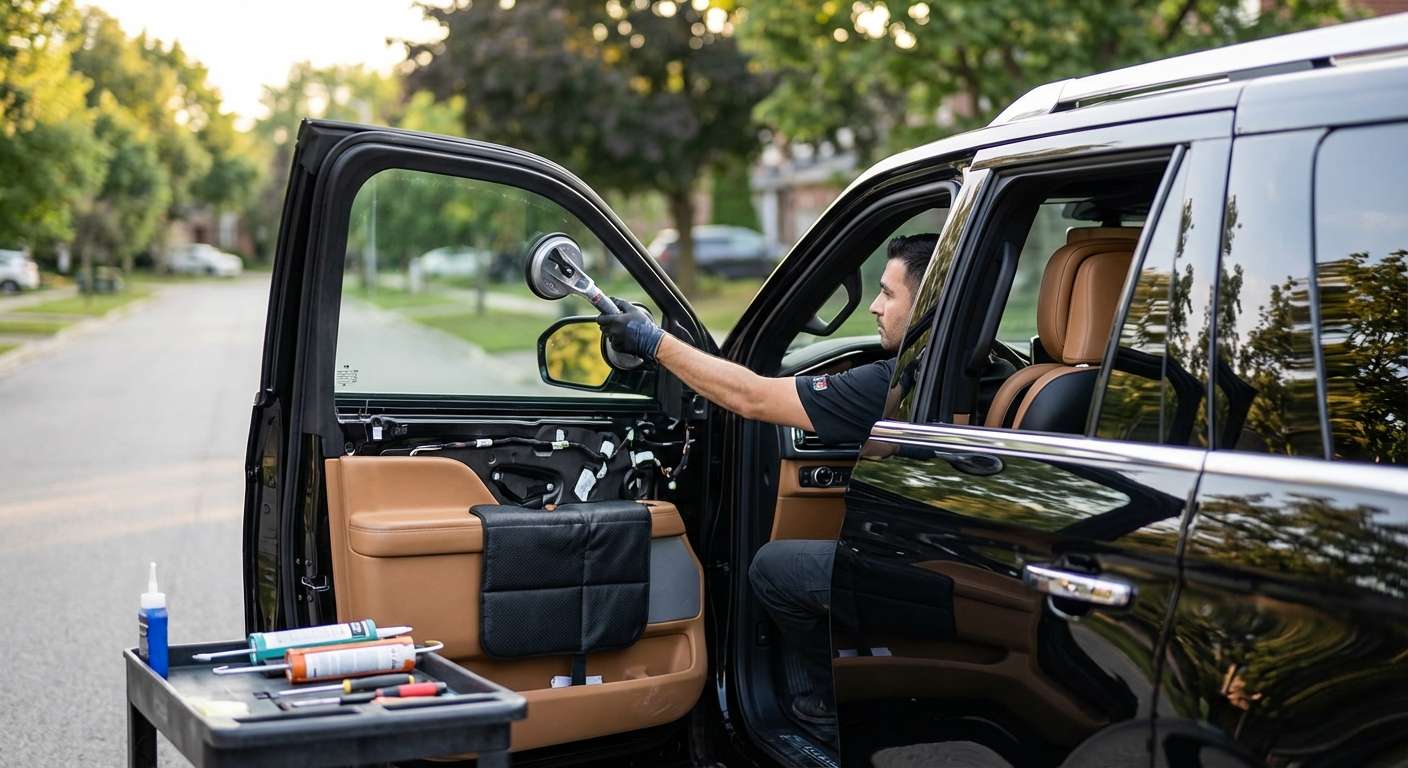

Replacing the movable side glass requires taking down the interior door panel to access the bottom clamping bolts, but the weather barrier between the cabin and the metal shell demands equal attention. The base of the window opening relies on inner and outer beltline weatherstrip mouldings to squeegee water off the glass surface during roll-down travel. Behind the trim panel sits a moisture barrier that directs road spray away from the door electronics, regulator cables, and window motor harnesses.
If that inner barrier tears or the beltline mouldings fail to seal against the outer glass face, water easily tracks down the pane directly into the regulator tracks. The cable-driven mechanism then begins to bind, causing jerky window motion and worsening the motor resistance issues. Keeping the glass square within the A-pillar and B-pillar tracks ensures the glass rises smoothly into the head channel, eliminating highway air leaks and keeping the cabin quiet.
