The "Super Normal" Standard: Restoring Your 2017-2020 Hyundai Elantra
The sixth-generation Hyundai Elantra (2017-2020), often celebrated for its "Super Normal" design philosophy, completely redefined the compact sedan segment. With an aerodynamic exterior, a reinforced high-strength steel chassis, and a whisper-quiet cabin, this generation of the Elantra was engineered to provide a premium driving experience. However, when that serene acoustic environment is violently interrupted by a shattered vent glass, your vehicle’s security, climate control, and interior comfort are instantly compromised. Vent glass—often the small, triangular pane located on the rear doors or the C-pillar—is frequently targeted by thieves or damaged by rogue road debris. When this happens, you need a highly technical, precise repair to restore your vehicle to factory specifications.
As a Master Technician at AlexWindshield, I have replaced countless auto glass components on the 2017-2020 Hyundai Elantra (AD generation). Replacing a vent glass on this specific model is not merely a matter of gluing a new piece of glass into a hole. It requires an intricate understanding of Hyundai's interior trim assemblies, specialized urethane bonding procedures, and meticulous attention to detail to ensure wind noise and water leaks are permanently kept at bay. Below is our comprehensive, expert-level guide to how we execute a flawless Hyundai Elantra vent glass replacement.
Why the Hyundai Elantra Vent Glass Requires Expert Attention
The vent glass on the 2017-2020 Hyundai Elantra is a structural component of the vehicle's greenhouse. It is encapsulated in a specific rubber molding that sits flush with the vehicle's dynamic body lines. Because this glass is bonded directly to the vehicle's pinch weld using high-strength polyurethane adhesive, an improper installation can lead to severe issues. A botched job can result in annoying whistling sounds at highway speeds, water ingress that can destroy the Elantra's interior electronics, or worse, the rapid development of rust on the bare metal of the frame.
Furthermore, because the vent glass is usually shattered entirely when broken, thousands of tiny, razor-sharp tempered glass shards are blasted into the interior of the vehicle, hiding deep within the door cavities, under the seats, and inside the seatbelt retractors. A standard "slap and go" replacement ignores these hidden dangers. At AlexWindshield, our protocol ensures a complete restoration of both the glass and the interior environment.
Our Master Technician’s A-Z Vent Glass Replacement Process

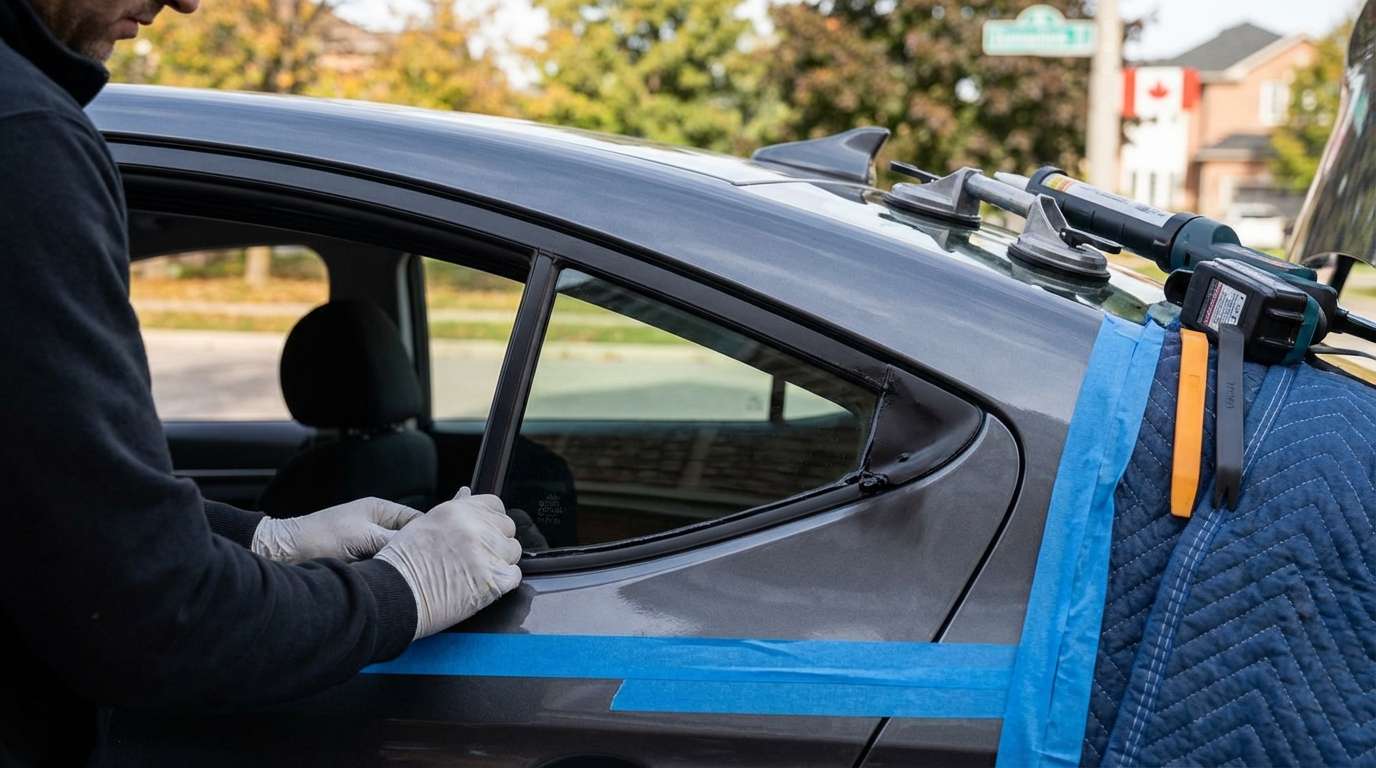

Step 1: Pre-Inspection and Ultimate Interior Protection
Before any tools are lifted, we conduct a thorough pre-inspection of the 2017-2020 Hyundai Elantra. We assess the damage to the surrounding paint, window moldings, and interior trim. Because broken tempered glass is incredibly abrasive, our first physical step is to protect the vehicle. We drape the exterior quarter panels and doors with heavy-duty automotive protective blankets. Inside, we cover the Elantra's premium fabric or leather seats, center console, and floor mats with thick drop cloths. We also apply low-tack protective masking tape around the exterior window frame to ensure our removal tools never scratch the vehicle's clear coat.
Step 2: Precision Door Panel and Interior Trim Removal
To properly access the mounting points and the lower cavity where the vent glass sits, we must meticulously remove the interior door panels or C-pillar trims, depending on the exact location of the broken pane. For the 2017-2020 Elantra, this involves locating hidden Phillips-head screws beneath the interior door handle cover and the armrest pocket. Using specialized, non-marring nylon pry tools, we gently unclip the rigid plastic retainers holding the panel to the door frame. We carefully disconnect the power window switch harnesses, speaker wires, and door latch cables to completely free the interior panel without causing any damage to the delicate plastic clips.
Step 3: Intensive Deep Vacuuming of Glass Shards
This is where our service separates from the competition. When a vent glass shatters, tempered glass granules fall deep into the door shell and interior crevices. If left inside, they will cause an irritating rattling noise every time you hit a bump or close the door, and they can even jam the window regulator mechanism. We use industrial-grade HEPA vacuums equipped with specialized micro-crevice attachments to suck out every single shard of glass. We vacuum the inside of the door cavity, the window tracks, the interior carpets, the seat seams, and even inside the child-seat anchor points. We ensure your Elantra's cabin is 100% safe and free of hazardous debris.
Step 4: Removal of the Old Encapsulation and Urethane
With the area clean and prepped, we move to extract the remaining broken glass and the old urethane adhesive bead. Using an incredibly sharp cold knife or a specialized braided wire-out tool, we slice through the factory polyurethane seal that bonds the vent glass to the pinch weld. We must carefully navigate the curves of the Elantra's window frame to avoid scratching the metal. Once the remaining encapsulated frame is removed, we use a heavy-duty scraper blade to trim the existing urethane bead down to a thickness of about 1-2 millimeters, creating a perfectly smooth, level base for the new adhesive to bond to.
Step 5: Surface Preparation, Cleaning, and Primer Application
Contamination is the enemy of a safe auto glass installation. We thoroughly clean the newly trimmed pinch weld and the surrounding body using an alcohol-based, lint-free cleaning solution. Next, we apply a high-performance auto glass primer to any areas where the bare metal of the Elantra may have been exposed during the removal process. This primer is absolutely critical—it prevents oxidation and rust from forming beneath the new glass, and it acts as a chemical bridge that promotes aggressive adhesion between the vehicle frame, the old urethane, and the new polyurethane bead. We also meticulously prep the new, OEM-quality vent glass, applying glass prep and primer to its ceramic frit band.
Step 6: Applying High-Quality Urethane Adhesive and Installation
Once the primer has flashed (dried completely), it is time for the installation. We load our electric caulking gun with premium, fast-curing automotive polyurethane adhesive. We lay down a structurally perfect, continuous V-shaped bead of urethane around the entire perimeter of the pinch weld. The V-bead ensures there are no air gaps or weak points. Carefully, we align the new 2017-2020 Hyundai Elantra vent glass, ensuring the rubber encapsulation lines up perfectly with the factory aerodynamic body lines. We press the glass firmly into the urethane, using specialized retention tape to hold the glass exactly in place while the adhesive begins its curing process.
Step 7: Reassembly and Final Quality Check
While the urethane cures to meet the mandatory Safe Drive Away Time (SDAT), we begin the reassembly phase. We reconnect the door latch cables and electrical harnesses, and carefully snap the interior door panel and trims back into place, securing all screws. We conduct a final wipe-down of the new glass using professional-grade, streak-free glass cleaner. Finally, we perform a rigorous quality assurance check, ensuring the trim sits flush, the cabin is spotless, and the seal is airtight. Your Elantra is now restored to its quiet, secure, "Super Normal" glory.
Mobile Auto Glass Service Across the Greater Toronto Area (GTA)
We know that dealing with a smashed vent glass is an incredibly stressful and inconvenient experience. Driving a vehicle with a broken window on Highway 400 or the DVP is not only uncomfortable due to the wind and noise, but it is also a major security risk. That is why AlexWindshield brings the auto glass shop directly to you.
Our fleet of fully equipped mobile service vans operates extensively throughout the Greater Toronto Area (GTA). Whether you are at home, at your office, or stranded in a parking lot, our Master Technicians will arrive on-site to perform the replacement. We are proud to offer rapid, priority mobile response times in key municipalities, including:
- Vaughan: From Woodbridge to Maple, we service all neighborhoods in Vaughan, ensuring your Elantra is secure before the unpredictable weather rolls in.
- Richmond Hill: Whether you are parked near Yonge Street or working in a corporate park, our mobile units deliver seamless auto glass repair right to your location in Richmond Hill.
- Markham: From Unionville to Cornell, residents of Markham trust our prompt mobile dispatch to handle smashed vent glasses safely and efficiently right in their driveways.
Why Choose AlexWindshield for Your Hyundai Elantra?
When it comes to the safety and integrity of your vehicle, you cannot afford to cut corners. Here is why Hyundai owners across the GTA continuously choose us for their auto glass needs:
- OEM-Quality Materials: We use only premium glass that matches Hyundai’s rigorous factory specifications for tint, acoustic dampening, and durability.
- Master Technicians: Our technicians are extensively trained in the specific structural nuances of modern vehicles like the 2017-2020 Elantra.
- Intensive Clean-Up: We do not leave a single shard behind. Our deep-vacuuming process guarantees a safe cabin for you and your family.
- Premium Urethane Adhesives: We use advanced, fast-curing polyurethane that guarantees a watertight seal and restores the structural integrity of your vehicle's frame.
- Unbeatable Lifetime Warranty: We stand entirely behind our craftsmanship. Every replacement comes backed by an industry-leading warranty against leaks, wind noise, and workmanship defects.
Contact AlexWindshield Today
Do not leave your 2017-2020 Hyundai Elantra exposed to thieves, rain, or snow for another minute. Trust the premier mobile auto glass experts in the GTA to restore your vehicle's safety and comfort. With our meticulous attention to detail, advanced installation techniques, and unwavering commitment to customer satisfaction, AlexWindshield is your ultimate solution for professional vent glass replacement. Contact AlexWindshield today to schedule your mobile appointment in Vaughan, Richmond Hill, Markham, or anywhere in the Greater Toronto Area, and enjoy the peace of mind that comes with our Lifetime Warranty!
