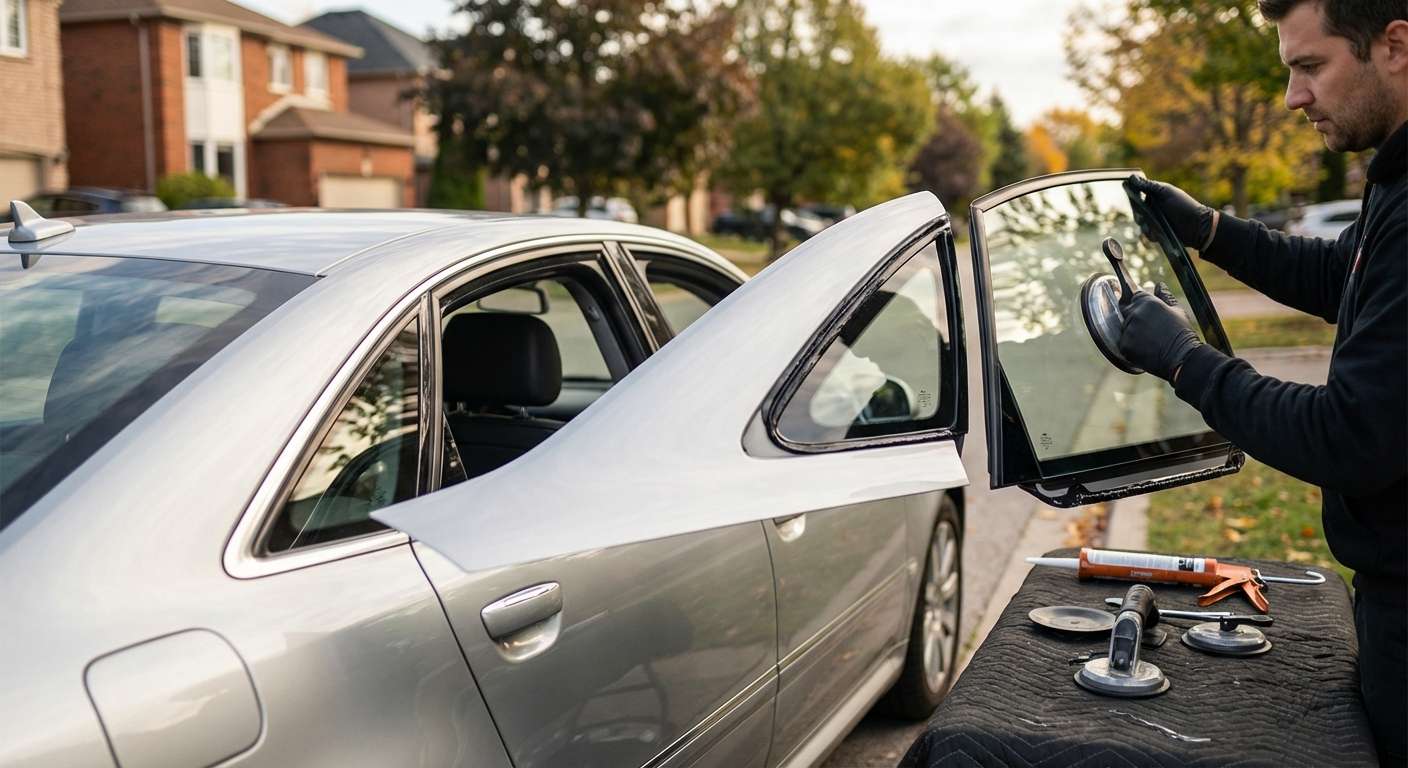

Precision Quarter Glass Replacement for Audi A8 (D3 Generation: 2004-2010)
The Audi A8 (D3), manufactured between 2004 and 2010, is not merely a vehicle; it is a statement of executive luxury and advanced engineering, famously utilizing the Audi Space Frame (ASF) aluminum construction. When the quarter glass—the smaller, fixed window located in the C-pillar behind the rear doors—is damaged, it disrupts the vehicle's acoustic silence, security, and aerodynamic profile. Unlike standard sedan glass replacement, working on an Audi A8 requires a master technician’s touch to navigate the complex interior trim, side-curtain airbags, and the specific requirements of bonding glass to an aluminum frame. At AlexWindshield, we specialize in the meticulous restoration of these high-end vehicles.
The Critical Role of the Quarter Glass in Your Audi A8
The quarter glass on your 2004-2010 Audi A8 serves multiple functions beyond simple visibility. It is an integral part of the vehicle's structural rigidity and security system. In many D3 models, this glass is laminated or double-pane acoustic glass, designed to dampen road noise and provide thermal insulation. If this glass is shattered due to vandalism, road debris, or an accident, immediate replacement is vital to protect the vehicle's lavish interior from the elements and theft.
Furthermore, because the quarter glass is bonded directly to the vehicle's body, an improper installation can lead to water leaks that damage the expensive electronics housed within the C-pillars and trunk area. Our service ensures that the factory seal is replicated perfectly, maintaining the integrity of your Audi.
Service Availability: Mobile Auto Glass in the GTA
We understand that driving a luxury vehicle with a broken window is stressful and unsafe. That is why AlexWindshield brings the auto glass shop to you. We provide comprehensive mobile services across the Greater Toronto Area (GTA). Whether your Audi A8 is parked in a driveway in Vaughan, at a corporate center in Markham, or a residential street in Richmond Hill, our fully equipped mobile units are ready to perform a factory-grade replacement on-site.
Step-by-Step Technical Process: Audi A8 Quarter Glass Replacement
Replacing the quarter glass on an Audi A8 requires significantly more finesse than standard auto glass repair. The D3 platform features high-quality leather, Alcantara headliners, and tight tolerances. Below is the detailed, Master Technician-approved workflow we utilize at AlexWindshield.
1. Initial Inspection and Interior Protection
Before touching the glass, we perform a thorough inspection of the damage. If the glass has shattered, we assess the extent of the debris field. We begin by covering the rear seats, the rear deck, and the front seats with heavy-duty protective covers. The exterior paint below the quarter window is masked off using automotive-grade painter's tape to prevent any accidental scratches to the clear coat during the removal process.
2. Interior Trim and Panel Removal
This is the most delicate stage of working on an Audi A8. The quarter glass is chemically bonded, but access to the urethane bead often requires removing interior obstructions.
- We carefully disengage the C-pillar interior trim using non-marring plastic pry tools to avoid damaging the leather or fabric clips.
- If necessary, we partially detach the rear deck trim or side bolsters to gain full clearance to the glass pinch weld.
- We strictly adhere to Audi’s technical schematics to ensure no airbag sensors or wiring harnesses located behind the trim are disturbed.
3. Debris and Shard Extraction
If the glass is tempered and has shattered into thousands of pieces, or if it is laminated and cracked, cleaning is mandatory before installation.
- We utilize a high-powered industrial vacuum to remove glass shards from the window cavity, the rear seats, and the floor mats.
- We inspect the window channel and the crevices between the seat cushions. On an A8, shards often migrate deep into the leather stitching; we use specialized soft-bristle attachments to extract these without scratching the upholstery.
- Safety First: We ensure no glass remains inside the body panel that could cause rattling noises later.
4. Excising the Damaged Glass
Using a specialized Cold Knife or a braided wire cutting system, we carefully cut through the existing urethane bead that holds the glass to the frame.
- For the Audi A8, we are hyper-aware of the aluminum body construction. Standard tools used on steel cars can gouge aluminum, leading to rapid oxidation. We use precision depth-controlled blades to ensure we cut only the glue, not the paint or metal.
- Once the adhesive is severed, the old glass (or remaining frame of the glass) is carefully lifted away from the vehicle.
5. Pinch Weld Preparation and Corrosion Prevention
The "pinch weld" is the metal shelf where the glass sits. This surface must be chemically pure for the new adhesive to bond.
- We trim the old urethane down to a thickness of approximately 1-2mm. This old base serves as the best substrate for the new glue to bond to.
- We clean the area with a specialized solvent to remove road grime, silicone, and oils.
- Critical Step: If any metal was exposed during removal, we apply a high-grade black primer. On the Audi A8's aluminum frame, this primer acts as an essential barrier to prevent galvanic corrosion and ensures the structural integrity of the bond.
6. Primer Application to New Glass
While the car body preps are drying, we prepare the new quarter glass.
- The new glass is cleaned with a glass activator.
- We apply a specialized glass primer to the ceramic band (the black frit) on the edge of the new glass. This primer promotes molecular bonding with the urethane adhesive and blocks UV rays from degrading the glue over time.
7. Urethane Application and Setting
We use only OEM-equivalent high-modulus, non-conductive urethane adhesive (such as Sika or Dow).
- Using a high-ratio battery-powered caulking gun, we apply a triangular bead of urethane to the glass or the body aperture (depending on the specific D3 fitment requirement). The triangular shape ensures that when the glass is pressed down, the glue spreads evenly without air bubbles.
- Positioning: Using suction cups, the Master Technician carefully aligns the quarter glass with the body lines of the C-pillar and the rear door edge. The gaps must be symmetrical to factory specifications to minimize wind noise.
- The glass is pressed firmly to seat the adhesive.
8. Reassembly and Final Cleanup
Once the glass is set, we reinstall the interior C-pillar trim, side bolsters, and any other removed panels. We verify that all clips engage with a solid "click" and that the fit and finish match the rest of the luxury interior.
- We perform a secondary vacuum of the work area to ensure the vehicle is spotless.
- We clean the exterior of the new glass and the surrounding paint.
- Retention tape is applied to hold the glass in position while the adhesive cures (usually requiring 1 to 3 hours before the vehicle can be safely driven).
Why Choose AlexWindshield for Your Audi A8?
The Audi A8 (2004-2010) is a complex machine that demands respect. Generic auto glass shops often lack the experience required to handle the aluminum bodywork or the intricate interior assembly of the D3 generation. At AlexWindshield, our technicians are trained specifically on European luxury vehicles.
Our commitment to excellence includes:
- Mobile Convenience: We come to you in Vaughan, Richmond Hill, Markham, and throughout the GTA, saving you time and towing fees.
- OEM Quality Glass: We use glass that meets or exceeds Original Equipment Manufacturer standards for clarity, fit, and acoustic properties.
- Aluminum Expertise: We utilize primers and tools specifically safe for the Audi Space Frame.
- Interior Care: We treat your leather and Alcantara interiors with white-glove care, ensuring no smudges or damage.
Lifetime Warranty and Booking
We stand behind our craftsmanship. Every quarter glass replacement performed by AlexWindshield comes with a Lifetime Warranty against leaks, air noise, and workmanship defects for as long as you own the vehicle. Don't compromise the integrity of your Audi A8 with sub-par service.
Trust the experts at AlexWindshield. Contact us today to schedule your mobile Audi A8 quarter glass replacement in the GTA.
