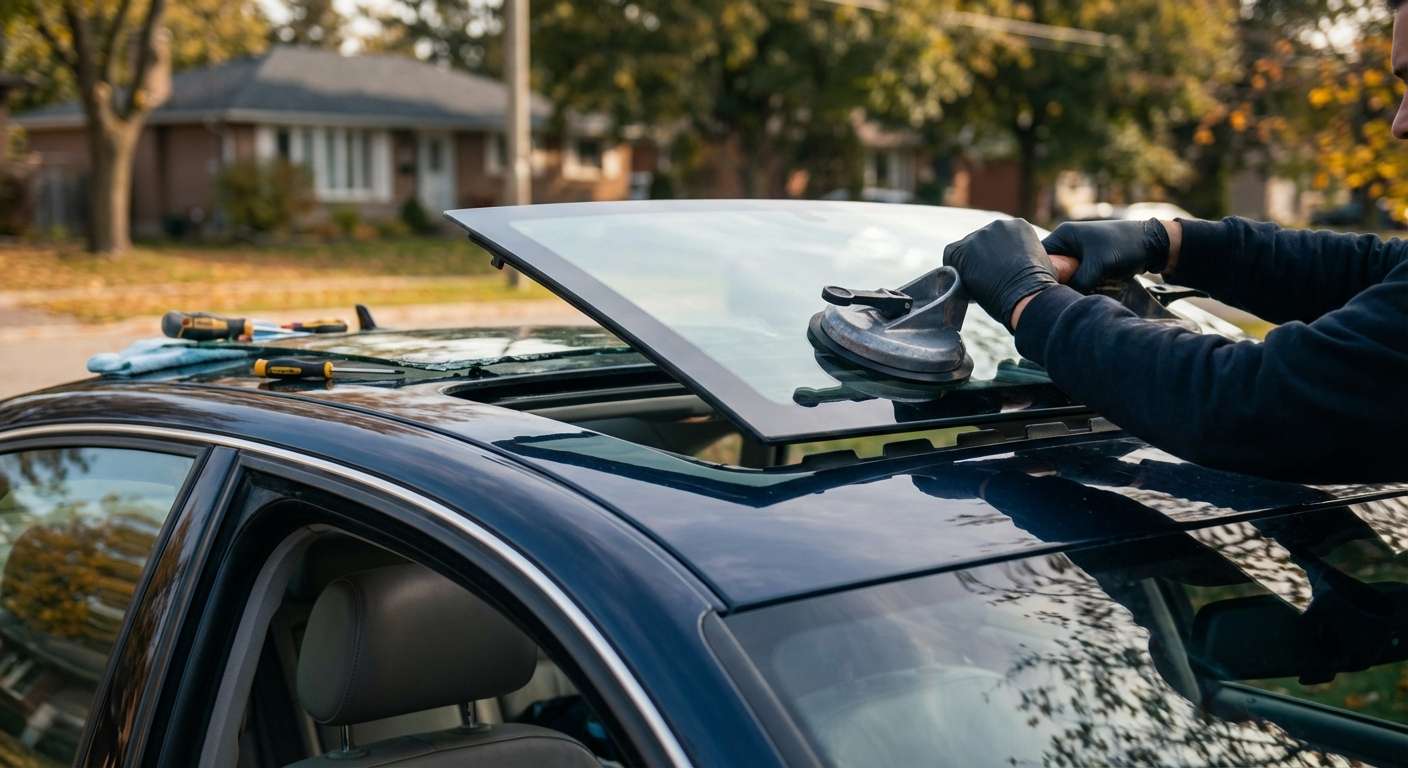

Restoring the German Classic: Sunroof Replacement for Audi A6 1998-2004 (C5)
The Audi A6 C5 generation (1998–2004) represented a paradigm shift in automotive design. With its distinct "Bauhaus" curves and aerodynamic profile, it set a standard for luxury sedans that is still appreciated by enthusiasts today. However, driving a classic executive car comes with maintenance challenges, and few things destroy the driving experience faster than a shattered or leaking sunroof. Unlike a simple windshield chip, a compromised sunroof on an A6 C5 exposes your vehicle’s elaborate electronic systems and plush leather interior to the harsh Canadian elements.
At AlexWindshield, we do not simply swap glass; we restore the structural and cosmetic integrity of your vehicle. As the Master Technician, I understand that the C5 platform requires a delicate touch, particularly regarding the complex drainage channels and the interaction between the glass panel and the aged rubber seals. Whether your sunroof has shattered due to road debris, thermal shock, or vandalism, our specialized service ensures your Audi remains watertight and road-ready.
Why Audi A6 (C5) Sunroofs Require Expert Attention
The 1998-2004 Audi A6 utilizes a specific tilt-and-slide sunroof mechanism (or the optional solar sunroof) that is robust but unforgiving if mishandled. After two decades on the road, the plastic guides in the cassette become brittle, and the rubber weather seals compress. A generic auto glass shop might force a new glass panel in, resulting in wind noise, misalignment, or worse—water leaks that flood the Comfort Control Module (CCM) located under the driver’s floor carpet.
When you choose AlexWindshield, you are choosing a team that understands the specific electrical and mechanical nuances of the C5 chassis. We service the entire Greater Toronto Area (GTA), providing mobile solutions that bring dealership-level expertise directly to your driveway.
Step-by-Step Technical Process: Sunroof Replacement
Replacing the sunroof glass on an Audi A6 involves significantly more labor and precision than a standard door glass replacement. Below is our detailed, A-to-Z protocol for handling this specific vehicle.
Phase 1: Site Preparation and Interior Protection
Before a single tool touches your Audi, we secure the environment. Broken tempered glass has a tendency to migrate into every crevice of the cabin.
- Interior Shielding: We apply heavy-duty protective covers to the front and rear leather seats, the dashboard, and the center console to prevent scratches and embedment of glass shards.
- Exterior Protection: The roof paint and fender areas are masked off to prevent accidental damage during the extraction of the broken unit.
- Headliner Assessment: We inspect the condition of the fabric headliner. On the C5 Audi, the headliner is prone to sagging; we take extra care not to disturb the existing adhesive bond of the fabric during the repair.
Phase 2: Debris Extraction and Vacuuming
If your sunroof has shattered, millions of tiny cubes of tempered glass are likely lodged in the mechanism tracks and the interior.
- High-Power Vacuuming: We use industrial-grade vacuums to remove glass from the seats, carpets, and defroster vents.
- Track Cleaning: This is the most critical step for the Audi A6. We manually remove glass shards from the greased rails of the sunroof cassette. If these shards are left behind, they will grind against the gears, destroying the motor or snapping the guide cables.
- Compressed Air Purge: We utilize compressed air to dislodge hidden fragments from the crevices of the sunshade assembly.
Phase 3: Removal of the Old Assembly
On the 1998-2004 A6, the glass panel is mounted to the mechanism via Torx screws hidden behind accordion-style rubber trim pieces.
- Trim Removal: We carefully unclip the interior side gaiters (accordion covers) without snapping the aged plastic clips.
- Hardware Extraction: We remove the mounting screws (usually T25 Torx) securing the glass frame to the lift arms.
- Surface Prep: Once the old glass frame is removed, we clean the mounting points on the lift arms using a specialized solvent to remove old grease and oxidation.
Phase 4: Primer Application and Seal Preparation
While many sunroofs are mechanically bolted, the integrity of the weather seal is paramount. If we are replacing the seal or if the glass unit requires bonding to a sub-frame:
- Activator and Primer: We apply a high-quality activator to the mating surfaces of the new glass seal to ensure it bonds perfectly with the roof aperture creates a watertight barrier.
- Sealant Application: For areas requiring adhesion, we use high-modulus, non-conductive urethane adhesive. This ensures that the seal does not degrade under the intense UV exposure that a roof panel endures.
- Lubrication: We apply a specialized lithium-based grease to the track guides, ensuring the new glass slides effortlessly without straining the aged sunroof motor.
Phase 5: Installation and Alignment
This is where the "Master Technician" skill set is required. Simply bolting the glass in is not enough; it must be aerodynamically aligned.
- Mounting the Glass: The new Audi A6 specific tempered glass is lowered onto the lift arms.
- Height Calibration: We adjust the height of the glass. The rule of thumb for the C5 Audi is that the front edge of the glass should be 0mm to 1mm lower than the roofline, and the rear edge should be 0mm to 1mm higher. This prevents wind noise (whistling) at highway speeds.
- Torque Specification: The mounting screws are tightened to OEM torque specifications to prevent the glass from vibrating loose or cracking due to stress.
Phase 6: The Critical Drain Test
A replaced sunroof is useless if the car leaks. The Audi A6 C5 is notorious for clogged front drain tubes.
- Flow Testing: We pour water into the sunroof gutters to verify that the four drain tubes (located at the corners of the cassette) are flowing freely.
- Blockage Removal: If we detect a slow drain, we gently clear the tubes using a flexible snake tool, preventing water from backing up and damaging your A-pillar airbags or the central electronics.
Serving the Greater Toronto Area (GTA)
At AlexWindshield, we understand that a broken sunroof renders your vehicle undrivable, especially in Canadian weather. We have optimized our mobile service to cover key areas across the GTA with rapid response times.
Auto Glass Service in Vaughan
Residents in Vaughan can rely on our expedited service. Whether you are located near Vaughan Mills or the quiet residential streets of Kleinburg, our mobile units are equipped to handle Audi A6 sunroof replacements on-site. We understand the commute down Highway 400 requires a perfectly sealed vehicle.
Mobile Replacement in Richmond Hill
From Yonge Street to Bayview, our presence in Richmond Hill is unmatched. We specialize in servicing older luxury vehicles common in this area. Our technicians are familiar with the specific needs of Richmond Hill owners who demand OEM-quality aesthetics and functionality.
Expertise in Markham
Markham’s tech-savvy community appreciates our precise approach to auto glass. Whether you are parked at a corporate office in Unionville or your driveway in Cornell, AlexWindshield brings the workshop to you. We handle the disposal of the broken glass and ensure your Audi looks as good as new.
Why Choose AlexWindshield?
The Audi A6 (C5) is a vehicle that deserves respect. Entrusting it to a generalist can lead to permanent damage to the headliner, motor mechanism, or electronics. Here is why AlexWindshield is the premier choice for this specific repair:
- Mobile Convenience: We come to you—home or office—anywhere in the GTA, saving you the hassle of a tow truck.
- Master Technicians: Our team is trained specifically on European luxury vehicles. We know the difference between a pre-facelift (1998-2001) and facelift (2002-2004) A6.
- Quality Materials: We use only OEE (Original Equipment Equivalent) or OEM glass and the highest grade Sika or DOW adhesives and primers.
- Thorough Cleanup: We don't just fix the window; we clean the mess. We guarantee your interior will be free of dangerous glass shards.
Lifetime Warranty and Final Promise
We stand firmly behind our craftsmanship. Every sunroof replacement performed by AlexWindshield comes with a Lifetime Warranty covering leakage and workmanship for as long as you own the vehicle. We do not cut corners on primer, adhesive, or preparation time.
Don't let a broken sunroof compromise the comfort and safety of your Audi A6. Trust the local experts who know your car inside and out.
Contact AlexWindshield today to schedule your mobile sunroof replacement in Vaughan, Richmond Hill, Markham, or anywhere in the GTA. Drive with clarity and confidence.
