The Audi A5 (B8/B8.5): Restoring the Iconic Lines of a Modern Classic
When Walter de Silva designed the Audi A5 (2008-2017), he famously described it as the most beautiful car he had ever drawn. The sweeping roofline and the aggressive yet elegant stance defined a generation of luxury coupes and sportbacks. However, that seamless design relies heavily on the integrity of its glass components. When your quarter glass is shattered due to an attempted break-in, vandalism, or a road debris accident, it does more than just expose your vehicle to the elements; it disrupts the structural rigidity and the aesthetic harmony of your Audi.
At AlexWindshield, we understand that an Audi owner expects perfection. You aren't just looking for a patch-up job; you require a factory-standard restoration. Replacing the quarter glass on an Audi A5 is a technically demanding procedure that requires specific knowledge of the B8 chassis interior trim clips, body seals, and acoustic dampening materials. As the leading experts in auto glass replacement in the Greater Toronto Area (GTA), we combine master craftsmanship with OEM-quality materials to return your vehicle to its pristine condition.
Specialized Quarter Glass Replacement Services in the GTA
Finding a technician who treats your luxury vehicle with the respect it deserves can be challenging. AlexWindshield brings the workshop to your driveway. We specialize in mobile auto glass services, providing high-end replacements across the Greater Toronto Area. Whether you are parked at a corporate office in Markham, residing in a quiet subdivision in Richmond Hill, or shopping in Vaughan, our mobile units are fully equipped to handle complex quarter glass replacements on-site.
We do not outsource our work. Our technicians are in-house trained experts who understand the nuances of German engineering. We serve the following areas with priority dispatch:
- Vaughan: From Woodbridge to Maple, we provide same-day emergency glass services.
- Richmond Hill: protecting your luxury vehicle’s interior from the unpredictable Canadian weather.
- Markham: offering convenient mobile service to Unionville and surrounding business districts.
- Toronto & GTA: Comprehensive coverage for all Audi A5 owners.
The Complexity of Audi Quarter Glass: Why Expertise Matters
The 2008-2017 Audi A5 utilizes tempered safety glass for its quarter panels. Unlike a windshield which is laminated and cracks upon impact, tempered glass is designed to shatter into thousands of small, pebble-like pieces to prevent injury. While this is excellent for safety, it creates a significant maintenance challenge.
When this glass breaks, it doesn't just fall on the seat. The shards migrate. They fall inside the body cavities, down into the C-pillar trim, and deep into the crevices of your leather upholstery. A standard glass shop might simply vacuum the surface and glue in a new window. At AlexWindshield, we perform a surgical extraction of all debris to ensure your car doesn't rattle or sustain damage to the window regulators or interior mechanisms later on.
Step-by-Step Technical Process: A Master Technician’s Approach
As a Master Technician at AlexWindshield, I follow a rigorous protocol for every Audi A5 quarter glass replacement. This is not a rushed job; it is a restoration process. Below is the detailed, step-by-step procedure we utilize to ensure safety, waterproofing, and acoustic integrity.
Phase 1: Vehicle Preparation and Safety Protocols
Before a single tool touches your Audi, we ensure the vehicle is completely protected. Glass replacement can be messy, but our process is designed to leave no trace.
- Exterior Protection: We apply high-grade painter's tape and protective sheets around the window frame (pinch weld) to protect your Audi’s paint from scratches during the glass removal process.
- Interior Shielding: We place heavy-duty covers over your leather seats, center console, and flooring. This prevents any stray glass shards or urethane drips from damaging your interior.
- Initial Assessment: We inspect the damage to see if the window moulding or chrome trim—a signature of the A5 design—has been damaged during the breakage.
Phase 2: Interior Dismantling and Access
This is where experience with the Audi B8 platform is critical. To properly install the quarter glass, we must access the pinch weld from the inside. This involves removing specific interior panels.
- C-Pillar Trim Removal: We carefully unclip the interior C-pillar trim using non-marring nylon tools. Audi uses specific metal clips that are prone to breaking if forced; we know exactly where to apply pressure to release them safely.
- Side Bolster Removal: In many A5 configurations, the rear seat side bolster must be removed to access the lower mounting points of the glass and to facilitate thorough vacuuming.
- Door Seal Retraction: The rubber weatherstripping around the door opening is partially retracted to allow clean access to the glass edge without cutting the rubber.
Phase 3: Debris Removal and Deep Vacuuming
Because the quarter glass is tempered, your vehicle is likely filled with glass shards. This is the most time-consuming but necessary part of the job.
- Industrial Vacuuming: We use high-powered industrial vacuums to remove all visible glass from the seats, floor mats, and parcel shelf.
- Cavity Extraction: This is the AlexWindshield difference. We use flexible vacuum attachments to reach inside the body panel gaps. Shards often fall between the interior trim and the metal body of the car. If left, these shards will cause annoying rattles while driving.
- Compressed Air Purge: We use compressed air to dislodge stubborn glass fragments trapped in the window channel or seat rails, vacuuming them up immediately as they are released.
Phase 4: Old Adhesive Removal and Surface Prep
The longevity of the replacement depends entirely on the bond between the glass and the car body.
- Urethane Cut-Back: Using a specialized cold knife or reciprocating cutting tool, we trim the existing urethane bead down to approximately 1-2mm. This old base serves as the best bonding surface for the new adhesive.
- Corrosion Prevention: If the pinch weld (the metal frame) was scratched by the shattering glass or during removal, we treat the bare metal with a specialized anti-corrosion primer. This prevents rust from forming under your new window years down the line.
- Cleaning: The bonding surface is cleaned with a dedicated solvent to remove all grease, dust, and contaminants that could compromise the adhesive bond.
Phase 5: Priming and Adhesive Application
We do not use generic glues. We utilize high-modulus, non-conductive urethane adhesives that meet or exceed Audi’s OEM specifications.
- Glass Priming: The new quarter glass is prepped with an activator and primer. This ensures the chemical bond between the glass frit (the black band) and the urethane is unbreakable.
- V-Bead Application: We apply the urethane in a high-profile "V" bead shape. This shape ensures that when the glass is pressed into place, the glue spreads evenly, eliminating air pockets and potential water leaks.
Phase 6: Installation and Alignment
Precision is key. The Audi A5 is known for its aerodynamics and low wind noise. A poorly aligned quarter glass will create wind whistles at highway speeds.

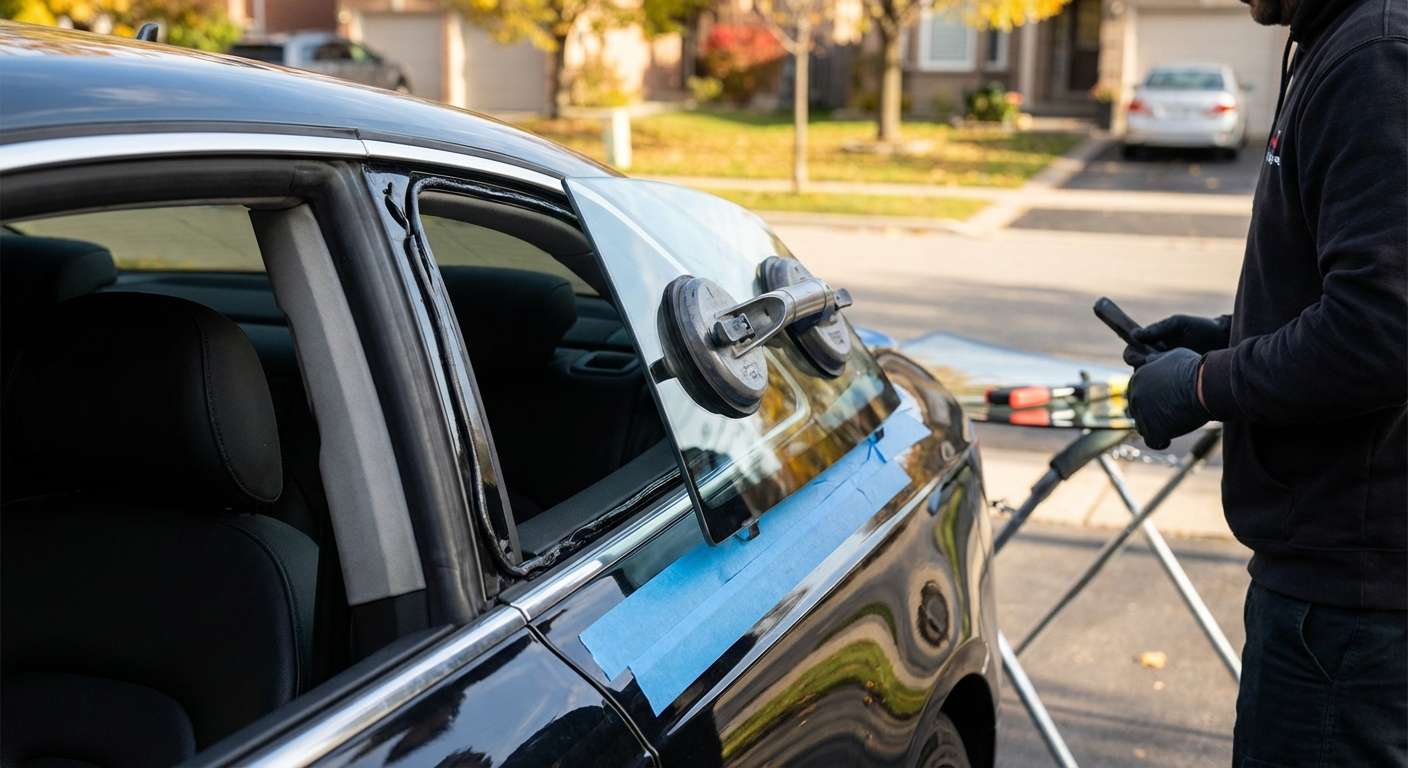

- Setting the Glass: Using suction cups, we carefully maneuver the new quarter glass into the opening.
- Alignment Check: We align the glass strictly against the chrome trim and the body lines. We check the flushness of the glass relative to the adjacent body panels to ensure it matches the factory fit and finish.
- Retention: Once aligned, we use retention tape to hold the glass firmly in position while the adhesive begins its curing process.
Phase 7: Reassembly and Final Inspection
Once the glass is secure, we reverse the dismantling process.
- Trim Reinstallation: All C-pillar trims, seat bolsters, and weatherstripping are snapped back into place. We ensure all clips engage with a satisfying "click" and that there are no uneven gaps in the interior panels.
- Final Clean: We perform one last round of vacuuming and clean the new glass inside and out to a streak-free shine.
- Leak Test: If conditions permit, we verify the seal integrity to guarantee your vehicle remains watertight.
Why OEM Quality Matters for Your Audi A5
The Audi A5 2008-2017 is a precision machine. Installing substandard aftermarket glass can lead to optical distortion, poor fitment, and increased cabin noise. At AlexWindshield, we prioritize the use of OEM (Original Equipment Manufacturer) or OEE (Original Equipment Equivalent) glass. This ensures that the tint, thickness, and curvature of the replacement glass match your vehicle’s original specifications perfectly. Furthermore, high-quality glass ensures the correct thermal insulation and UV protection for your vehicle's interior.
Mobile Service Convenience in Vaughan, Richmond Hill, and Markham
We know that dealing with a broken window is stressful. You shouldn't have to drive a vehicle with shattered glass and an open cabin across the city. Our mobile auto glass service is designed to eliminate this risk. We come to your location fully equipped. Our mobile vans are essentially workshops on wheels, carrying all the power tools, vacuums, primers, and stands required to perform a factory-level installation in your driveway or parking lot.
Whether you are near the Vaughan Mills shopping center, the tech hubs of Markham, or the residential avenues of Richmond Hill, our response times are among the fastest in the industry. We handle the logistics so you can get back to your day.
Trust AlexWindshield: Your Auto Glass Experts
Your Audi A5 deserves the touch of a Master Technician. Don't settle for quick-fix shops that leave broken glass under your seats and wind noise in your cabin. Choose the experts who understand the intricate engineering of your vehicle.
At AlexWindshield, we stand behind our craftsmanship. We offer a Lifetime Warranty on our workmanship for as long as you own the vehicle. This covers you against air leaks, water leaks, and loose moldings, giving you total peace of mind.
Ready to restore your Audi A5? Contact AlexWindshield today for a quote and schedule your mobile quarter glass replacement in the GTA. Experience the difference of true professional care.
