Distinguishing Tempered and Laminated Rear Door Quarters
The stationary rear door vent glass on this sedan comes in two fundamentally different build configurations that cannot be interchanged casually. Standard trim levels utilize conventional green-tinted solar tempered glass, cataloged under dealer references 30779888 for the left side and 30779889 for the right side on builds up to 2013, later updated under numbers 31335754 and 31335755. However, cars ordered with the factory Security Package or the Executive trim package carry dual-pane laminated acoustic quarter glass, represented by factory numbers 30779890 and 30779891. Corresponding aftermarket laminated parts carry NAGS designations FV23407 for the right passenger side and FV23408 for the left driver side.
Checking the corner stamp on the broken window or examining the opposite door's glass is critical before scheduling work. Laminated units consist of two glass sheets bonded by an acoustic interlayer, engineered specifically to drop cabin decibel levels and resist smash-and-grab entry. If a car built with acoustic side windows receives a standard tempered pane, the loss of sound insulation in the rear passenger compartment is immediately noticeable at highway speeds. Standard units shatter into thousands of granules upon impact, whereas the laminated versions crack in place while staying adhered to the interlayer.
Division Bar Fitment and the Rubber Channel Surround
The rear vent glass does not glue directly to the vehicle body sheet metal. It sits fixed within the rear door frame itself, segregated from the movable roll-down window by an upright division bar. On the P3 platform, this division post carries part number 30799053 on the left and 30799054 on the right, secured deep inside the door shell behind the vapor barrier. The triangular pane seats firmly inside an extensive continuous rubber run channel, cataloged under numbers 31371174 and 31371175, which wraps both the glass edge and the guide tracks for the drop glass.

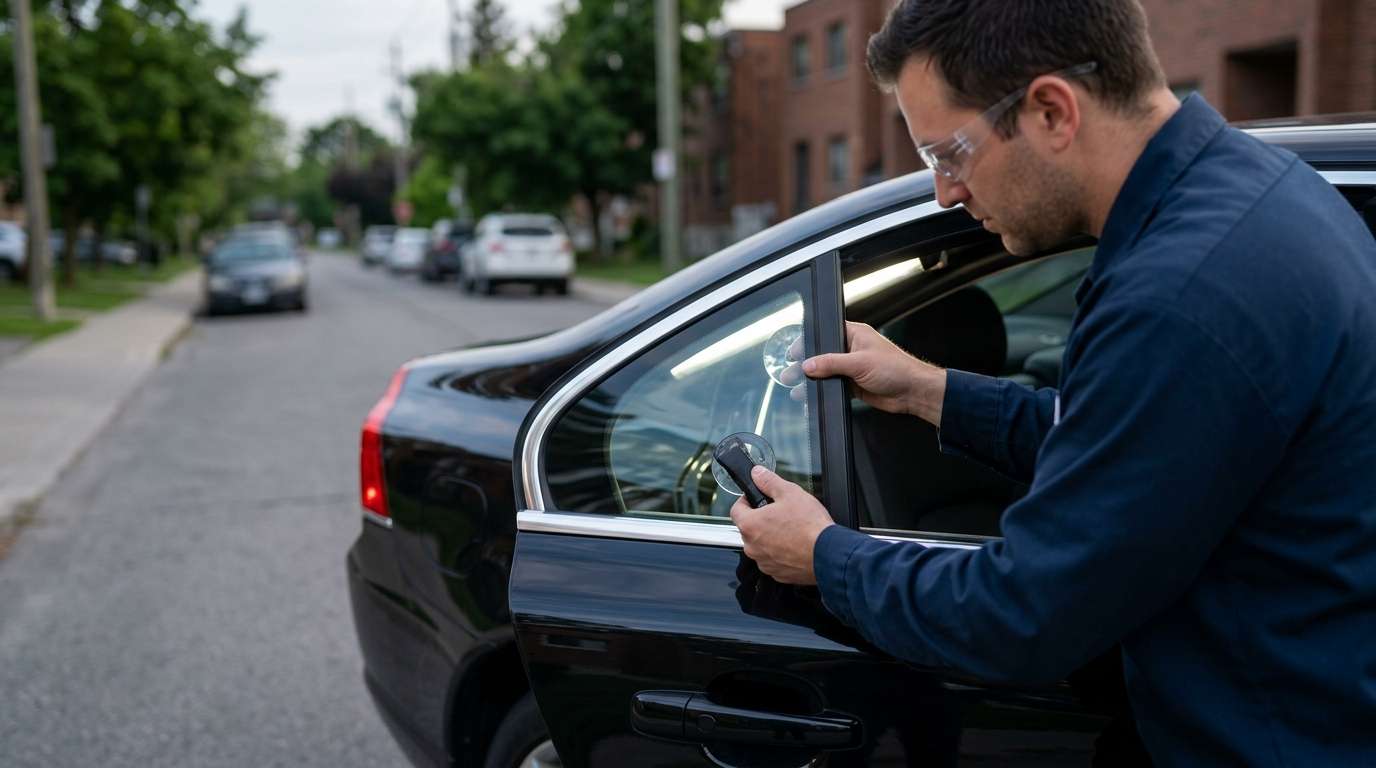

Whenever I replace this quarter glass for customers across Toronto and the GTA, I travel directly to their home driveway or office parking spot to handle the entire teardown on-site. The door card and water barrier must be accessed cleanly to release the division bar anchors. If the upright channel is reinstalled even a few millimeters out of true, the main window regulator will bind as it rises, and the perimeter seal around the vent will whistle under cabin pressure changes.
Molding Wear and Sun Curtain Clearances
Aging rubber on these doors presents unique challenges during vent window service. The exterior beltline weatherstripping and the tight corners of the upper rubber channel frequently suffer from drying out or shrinking, which allows road grime to pack into the lower channel bed. When the triangular glass is knocked out by thieves or roadside stones, fragments lodge deep within the channel run; every single shard must be picked clean from the rubber before setting the replacement glass into the division rail, or the new pane will bind and pinch the seal outward.
Vehicles equipped with the factory rear door sun blinds require extra care around the inner window reveal. This accessory hooks into specialized retention clips installed at the inner upper door frame adjacent to the vent glass division pillar. Keeping these brackets aligned while reseating the division bar guarantees that the retractable shade continues to deploy smoothly without snagging the rubber surround of the stationary quarter window.
