Restoring Luxury and Safety: The Ultimate Guide to 2016-2018 Lincoln MKX Windshield Replacement
The 2016-2018 Lincoln MKX represents a masterclass in American luxury crossover engineering, renowned for its whisper-quiet cabin achieved through highly specialized acoustic laminated glass and a sophisticated suite of forward-facing safety sensors. When a stray piece of highway debris compromises your vision, it is not merely a piece of glass that shatters—it is the acoustic integrity and the digital eyes of your luxury SUV that are put at risk. Replacing the windshield on this specific generation of the Lincoln MKX requires far more than generic auto glass knowledge; it demands the precision of a master technician who understands the exact tolerances of Lincoln's advanced driver assistance systems (ADAS) and the unique structural requirements of premium automotive glazing.
At AlexWindshield, we do not just replace auto glass; we restore the factory-level safety and acoustic comfort of your luxury vehicle. As senior technicians handling Lincoln MKX windshield replacement daily, we understand the intricate anatomy of the 2016, 2017, and 2018 models. From the integrated rain sensors and heated wiper park elements to the Lane-Keeping System cameras mounted directly to the windshield bracket, every component must be handled with surgical precision.
Premium Mobile Auto Glass Service Across the Greater Toronto Area (GTA)
Navigating the bustling highways of the Greater Toronto Area (GTA) exposes your Lincoln MKX to flying gravel, construction debris, and severe temperature fluctuations—all of which can turn a minor chip into a massive crack in seconds. Because driving with a compromised windshield is both a safety hazard and a structural risk, AlexWindshield brings the glass shop directly to you.
Our fully equipped mobile service vans operate seamlessly throughout the region. Whether you are parked in a corporate driveway in Vaughan, navigating the residential neighborhoods of Richmond Hill, or commuting from a commercial plaza in Markham, our master technicians arrive with the exact OEM-equivalent acoustic glass your MKX requires. We understand that your time is valuable, which is why we provide rapid, reliable, and technically flawless mobile windshield replacement wherever you are located in the GTA.
The Master Technician's A-to-Z Guide: Lincoln MKX Windshield Replacement Process
The windshield of the 2016-2018 Lincoln MKX provides up to 30% of the vehicle's structural roof support in the event of a rollover. Furthermore, it acts as the critical backstop for passenger-side airbag deployment. Therefore, our replacement process is meticulous, strictly adhering to Automotive Glass Replacement Safety Standards (AGRSS). Here is the detailed, step-by-step technical breakdown of how we execute a flawless replacement.
Step 1: Pre-Scan Diagnostics and Interior Protection
Before any physical work begins, we perform a comprehensive OBD2 diagnostic scan to check for any existing faults in the vehicle's camera and sensor networks. Once the baseline is established, we focus on protecting your MKX's premium interior. We drape heavy-duty, scratch-resistant protective covers over the supple leather seats, the dashboard, and the steering wheel. We also apply protective automotive tape to the exterior A-pillars and the leading edge of the roof to ensure the vehicle's paint remains absolutely pristine during the extraction process.
Step 2: Disassembly of Exterior Hardware and Cowl
The exterior lower section of the windshield is guarded by the plastic cowl and the wiper assembly. We carefully unbolt the wiper arms, noting their exact factory resting positions. We then remove the plastic cowl panel, safely detaching the washer fluid hoses and disconnecting the wiring harness for the MKX's heated wiper park (the defrosting element embedded in the lower glass). Inside the cabin, we delicately detach the rearview mirror, unclip the rain/light sensor, and unseat the forward-facing ADAS camera from its specialized bracket without touching the sensitive lens.
Step 3: Precision Removal of the Old Windshield
To remove the damaged glass, we must sever the bond of the old polyurethane adhesive. Instead of using outdated cold knives that can easily scratch the vehicle's frame, our technicians utilize an advanced fiber-optic wire cutting system. We thread a high-tensile cutting wire through the urethane bead from the inside out. Using a synchronized dual-pulley system attached to the glass via suction cups, we smoothly pull the wire around the entire perimeter of the windshield. This modern technique slices through the toughest factory adhesives like a hot knife through butter, completely preventing any damage to the MKX's metal pinch weld.
Step 4: Surface Cleaning and Pinch Weld Preparation
Once the old glass is safely lifted away, we must prepare the vehicle's frame. We use specialized scraper blades to pare down the old polyurethane bead, leaving exactly 1 to 2 millimeters of old adhesive. This "trimming" process creates the perfect foundational base for the new chemical bond. Next, we use an industrial-grade vacuum to remove any micro-debris, dust, or organic matter from the channel. We then treat the area with a specialized chemical cleaner. If there are any microscopic scratches on the bare metal of the pinch weld, we apply an anti-corrosion auto body primer to prevent future rust. Finally, we apply a high-grade chemical primer to both the remaining urethane track and the ceramic frit (the black painted band) of the new acoustic windshield. This primer acts as an essential bonding agent for the new adhesive.
Step 5: High-Modulus Urethane Application and Installation
With the surfaces prepped and the primer flashed (dried), we apply a continuous, precisely measured V-notch bead of premium, high-modulus, non-conductive (HMNC) polyurethane adhesive around the perimeter of the pinch weld. This specific urethane is designed to meet Lincoln's exact crash-test specifications and cures rapidly, ensuring a fast Safe Drive Away Time (SDAT).

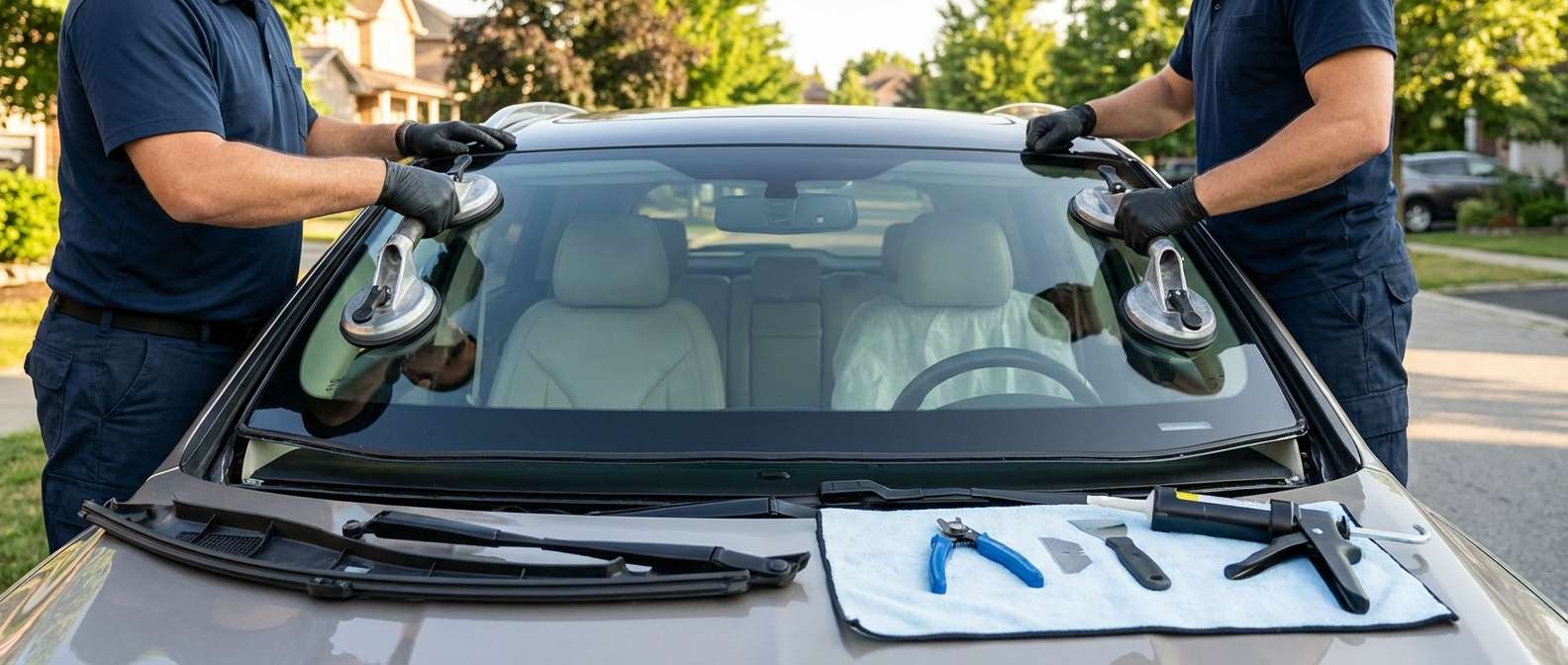

Using heavy-duty suction cups, two master technicians carefully lift the new MKX windshield. We hover the glass over the frame, aligning it perfectly with the vehicle's VIN notch and top roofline. The glass is then gently pressed into the wet urethane. We do not push too hard, as the structural integrity relies on a specific thickness of the adhesive bead. Once seated, we secure the glass with specialized retention tape to prevent any micro-shifting while the urethane cures.
Step 6: Reassembly and Final Cleaning
As the adhesive begins its curing process, we meticulously reassemble the vehicle. We reconnect the heated wiper park harness, reinstall the cowl cover, and securely bolt the wiper arms back to their exact factory positions. Inside the cabin, we securely remount the rearview mirror, the rain sensor, and the ADAS camera module. Finally, we use a premium, streak-free glass cleaner to polish both the inside and outside of the new windshield, leaving your Lincoln MKX looking as flawless as it did on the showroom floor.
Mandatory ADAS Camera Calibration for the Lincoln MKX
Perhaps the most critical step in a Lincoln MKX windshield replacement is one that you cannot physically see: the ADAS camera calibration. The 2016-2018 MKX models are equipped with sophisticated safety systems, including Pre-Collision Assist with Pedestrian Detection, Adaptive Cruise Control, and the Lane-Keeping System. The camera that powers these features is mounted directly to a bracket on the windshield.
When the windshield is replaced, the new camera bracket may be positioned mere millimeters differently than the original factory glass. Even a one-degree shift in the camera's pitch or yaw translates to a massive miscalculation at highway speeds. For instance, if the camera is out of alignment by just a fraction of an inch, your MKX might incorrectly read the lane markings and aggressively steer you into adjacent traffic, or the auto-emergency braking system could fail to engage when a vehicle stops suddenly ahead of you.
Because of this immense safety risk, ADAS camera calibration is absolutely mandatory following a windshield replacement on this vehicle. Our master technicians utilize advanced, computerized optical targeting systems. We plug our diagnostic calibration tool into your MKX's OBD2 port and place highly specific, laser-leveled target boards at exact distances in front of the vehicle. We then force the vehicle's computer into a learning mode, driving the vehicle or running static routines until the camera successfully recognizes the targets and recalibrates its geometric center. Only when the diagnostic tool returns a "Calibration Successful" prompt do we consider the vehicle safe to return to the customer.
Trust AlexWindshield: The GTA's Premier Auto Glass Experts with a Lifetime Warranty
When it comes to luxury SUVs like the 2016-2018 Lincoln MKX, settling for cut-rate auto glass services is a gamble with your safety and your vehicle's structural integrity. At AlexWindshield, we pride ourselves on being the absolute authority in modern automotive glazing and advanced sensor calibration.
- Unmatched Mobile Convenience: We bring our master technicians directly to your home or workplace anywhere in the Greater Toronto Area (GTA), offering express scheduling in Vaughan, Richmond Hill, and Markham.
- Premium Materials: We use only OEM-equivalent acoustic laminated glass and industry-leading adhesives to ensure a whisper-quiet cabin and factory-level safety.
- In-House Calibration: Unlike other shops that outsource their tech work, our technicians perform precision ADAS camera calibration on-site during the replacement appointment.
- Peace of Mind: We stand fiercely behind our craftsmanship. Every windshield replacement we perform is backed by our comprehensive Lifetime Warranty, covering any manufacturer defects, wind noise, or water leaks for as long as you own the vehicle.
Do not compromise the safety, luxury, or advanced technology of your 2016-2018 Lincoln MKX. Trust the dedicated experts who understand every millimeter of your vehicle's design. Contact AlexWindshield today to schedule your mobile windshield replacement and experience the highest standard of auto glass service in the GTA.
