Determining Your Honda Odyssey Moonroof Setup
Identifying the exact moonroof configuration on this minivan comes down to your trim level, because Honda kept the physical glass hardware remarkably uniform across the entire production run. If you drive an Odyssey EX, EX-L, Sport, Sport-L, Touring, or Elite, your vehicle rolled out of the factory with a power tilt-and-slide single-pane moonroof. The only model that skipped the roof opening entirely was the entry-level LX, which was eliminated after 2022. Honda never offered a multi-panel panoramic glass roof on this Odyssey platform; every equipped model uses the exact same single tinted pane over the front row.
You can verify your roof panel hardware against your specific trim using the breakdown below:
| Trim Level | Roof Glass Status | OEM Glass Assembly Reference | Perimeter Seal Reference |
|---|---|---|---|
| LX (Discontinued 2022) | Solid steel roof (No glass) | N/A | N/A |
| EX / EX-L | Standard power tilt/slide single pane | 70200-THR-A01 | 70205-T2A-A01 |
| Sport / Sport-L | Standard power tilt/slide single pane | 70200-THR-A01 | 70205-T2A-A01 |
| Touring / Elite | Standard power tilt/slide single pane | 70200-THR-A01 | 70205-T2A-A01 |
Because Honda engineered this component to cross platforms, this same glass assembly—cataloged under dealer number 70200-THR-A01—is identical to the unit used on the Honda Ridgeline pickup truck. There are no variations involving embedded radio antennas, defroster lines, or rain-sensing hardware inside the glass itself. The dark privacy tint and heat-absorbing layers are baked directly into the tempered safety glass during manufacturing.
Hardware Architecture and Glass Attachment Details
Unlike bonded fixed windshields or rear quarter windows, the Odyssey moonroof is a modular mechanical unit. The tempered pane comes factory-bonded to a structural composite and metal perimeter carrier bracket, finished with the 70205-T2A-A01 rubber edge weatherstrip. It secures straight to the moving slider tracks with side-mounted Torx fasteners concealed behind removable plastic side trim covers inside the cabin opening.

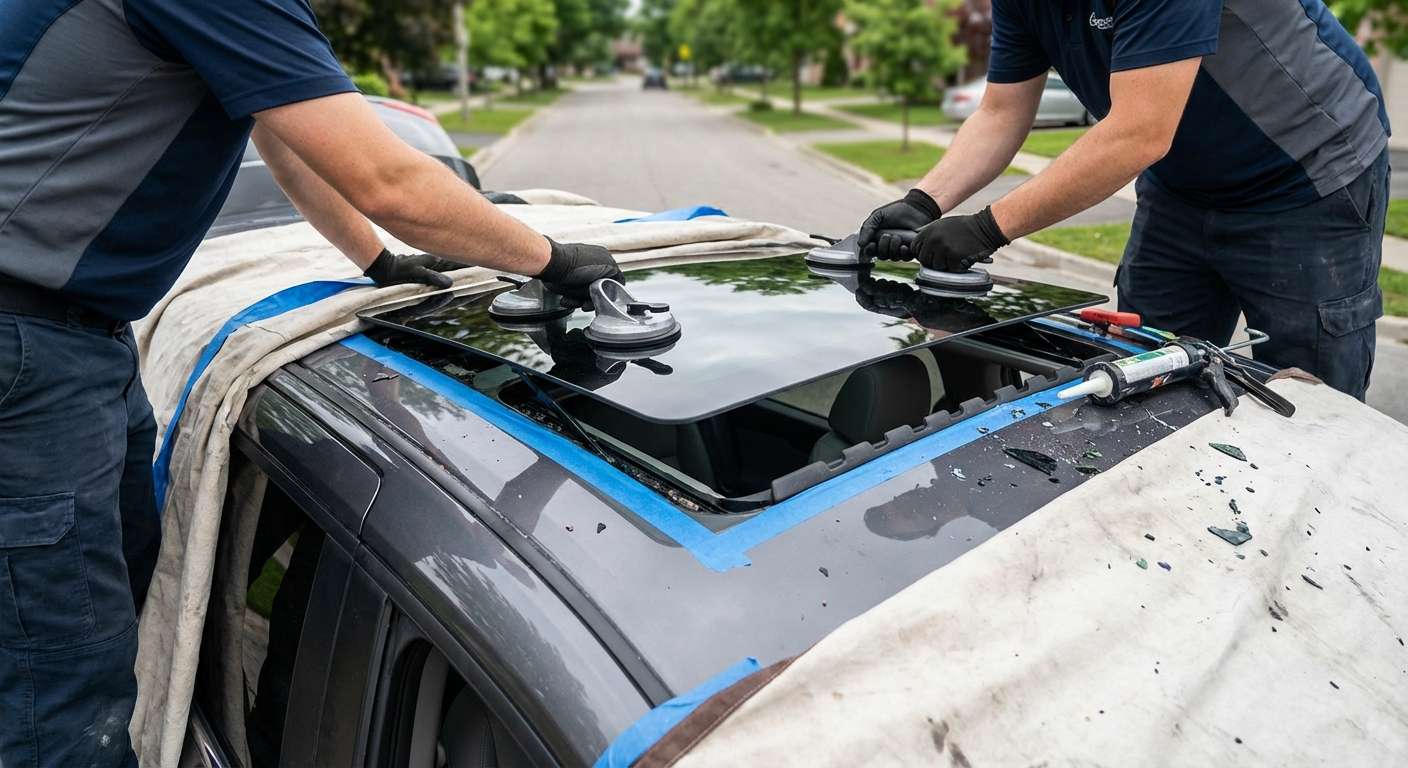

Beneath the glass sits an independent, manually operated sunshade that travels in the same cassette track to block cabin light. When replacing shattered or fractured roof glass, I exclusively fit high-grade aftermarket panels sourced from specialized auto glass manufacturers like PGW, FYG, Pilkington, or XYG rather than dealership parts. Up front, a spring-loaded pop-up wind deflector rises mechanically as the pane retracts backward into the roof cavity between the sheet metal and the headliner, cutting down interior air turbulence.
Drain Line Obstructions Versus Glass Seal Leaks
When Odyssey drivers notice moisture pooling near the front grab handles, soaking the sun visors, or staining the headliner cloth, the perimeter rubber seal is rarely the true failure point. The perimeter weatherstrip on part 70200-THR-A01 is designed to deflect the vast majority of rainwater, but moonroof cassettes are engineered as wet systems that allow minor seepage into an internal catchment channel.
Four corner drain tubes channel that excess moisture down through the front A-pillars and rear pillars to exit beneath the underbody. Staining almost always stems from two distinct tray issues:
- Clogged front drain tubes: Road grime, pine needles, and pollen slip past the seal, collecting at the bottom drain grommets and causing the cassette trough to overflow into the cabin.
- Factory body sealant blockages: Certain assemblies suffer from excessive seam sealer applied near the front drain spouts at the factory, which pinches the water exit port and forces heavy rainfall back over the interior headliner lip.
Motor Initialization After Hardware Swaps
Whenever the sunroof panel is detached from its drive brackets or the vehicle 12-volt battery is disconnected during repairs, the sliding motor frequently loses its position memory. The glass may tilt open but refuse to close smoothly with the one-touch switch, or it might hit the front weatherstrip and immediately bounce back open because the built-in anti-pinch sensor assumes an obstruction is present.
Restoring standard operation requires running the Honda moonroof control switch through a manual reset sequence. Holding the tilt switch upward forces the drive motor to learn its upper physical boundary, re-establishing the electronic limits so the one-touch slide, full vent tilt, and pinch-protection logic function reliably alongside the fresh glass panel.
