PureHino HN001234054 Geometry and Shared Cab Architecture

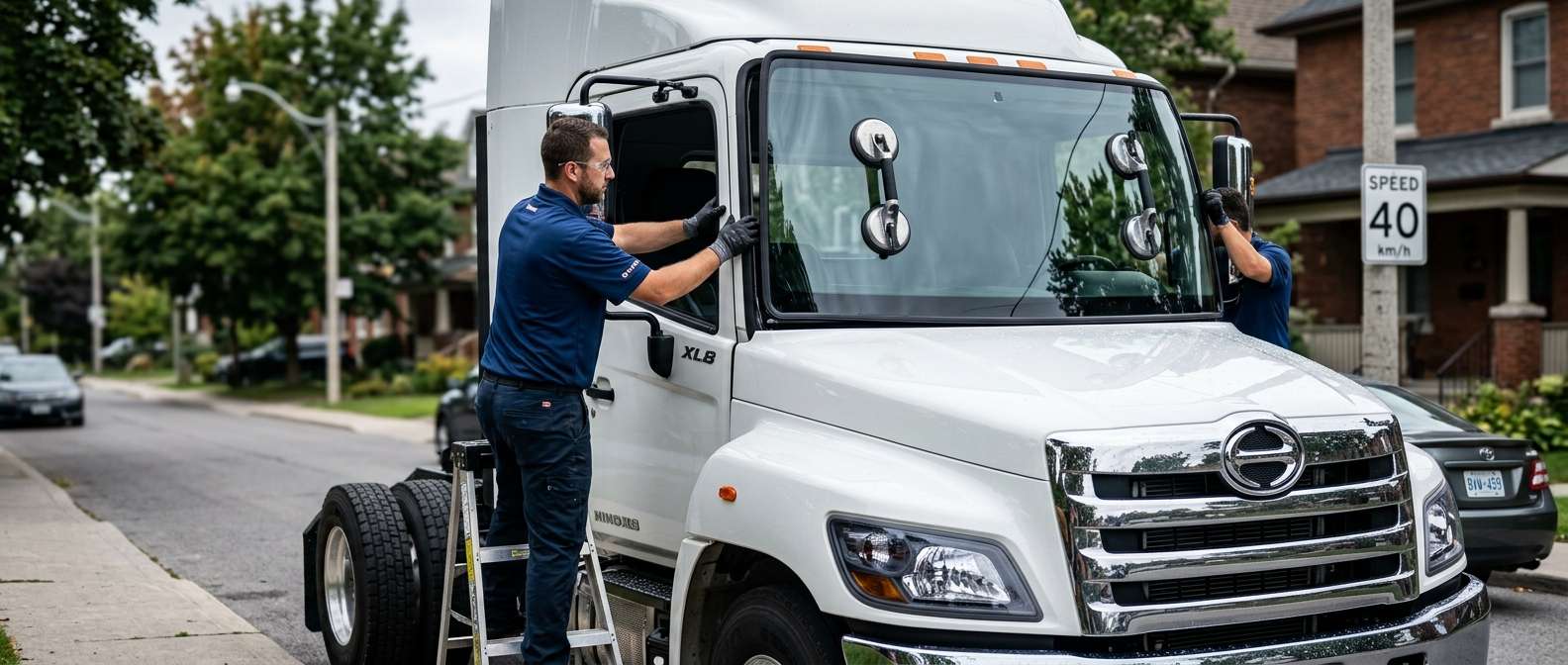

Replacing the windshield on a Class 8 Hino conventional requires accounting for the exact cab shell shared across the modern heavy- and medium-duty lineup. The XL8 uses the exact same one-piece curved laminated windshield assembly as the smaller XL7 tandem and single-axle trucks, as well as the contemporary L-Series conventional models (L6, L7, and L8). Whether your XL8 is set up as a standard day-cab, an extended cab, or a six-person crew cab hauling heavy machinery, the perimeter dimensions and pinchweld profile do not vary across the line.
The glass itself, referenced under OEM part number HN001234054, is a large, tall panel engineered with high interlayer strength and solar-tinted anti-glare properties to counter heat soak through the broad upright face. Because there are no built-in defroster wire grids, rain sensors, or acoustic vinyl interlayers layered into the laminate, the challenge on this vehicle comes down to outer cab hardware interface. When I set the replacement glass, my workmanship is backed for as long as you run the truck, while the glass panel itself carries one year of defect coverage.
WABCO Forward Sensing and Cab Trim Boundaries
What mounts directly behind and alongside the windshield dictates how the replacement panel must sit. Many XL8 trucks leave the factory optioned with WABCO OnLaneALERT Lane Departure Warning (LDW), which places an optical camera bracket squarely against the upper center interior of the glass, working alongside the lower bumper-mounted WABCO OnGuardACTIVE radar unit. Glass clarity through this camera sweep is critical; any optical distortion or wave in the upper laminate causes false alerts or system faults.
Exterior attachments require close attention when working around this glass. Hino strictly forbids installing aftermarket external drop sun visors over the windshield on camera-equipped XL8 builds, because physical visor drop-down lines cut straight into the forward camera's vertical field of view. The perimeter of the glass is bounded by structural cab components that must clear cleanly:
- Heavy-duty EPDM rubber perimeter sealing holding the glass to the cab frame.
- Steel A-pillar drip rails that channel rain runoff up and over the roof line away from the side glass.
- The lower exterior cowl screen assembly that protects the wiper linkage.
- Dual bottom-pivot commercial wiper arms that sweep the tall vertical face.
Post-Replacement Inspection for XL8 Fleet Operators
Before putting an XL8 back on a regional haul or severe-duty run, take a few minutes to inspect the cab and the newly mounted glass:
- Check the WABCO OnLaneALERT camera bracket mount on the upper center glass to ensure it is rigid and fully seated against its bracket without air gaps or tilt.
- Inspect the exterior EPDM rubber seal around the entire perimeter to verify it sits completely flush against both the glass edge and the cab body pinchweld with no rolled lips.
- Examine the side A-pillar water drip rails to verify they are tightly secured and have not been pinched or distorted against the windshield edge.
- Check the exterior wiper cowl panels along the lower boundary of the glass to ensure the fasteners are locked down and clear of the bottom glass edge.
- Operate the dual bottom-pivot wiper arms across a wet windshield to confirm the blades do not slap the outer molding or catch on the cowl trim at the bottom of their stroke.
- Look through the upper center swept area from the driver seat to confirm clean, undistorted forward visibility with no visual wave across the camera path.
