The 2019-2024 Chevrolet Silverado 1500: Restoring Cabin Integrity with Precision Vent Glass Replacement
The 2019-2024 Chevrolet Silverado 1500 is a masterclass in modern automotive engineering, blending rugged, payload-hauling utility with an incredibly refined, whisper-quiet cabin environment. However, when the vent glass on this robust pickup truck is compromised—whether shattered by a stray piece of highway debris kicked up on the 401 or shattered during an unfortunate break-in—the serene, climate-controlled sanctuary of your Silverado is instantly compromised. As a Master Technician at AlexWindshield, I have seen firsthand how a broken vent glass not only exposes your premium interior to the unpredictable Ontario elements but also introduces deafening wind noise and severely compromises vehicle security. Replacing this specific piece of glass requires far more than simply slapping a new pane into place; it demands meticulous disassembly, precise chemical bonding, and an intimate understanding of the Silverado's advanced door architecture.
Why Immediate Vent Glass Replacement is Crucial for Your Silverado
The vent glass (often located on the rear doors of Crew Cab and Double Cab configurations, or occasionally integrated into the front door structures depending on the exact trim) plays a critical role in the structural integrity of the door's window ecosystem. It acts as an anchor point for the main window's run channel. Operating a Silverado with a missing or taped-up vent glass can lead to several severe issues:
- Interior Water Damage: Even a minor rainstorm can introduce significant moisture into the door cavity, potentially short-circuiting expensive power window motors, door lock actuators, and premium Bose audio speakers.
- Security Vulnerabilities: A broken vent glass provides an easy, unimpeded access point for thieves to bypass the vehicle's primary locking mechanisms.
- Structural Wear: Without the stabilizing presence of the vent glass, the main drop glass can rattle within its tracks, leading to premature wear on the window regulator and weather seals.
Unmatched Mobile Auto Glass Services Across the Greater Toronto Area (GTA)
At AlexWindshield, we understand that your time is valuable. Driving a heavy-duty truck with a shattered window to a repair facility is not just inconvenient; it can be unsafe and messy. That is why we bring our state-of-the-art auto glass replacement services directly to you. Our fully equipped mobile service vehicles operate seamlessly across the Greater Toronto Area (GTA), providing rapid, on-site repairs whether you are parked at a job site in Vaughan, commuting from an office in Richmond Hill, or relaxing at home in Markham. We deliver dealership-level precision right to your driveway.
Master Technician Step-by-Step Process: A to Z Vent Glass Replacement
Replacing the vent glass on the 2019-2024 Chevrolet Silverado 1500 is a highly technical procedure that involves working around sensitive electronics, delicate interior trims, and structural bonding components. Here is our rigorous, step-by-step methodology to ensure a factory-perfect installation.
Step 1: Vehicle Preparation and Comprehensive Glass Extraction
Safety and interior protection form the foundation of our service. A shattered vent glass explodes into thousands of tiny, sharp tempered glass cubes that infiltrate every crevice of the cabin and the internal door cavity.
- Protecting the Interior: We begin by laying down heavy-duty protective drop cloths over the Silverado's premium cloth or leather seating, center console, and floor mats to prevent any accidental scratches or upholstery damage during the repair.
- Vacuuming Broken Glass Shards: Using an industrial-grade, high-suction shop vacuum with specialized micro-crevice tools, we meticulously vacuum all broken glass shards from the vehicle's interior. We pay special attention to the seat seams, floorboards, and the child seat anchor points where dangerous glass fragments tend to hide.
Step 2: Precision Door Panel Removal
To access the mounting points and the internal track of the vent glass, the interior door trim panel must be entirely removed. The 2019-2024 Silverado features a complex door panel secured by hidden fasteners and tight retaining clips.
- Hardware Disassembly: We use specialized, non-marring nylon pry tools to carefully remove the cosmetic trim plates behind the door handle and under the armrest, exposing the hidden 7mm and 10mm bolts.
- Removing Door Panels: After extracting the bolts, we carefully unclip the perimeter of the door panel, lifting it off the upper window sweep.
- Disconnecting Electronics: We gently detach the door latch cable and disconnect the wiring harnesses for the power windows, lock switches, and ambient lighting, ensuring no delicate pins are bent.
- Internal Cavity Cleanup: We peel back the moisture barrier (vapor deflector) with precision. At this stage, we perform a secondary vacuuming process deep inside the door shell to extract any remaining glass shards that could cause annoying rattles while driving.
Step 3: Removal of the Old Glass and Division Bar
The vent glass on this generation of Silverado is typically encapsulated and secured by a metal division bar that separates it from the main roll-down window.
- Detaching the Division Bar: We lower the main door glass completely to relieve tension. We then unbolt the division bar (run channel) at the top beneath the weather stripping and at the bottom inside the door frame.
- Extracting the Frame: If the original vent glass was bonded, we utilize specialized cold-knife or wire extraction tools to slice through the old polyurethane bead without scratching the door frame's paint. The damaged glass frame is then safely maneuvered out of the door assembly.
Step 4: Surface Cleaning and Preparation
A flawless bond requires an immaculately clean surface. Any residual dirt, old adhesive, or moisture will compromise the structural integrity of the new glass installation.
- Trimming the Old Urethane: We use extremely sharp, specialized scraper blades to trim down the existing urethane bead on the pinch weld to a flat, uniform thickness of about 1-2 millimeters, creating an ideal base for the new adhesive.
- Surface Cleaning: The bare metal pinch weld and the mounting areas are vigorously cleaned using a high-grade, lint-free cloth and specialized foaming glass cleaner followed by an isopropyl alcohol wipe down to eliminate any grease, wax, or atmospheric contaminants.
Step 5: Mandatory Primer Application
The application of primer is a non-negotiable step in professional auto glass replacement. It serves a dual purpose: preventing long-term corrosion and ensuring maximum chemical adhesion.
- Applying the Primer: We apply a high-tech, black automotive primer application to any areas of the pinch weld where the paint may have been lightly scratched during the removal process. This stops rust dead in its tracks.
- Glass Preparation: We also apply primer to the bonding surface of the new OEM-quality replacement vent glass. The primer acts as a UV blocker, protecting the underlying urethane adhesive from degrading under the harsh summer sun.
Step 6: High-Quality Adhesive Application
The structural bond of the vent glass relies entirely on the quality of the urethane and the precision of its application.
- Extruding the Urethane: We load a cartridge of premium, fast-curing high-quality adhesive into an electric caulking gun. This ensures a smooth, continuous flow.
- The V-Bead Technique: The adhesive is applied onto the pinch weld using a specific "V-bead" profile. This triangular shape is crucial because, when the glass is pressed into it, the bead flattens out perfectly, creating an airtight, watertight, and structurally sound seal with zero gaps or air bubbles.

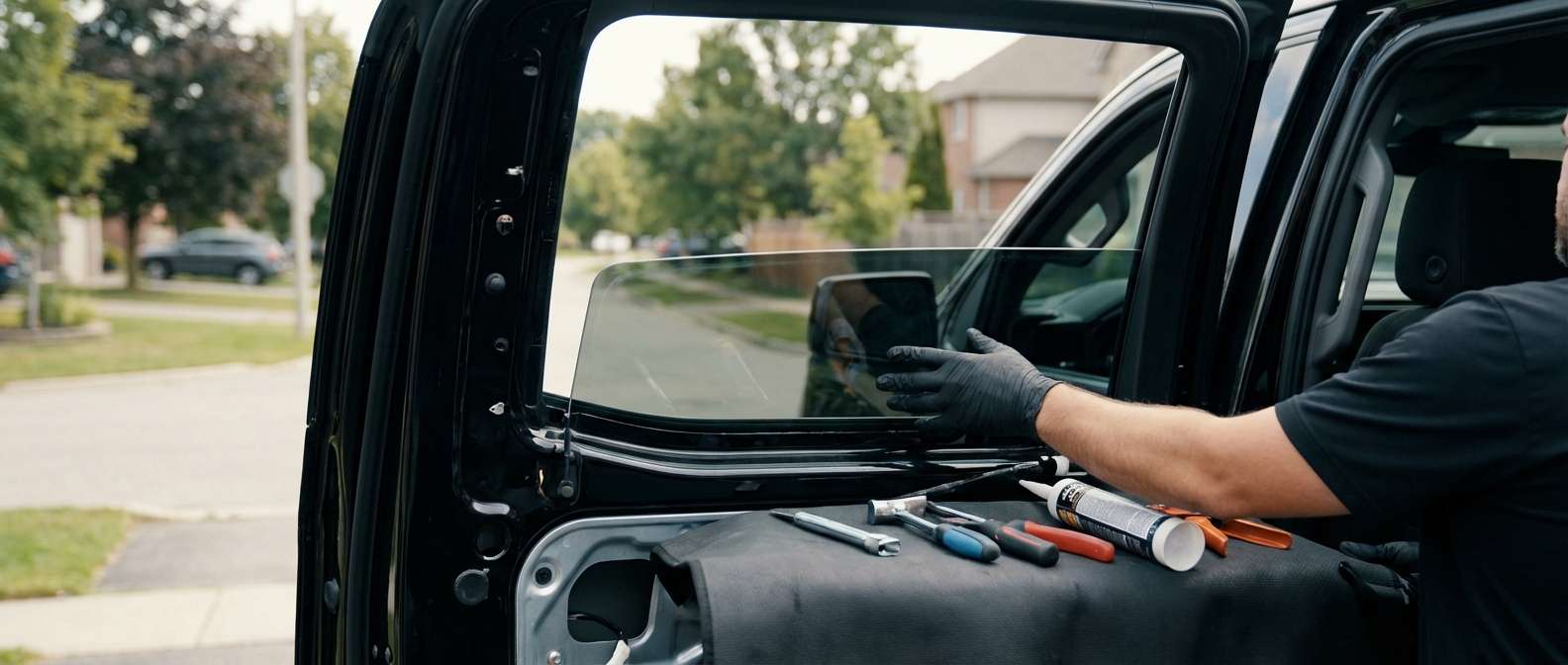

Step 7: Installation of the New Glass and Reassembly
With the adhesive precisely laid, the installation phase must be executed with a steady hand and perfect alignment.
- Setting the Glass: The new Chevrolet Silverado vent glass is carefully guided into the window opening and pressed firmly into the fresh urethane bead. We apply uniform pressure around the perimeter to guarantee optimal adhesive contact.
- Securing the Division Bar: The central run channel is realigned and bolted firmly back into place, ensuring the main drop glass has a smooth, unobstructed path to travel up and down.
- Reinstalling Door Panels: The moisture barrier is resealed using high-tack butyl tape. We reconnect all electrical wiring harnesses and the door latch cable, and carefully snap the interior door panel back into place, securing all hidden bolts and cosmetic trims.
Step 8: Final Quality Assurance Inspection
Before handing the keys back to the customer, we conduct a rigorous post-installation inspection.
- We test the power window switches to ensure the main drop glass glides flawlessly alongside the newly installed vent glass without binding.
- We clean all interior and exterior glass surfaces using premium streak-free formulas.
- A final visual inspection of the interior ensures no tools are left behind and the cabin is spotless.
Navigating Specific Silverado 1500 Features
The 2019-2024 Chevrolet Silverado 1500 lineup—from the rugged Custom and RST trims to the luxurious LTZ and High Country—features sophisticated cabin acoustics. The materials we use at AlexWindshield meet or exceed Original Equipment Manufacturer (OEM) specifications. This means the acoustic sound-deadening properties and exact factory tint hues of your original vent glass are perfectly matched, ensuring your truck retains its showroom-quality appearance and quiet ride. We understand the specific tolerances of the GM T1XX platform, guaranteeing that the complex weather seals mate perfectly with the new glass, eliminating any risk of the infamous highway wind whistle.
