Shattered Expectations: Restoring the Rear Integrity of Your 2018-2024 Chevrolet Equinox
The third-generation Chevrolet Equinox (2018-2024) is celebrated across Canada for its aerodynamic styling, versatile cargo space, and exceptional family-friendly utility. However, the expansive rear liftgate that makes loading groceries and gear so convenient also features a large, complex piece of tempered back glass. When faced with sudden impacts, extreme Canadian temperature fluctuations, or unfortunate rear-end collisions, this back glass doesn't just crack—it shatters explosively. Because rear windows are manufactured using tempered safety glass, an impact causes the entire pane to break into thousands of tiny, granular shards designed to prevent deep lacerations. While this is a brilliant safety feature, it creates an immediate, severe structural and environmental hazard for your vehicle's interior.
Driving with a shattered rear window exposes your Equinox’s cabin to the elements, compromises the security of your vehicle, and creates a significant safety risk for passengers and pets due to rogue glass shards. You need a fast, technically flawless solution. As a Master Technician at AlexWindshield, I have replaced countless rear windows on the 2018-2024 Chevrolet Equinox platform. We combine precision engineering protocols, advanced adhesive technology, and meticulous cleanup procedures to return your SUV to factory-fresh condition, right in your own driveway.
Why The 2018-2024 Equinox Requires Specialized Back Glass Expertise
Replacing the back glass on a modern Chevrolet Equinox is not a simple "slap and stick" operation. The 2018-2024 models feature several integrated technologies that require an expert touch:
- Integrated Rear Defroster Grid: The back glass houses the thermal electrical grid that melts ice and snow. The delicate electrical terminals must be carefully disconnected and reconnected to the vehicle's wiring harness to ensure your defroster functions flawlessly during harsh winter months.
- Rear Wiper Motor Assembly: The wiper motor shaft passes directly through a precision-cut hole in the back glass. Improper installation, poor alignment, or incorrect torque specifications can lead to wiper malfunction, water leaks, or immediate stress-fracture of the new glass.
- Liftgate Actuator Protection: The Equinox’s electronic liftgate latch is located at the bottom of the hatch door. When the back glass shatters, thousands of glass cubes fall directly into the metal cavity housing this locking mechanism. If these shards are not expertly removed, they will jam the latch actuator, leading to expensive secondary repairs.
The Master Technician's Approach: Step-by-Step Back Glass Replacement
At AlexWindshield, we do not cut corners. Our comprehensive back glass replacement process for the 2018-2024 Chevrolet Equinox is a meticulous, step-by-step procedure designed to guarantee structural integrity, total safety, and a perfect, leak-proof seal.
Step 1: Vehicle Pre-Inspection and Extensive Interior Protection
Before any tools are utilized, we perform a thorough inspection of the liftgate, rear bumper, and surrounding body panels to document the condition of the vehicle. We then lay down heavy-duty protective moving blankets over your rear bumper and cargo area to prevent any accidental scratches during the replacement. We apply specialized automotive protective tape to the painted edges of the liftgate pinch weld, ensuring the clear coat is entirely shielded from our cutting tools.
Step 2: Extensive Glass Clean-Up and Interior Vacuuming
When an Equinox back glass shatters, the debris spreads everywhere. Our most critical initial step is the complete eradication of these glass shards. We use powerful industrial shop vacuums to clear the cargo bay, rear seats, and floor mats. More importantly, we meticulously remove the interior plastic trim panels of the rear liftgate door. By exposing the bare metal structural cavity of the hatch, we can vacuum out every single broken glass shard hidden inside. We physically shake the liftgate back and forth to dislodge any stubborn pieces trapped in the bottom seam. This highly necessary step prevents that annoying "rattling" sound every time you open your trunk and protects the electronic locking mechanism from jamming.
Step 3: Disconnecting Electrical Components and Hardware
With the area completely clear of hazardous glass, we begin the mechanical disassembly. We carefully unbolt the rear wiper arm from the exterior and remove the underlying rubber grommets and hardware. Next, we locate the defroster wire terminals on the interior side of the glass frame and safely unplug them. If the specific trim level of your 2018-2024 Equinox features an integrated GPS or satellite radio antenna routed near the top of the glass, we secure those harnesses out of the cutting path.
Step 4: Extracting the Remaining Glass and Old Urethane
Although the center of the glass has shattered, the outer perimeter of the glass remains bonded to the vehicle's frame by the original factory polyurethane adhesive. Using specialized cold knives and advanced wire-cutting extractor tools, we carefully slice through this dense adhesive barrier from the outside. Our technicians maneuver these precision blades smoothly along the pinch weld to extract the remaining ring of broken glass without applying any pressure to the liftgate's metal frame.
Step 5: Surface Preparation and Primer Application
The secret to a lifetime-guaranteed auto glass installation lies in the preparation of the bonding surface. We use specialized scraper blades to trim the old polyurethane seal down to a thin, uniform base layer of about 1 to 2 millimeters. This provides an ideal chemical bonding foundation for the new adhesive. We then utilize high-grade chemical solvents to clean the pinch weld of any dirt, grease, or debris. If our scraping reveals any minor bare metal scratches on the pinch weld, we apply a high-quality black automotive glass primer. This primer is non-negotiable; it seals the bare metal to completely prevent future rust formation and acts as a crucial bonding agent for the adhesive.
Step 6: Applying High-Grade Urethane Adhesive
Once the primer has completely flashed (dried), it is time to apply the adhesive. At AlexWindshield, we exclusively use premium, OEM-quality, fast-curing polyurethane. Using an electronic caulking gun, we extrude a perfectly uniform "V-bead" of urethane directly onto the prepared pinch weld. The height, width, and angle of this V-bead are critical. It must perfectly bridge the gap between the Equinox's liftgate frame and the curvature of the new glass to ensure a water-tight, wind-proof, and structurally sound bond.
Step 7: Precision Glass Installation and Reconnection

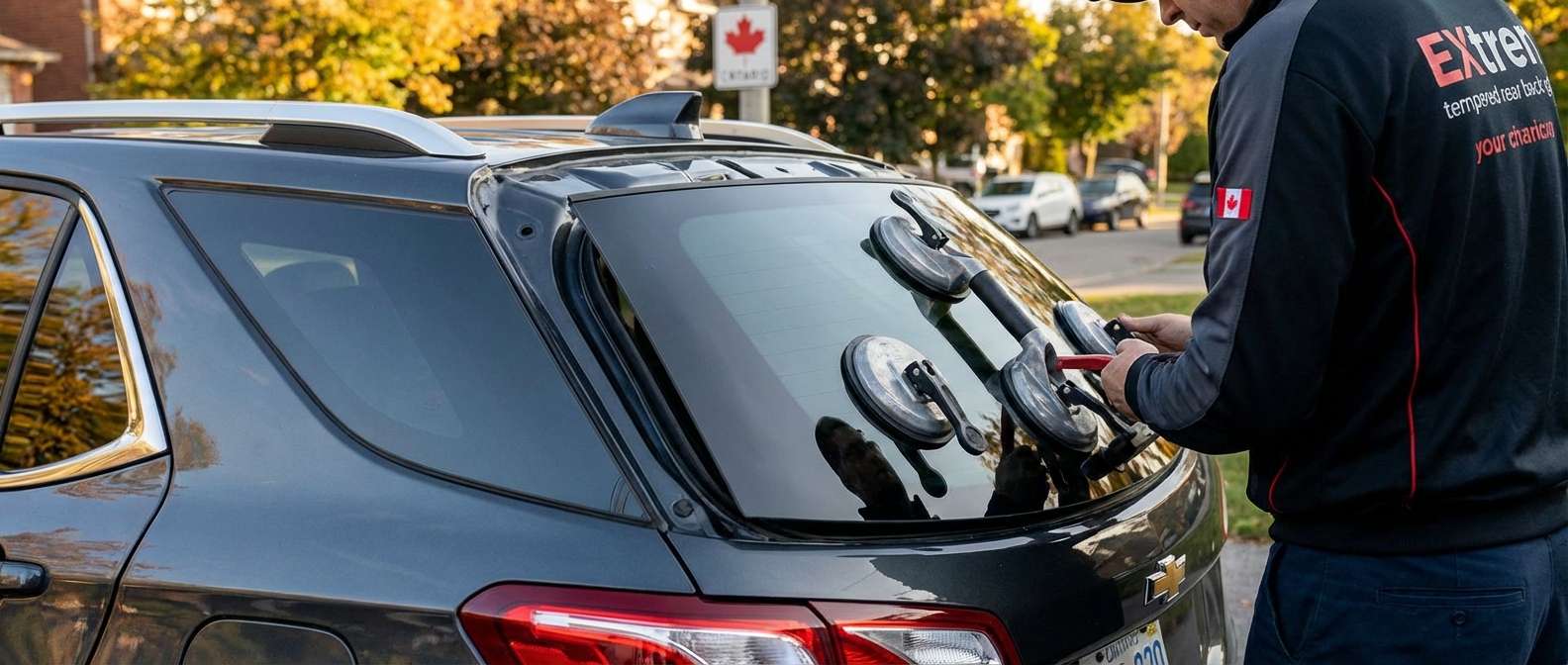

Handling the new, premium tempered back glass requires extreme care. We thoroughly clean the new glass with professional-grade, streak-free glass cleaners and apply glass primer to its inner ceramic band (the frit). Using heavy-duty suction cups, two technicians carefully lift and align the new back glass. We precisely set the glass into the fresh urethane bead, ensuring the wiper motor pass-through hole is perfectly centered. Gentle, even pressure is applied to compress the urethane to factory depth. Immediately after setting the glass, we reconnect the defroster terminals and reinstall the rear wiper motor assembly, torquing the bolts to Chevrolet’s exact specifications.
Step 8: Reassembly, Final Cleanup, and Quality Assurance Check
With the glass firmly in place, we snap the interior liftgate trim panels back into their original positions, ensuring all retaining clips are fully seated. We perform a secondary, highly detailed vacuuming sweep of the entire interior of your Equinox to guarantee absolutely no glass dust remains. Finally, we run a diagnostic check on the rear defroster and test the rear wiper blade to ensure perfect functionality. The customer is then briefed on the Safe Drive-Away Time (SDAT), advising them to leave a window slightly cracked to prevent cabin air pressure from stressing the fresh seal when closing the doors.
Mobile Auto Glass Replacement Across the Greater Toronto Area (GTA)
We know that a shattered rear window disrupts your entire day. You cannot safely drive your Chevrolet Equinox on the highway with an open rear hatch exposing you to the wind, weather, and exhaust fumes. That is why AlexWindshield brings the auto glass shop directly to you. Our fully equipped mobile service fleet operates comprehensively throughout the Greater Toronto Area (GTA).
Whether you need an emergency dispatch to your home driveway in Vaughan, require mobile service while you work at your office in Markham, or find yourself stranded with a broken window at a retail plaza in Richmond Hill, our expert technicians arrive on-site with everything required to complete the job. We bring the vacuum, the OEM-grade glass, the power tools, and the premium adhesives directly to your location. You do not have to waste money on a tow truck or waste hours sitting in a waiting room; we restore your vehicle's safety while you continue with your day.
Choose AlexWindshield: Your Trusted Partner with a Lifetime Warranty
Your 2018-2024 Chevrolet Equinox is a vital part of your daily life, and you deserve an auto glass repair service that treats your vehicle with the utmost respect and technical mastery. At AlexWindshield, we pride ourselves on delivering unparalleled craftsmanship, rapid response times, and exceptional customer service.
When you choose us for your back glass replacement, you are not just getting a new piece of glass; you are getting absolute peace of mind. We stand confidently behind our work, which is why every single back glass installation we perform in the GTA comes backed by our comprehensive Lifetime Warranty. This covers any issues related to workmanship, including wind noise, water leaks, or manufacturer glass defects for as long as you own the vehicle.
Don't let a shattered back window compromise your safety or your schedule. Trust the premier mobile auto glass experts in Vaughan, Richmond Hill, and Markham. Contact AlexWindshield today for your Chevrolet Equinox rear glass replacement, and experience the gold standard in automotive glass care.
