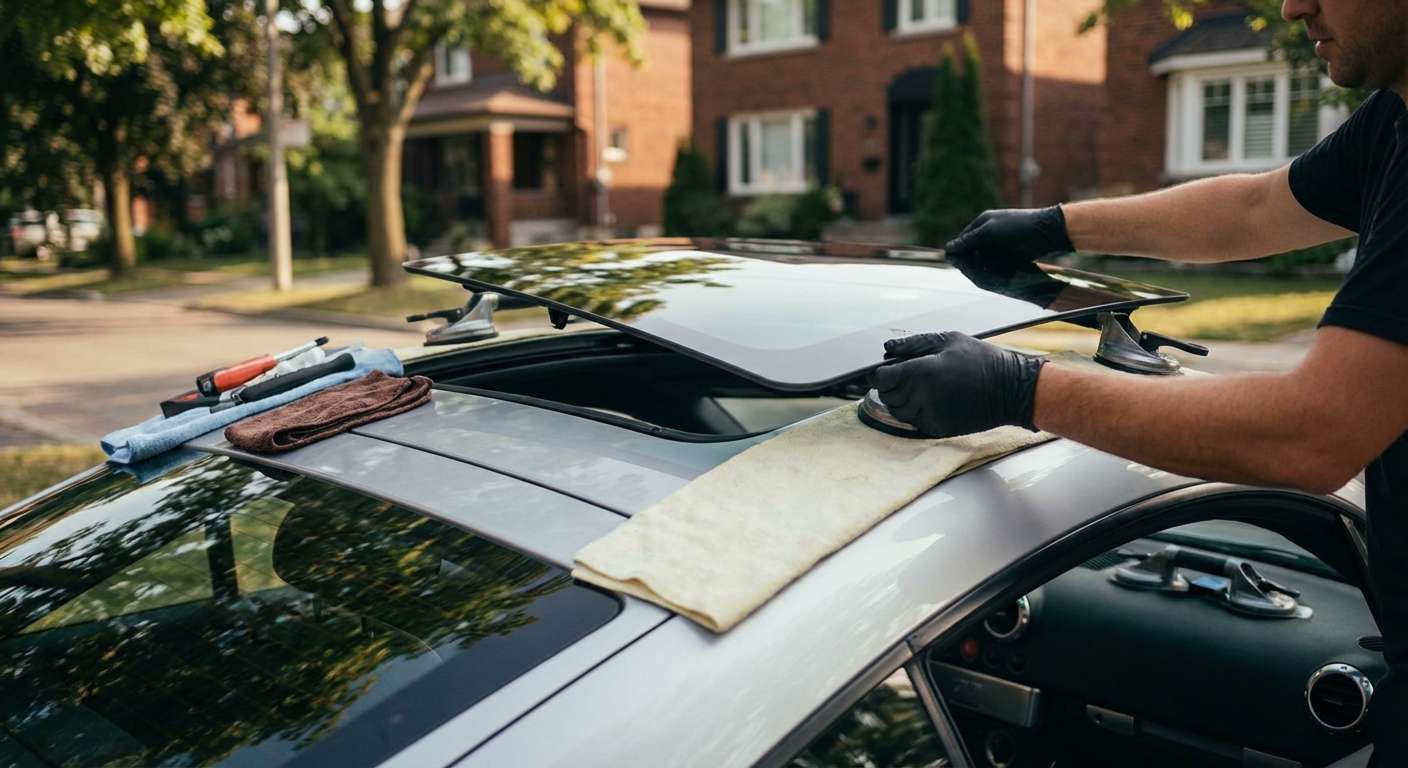

Restoring an Icon: Expert Sunroof Replacement for the Audi TT (2000-2006)
The Audi TT Mk1 (2000-2006) is not just a vehicle; it is a piece of Bauhaus-inspired automotive history. Its distinctive curved roofline and aerodynamic silhouette defined a generation of sports coupes. However, when the sunroof glass on this German engineering marvel sustains damage—whether from road debris, unexpected impact, or stress fractures—it compromises more than just the aesthetic appeal. It jeopardizes the structural integrity of the roof and the safety of the cabin.
At AlexWindshield, we understand that replacing the glass on a vehicle of this vintage requires more than generic tools; it demands the touch of a Master Technician who respects the car's legacy. A shattered sunroof on an Audi TT requires precision handling to ensure the complex drainage systems and electrical motors remain fully functional. This guide details our specialized approach to Audi TT sunroof replacement, ensuring your modern classic remains road-ready for the streets of the Greater Toronto Area (GTA).
Service Availability: Mobile Auto Glass in Vaughan, Richmond Hill, and Markham
We know that driving a vehicle with a shattered sunroof is dangerous and often impossible due to weather conditions. That is why AlexWindshield brings the repair shop to you. Our fully equipped mobile units operate across the entire GTA, providing specialized European car glass services in:
- Vaughan: From Woodbridge to Maple, we deliver rapid response times.
- Richmond Hill: Expert care for luxury vehicles in your driveway or workplace.
- Markham: Comprehensive coverage for all neighborhoods, ensuring you don't have to tow your Audi across the city.
The AlexWindshield Technical Standard: A Step-by-Step Replacement Protocol
Replacing the sunroof glass on an Audi TT (2000-2006) is a complex operation that differs significantly from a standard windshield replacement. The Mk1 TT utilizes a specific track and motor system that is tightly integrated into the compact roof structure. Below is the detailed, step-by-step process our technicians follow to ensure a leak-proof, factory-grade installation.
Step 1: Site Preparation and Interior Protection
Before a single tool touches your vehicle, we prioritize the protection of your Audi’s interior. The leather seats and distinct aluminum trim of the Mk1 TT are prone to damage if not properly shielded.
- We apply heavy-duty protective covers to the front bucket seats, the steering wheel, and the center console.
- A specialized drop cloth is draped over the gear shifter and dashboard to prevent glass dust or urethane drips from making contact with interior surfaces.
- Exterior masking tape is applied around the roof aperture to protect the paintwork from accidental scratches during the extraction of the old glass.
Step 2: Damage Assessment and Debris Removal
When a sunroof shatters, tempered glass typically explodes into thousands of granular shards. These shards can lodge themselves in the sunroof tracks, the headliner, and deep within the upholstery.
- High-Power Vacuuming: We utilize industrial-grade vacuums to extract all glass particles from the vehicle's carpet, seats, and crevices.
- Track Cleaning: This is a critical step for the Audi TT. We meticulously clean the sunroof guide rails. If glass shards are left in the mechanism, they will grind against the gears, causing the motor to fail or the new glass to bind during operation.
- We inspect the sunroof motor and cables to ensure the impact didn't damage the mechanical operation of the roof system.
Step 3: Headliner and Trim Management
On vehicles aged between 2000 and 2006, the headliner board and plastic trim clips can become brittle. Our Master Technicians use specialized trim removal tools to prevent snapping these aged components.
- If necessary, we partially lower the headliner to access the mounting bolts of the sunroof assembly.
- We carefully disconnect the overhead console lighting and sunroof switch wiring without straining the vintage electrical harnesses.
- Great care is taken to avoid "creasing" the headliner board, a common mistake made by inexperienced technicians working on older German cars.
Step 4: Removal of the Damaged Glass Assembly
The sunroof glass on the Audi TT is mounted to the mechanism via specific brackets. Removing the remaining glass requires precision.
- We locate the Torx screws or mounting nuts that secure the glass panel to the lifting mechanism.
- The damaged frame is carefully lifted out of the roof opening.
- We inspect the weatherstrip seal (gasket) around the perimeter. On an Audi of this age, the rubber seal is often dry-rotted. We recommend replacing this seal simultaneously to prevent wind noise and water leaks.
Step 5: Surface Preparation and Drainage Check
The number one cause of water damage in an Audi TT is not a bad seal, but clogged drain tubes. Before installing the new glass, we perform a mandatory maintenance check.
- Drain Tube Testing: We pour water into the sunroof tray channels to ensure it drains freely out the bottom of the vehicle. If the tubes are clogged with debris, we use compressed air or a flexible snake tool to clear the blockage.
- Lubrication: We apply a high-quality, lithium-based grease to the tracks and lifting arms to ensure smooth operation for the new glass.
- The mounting points are cleaned with a solvent to remove old grease or dirt, ensuring the new screws seat correctly.
Step 6: Installation of the New Sunroof Glass
We source only OEM-equivalent or high-quality OEE (Original Equipment Equivalent) glass that matches the tint and curvature of the original Audi TT specifications.
- The new glass panel is lowered gently into the roof opening.
- We hand-thread the mounting screws to avoid cross-threading the aged metal brackets.
- Height Calibration: This is the most technical part of the install. The glass must sit perfectly flush with the roofline.
- If the glass sits too high, it creates wind noise.
- If it sits too low, water will pool and eventually leak.
- We adjust the height at all four corners, measuring to the millimeter to match Audi’s factory tolerances.
Step 7: Final Torque and Functionality Test
Once the alignment is perfect, we secure the glass permanently.
- All bolts are tightened to the manufacturer's specified torque settings.
- We reconnect the battery (if disconnected) and initialize the sunroof motor.
- We perform a full cycle test: The roof is tilted to the "vent" position and fully retracted to the "open" position multiple times to ensure there is no binding, grinding, or hesitation.
- A final "water test" is conducted using high-pressure spray to guarantee the seal is watertight before we hand the keys back to you.
Why the Audi TT Requires Specialized Care
The Audi TT (Typ 8N) utilizes a complex electrical system known as the CAN bus. While the sunroof seems mechanical, improper installation can trigger electrical faults if the overhead control unit is mishandled. furthermore, the aerodynamics of the TT are legendary; a poorly fitted sunroof can disrupt the airflow, creating an unbearable whistling sound at highway speeds.
General auto glass shops often treat a sunroof like a door glass—simply bolting it in. At AlexWindshield, we treat it like a structural component of the roof. We understand that the adhesive and seals must withstand the thermal expansion and contraction of the Greater Toronto Area's variable climate, from the freezing winters in Richmond Hill to the humid summers in Vaughan.
AlexWindshield: Your Trusted Partner in the GTA
When you choose AlexWindshield for your Audi TT sunroof replacement, you are choosing peace of mind. We are not just glass installers; we are automotive enthusiasts who respect the machinery we work on.
The AlexWindshield Advantage:
- Lifetime Warranty: We stand behind our workmanship. If you experience leaks or air noise resulting from our installation, we fix it for free, for as long as you own the vehicle.
- Mobile Convenience: We come to you anywhere in the GTA, including Markham, Vaughan, and Richmond Hill, saving you time and towing fees.
- Master Technicians: Our team is trained specifically on European models, ensuring that clips, sensors, and trim pieces are handled with the utmost care.
- Safety First: We never compromise on vacuuming out broken glass. Your safety and the preservation of your interior are our top priorities.
Don't let a broken sunroof compromise the beauty or functionality of your Audi TT. Trust the experts who understand the intricate details of German automotive design.
Contact AlexWindshield today to schedule your mobile sunroof replacement and restore your view of the sky.
