Expert Sunroof Replacement for Audi Q4 e-tron (2022-2027)
The Audi Q4 e-tron represents a paradigm shift in electric mobility, blending the brand’s legendary Quattro heritage with a futuristic, digitized cabin experience. A defining feature of this electric SUV is its expansive panoramic glass roof, which spans nearly the entire roof surface, flooding the interior with natural light and enhancing the sense of spaciousness. However, when road debris, sudden temperature fluctuations, or impact damage compromises this massive panel of glass, it does more than just ruin the aesthetic; it breaches the structural integrity and weatherproofing of your sophisticated EV. At AlexWindshield, we understand that replacing a sunroof on a high-voltage vehicle like the Q4 e-tron requires more than just glass handling skills—it demands distinct technical precision to protect the vehicle's intricate electronics and interior luxury.
Why Specialized Care is Critical for EV Sunroofs
Unlike traditional combustion engine vehicles, the Audi Q4 e-tron (2022-2027) relies heavily on aerodynamics to maximize battery range. The panoramic glass roof is engineered to sit perfectly flush with the roofline to minimize drag coefficient. A poorly installed sunroof can create turbulence, resulting in annoying wind noise and a reduction in electric efficiency. Furthermore, water leaks in an electric vehicle pose a significantly higher risk due to the abundance of sensors, the Augmented Reality Head-Up Display units, and high-voltage cabling running through the chassis.
At AlexWindshield, our Master Technicians utilize OEM-specification glass and proprietary adhesives designed specifically for the rigidity required by Audi’s chassis standards. We ensure your Q4 e-tron returns to factory specifications, preserving both safety and range.
Our Detailed A-Z Sunroof Replacement Process
Replacing the panoramic glass on an Audi Q4 e-tron is a complex procedure that involves interacting with the vehicle's headliner, drainage systems, and electronic motors. Below is the detailed, step-by-step protocol our technicians follow to ensure a flawless installation.
Phase 1: Interior Protection and Safety Setup
Before a single tool touches the vehicle, we prioritize the protection of your luxury interior. When a sunroof shatters, tempered glass typically explodes into thousands of granular shards that can embed themselves in perforated leather seats and carpet fibers.
- High-Voltage Awareness: While we do not disconnect the main battery for glass work, we follow strict safety protocols working around EV wiring harnesses located in the roof pillars.
- Interior Shielding: We apply heavy-duty protective covers over the dashboard, center console (specifically protecting the MMI touch response system), and leather seating surfaces.
- Exterior Protection: The roof rails and paint surrounding the panoramic frame are taped off with non-marring automotive masking tape to prevent accidental scratches during glass removal.
Phase 2: Debris Removal and Vacuuming
If the glass has shattered, this is the most time-consuming and critical stage. Leaving even a single shard of glass in the sunroof track mechanism can cause the motor to grind, bind, or fail prematurely.
- Bulk Glass Removal: We carefully remove the larger pieces of the remaining glass structure by hand, wearing cut-resistant gloves.
- Industrial Vacuuming: Using high-powered industrial vacuums with specialized narrow crevice attachments, we extract glass from every corner of the vehicle. This includes the floor mats, under the seats, inside the AC vents, and most importantly, inside the sunroof guide rails.
- Compressed Air Purge: We use regulated compressed air to blow out the sunroof tracks, dislodging hidden shards that the vacuum couldn't reach, followed by a second round of vacuuming.
Phase 3: Removing the Damaged Assembly
Depending on the damage, we may need to remove just the moving glass panel or the fixed rear element of the panoramic system.
- Trim Removal: We carefully detach the accordion blind covers and side trim pieces that hide the mounting screws.
- Hardware Extraction: Using Torx drivers, we remove the mounting bolts securing the glass panel to the motorized lifting mechanism.
- Sealant Cut-Out: If the glass is bonded (common on the fixed rear panel of the Q4 e-tron), we use an oscillating cut-out tool or wire system to slice through the old urethane bead without damaging the pinch weld or the aluminum roof frame.
Phase 4: Surface Preparation and Drainage Check
A new sunroof is only as good as the surface it bonds to. This step ensures leak-proof performance for the life of the vehicle.
- Old Adhesive Removal: We trim the old urethane down to a thin, even layer (approximately 1-2mm). This old base serves as the best substrate for the new adhesive to bond to.
- Drainage Testing: The Audi Q4 e-tron has specific water drain tubes located at the corners of the sunroof cassette. We test these for flow. If glass shards have clogged a drain, we use a flexible snake tool to clear the blockage. This prevents water from backing up and staining your headliner later.
- Chemical Cleaning: The bonding surface of the new glass and the vehicle frame are cleaned with a specialized solvent to remove grease, silicone, and dust.
- Primer Application: We apply a high-quality black primer to any exposed metal on the pinch weld to prevent rust. We also prime the ceramic band of the new glass to strictly ensure molecular bonding with the adhesive.
Phase 5: Installation and Bonding
This is the moment of precision. We use high-modulus, non-conductive urethane adhesive that is compatible with Audi’s aluminum and steel hybrid construction.
- Adhesive Application: Using a high-ratio electric caulking gun, we apply a triangular bead of urethane. The triangular shape ensures that when the glass is compressed, it spreads evenly without trapping air bubbles which could lead to leaks.

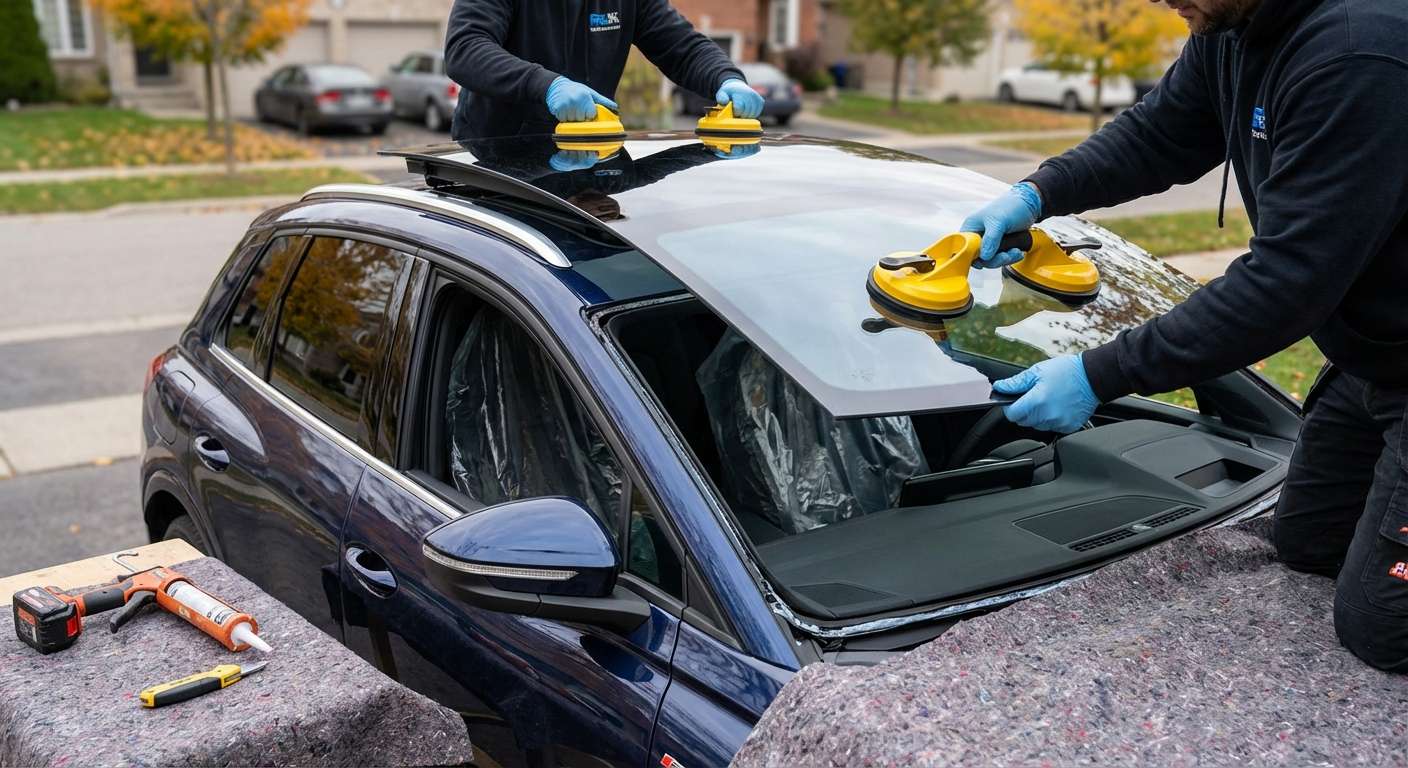

- Glass Setting: Using vacuum suction cups, two technicians carefully lower the new panoramic glass panel onto the roof.
- Alignment and Decking: We adjust the glass to ensure it is perfectly centered. Crucially, we check the "deck height." The glass must sit slightly lower than the roofline at the front and slightly higher at the rear (by millimeters) to minimize wind noise and ensure water flows correctly over the top.
Phase 6: Motor Synchronization and Calibration
Simply bolting the glass in is not enough. The Q4 e-tron’s computer needs to know the exact position of the new glass.
- Initialization: We perform a standardized initialization procedure on the sunroof motor. This teaches the system the "Zero Position," "Full Open," and "Full Tilt" limits.
- Anti-Pinch Testing: We test the safety anti-pinch feature to ensure the glass retracts automatically if it detects an obstruction (like a hand).
- Water Test: Once the adhesive has reached safe drive-away time, we perform a controlled water test to verify the integrity of the seal.
Serving the Entire Greater Toronto Area (GTA)
We know that driving a luxury EV with a broken roof is stressful and unsafe. That is why AlexWindshield brings our workshop to you. Our mobile service units are fully equipped to handle panoramic roof replacements across the GTA.
Whether you are charging your vehicle at home in Vaughan, parked at your office in Markham, or located in Richmond Hill, our mobile team arrives ready to work. We also service North York, Scarborough, Brampton, and Missisauga. Our mobile vans are equipped with power inverters and climate-controlled storage for our adhesives, ensuring that even in the Canadian winter, the bonding agents perform perfectly.
Why Audi Q4 e-tron Owners Trust AlexWindshield
The complexity of the Q4 e-tron requires a technician who understands the difference between a standard windshield and a complex panoramic ecosystem. We do not take shortcuts. We do not reuse single-use clips, and we never compromise on the quality of the glass.
- Lifetime Warranty: We stand behind our workmanship. Our installation comes with a lifetime warranty against wind noise, water leaks, and loose moldings for as long as you own the vehicle.
- Insurance Approved: We work directly with all major Canadian insurance providers to handle your glass claim efficiently, often with zero deductible to you depending on your policy.
- EV Expertise: Our technicians are trained in the specific nuances of electric vehicles, ensuring your battery systems and high-voltage cabling remain undisturbed during the repair.
