Premium Door Glass Replacement for Audi A4 2017-2024 (B9)
The Audi A4 (B9 generation, 2017-2024) is a testament to German engineering precision, blending sharp lines with a sophisticated, quiet cabin. However, that silence is instantly shattered when your side window is compromised. Whether due to a smash-and-grab theft, road debris, or an unfortunate accident, a broken door glass on your A4 is more than just a drafty inconvenience; it exposes the sophisticated interior electronics and premium leather of your vehicle to the harsh Canadian elements. Unlike generic sedans, the B9 platform utilizes complex door internals and tight tolerances that require a specialist’s touch. At AlexWindshield, we don't just replace glass; we restore the structural integrity and acoustic sanctuary of your Audi.
Why Specialized Care Matters for Your Audi A4
Replacing the door glass on an Audi A4 B9 is not a task for a generalist mechanic. This vehicle generation introduced significant updates to the door module systems and sound insulation materials. Incorrect installation can lead to wind noise, water leaks damaging the window regulator motor, or failure of the "one-touch" window functionality.
As the Master Technician at AlexWindshield, I have performed hundreds of replacements on the B9 platform. We understand the difference between standard tempered glass and the acoustic laminated glass options available on higher trim levels like the Technik or Progressiv. We ensure that the replacement glass matches your vehicle’s original specifications (OEM or OEE) to maintain the quiet ride you paid for.
Detailed Step-by-Step Replacement Process
At AlexWindshield, transparency is key. We want you to understand exactly how we handle your luxury vehicle. Below is the comprehensive, technical breakdown of how we perform a door glass replacement for the Audi A4 (2017-2024), ensuring no shard of glass is left behind and your door functions perfectly.
Phase 1: Site Preparation and Interior Protection
Before any tools touch your car, we prioritize protection. Broken tempered glass is incredibly sharp and can scratch your paint or cut your leather seats.
- We apply automotive-grade protective tape to the exterior window frame and B-pillar to prevent scratches during glass removal and insertion.
- Inside the cabin, we cover the seats, steering wheel, and center console with heavy-duty protective covers.
- If the glass is shattered but still held together by tint film, we tape the entire surface to keep it intact during removal.
Phase 2: Specialized Door Panel Removal (Disassembly)
The B9 Audi door card is secured by hidden fasteners that are easily broken if forced. We use specialized non-marring pry tools to preserve your interior trim.
- Trim Removal: We carefully unclip the decorative aluminum or wood trim strip across the door panel. Behind this, we locate and remove the specific Torx screws (usually T25) securing the panel.
- Fastener Location: We locate additional screws hidden beneath the door handle escutcheon and the armrest storage pocket.
- Panel Separation: Using a wedge tool, we pop the pressure clips around the perimeter of the door card. We lift the panel strictly vertically to clear the window channel lock.
- Harness Disconnection: We disconnect the Bowden cable (door latch mechanism) and the electrical harnesses for the window switch, door locks, and the premium Bang & Olufsen speaker system (if equipped), ensuring no pins are bent.
Phase 3: Debris Removal and Regulator Inspection
This is the most critical step often skipped by budget shops. When tempered glass explodes, it falls deep into the door shell.
- We carefully peel back the vapor barrier (water shield). It is vital to preserve the butyl adhesive so it can be resealed perfectly to prevent water from entering the cabin footwell later.
- Using a high-powered industrial vacuum with a flexible "crevice tool," we extract all glass shards from the bottom of the door shell.
- We reach in by hand (wearing cut-resistant gloves) to remove larger chunks trapped in the grease of the window regulator rails.
- Regulator Check: We inspect the window regulator cables and the sash clips for damage. Broken glass can sometimes sever these cables or crack the plastic clips. If damage is found, we advise on repair immediately.
Phase 4: New Glass Installation
With the path cleared, we prepare the new glass for the Audi A4 B9.
- Preparation: We clean the new glass thoroughly and transfer any necessary mounting hardware or clips from the old glass setup if required.

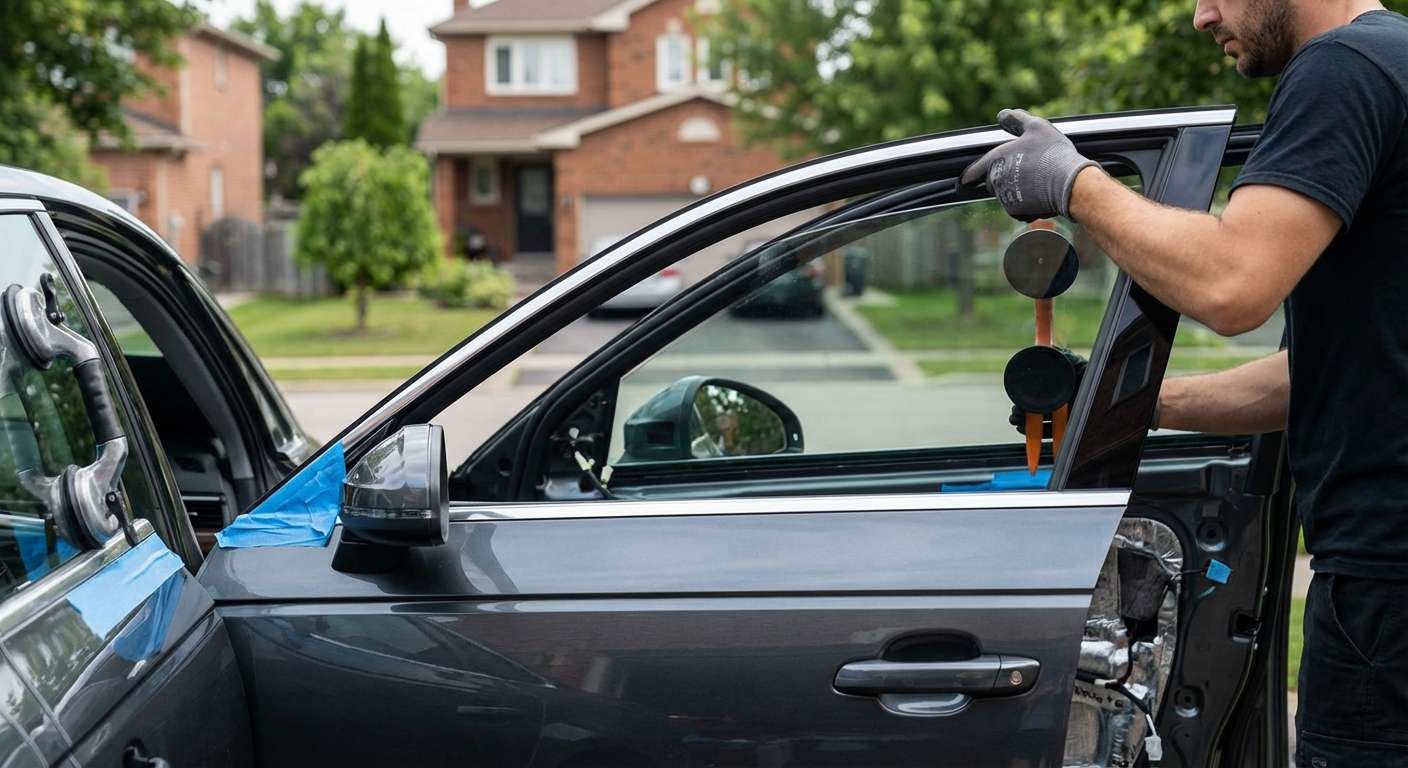

- Insertion: The new glass is inserted at a precise angle—nose down first—from the outside of the door frame, rotating it carefully into the vertical run channels.
- Securing the Glass: We lower the glass into the regulator carrier clips. We torque the clamping bolts to the manufacturer's specification (typically 8-10 Nm) to ensure the glass is gripped firmly but not stressed.
Phase 5: Testing and Reassembly
Before closing up the door, we verify functionality.
- We temporarily reconnect the window switch and cycle the glass up and down. We check for smooth operation, ensuring there is no binding or scraping noises.
- Window Reset: We perform the Audi-specific normalization procedure. This involves holding the switch in the 'up' position for a few seconds after the window closes to teach the computer the "top dead center." This reactivates the auto-up/auto-down and anti-pinch safety features.
- We reseal the vapor barrier, ensuring a watertight bond.
- The door panel is reinstalled, snapping all clips back into place and securing all Torx screws. The decorative trim is snapped back on as the final touch.
- A final vacuum of the vehicle's carpets and seats ensures no stray glass remains in the cabin.
Serving the Greater Toronto Area (GTA)
We understand that driving your Audi with a broken window is unsafe and uncomfortable. That is why AlexWindshield brings the shop to you. Our fully equipped mobile units operate throughout the entire Greater Toronto Area.
We provide priority mobile service to the following key areas:
- Vaughan: From Woodbridge to Maple, our technicians can meet you at your home or workplace.
- Richmond Hill: Whether you are near Yonge Street or Bayview, we provide rapid response times.
- Markham: Serving all neighborhoods including Unionville and Cornell.
- Toronto, Mississauga, Brampton, and Scarborough.
Tempered vs. Acoustic Glass: Knowing Your Audi
The Audi A4 B9 is unique because it offers different glass types depending on the package. The standard glass is tempered, designed to shatter into small, dull pebbles upon impact for safety. However, many B9 models are equipped with acoustic laminated glass for the front doors to reduce highway noise. This glass cracks like a windshield rather than shattering.
When you call AlexWindshield, we decode your VIN or ask specific questions to ensure we bring the exact glass match for your car. Installing thinner tempered glass in a vehicle designed for acoustic glass can result in wind noise and loose fitment. We never compromise on these specifications.
Why Choose AlexWindshield?
Your Audi A4 is a luxury investment, and it deserves premium care. At AlexWindshield, we combine technical expertise with customer-centric service.
The AlexWindshield Advantage:
- Master Technicians: Our team is trained specifically on European vehicles, including Audi, BMW, and Mercedes-Benz.
- Lifetime Warranty: We stand behind our workmanship. Our installation comes with a lifetime warranty against water leaks, air noises, and loose glass for as long as you own the vehicle.
- Mobile Convenience: We come to you at no extra cost within our service areas, saving you the hassle of a tow truck or a cold drive to a shop.
- Insurance Approved: We work with all major Canadian insurance providers to handle your glass claim smoothly.
Ready to Restore Your Audi A4?
Don't let a broken window compromise the safety and comfort of your Audi A4. Trust the experts who understand the intricacies of German automotive design. Contact AlexWindshield today for a free quote and schedule your mobile service in Vaughan, Richmond Hill, Markham, or anywhere in the GTA.
Call us now or book online to get back on the road with crystal clear confidence.
