Rear Door Window Sash Design and Mechanical Sealing
Replacing the rear door vent glass on this sedan requires dealing with a structural layout that sets it entirely apart from the glued-in quarter windows found on the Avant wagon. The fixed glass pane sits inside an upper window sash subframe bolted directly into the lower stamped steel door shell, flanked on its forward edge by a vertical division bar guide channel that houses the main drop glass. Instead of being glued directly to the exterior sheet metal with urethane bead adhesive, the single-pane tempered safety glass is encapsulated with an integrated rubber sealing gasket and exterior reveal moulding. It is locked into the upper subframe track strictly through tension and rubber lip seals, relying on correct mechanical positioning rather than sealants to prevent moisture intrusion.

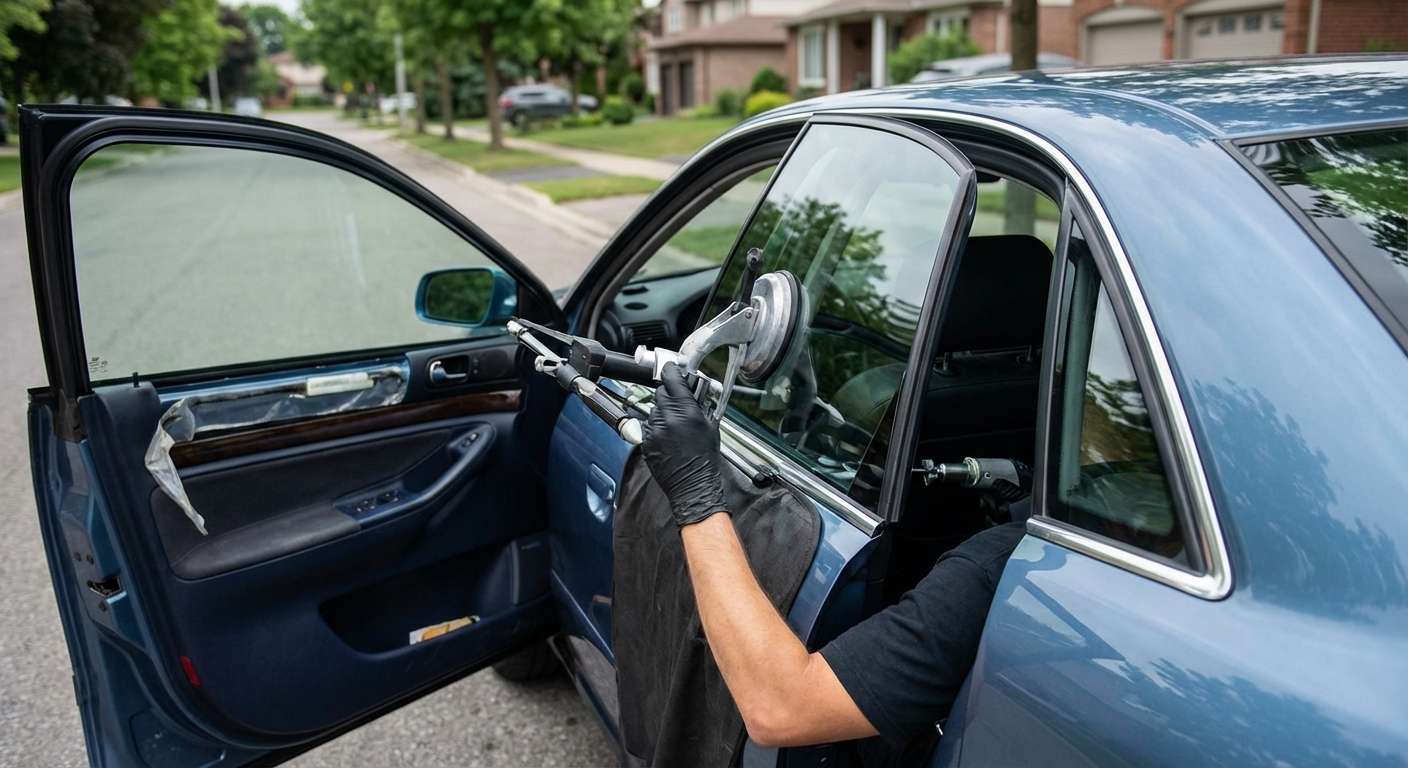

Because the pane relies entirely on mechanical retention, working on the assembly involves stripping the interior door card panel and loosening the upper door window frame assembly from the door shell. When a break occurs, I generally reach your location about an hour after a booking is finalized, bringing an aftermarket replacement pane matching the factory green tint profile corresponding to the original dealer reference 8D5 845 299 for the left driver side or 8D5 845 300 for the right passenger side. The pane itself is straightforward tempered glass—there are no embedded radio antenna grids, heating defroster lines, or modern acoustic interlayers—meaning all the sealing performance and fitment integrity rely on getting the perimeter moulding seated true against the vertical division bar.
Frame Alignment Torx Fasteners and Cabin Whistle Prevention
One of the most persistent post-replacement issues reported by drivers involves an aggressive cabin whistle or wind rush along the rear C-pillar at highway speeds. This almost never stems from a defective glass panel, but rather from improper alignment of the upper window sash during reinstallation. The lower mounting points of the upper frame use large Torx bolts secured against adjustable shims. If these factory shims are displaced, dropped into the door cavity, or tightened without cross-checking the sash rake against the body pinchweld, the door frame sits proud of the roofline. That misalignment creates a gap along the vent glass perimeter rubber, allowing air pressure differentials to suck the rubber lip away from the glass edge.
Age also complicates the fitment on these doors. Decades of heat cycling and UV exposure harden the exterior black surround trim (coded historically under factory suffixes like 01C and DZJ). Hardened rubber loses its pliability, making it difficult for the vertical division post to squeeze against the forward edge of the vent pane. When seating the replacement glass into the channel, the vertical run must be kept perfectly plumb relative to the descending drop glass. If the division post is tilted even a few millimeters aft while securing the lower sash brackets, the roll-down window binds in its felt channel, and the rear vent glass rubber distorts, causing chronic water leaks onto the floorboards behind the front seats.
